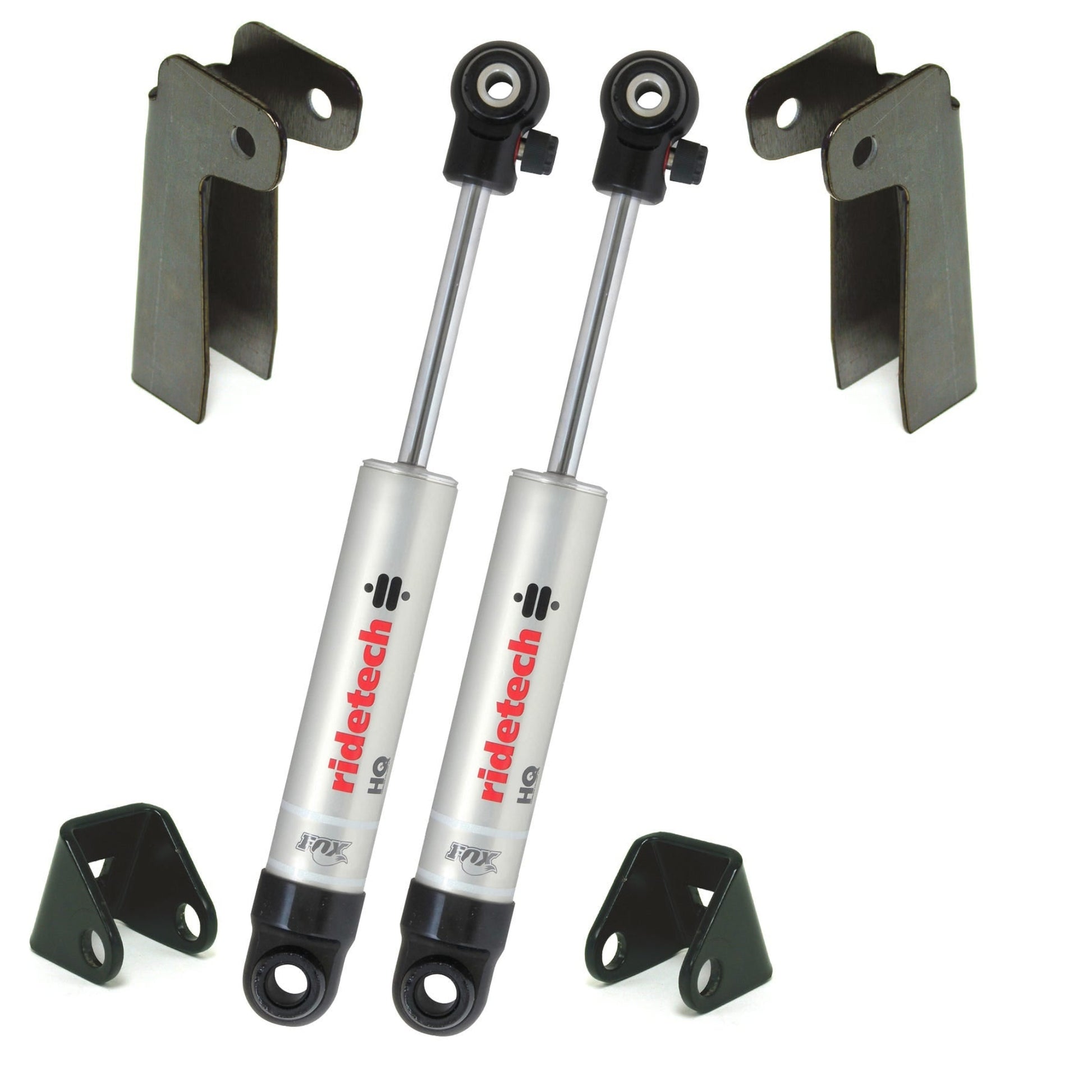

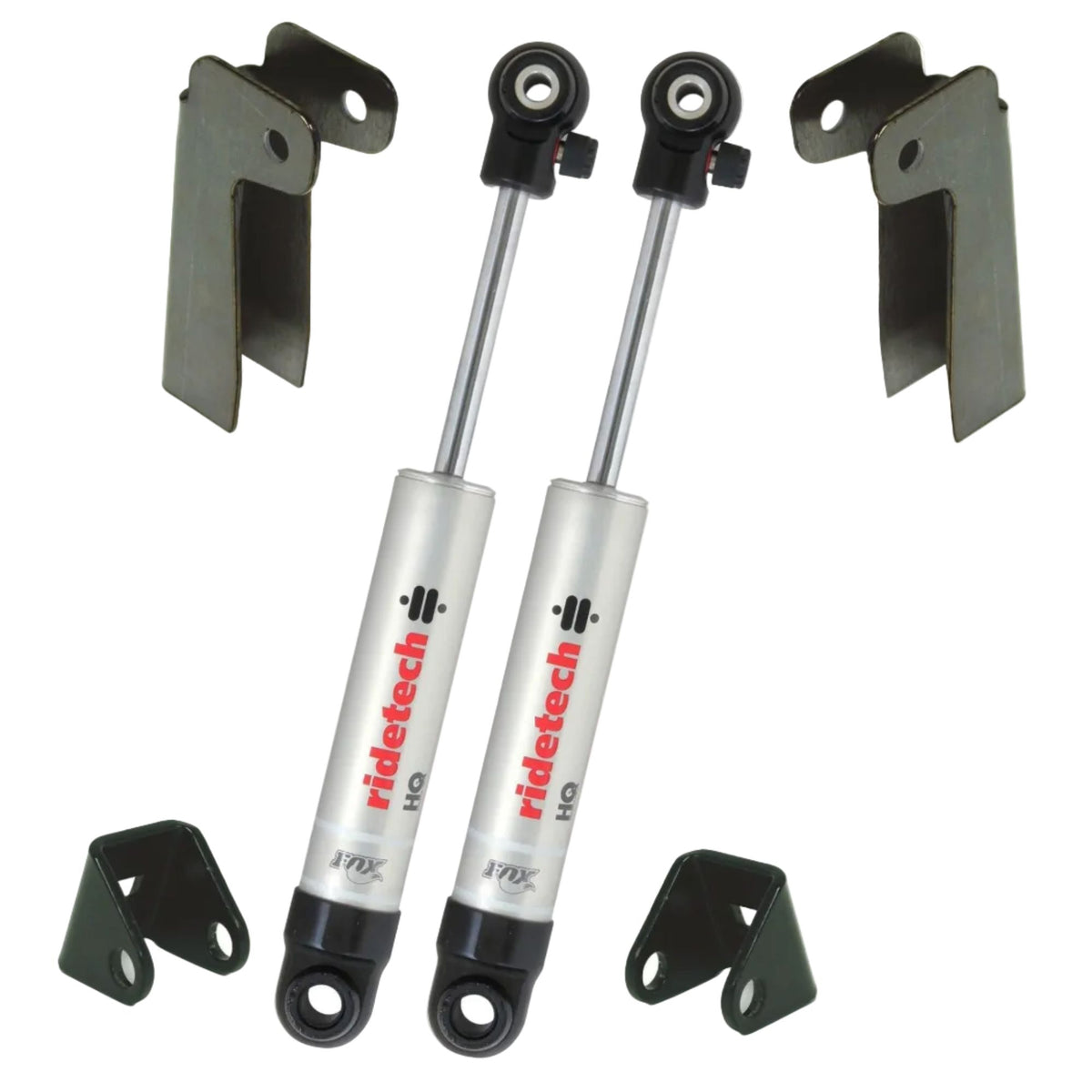

RideTech 11009910 Universal Front HQ Shock Relocation Kit

Improve Front Air Ride Clearance and Suspension Control

Make room for your front air springs while maintaining controlled suspension movement with the RideTech 11009910 Universal Front Shock Relocation Kit. This complete weld-on system moves the front shock absorbers outside the factory spring pockets, creating additional clearance for air suspension installations.

Featuring two RideTech HQ Series monotube shocks with 4.75" of stroke, along with upper and lower weld-on mounting brackets, this kit is designed for custom air ride builds that require relocated front shocks. The included bushings and inner sleeves provide the essential mounting components for a clean, properly engineered installation.

Key Features

Universal Front Shock Relocation

Moves the front shock absorbers outside the factory spring pockets to provide additional clearance for air springs and custom suspension components.

HQ Series Monotube Shocks

Includes two RideTech HQ Series shocks engineered to deliver controlled damping and consistent suspension performance.

4.75" Shock Stroke

Provides 4.75 inches of shock travel, with a compressed length of 10.15" and an extended length of 14.9" for compatible custom suspension configurations.

Weld-On Upper and Lower Mounts

Includes two sets of upper and lower shock mounting brackets, allowing the shock mounting locations to be positioned for the vehicle's suspension geometry.

Complete Shock Mounting Components

Supplied with four shock bushings and four inner sleeves to complete the shock mounting assemblies.

Designed for Custom Air Suspension

Ideal for bagged front suspensions where the original shock location interferes with air spring installation or available suspension clearance.

What's Included

(2) RideTech HQ Series front shocks
(4) Shock bushings
(4) Inner sleeves
(2) Sets of weld-on upper and lower shock mounts

Vehicle Fitment

Universal Applications

Custom front air ride suspension systems
Bagged cars and trucks
Custom suspension fabrication projects
Applications requiring front shock relocation outside the factory spring pocket

Fitment is universal and requires verification of mounting dimensions, available clearance, suspension geometry, and shock travel.

Important Notes

Welding and custom fabrication are required for installation.
Professional fabrication and installation are recommended.
Shock mounts must be positioned to accommodate the full suspension travel without shock bottoming, overextension, or interference.
Verify the 10.15" compressed length, 14.9" extended length, and 12.5"–13" recommended ride-height length before installation.
This kit includes shock absorbers and relocation brackets; air springs and air management components are not listed as included.
Free Ground Shipping to the Lower 48 U.S. States.

Product Specifications

Brand: RideTech
Part Number: 11009910
UPC: 840123500144
Product Type: Universal Front Shock Relocation Kit
Shock Series: HQ
Shock Design: Monotube
Position: Front
Shock Quantity: 2
Shock Stroke: 4.75"
Compressed Length: 10.15"
Extended Length: 14.9"
Recommended Ride-Height Length: 12.5"–13"
Mounting Type: Weld-On
Upper Shock Mounts: 2
Lower Shock Mounts: 2
Shock Bushings: 4
Inner Sleeves: 4
Application: Universal / Custom Air Suspension
Installation: Welding and Fabrication Required

Why Choose RideTech 11009910?

The RideTech 11009910 combines high-quality HQ Series shock absorbers with the mounting components needed to relocate front shocks on a custom air suspension.

Moving the shocks outside the factory spring pockets helps free up space for larger air springs and properly configured front air ride components. The included 4.75" stroke HQ monotube shocks provide controlled damping, while the weld-on brackets allow mounting positions to be established for the vehicle's specific suspension geometry.

Rather than purchasing shocks, brackets, bushings, and sleeves separately, this kit brings the essential relocation components together in one package.

Perfect For

Custom front air suspension installations
Bagged classic cars and trucks
Air spring clearance modifications
Front shock relocation projects
Custom suspension fabrication
Street rods and custom chassis builds
RideTech HQ shock upgrades
