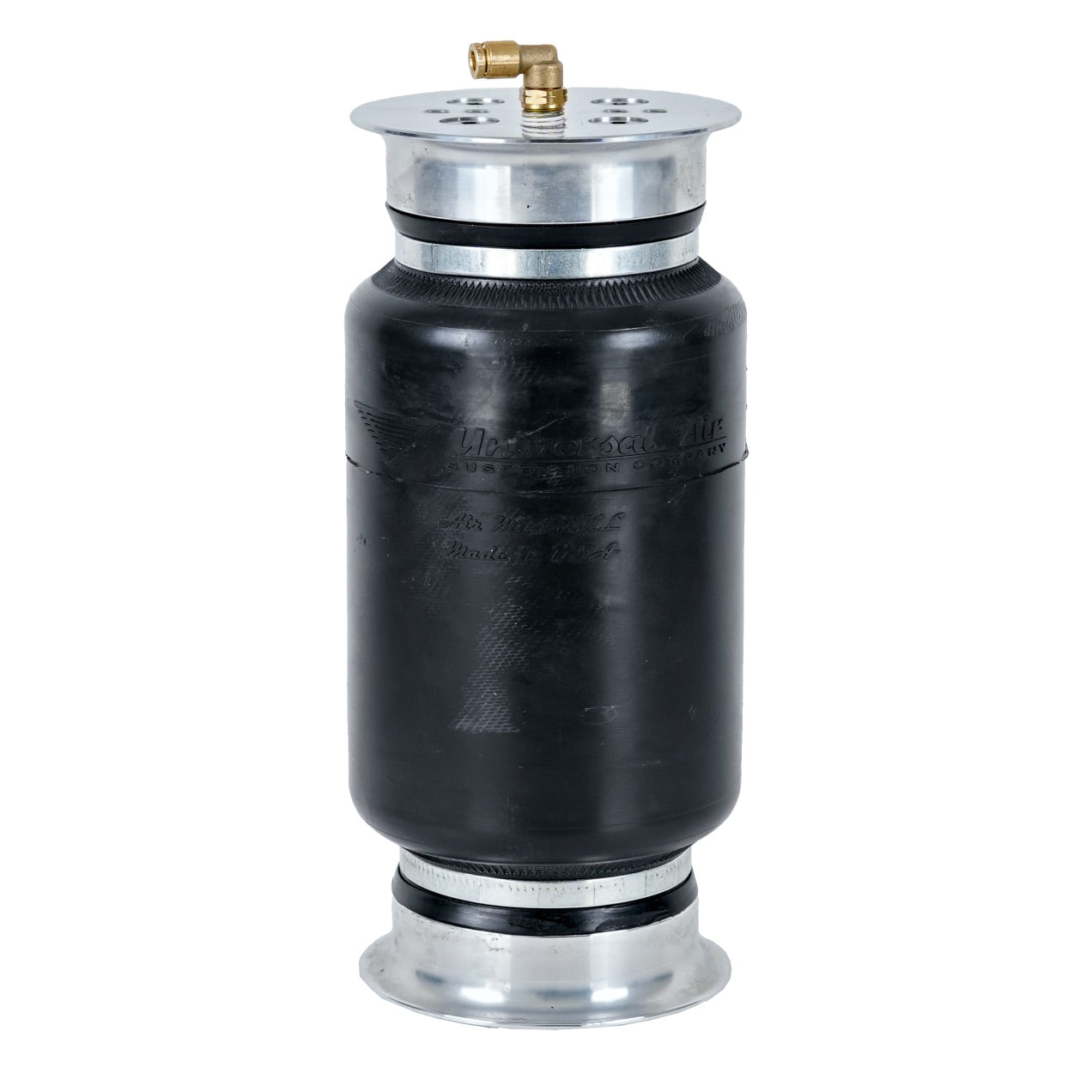

Universal Air U9000 Air House Mini XXL Air Bag With Beadplates

Universal Air U9000 Air House Mini XXL Air Bag With Beadplates

The Universal Air U9000 Air House Mini XXL is a compact, heavy-duty air spring designed as a direct replacement for F9000-style bags while offering increased load capacity in a smaller package. With solid aluminum caps, bead plates, and a 5.25" maximum diameter, this bag is built for tight-clearance air suspension applications.

With a 4.25" collapsed height and 15" extended height, the U9000 provides up to 11.75" of travel. Its single-bellow construction helps improve stability, angle capability, and resistance to center kick-out compared to traditional double-convoluted bags.

Specifications:

• Collapsed height: 4.25"
• Extended height: 15"
• Maximum diameter: 5.25"
• Optimum ride height: 5.5" - 9.5"
• Port: 1/4" NPT
• Force rating: up to 1,900 lbs. at 115 PSI
• Burst pressure tested to 537 PSI
• Heavy-duty thick rubber construction
• Machined 6061 aluminum caps
• Front or rear installation
• Straight or angled installation
• Industry-standard bolt pattern
