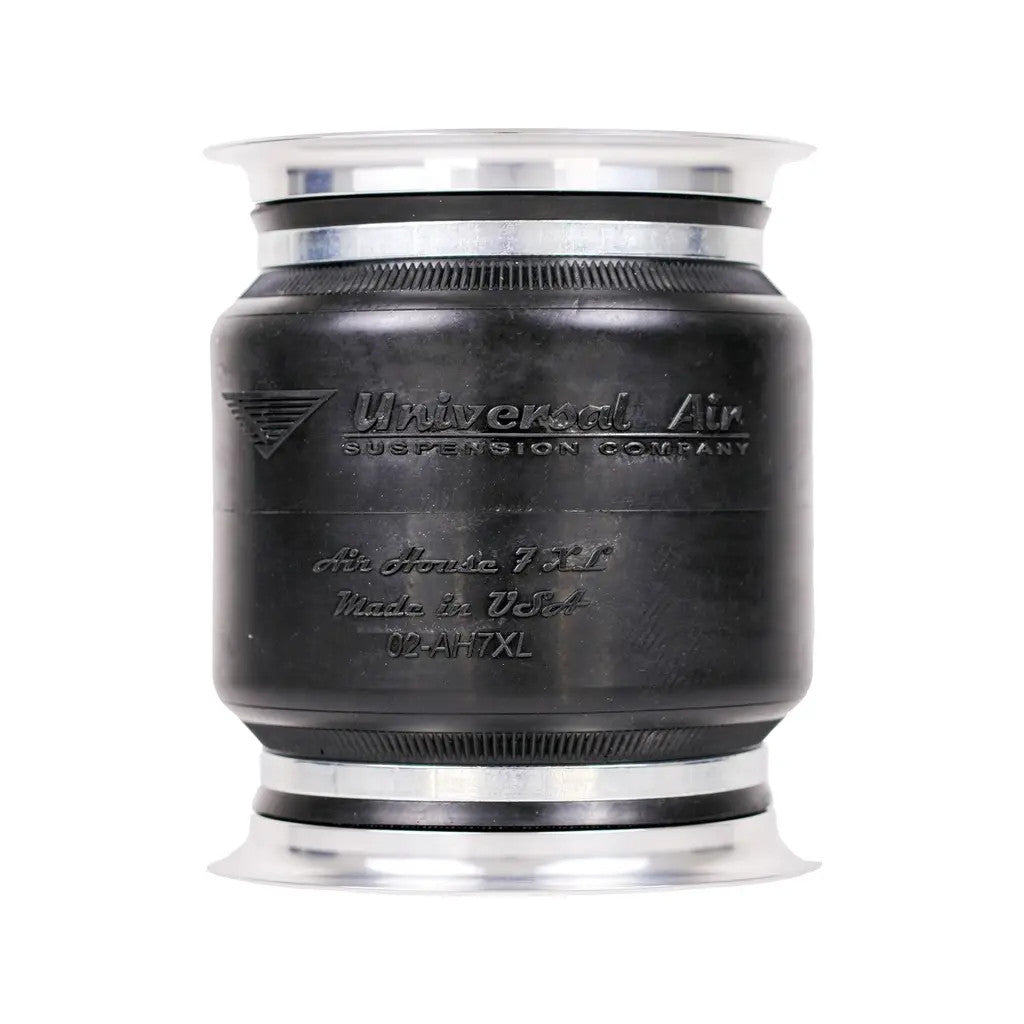

Universal Air Air House 7 XL Gen 2 Air Bag with Bead Plates

Upgrade your air suspension setup with the Universal Air Air House 7 XL Gen 2 with Bead Plates. Designed as a direct replacement for standard 7" air bags, the Air House 7 XL Gen 2 gives you extra travel, a smoother ride, and a larger usable ride-height range while maintaining a low 2.75" collapsed height.

The Air House 7 XL was built to perform similar to the standard Air House 7, but with an extra-long bellow for more suspension travel. By extending the bellow, Universal Air created a larger ride-height "sweet spot" for better drivability. To support the longer bellow during compression, this version includes bead plates for added strength and stability.

Unlike typical double-convoluted bags that can suffer from center kick-out, the Air House 7 XL Gen 2 uses a single-bellow, no-center-ring design. This helps improve air spring stability, allows for increased angle and load applications, and reduces the common "banana" center kick-out issue.

This air bag is best suited for control arm front suspension setups or link-style rear suspension systems where the bag is mounted on the bar and can take advantage of leverage. The maximum outside diameter when compressed is 7" and shrinks down to approximately 6-5/8" when inflated, helping minimize frame cutting in many applications.

With its added stability, heavy-duty rubber construction, and machined 6061 aluminum caps, the Air House 7 XL Gen 2 is a strong choice for custom air ride builds that need dependable travel, load capacity, and improved ride quality.

Key Features

• Designed as a direct replacement for standard 7" air bags
• Extra-long bellow design for increased suspension travel
• 2.75" collapsed height and 10.75" extended height
• 4.25" to 7" optimum ride height range
• Up to 3300 lb force at 115 PSI
• No center ring design helps reduce center kick-out
• Single-bellow construction improves air spring stability
• Noticeable reduction in vehicle sway compared to typical double-convoluted bags
• Heavy-duty thick rubber construction
• 615 PSI tested burst pressure
• Machined 6061 aluminum caps
• Industry-standard bolt pattern
• Front or rear installation
• Straight or angled installation
• Available in 3/8" and 1/2" NPT port sizes

Fitment Notes

This is a universal/custom air suspension component, not a guaranteed direct-fit vehicle-specific kit. Always confirm mounting dimensions, clearance, bolt pattern, port size, ride height, and suspension geometry before ordering. Professional installation is recommended.
