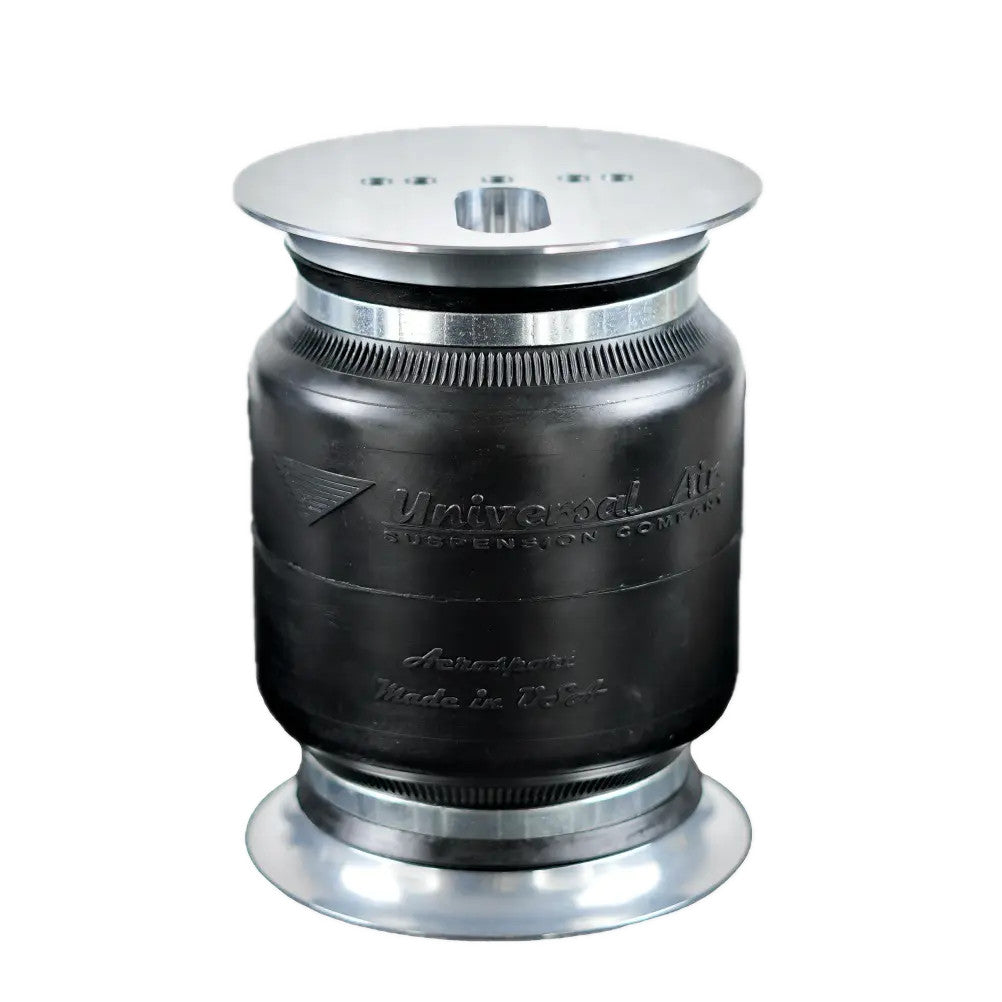

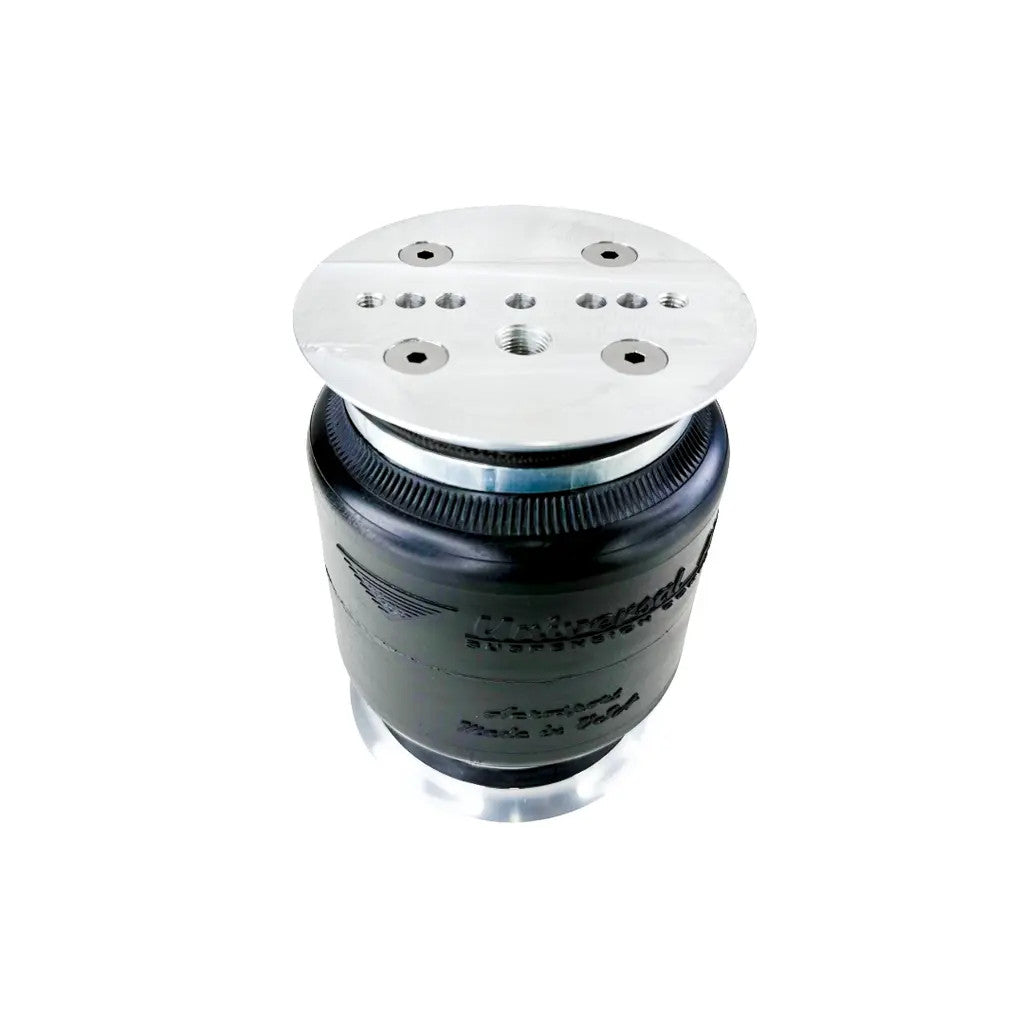

Universal Air Air House 6L Air Bag with Bead Plates
The Universal Air Air House 6L is built for custom air ride suspension setups that need more usable travel from a compact 6-inch style air spring. Designed as a direct replacement for a standard double-convoluted air bag, the 6L gives builders extra suspension movement without stepping up to a larger bag in many applications.
Universal Air designed the Gen 3 6L with slim bead plates and bead plates attached to the caps, helping create a shorter collapsed height and easier installation. With a low collapsed height and tall extended height, this bag is a solid choice for front control arm setups, rear link suspension systems, and custom builds where travel and packaging both matter.
Key Features
- Universal Air Air House 6L Gen 3 air bag
- Includes bead plates
- Designed for custom car and truck air suspension applications
- Direct replacement style for many standard double-convoluted air bags
- Compact 6-inch diameter class design
- Short collapsed height for tighter fitment
- Large extended height for increased suspension travel
- Great for control arm front suspension and link-style rear suspension setups
- Helps maximize travel when mounted in leveraged suspension applications
Approximate Specs
-
Collapsed Height: 2.7"
-
Extended Height: 10.75"
-
Available Bag Travel: Approximately 8"
-
Diameter Class: 6"
-
Port Options: Single or dual port depending on selected option
Best Used For
- Custom air ride suspension builds
- Control arm front suspension setups
- Rear link suspension setups
- Applications where the bag is mounted on the bar to take advantage of suspension leverage
- Builders wanting more travel than a typical 6-inch double-convoluted bag
Fitment Note: These are universal air bags and may require vehicle-specific brackets, mounts, fabrication, or suspension setup changes. Always confirm dimensions, port size, mounting pattern, and clearance before ordering.
Sold individually unless otherwise stated.
