Slam Specialties MC1-SS 8-Switch Air Ride Controller – Black

Slam Specialties MC.1-SS 8-Switch Air Ride Controller – Black

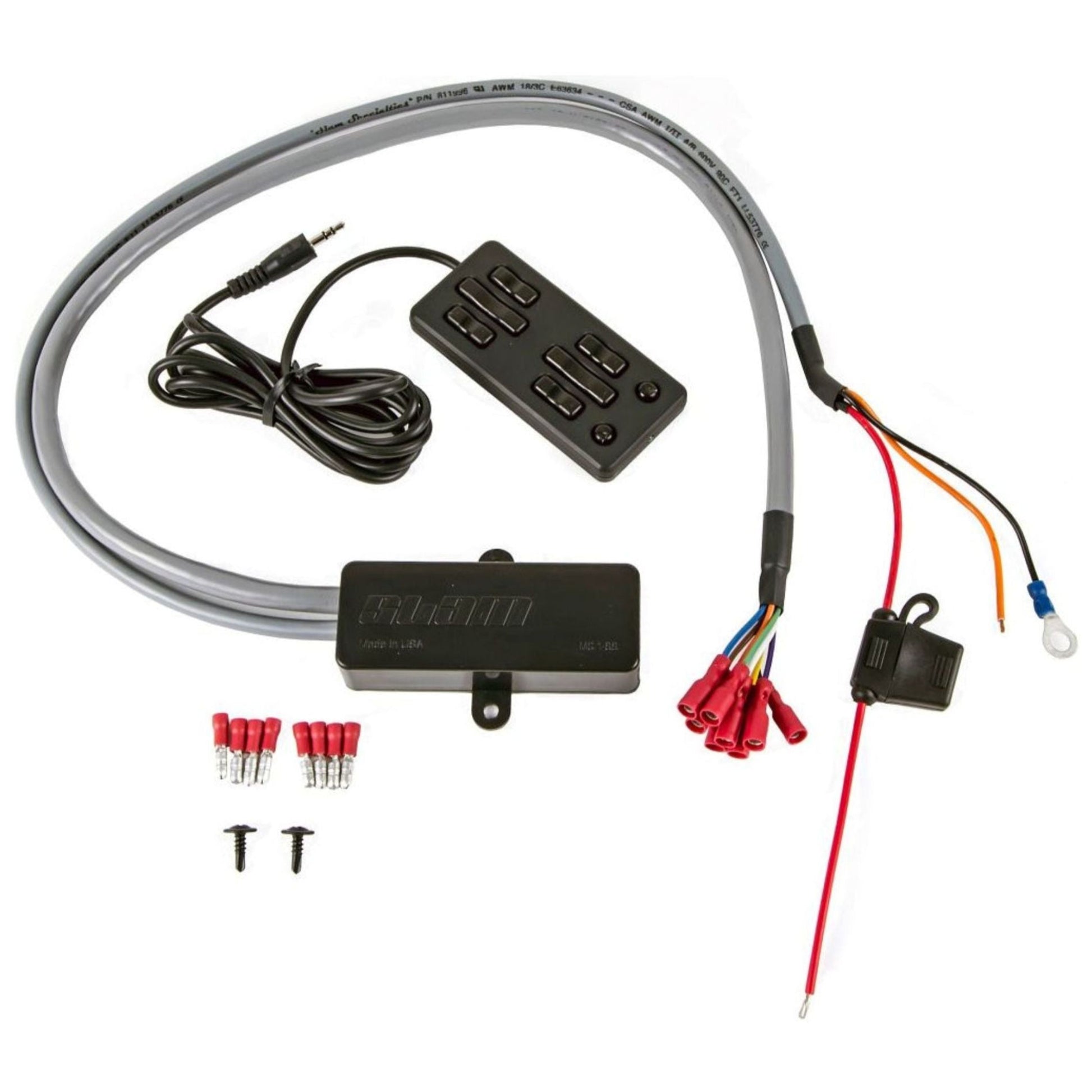

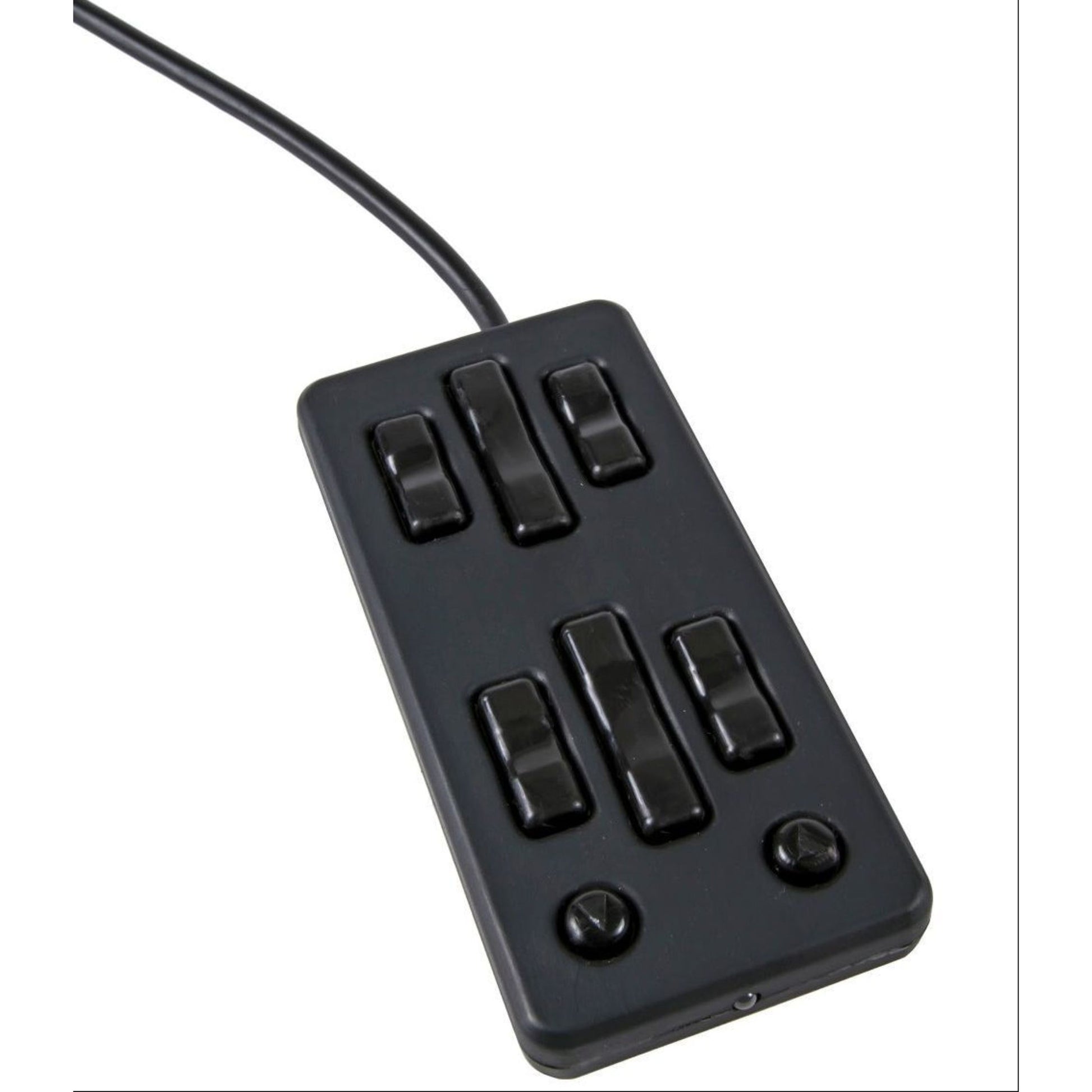

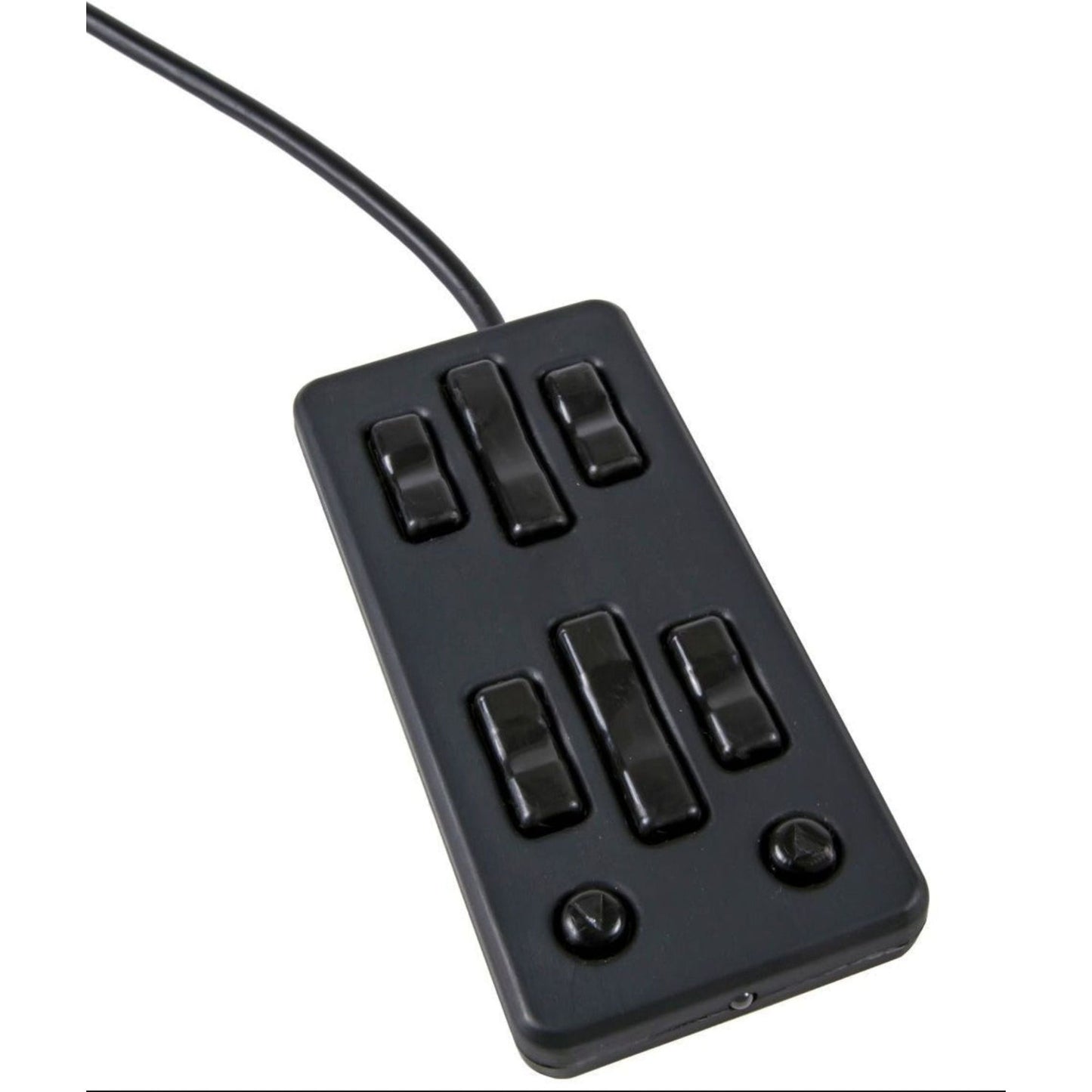

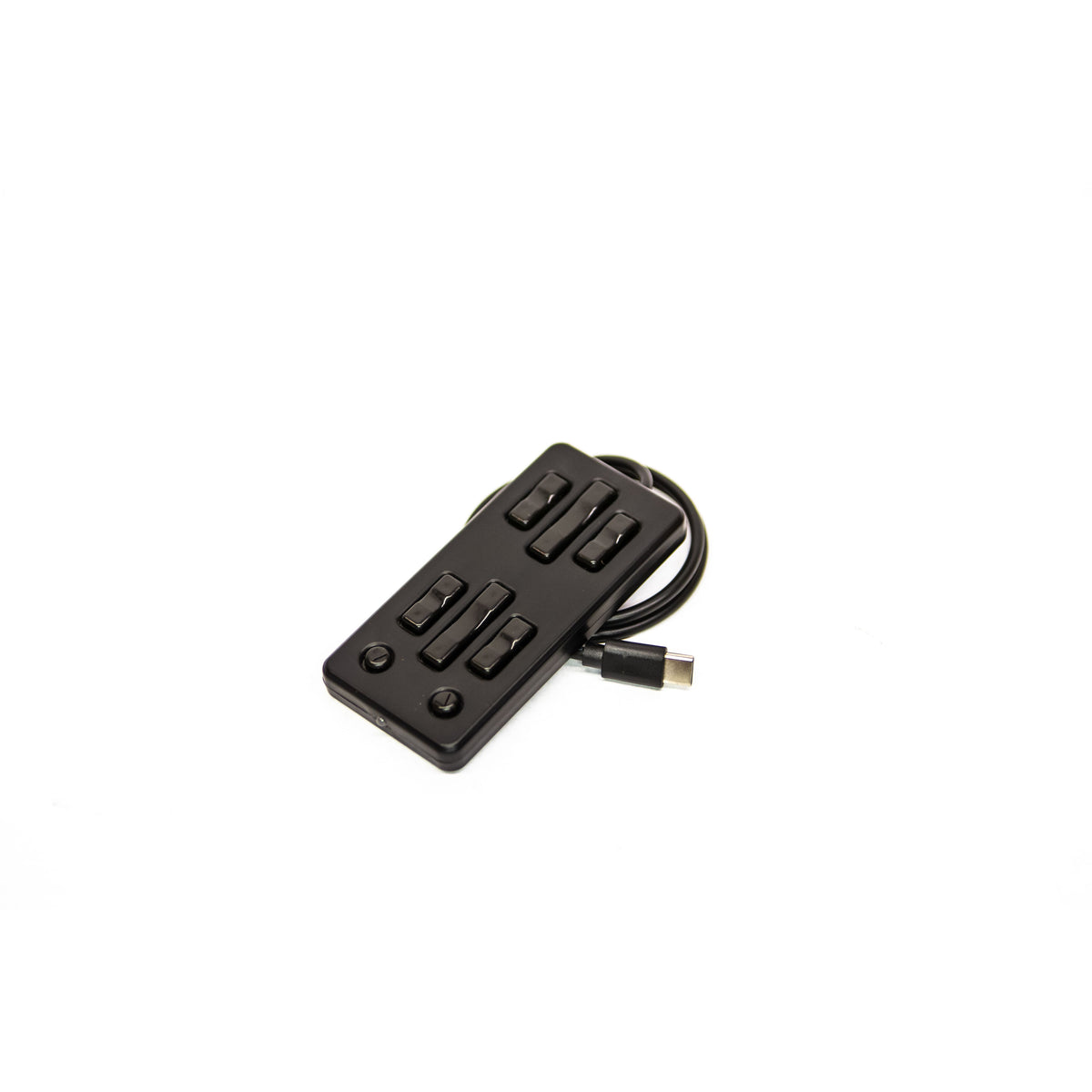

The Slam Specialties MC.1-SS is a compact, wired handheld controller for manual four-corner air suspension control. Its eight switches let you operate the fill and dump functions for each corner of your air ride system.

Features

• Eight-switch layout for manual four-corner control
• Controls eight valve outputs individually
• Microprocessor-controlled solid-state electronics
• Built-in Coil Saver Technology to help protect valve coils
• Compact black housing for a clean interior installation
• Made in the USA by Slam Specialties

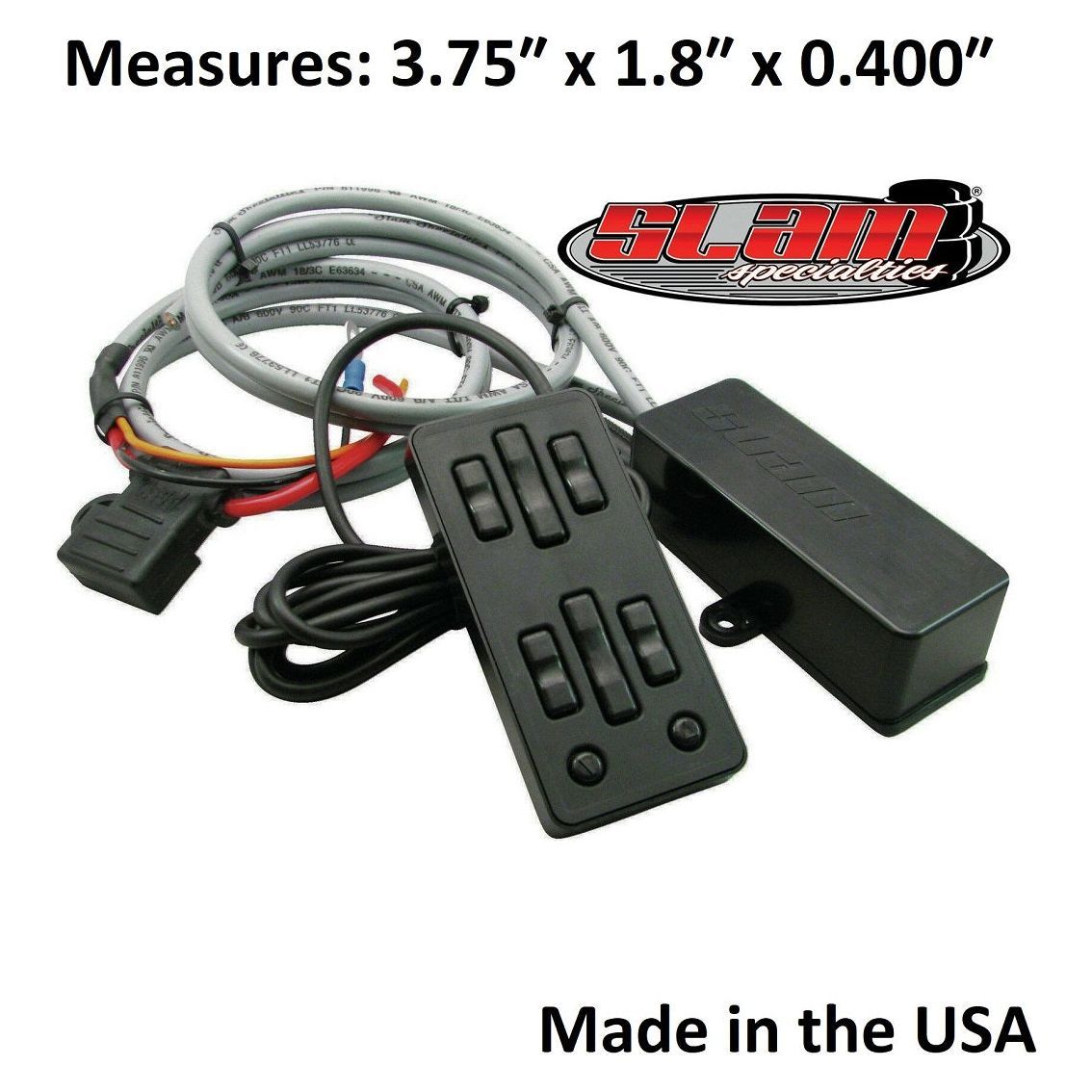

• Manufacturer-listed dimensions: approximately 3.75 × 1.8 × 0.395 inches
• One-year manufacturer warranty

Compatibility and Installation

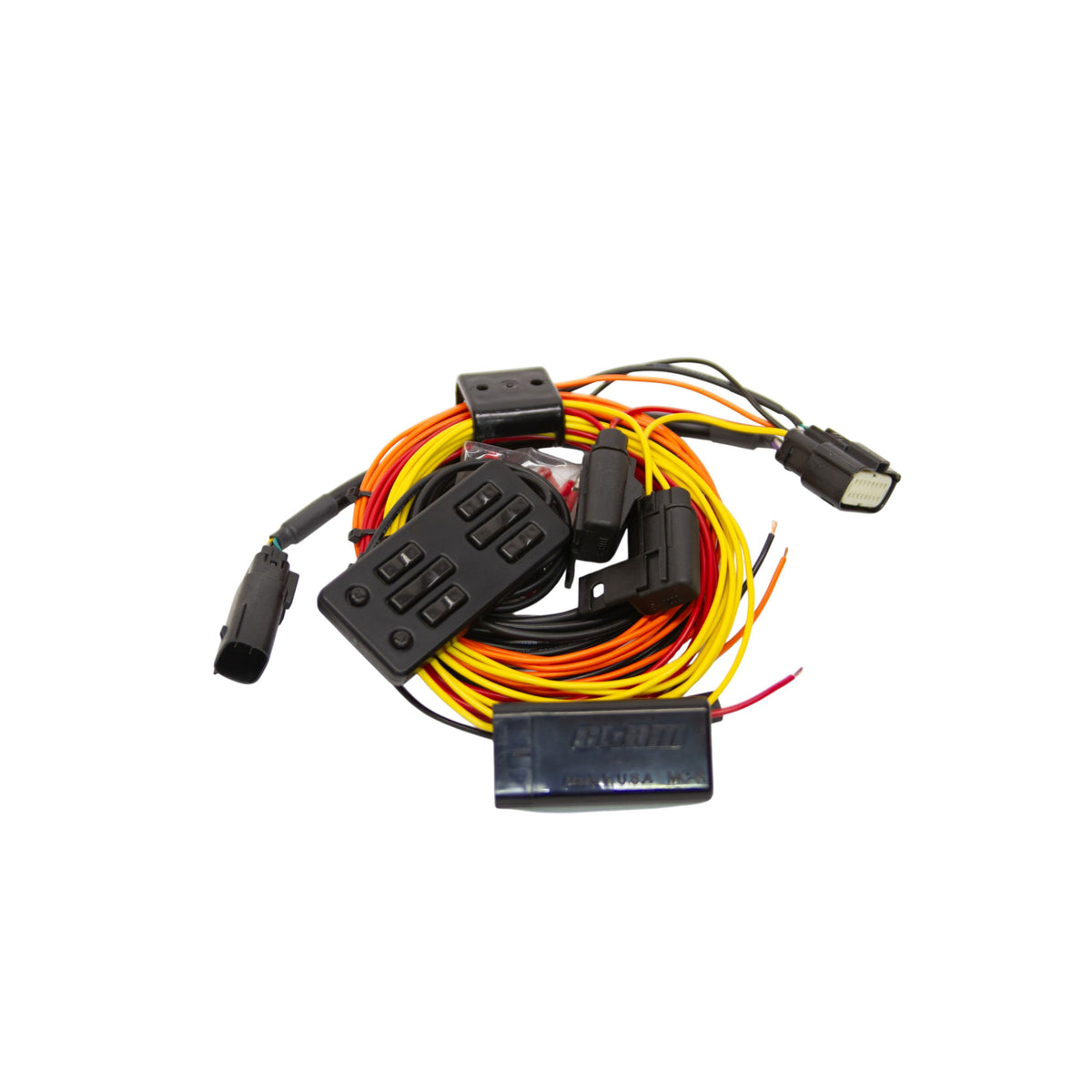

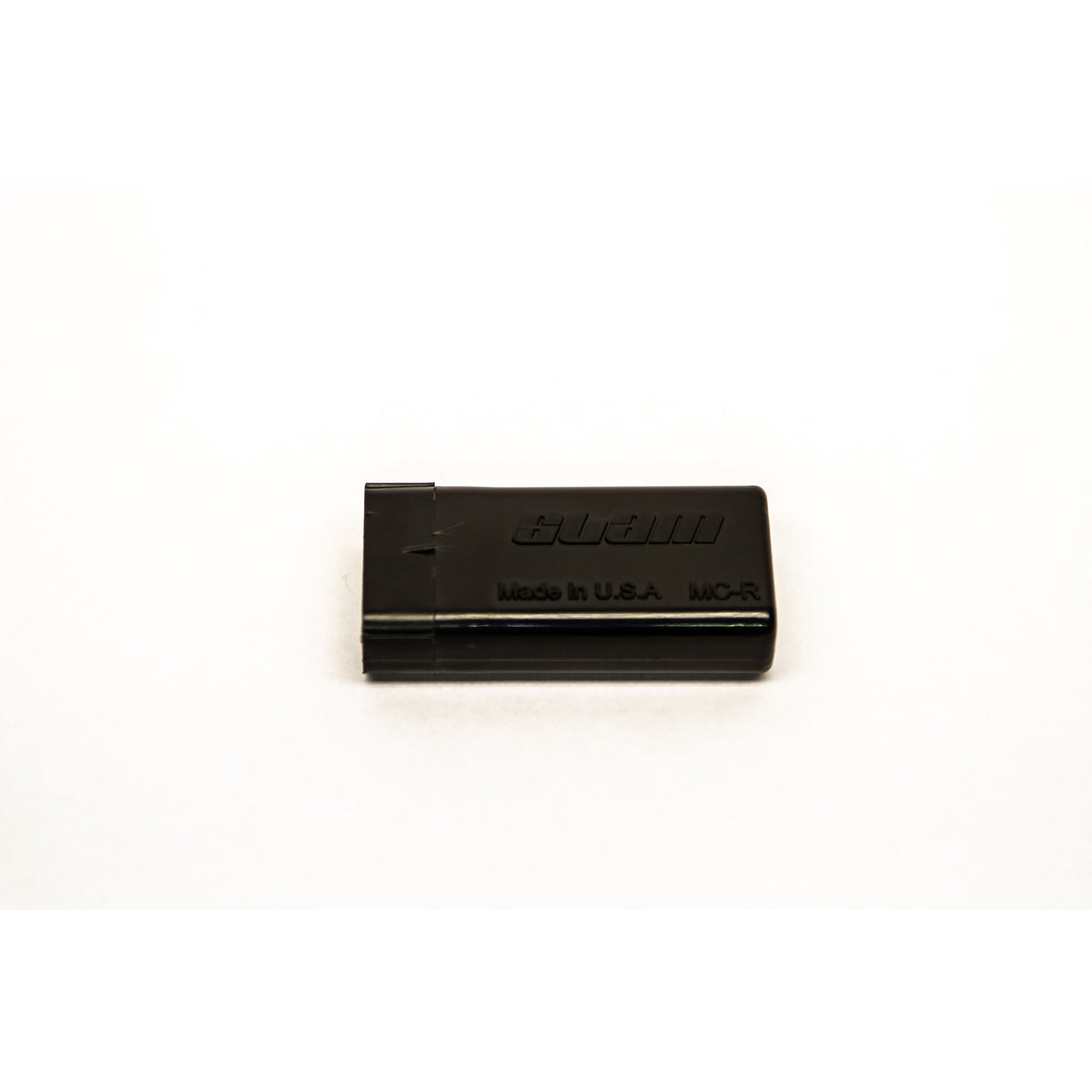

The MC.1-SS operates as part of a controller system using a handheld unit and a compatible receiver/driver module. Installation requires power, ignition, ground, and connections to the suspension valves.

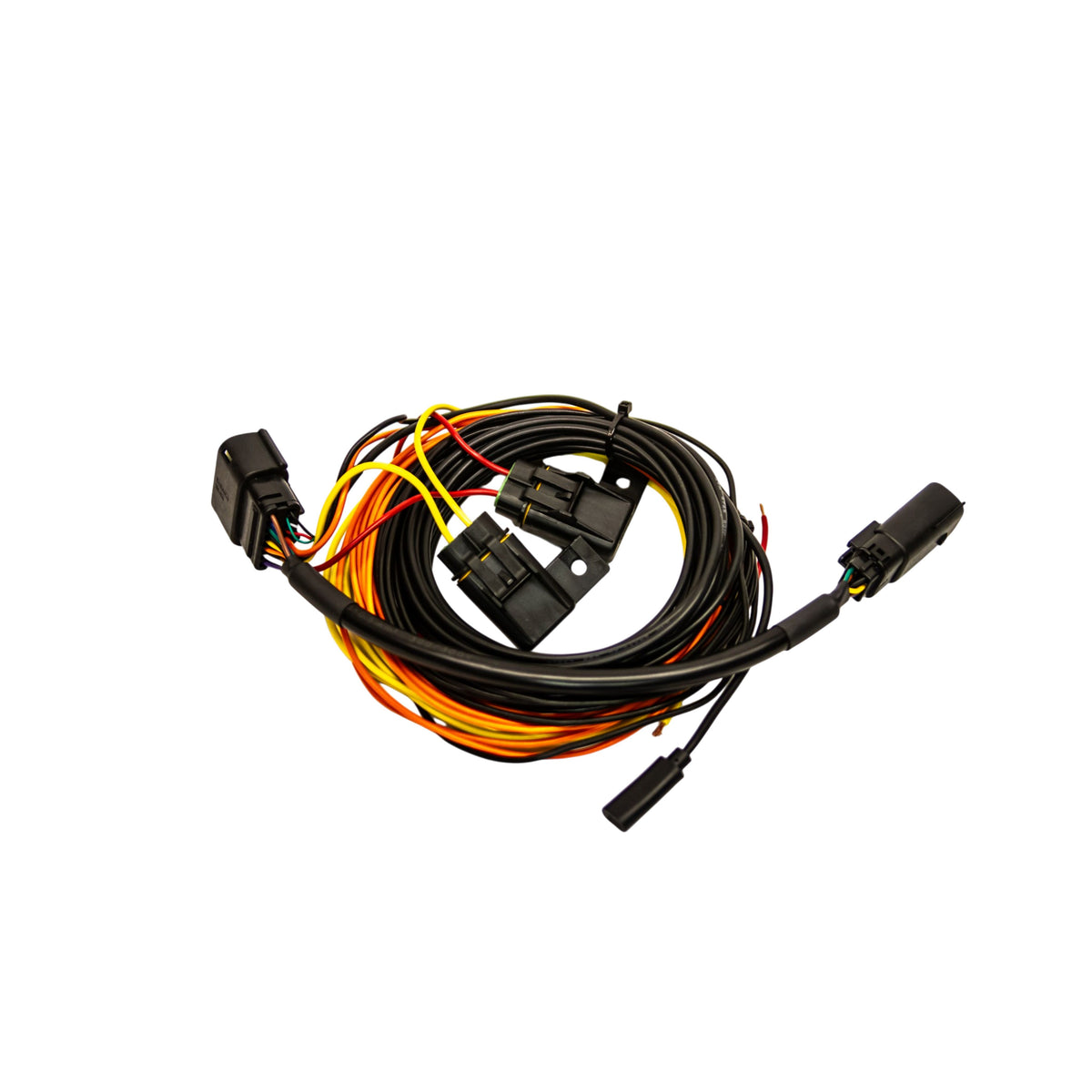

Confirm the controller version, receiver, connectors, and required wiring harness before connecting it to a Slam Specialties SV-8/SV-8C manifold or another valve setup. Connection requirements depend on the equipment being used.

Mount the receiver in a dry, protected location. The receiver is not watertight. Follow the Slam Specialties installation instructions for your specific controller version.

Manual Air Suspension Control

This is a manual air ride controller. It does not provide automatic ride-height leveling or stored height presets. Air suspension valves, air springs, and the air supply system are required for operation.

Installation Instructions

 View Slam Specialties installation diagram

Manufacturer-designated use: Off-road/show use only.
