Slam Specialties ASCEND Air Ride Management Kit with SV8C Manifold & Height Sensors

Slam Specialties ASCEND + SV8C Air Ride Management Kit

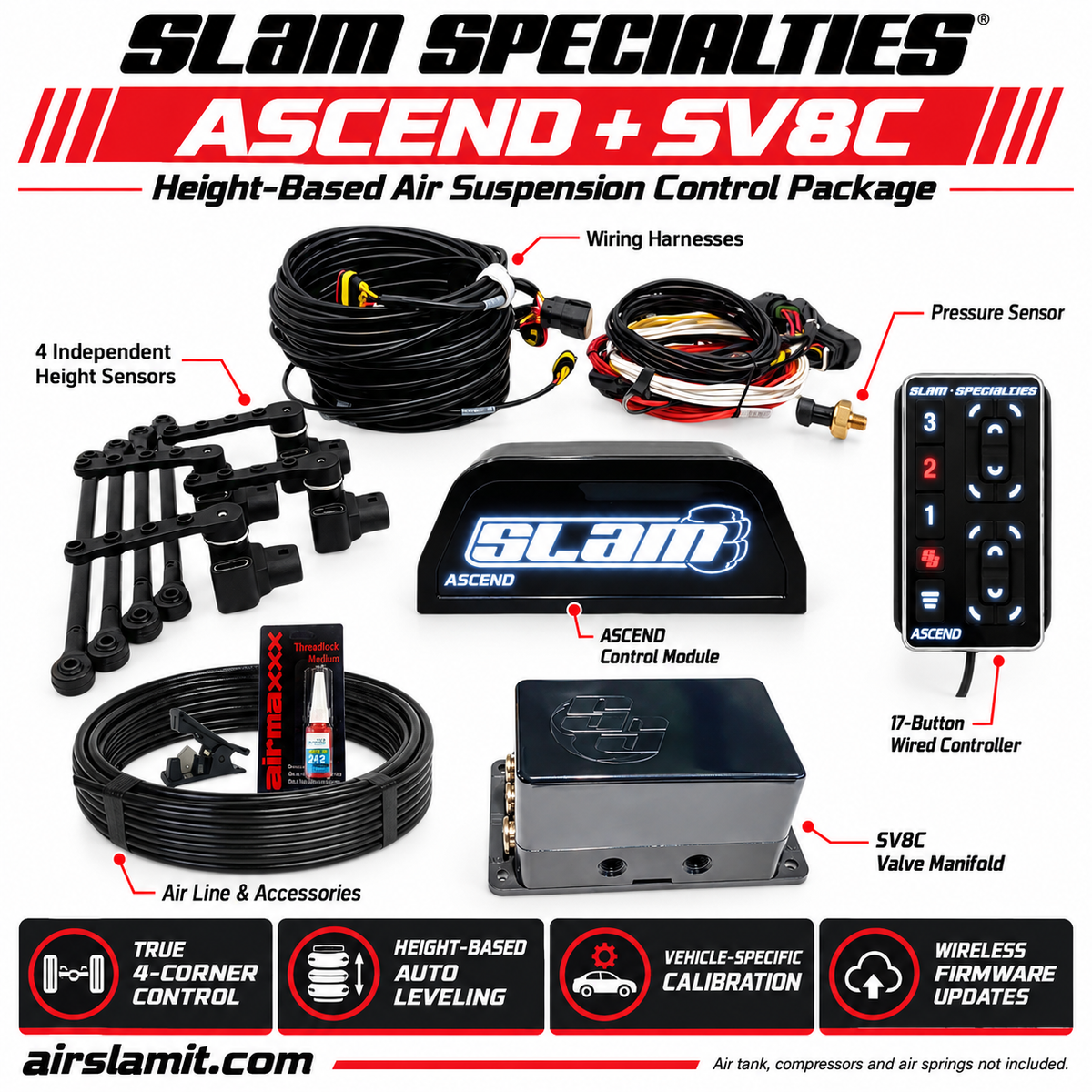

Control all four corners of your air suspension with the Slam Specialties ASCEND height-based air management system and SV8C valve manifold. This package includes a wired handheld controller, four independent height sensors, wiring harnesses, and 50 feet of 3/8-inch air line.

Save and recall three preset heights using the dedicated controller. ASCEND measures actual suspension position at each corner to provide height feedback as passenger and cargo loads change.

Three Preset Heights & Individual Corner Control

Store your preferred suspension heights for convenient recall. The 17-button wired handheld controller also provides individual corner control without reaching for a phone.

Vehicle-specific calibration builds control around how your suspension responds. Independent valve timing lets ASCEND tailor each corner’s movement to reach the selected height.

Plug-and-Play Harness Connections

Matching harness connections simplify hookup between the included control components. Supplied wiring harnesses help organize installation, while the included 50 feet of 3/8-inch air line provides plumbing for your air suspension system.

Sensor mounting, electrical connections, air-line routing, and system calibration are required.

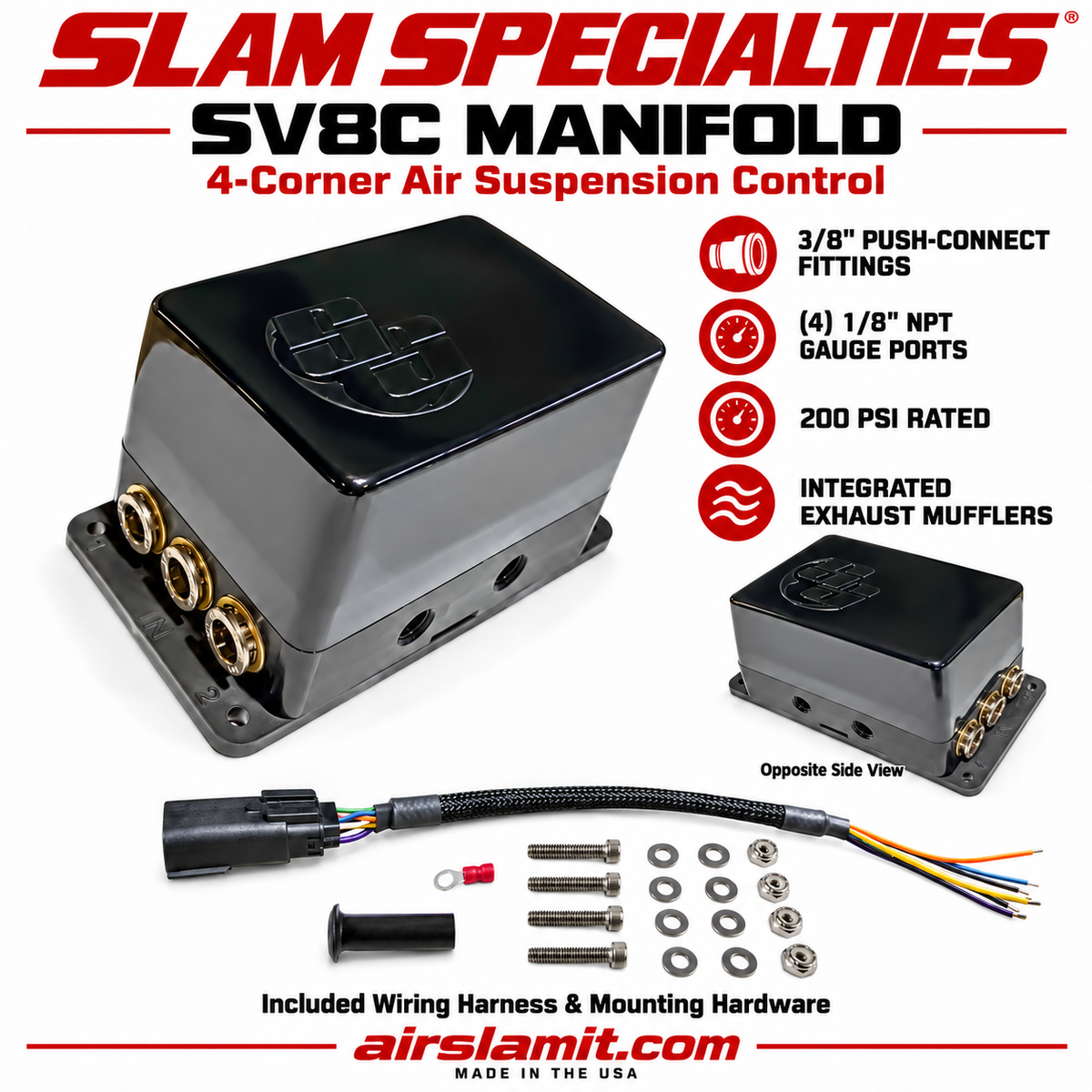

Slam Specialties SV8C Valve Manifold

The compact SV8C manifold combines independent four-corner air control into one assembly for a clean installation.

• Dual 3/8-inch push-connect tank inlets
• Four 3/8-inch push-connect air spring ports
• Four 1/8-inch NPT gauge ports with installed flush plugs
• 200 PSI pressure rating
• Integrated exhaust mufflers
• Water-tight electrical connector
• Designed and manufactured in the USA

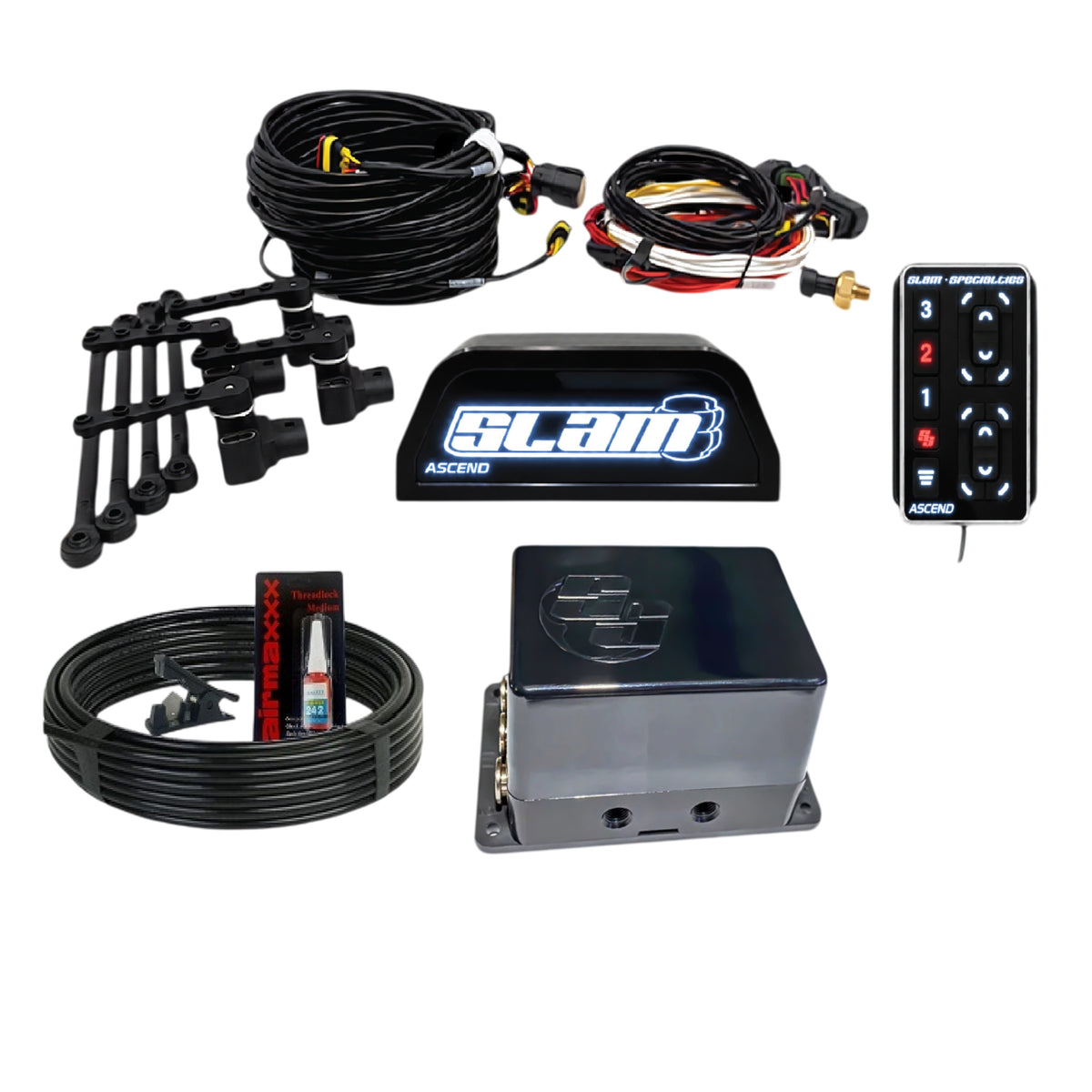

Package Includes

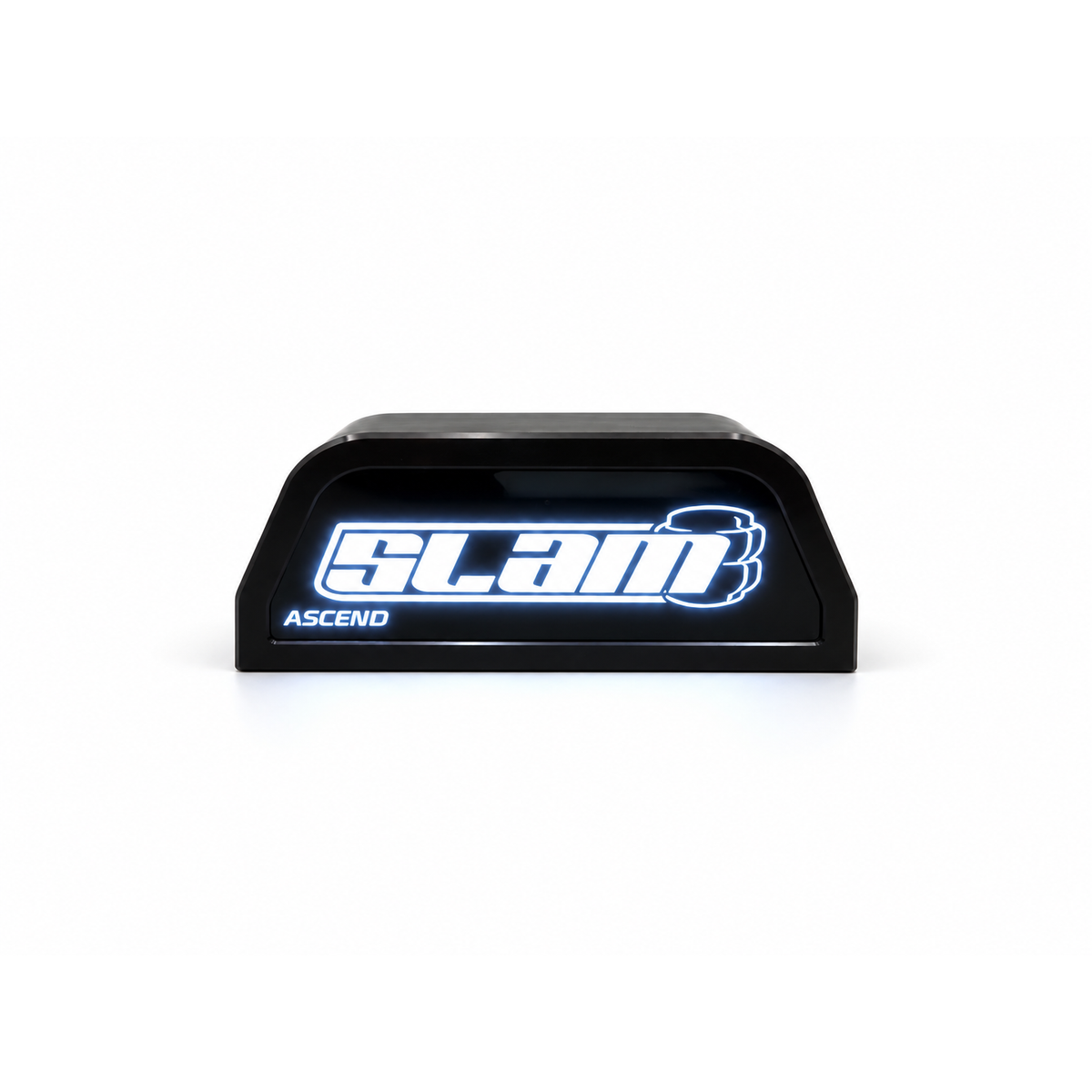

• Slam Specialties ASCEND control module
• ASCEND 17-button wired handheld controller
• Four height sensors with linkage assemblies
• ASCEND wiring harnesses
• Tank pressure sensor
• Slam Specialties SV8C four-corner valve manifold
• Manifold wiring harness and mounting hardware
• 50 feet of 3/8-inch air line
• Air-line cutter and threadlocker

Key Features

• Height-based automatic leveling
• Three programmable preset heights
• Independent control and height feedback at all four corners
• Vehicle-specific calibration
• Independent valve timing
• RGBW visual status feedback
• Wireless firmware updates

Installation Notes

Air tank, compressors, and air springs are not included. Use with a compatible air suspension system. Install a suitable filter or water trap between the air tank and manifold to help prevent moisture and debris from entering the valves.
