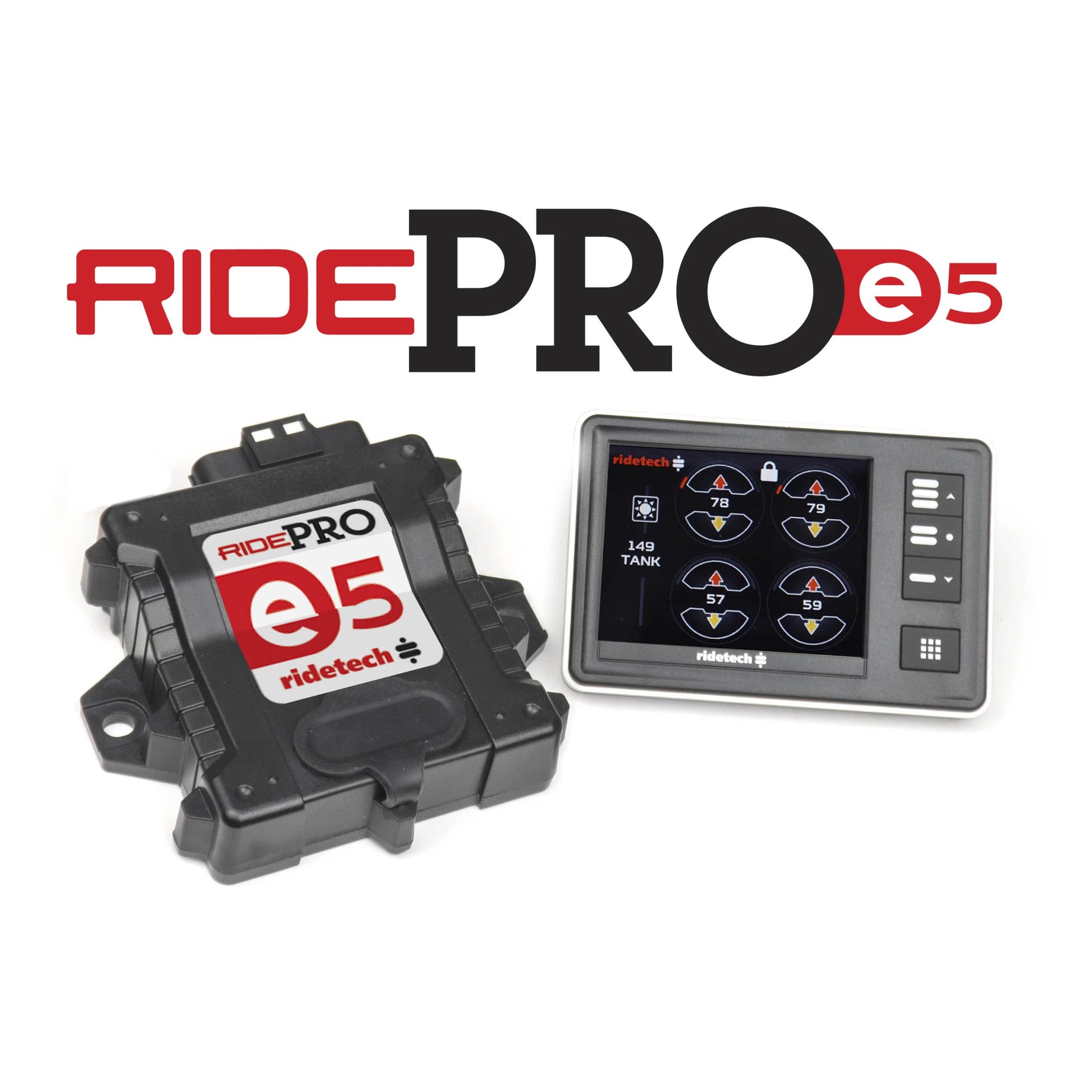

RidePro E5 Air Ride Suspension Control System

RideTech RidePro E5 — Digital Air Suspension Leveling Control

Push-button ride height with smart control. RidePro E5 manages your air ride automatically—every key cycle, every load. Run pressure-only out of the box, or add the RidePRO-HP height sensors (p/n 30400036) for full pressure + height leveling.

Why you want it

• Auto level on start: vehicle wakes up at your saved ride height.
• Compensates for load: solo drive or full cabin—E5 keeps it level and predictable.
• Set-and-forget: algorithms manage spring pressure (and height with HP sensors) in the background.
• Control it your way: 3.5" color touchscreen, 4-button keypad, or Bluetooth® smartphone app.
• Weatherproof ECU: robust connectors and housing for real-world installs.
• Made in the USA.

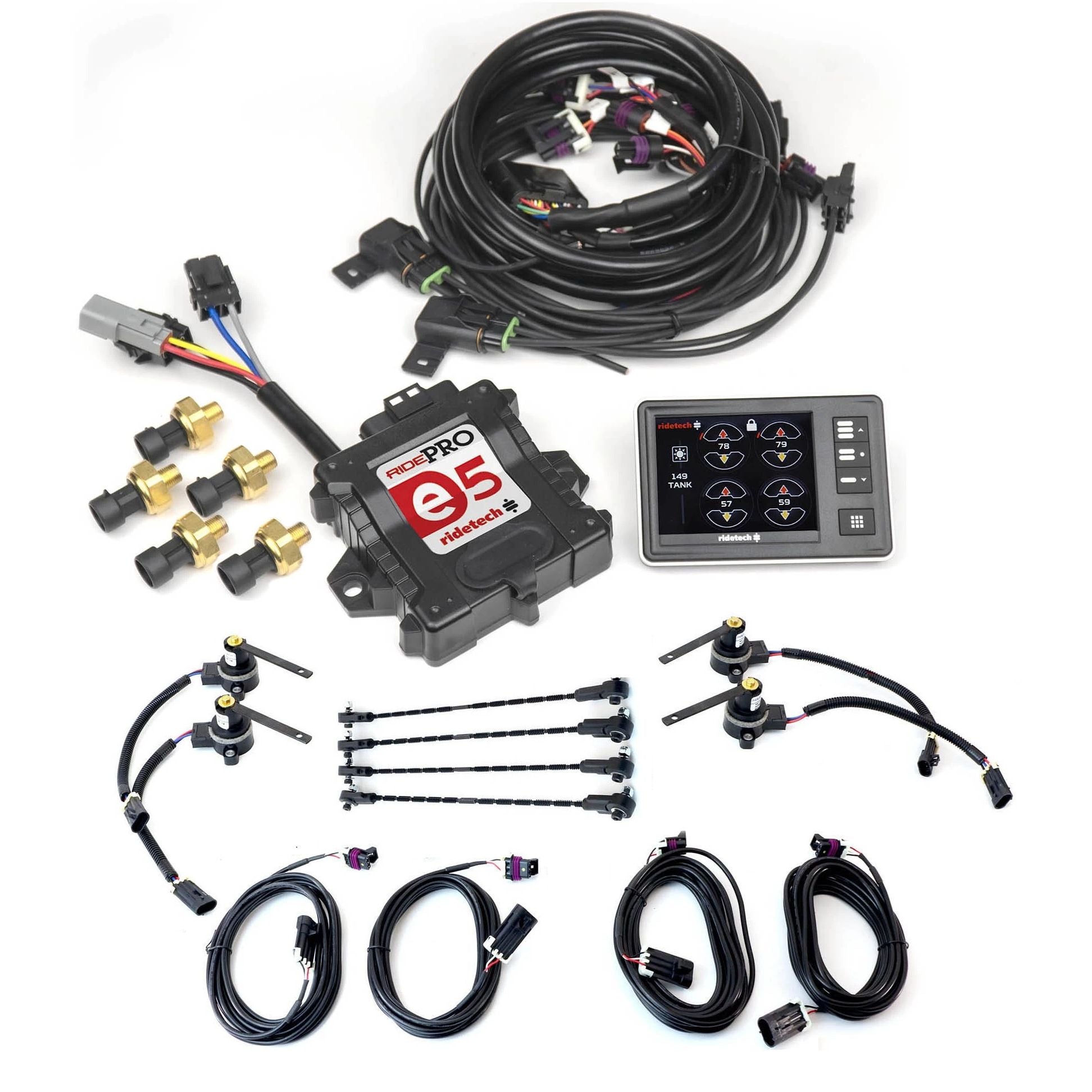

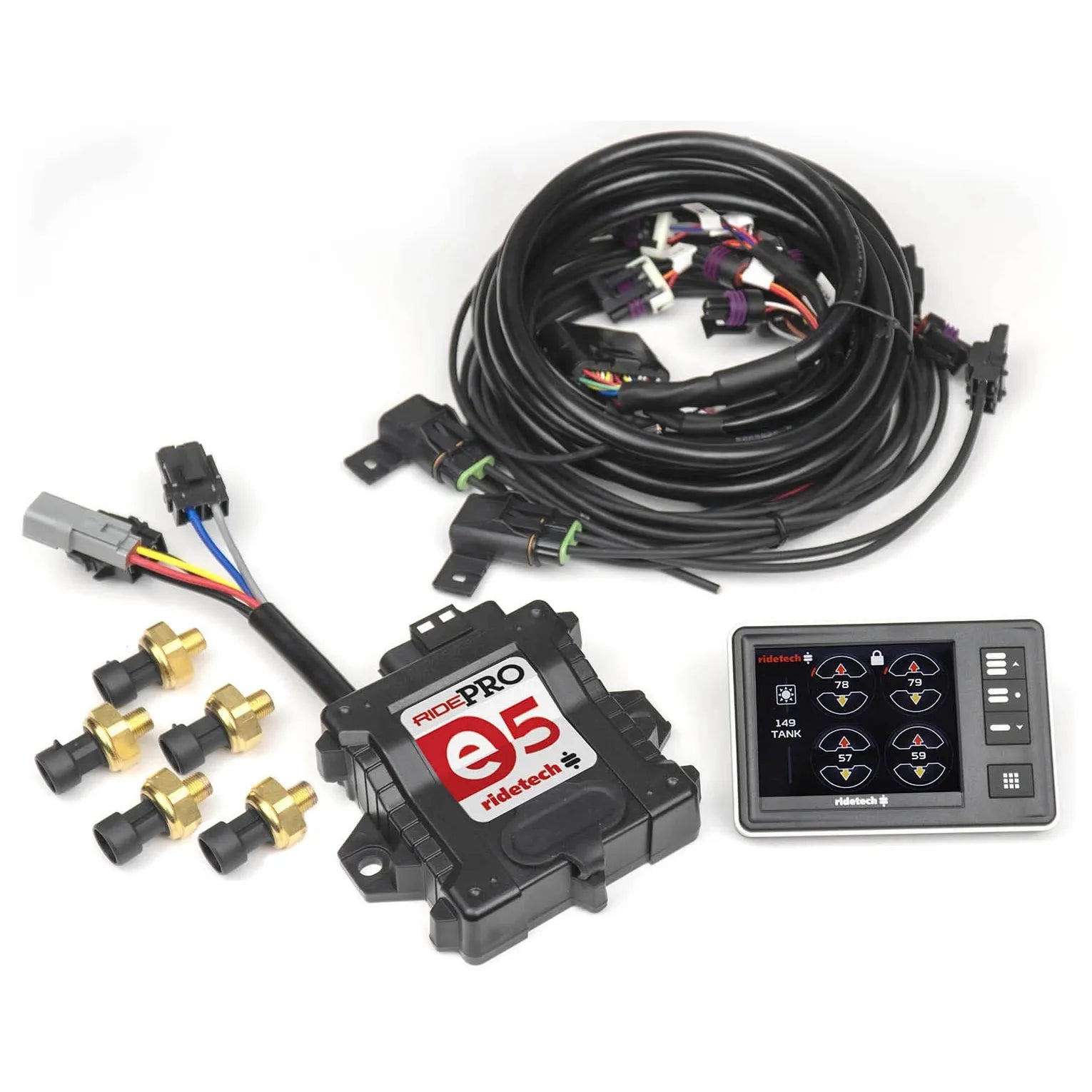

What’s included

• RidePro E5 ECU (weatherproof) with heavy-duty connectors

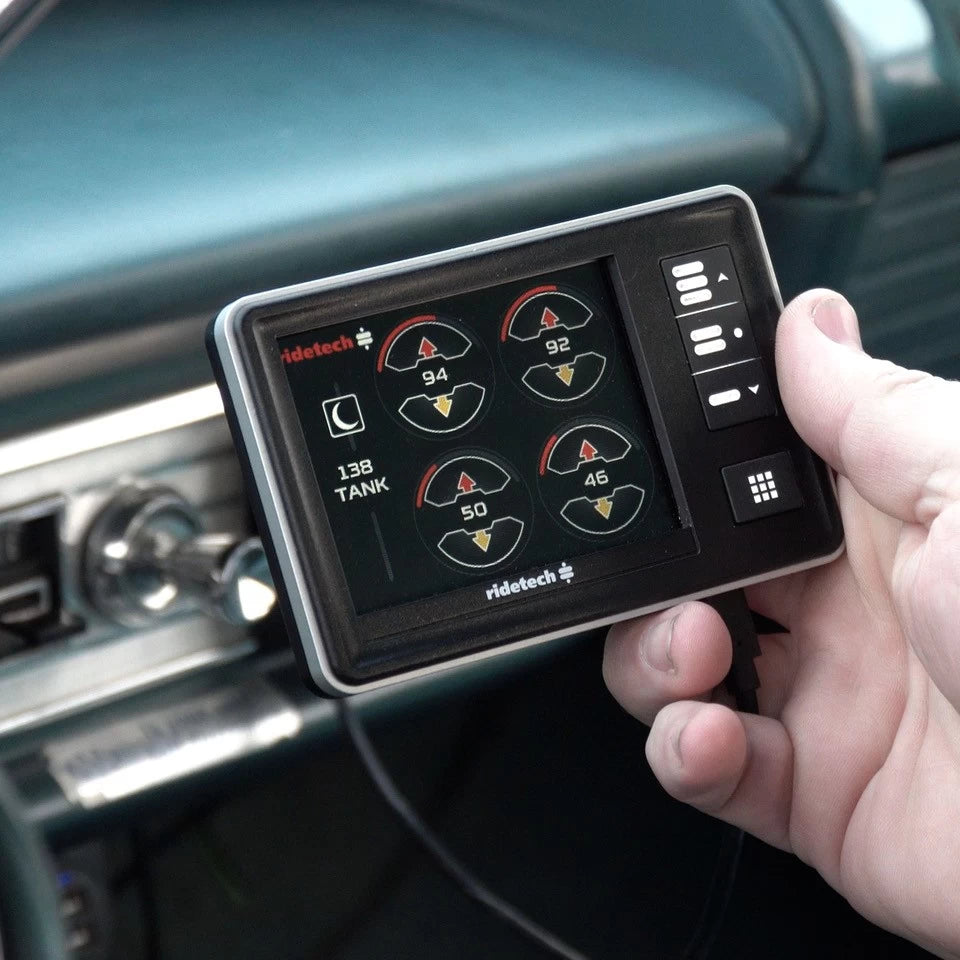

• 3.5" full-color TFT LCD touchscreen (capacitive multi-touch)
• 4-button silicone keypad (backlit symbols)
• Main harness and required cabling

Air tank, compressor(s), valve/manifold, air springs, lines, and fittings are sold separately or available in bundles.

Upgrade path

• Start pressure-only
• Add RidePRO-HP height sensors (p/n 30400036) later for the most accurate leveling (pressure + height)

Key features

• Three user presets for quick height changes
• “Ride Height On Start” automatic lift + level
• Setup via screen, keypad, smartphone app, or laptop
• Automatic weight compensation (with optional height sensors)
• Bluetooth® connectivity for wireless control

Tech specs

What you’ll still need

• Air management: tank, compressor(s), valve/manifold, lines/fittings
• Air springs & brackets: vehicle-specific
• Fuse/relay sized to compressor load
• RidePRO-HP height sensors (optional, for pressure + height control)

Install notes

• Mount ECU in a protected area; keep screen/keypad reachable.
• Route wiring/air lines away from heat and sharp edges; grommet any pass-throughs.
• Set presets at normal load and tire pressure.
• Leak test at 90–120 psi with soapy water before finalizing.

FAQ

Do I need height sensors?
No. Pressure-only works for most builds. If you haul, corner hard, or want dead-on repeatability, add the RidePRO-HP sensors.

Will it raise the car every time I start it?
Yes. “Ride Height On Start” brings the vehicle to your saved height automatically.

Does this replace my tank/compressor kit?
No. This is the control brain + interfaces. Pair it with your preferred tank, compressor(s), and valve/manifold.
