Ridetech 11166511 Rear TQ CoilOvers Fits 1967-1969 Camaro/Firebird w/Ridetech 4-Link

Ridetech Specs: Rear TQ Coil-Overs 1967-1969 GM F Body F-Body. For use with Ridetech 4-Link.

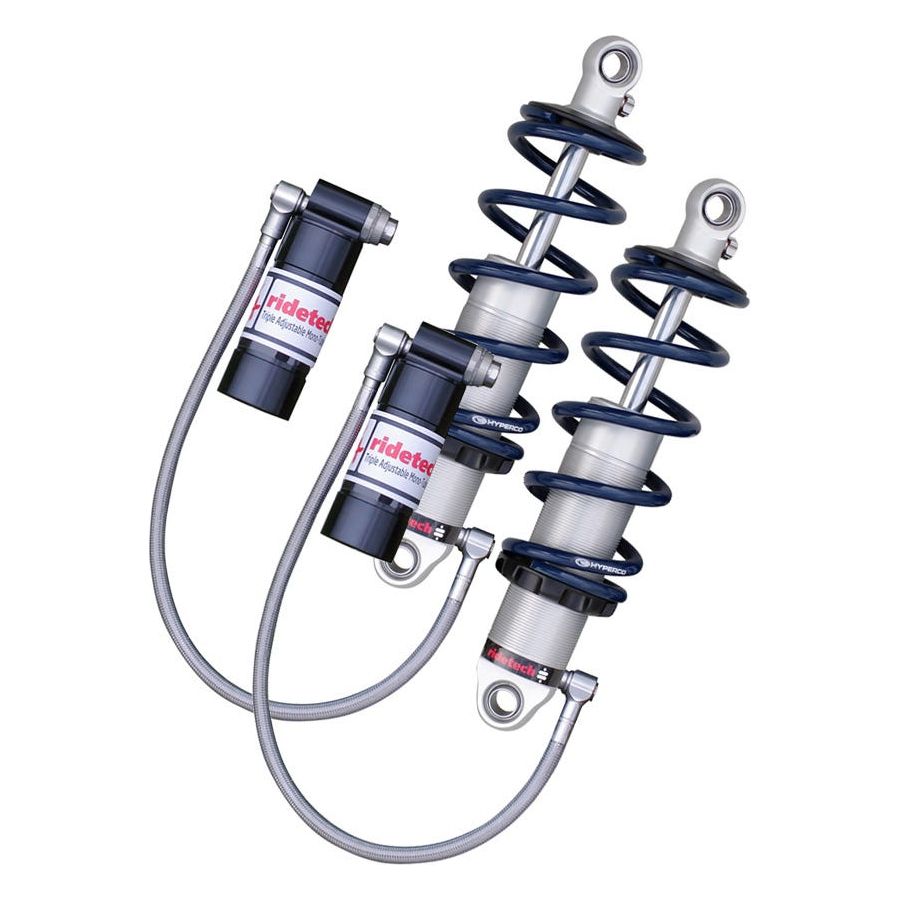

RideTech 11166511 Rear TQ Coil-Overs 1967–1969 Camaro | 1967–1969 Firebird with RideTech 4-Link

The RideTech 11166511 Rear TQ Series Coil-Overs deliver competition-level suspension performance for first-generation Camaro and Firebird builds equipped with the Ridetech Bolt-On 4-Link rear suspension system. Designed for serious performance applications, these triple-adjustable coil-overs allow precise tuning of ride quality, traction, and cornering performance.

TQ “Track Quality” coil-overs provide independent rebound adjustment along with dual compression adjustments for both high-speed and low-speed damping. This advanced tuning capability allows drivers to dial in suspension response for street driving, autocross, road course use, or drag racing.

Remote-mounted reservoirs help maintain consistent shock fluid temperatures during aggressive driving while providing easy access to the compression adjustment knobs.

Fitment

1967 Chevrolet Camaro
1968 Chevrolet Camaro
1969 Chevrolet Camaro

1967 Pontiac Firebird
1968 Pontiac Firebird
1969 Pontiac Firebird

Requires Ridetech Bolt-On 4-Link Rear Suspension System for proper installation.

Performance Features

TQ Series coil-overs are engineered for high-performance suspension tuning. The triple-adjustable design allows independent control over rebound, high-speed compression, and low-speed compression damping.

High-speed compression adjustment helps control rapid suspension movements such as quick directional transitions during autocross or aggressive driving. It also helps reduce harshness from potholes, speed bumps, and sudden road impacts.

Low-speed compression adjustment fine-tunes ride quality and general cornering characteristics during normal driving and road course conditions.

Remote reservoirs improve shock cooling and provide consistent damping performance while also making compression adjustment easier to access.

The monotube shock design includes a large 1.834-inch piston, heavy-duty 5/8-inch shaft, and impact-forged shock body for strength, durability, and reliable performance.

RideTech develops shock calibrations and spring rates through extensive real-world testing including cross-country driving, private test track development, and competitive motorsports events.

What’s Included

Two RideTech TQ Series triple-adjustable rear coil-over shocks

Two Hyperco coil springs with matched spring rates

Remote reservoirs with 30-inch braided lines

Specifications

Manufacturer RideTech

Part Number 11166511

Position Rear

Adjustment Triple adjustable
Rebound adjustment plus high-speed and low-speed compression adjustment

Shock Design Monotube

Piston Size 1.834 inches

Shaft Diameter 5/8 inch

Reservoir Type Remote reservoir with 30-inch braided line

Springs Hyperco coil springs included

UPC 840123501301

Warranty 1,000,001 mile warranty
