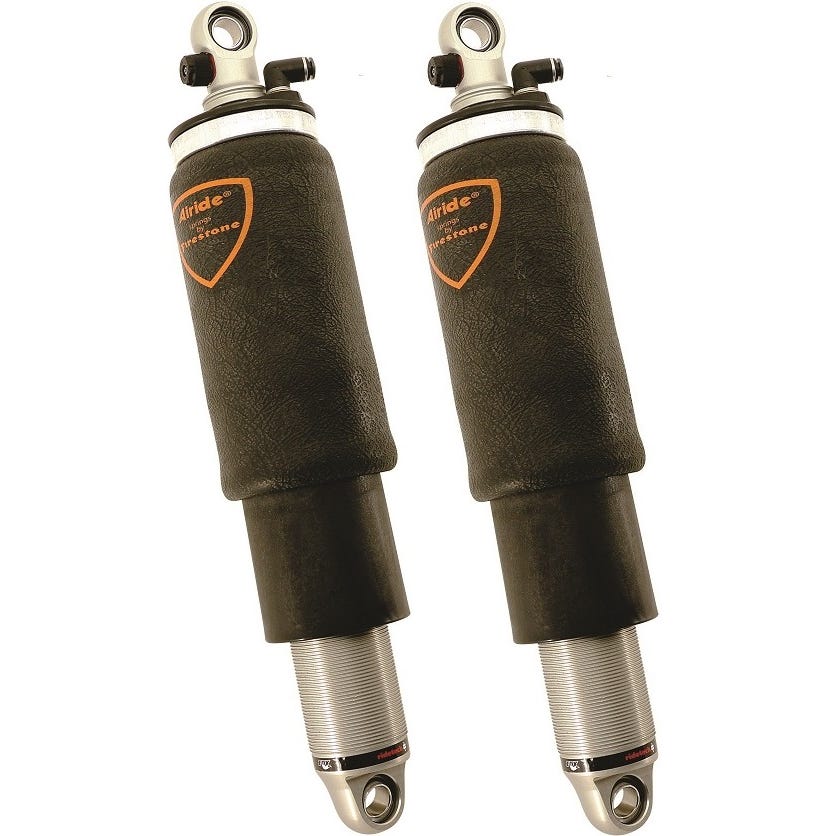

Rear HQ Shockwaves 5" Diameter Sleeve, 5.2" Stroke For Ridetech 4-Link

Rear HQ Shockwaves 5" Diameter Sleeve, 5.2" Stroke For Ridetech 4-Link -?ÿ21150801

Designed for optimal ride quality and easy installation, this ShockWave system works in conjunction with RideTech's Bolt-On 4 Link system for the 60-64 Galaxie, 63-87 C10, 88-98 C1500, and 99-06 Silverado. It can also be used for custom installations as long as the rear weight is under 2,000lbs. Combining RideTech's patented "shock-within-a-spring" technology, 24-position rebound adjustment, and a monotube design with large pistons, heavy duty shafts, and impact-forged bodies, these HQ Series ShockWaves offer exceptional performance and durability, backed by a 1,000,001 mile warranty. Developed and tested on the street, highways, and race tracks for over 20 years, they provide predictable handling and instant ride height adjustment. This kit includes two rear rebound-adjustable HQ Series ShockWaves.

Specifications
Compressed - 11.85"
Ride Height - 14"-14.75"
Extended - 16.4"
Diameter - 5"
Load Capacity - 1200lbs @ 100psi
Bearing type - Teflon Lined (Comes with spacers for 1 1/4" wide brackets and 1/2" or 5/8" bolts)
Airline - 1/4"
