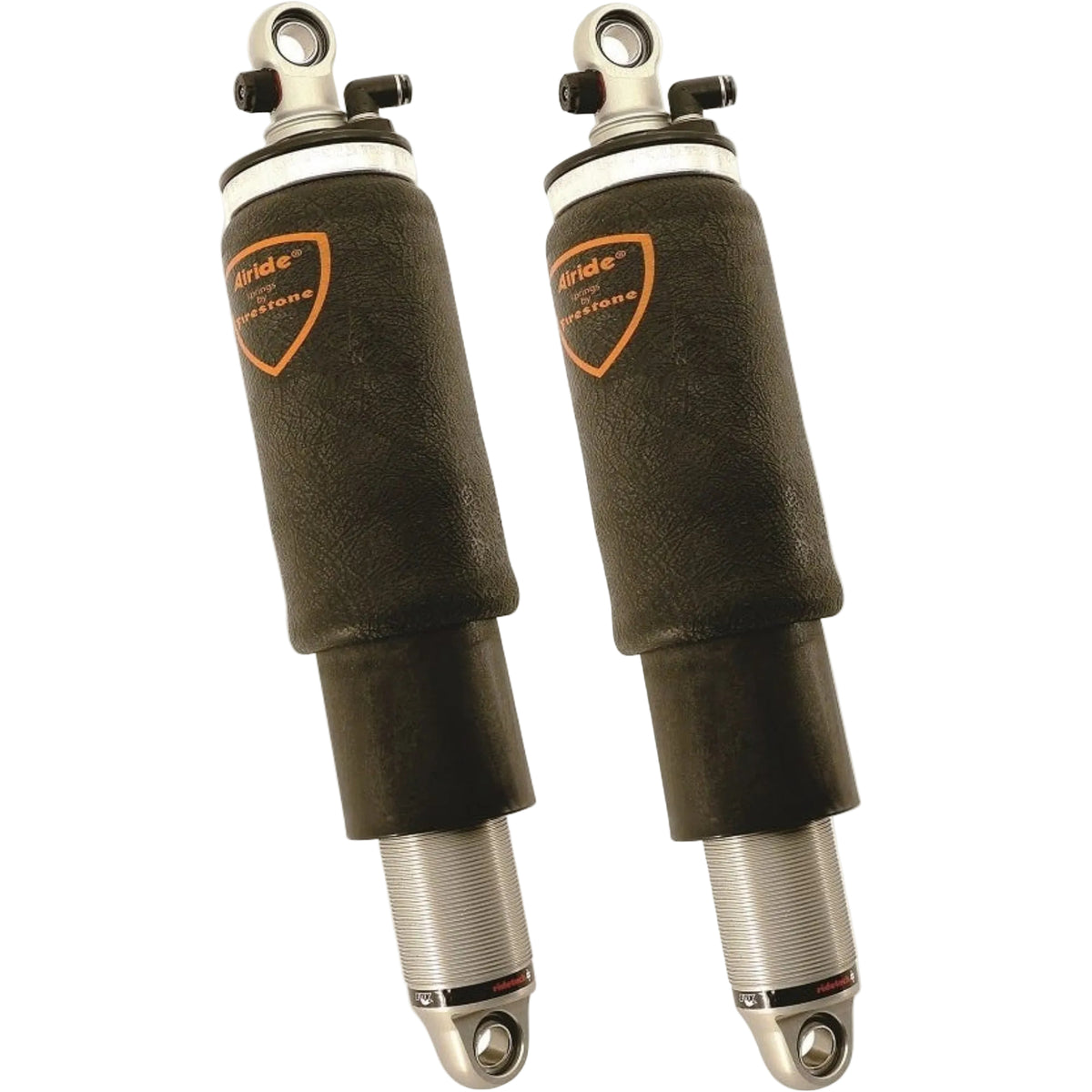

RideTech Rear HQ 8000 Series ShockWaves 4.1" Stroke

Adjustable Air Ride Performance with CoilOver-Like Handling

Combine instant air-adjustable ride height with performance shock control using RideTech Rear HQ 8000 Series ShockWaves. These rear ShockWaves feature a 4.1" stroke, 24-position rebound adjustment, monotube shock design, and integrated air spring, creating a compact suspension package engineered for both ride quality and handling.

These units are designed for use with the RideTech Bolt-On 4-Link system for 1968–1970 Mopar B-Body vehicles. They can also be used in properly engineered custom solid rear axle applications with rear vehicle weight under 2,000 lbs.

Key Features

Integrated ShockWave Design

RideTech's patented design combines the air spring and shock absorber into a single integrated assembly, reducing component complexity while providing adjustable ride height and controlled damping.

24-Position Rebound Adjustment

Fine-tune rebound damping through 24 adjustment positions to match your preferred ride characteristics, vehicle setup, and driving style.

HQ Series Monotube Construction

The performance-oriented monotube design uses large 1.834" pistons, heavy-duty 5/8" shafts, and impact-forged bodies for consistent suspension control.

4.1" Shock Stroke

The 8000 Series rear ShockWaves provide 4.1 inches of stroke, with dimensions designed around the intended suspension travel and ride-height range.

Adjustable Air Ride Height

Air spring operation allows ride height to be adjusted without sacrificing the performance-oriented damping characteristics expected from a quality shock absorber.

1,200-Lb Load Capacity

Each specified assembly is rated for a 1,200-lb load capacity at 100 PSI, making correct vehicle weight and suspension geometry important when planning custom applications.

RideTech 1,000,001-Mile Warranty

HQ Series ShockWaves are backed by RideTech's 1,000,001-mile warranty for added confidence in long-term suspension use.

What's Included

(2) Rear RideTech HQ Series ShockWaves
Teflon-lined bearings
Spacers for 1-1/4" wide mounting brackets
Spacers for 1/2" or 5/8" mounting bolts

Vehicle Fitment

Designed For

1968–1970 Mopar B-Body
RideTech Bolt-On 4-Link rear suspension system

Custom Applications

Solid rear axle installations
Rear vehicle weight must be under 2,000 lbs
Mounting dimensions, suspension travel, clearance, and load requirements must be verified before installation

Important Notes

Designed to work with the RideTech Bolt-On 4-Link system for 1968–1970 Mopar B-Body vehicles.
May also be used for properly engineered custom solid rear axle applications with rear weight under 2,000 lbs.
Verify compressed length, ride height, extended length, mounting dimensions, suspension travel, and load requirements before using these ShockWaves in a custom application.
Uses 1/4" air line.
Air management components and compressor system are not listed as included.

Product Specifications

Brand: RideTech
Series: HQ Series / 8000 Series
Product Type: Rear ShockWaves
Position: Rear
Quantity: 2
Stroke: 4.1"
Eye: 1.7"
Compressed Length: 10.75"
Ride Height Length: 12.75"
Extended Length: 14.25"
Diameter: 5"
Load Capacity: 1,200 lbs @ 100 PSI
Rebound Adjustment: 24 Position
Shock Design: Monotube
Piston Diameter: 1.834"
Shaft Diameter: 5/8"
Body Construction: Impact Forged
Bearing Type: Teflon Lined
Bracket Width: 1-1/4" with supplied spacers
Compatible Bolt Sizes: 1/2" or 5/8" with supplied spacers
Air Line Size: 1/4"

Why Choose RideTech HQ ShockWaves?

RideTech HQ ShockWaves provide the versatility of an air suspension with the controlled damping characteristics of a performance shock. Instead of treating the air spring and shock as separate components, the integrated design packages both functions together for a clean installation.

With 24-position rebound adjustment, large monotube pistons, heavy-duty shafts, and application-developed air spring specifications, these ShockWaves allow the suspension to be tuned for both vehicle demands and driver preference while retaining on-demand ride-height adjustment.

Perfect For

1968–1970 Mopar B-Body air suspension
RideTech Bolt-On 4-Link systems
Rear air ride conversions
Solid axle custom suspension builds
Adjustable street and performance setups
CoilOver-style handling with air adjustment
