airmaxxx Triple Bellow 2600 Air Bag –
Rear Suspension, 1/2" NPT Single Port

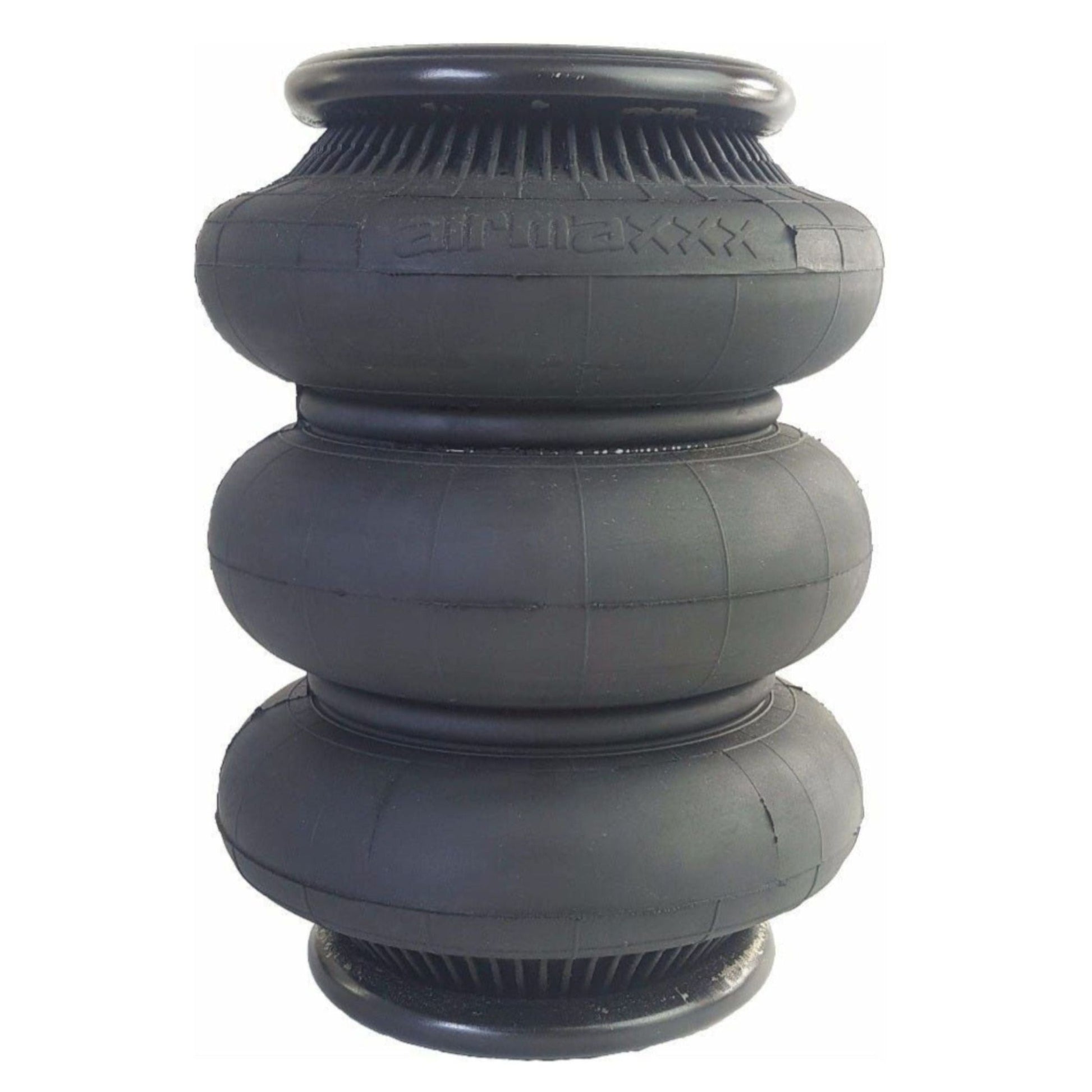

Take your suspension setup to the next level with the airmaxxx 2600 Triple Bellow Air Bag—built for rear suspension applications where maximum lift and ride comfort are a must. This heavy-duty air spring features a triple-convoluted design, giving it superior flexibility, load capacity, and extended travel compared to standard double bellow bags.

Ideal for trucks, SUVs, and custom builds, this 2600 air bag supports up to 2,600 lbs and reaches a full 13.3" extended height for exceptional lift range. The standard 1/2" NPT single port makes plumbing easy and compatible with most air ride systems.

🔧 Key Features:

• Heavy-Duty Triple Convoluted Air Spring

• Load Rating: 2,600 lbs per bag

• Extended Height: 13.3"

• Collapsed Height: 4.6"

• Diameter: 7"

• Standard 1/2" NPT Air Port

📏 Mounting Specifications:

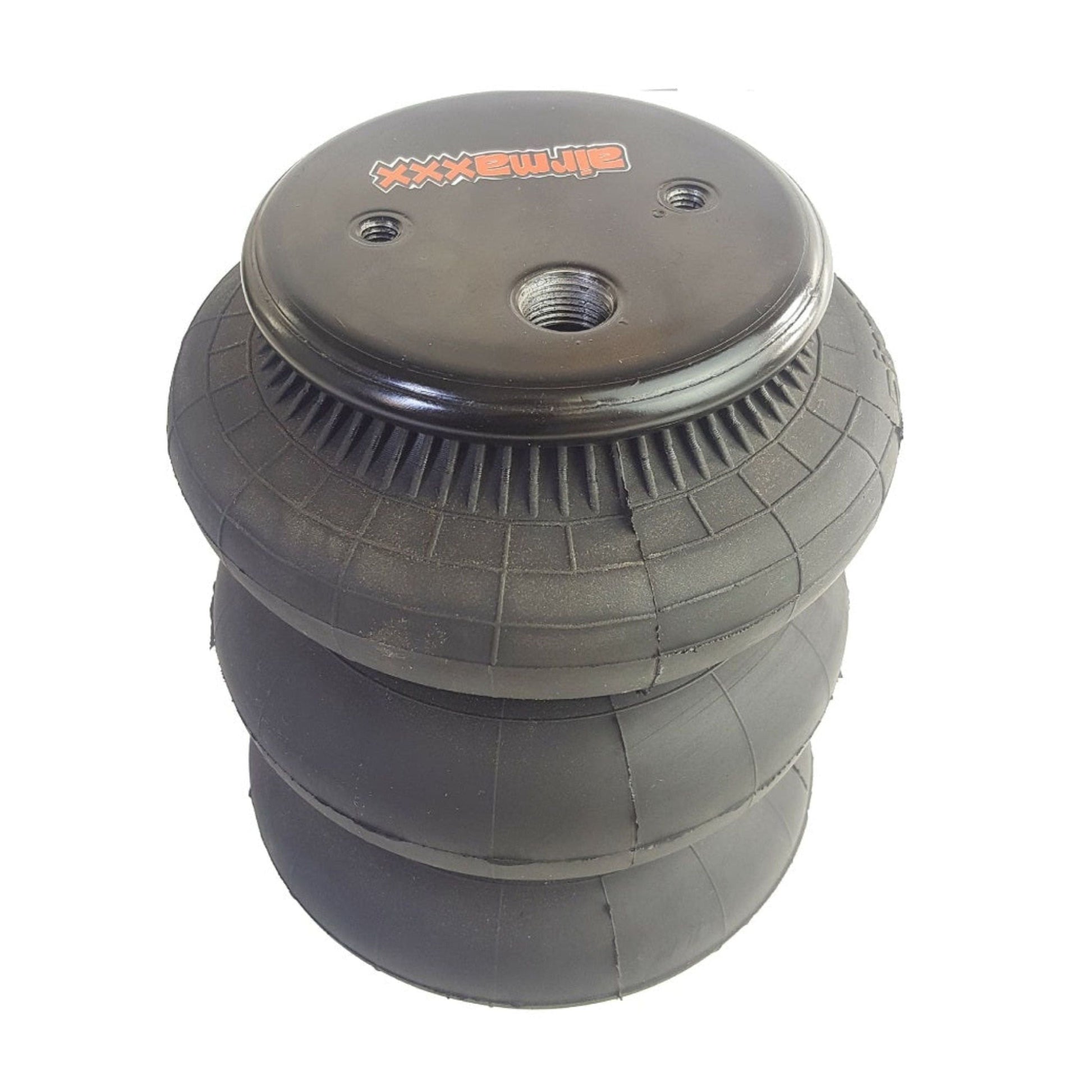

• Top Mount Holes: Two holes spaced ~2.75" center-to-center

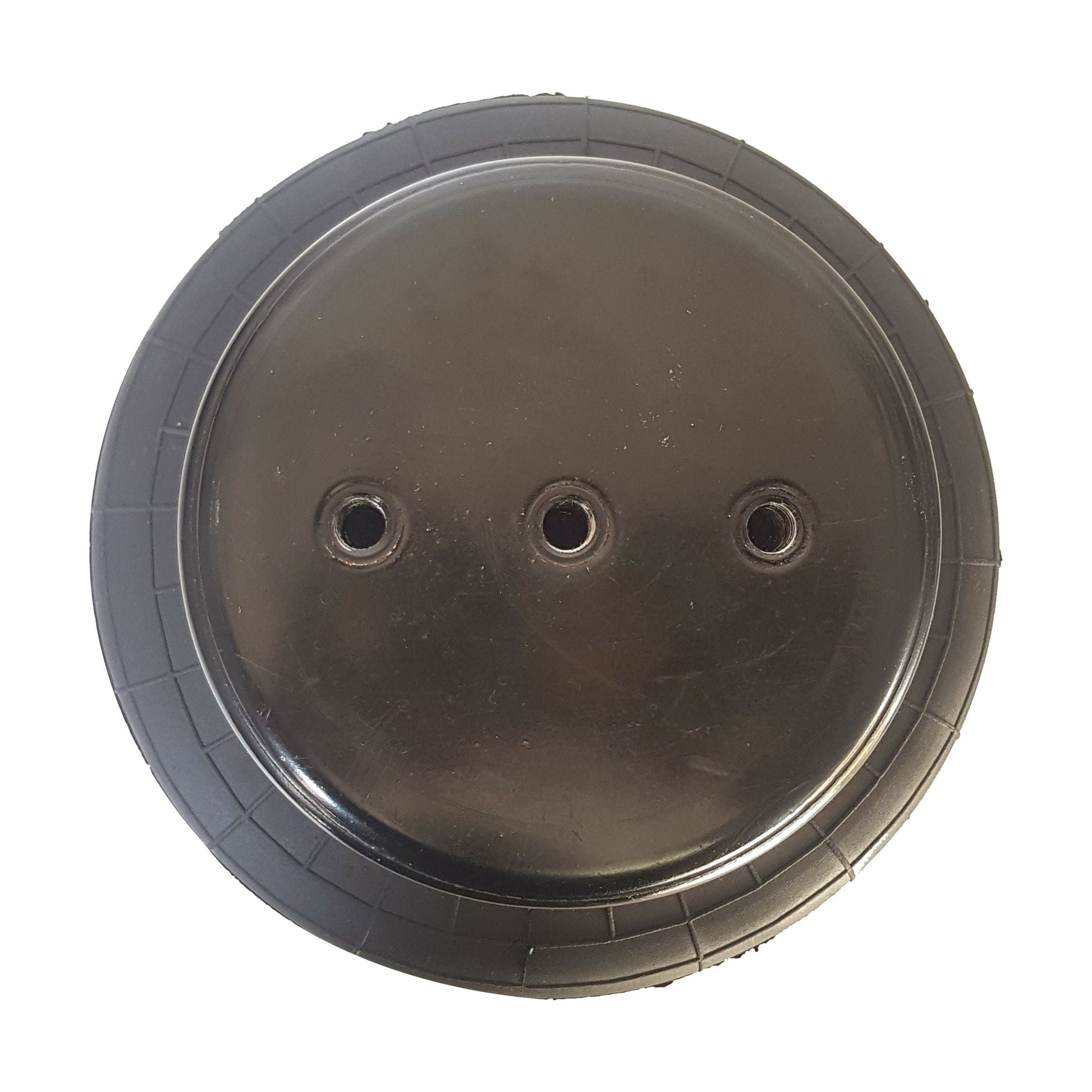

• Bottom Mount Hole: One center hole

• All Threads: 3/8"-16 UNC for universal mounting

⚠️ Important Usage Note:

• For rear suspension use only

• Not recommended for front suspension applications

🛡️ Built to Perform:

• Triple bellow design delivers increased lift and flexibility

• Ideal for heavier loads or custom setups requiring additional stroke

• Backed by a Lifetime Warranty
  (Warranty excludes punctures, abrasion, abuse, or improper installation)

✅ Perfect For:

• Rear Air Suspension Systems

• Load-Leveling Applications

• Custom Air Ride Builds

• Trucks, SUVs, Bagged Vehicles

• Off-Road/Heavy-Duty Rear Axle Support

📦 Includes:

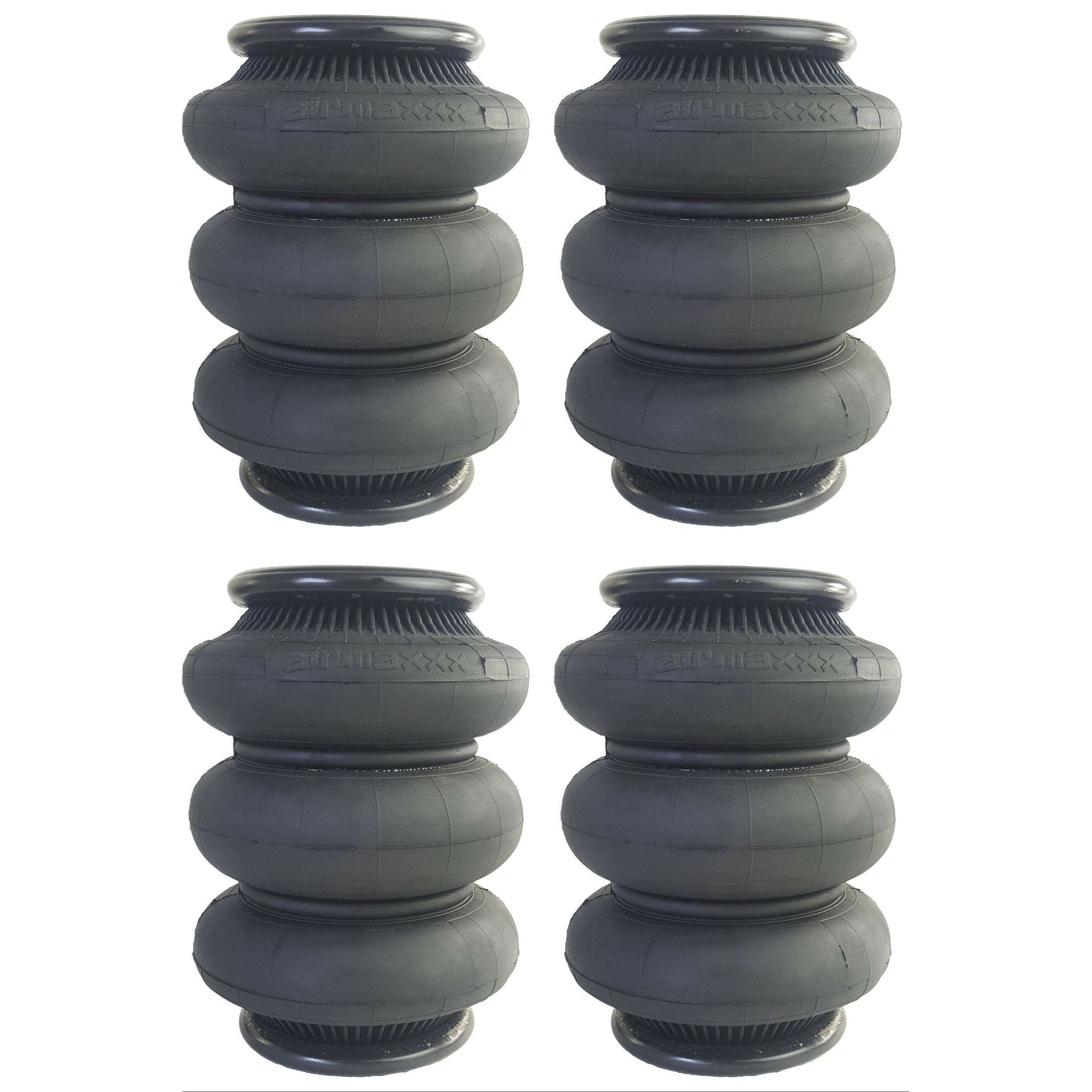

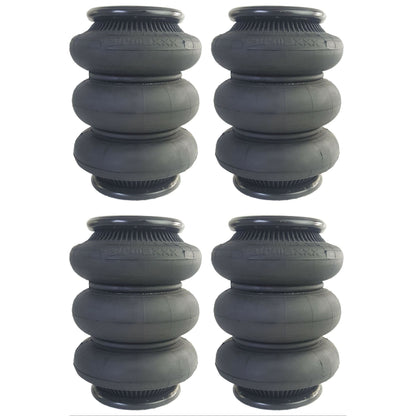

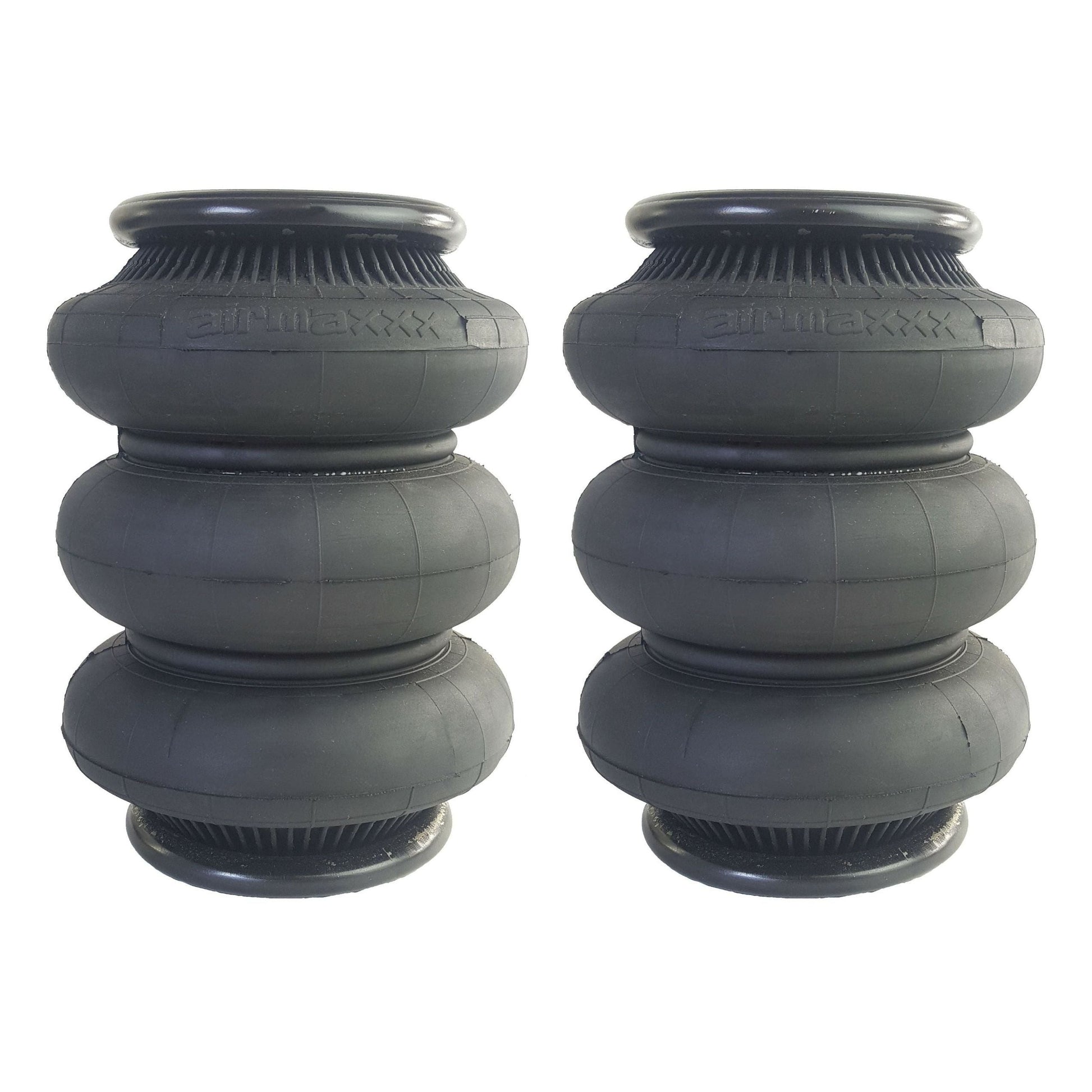

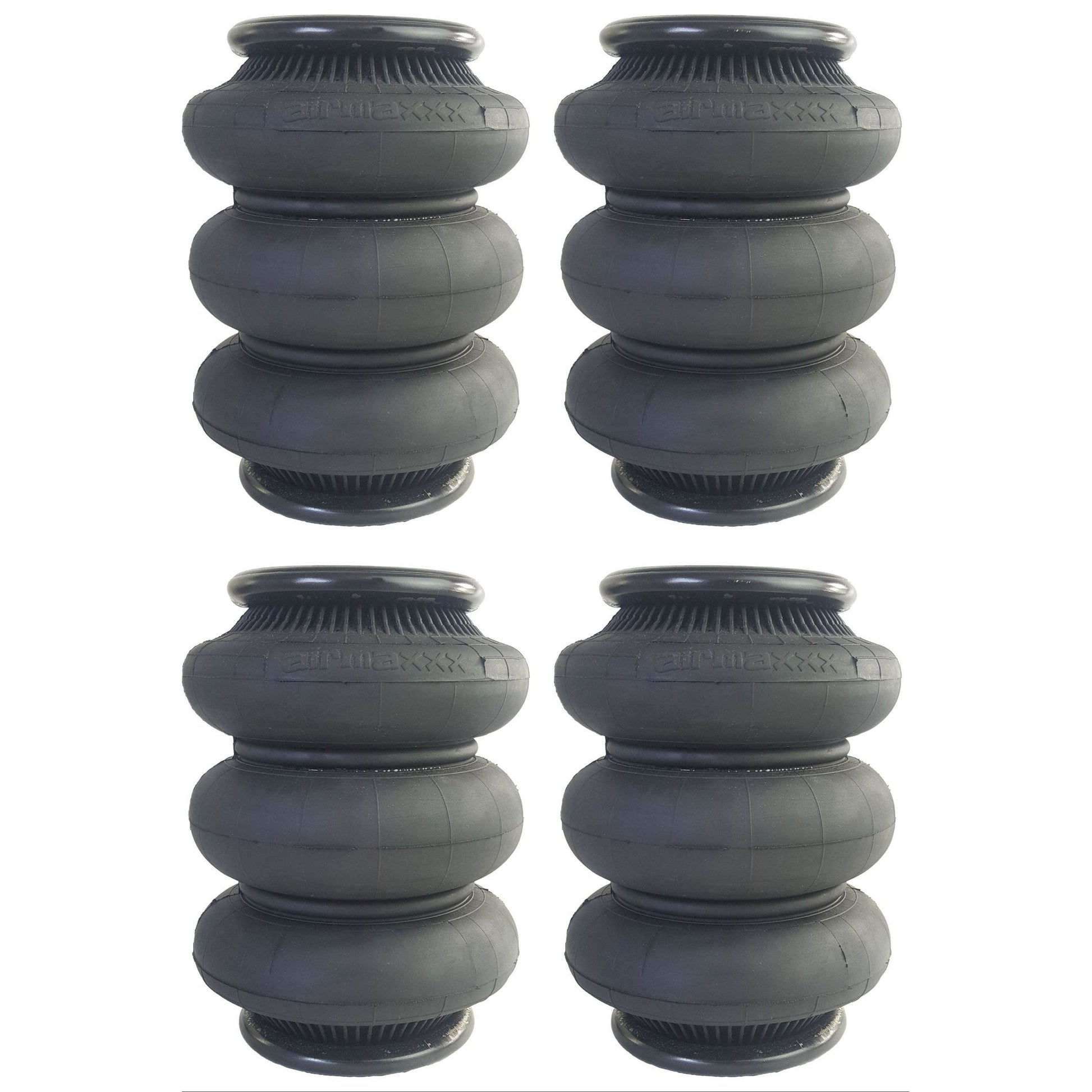

• (1) airmaxxx Triple Bellow 2600 Air Bag (choose 1,2 or 4)
