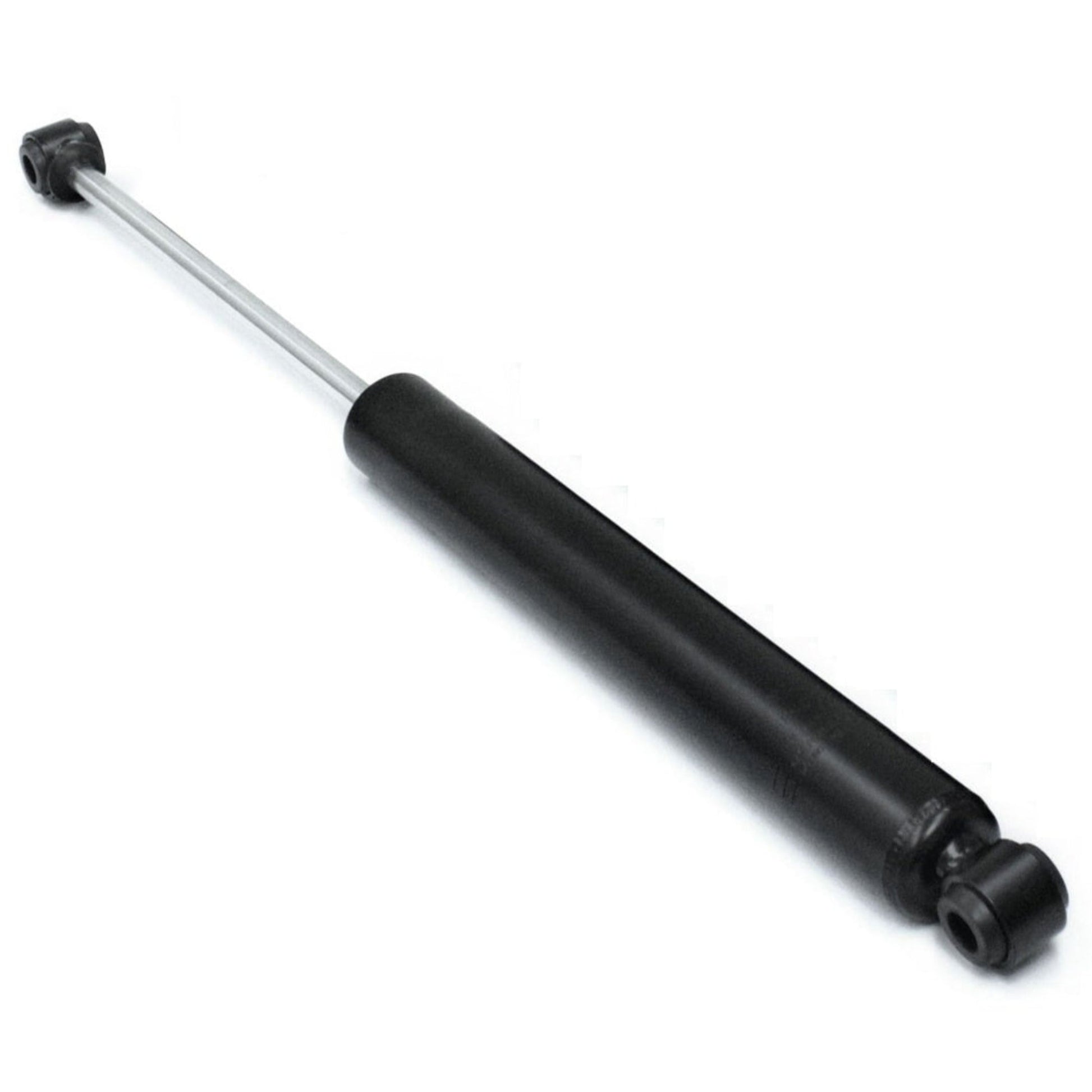

MaxTrac 1200LL-0 Front Lowering Shock for 1965-1987 Chevy/GMC C10 – 3" Drop (Single)

Restore Ride Quality on Your Lowered C10

The MaxTrac 1200LL-0 Front Lowering Shock is designed for 1965-1987 Chevy/GMC C10 trucks with approximately a 3-inch front drop. Featuring a heavy-duty twin-tube design with a durable steel body and black painted finish, this loop-to-loop shock helps improve ride control, handling, and overall suspension performance on lowered applications.

Key Features

Designed for 3-Inch Lowered Trucks

Optimized for 1965-1987 Chevy/GMC C10 applications with approximately a 3-inch front drop.

Heavy-Duty Twin-Tube Design

Provides dependable damping, improved ride quality, and long service life.

Loop-to-Loop Mount

Direct replacement design for compatible lowered suspension systems.

Steel Shock Body

Built from heavy-duty steel with a durable black painted finish for corrosion resistance.

Includes Mounting Sleeves

Supplied with two 1.5-inch wide sleeves for use with up to a 9/16" (14mm) mounting bolt.

What's Included

(1) Front Lowering Shock
(2) 1.5" Wide Mounting Sleeves

Vehicle Fitment

Fits 2wd-

1965-1987 Chevrolet C10 Front Suspension
1965-1987 GMC C10 Front Suspension

Important Notes

Designed for approximately a 3-inch front drop.
Shock must be installed with the shock body at the bottom and the shaft at the top.
Extended Length: 12.0"
Collapsed Length: 8.5"
Includes two 1.5" wide sleeves for up to a 9/16" (14mm) mounting bolt.
Professional installation is recommended.
MaxTrac recommends wheels no wider than 9" with at least 4.5" of backspacing. Using wheels outside these recommendations may void the manufacturer warranty.

Product Specifications

Part Number: 1200LL-0
UPC: 738283445019
Kit Type: Lowering
Product Type: Front Lowering Shock
Position: Front
Shock Style: Twin-Tube Loop-to-Loop
Material: Steel
Finish: Black Paint
Color: Black
Extended Length: 12.0"
Collapsed Length: 8.5"
Sold As: Each
Weight: 3 lbs
Dimensions: 16" x 2" x 2"
Country of Origin: China

Why Choose MaxTrac?

The MaxTrac 1200LL-0 is engineered specifically for lowered C10 trucks, providing improved ride control and dependable suspension performance. Its twin-tube construction, durable steel body, and direct-fit design make it an excellent replacement shock for street trucks and restoration projects.

Perfect For

1965-1987 C10 Two Wheel Drive
3" Front Drops
Replacement Front Shocks
Lowered Trucks
Street Trucks
Suspension Restorations
