MaxTrac K331135 3"/5" Lowering Kit for 1973-1987 Chevy & GMC C10 2WD

Achieve the Classic Lowered C10 Stance

Transform your 1973-1987 Chevrolet C10 or GMC C10 2WD with the MaxTrac K331135 Complete Lowering Kit. Designed for trucks equipped with a 10-bolt rear axle, this suspension package delivers a 3-inch front drop and 5-inch rear drop using front lowering coils, a rear flip kit, rear shock angle correctors, and matched MaxTrac shocks. The result is an aggressive stance, improved handling, and dependable ride quality for both street and show trucks.

Key Features

Complete 3"/5" Lowering Kit

Everything needed to achieve a balanced 3-inch front and 5-inch rear drop in one package.

Front Lowering Coils

Heavy-duty front coils are engineered to provide the proper ride height while maintaining excellent street manners.

Rear Flip Kit with Shock Angle Correctors

The included rear flip kit lowers the rear suspension while shock angle correctors maintain proper shock positioning for improved suspension performance.

Includes MaxTrac Front & Rear Shocks

Matched MaxTrac shocks are designed specifically for the lowered ride height, improving handling and ride comfort.

Heavy-Duty Steel Construction

Built from durable steel with a corrosion-resistant grey powdercoat finish for long-lasting performance.

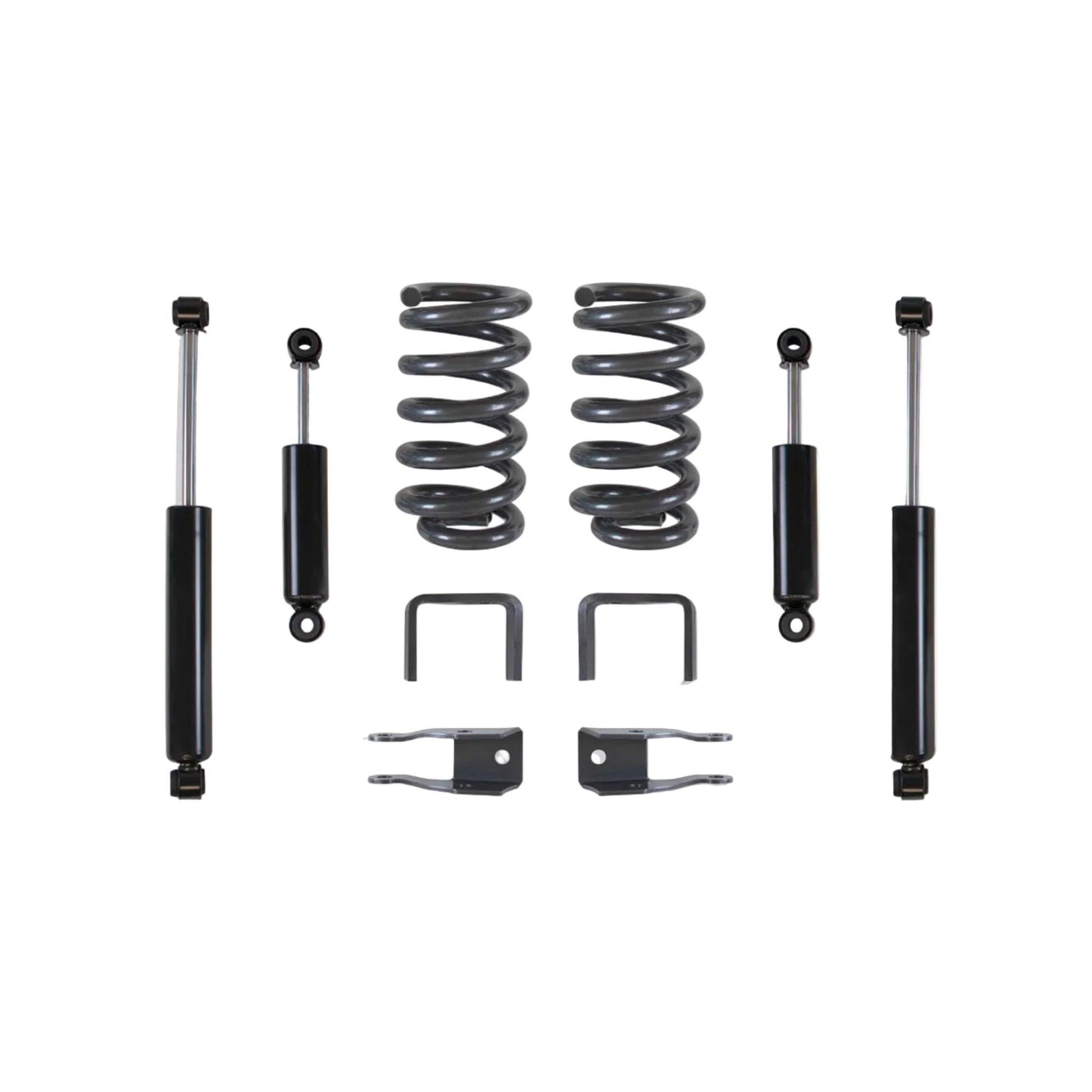

What's Included

Front Lowering Coils
Rear Flip Kit
Rear Shock Angle Correctors
(2) Front MaxTrac Shocks (1200LL-0)
(2) Rear MaxTrac Shocks (2000LL-4)
Installation Hardware

Vehicle Fitment

Fits

1973-1987 Chevrolet C10 2WD with 10-Bolt Rear Axle
1973-1987 GMC C10 2WD with 10-Bolt Rear Axle

Does Not Fit

Models with 12-Bolt Rear Axles
Models with 14-Bolt Rear Axles

Important Notes

Designed for trucks equipped with a 10-bolt rear axle.
Does not fit trucks equipped with 12-bolt or 14-bolt rear axles.
When ordering replacement shocks separately, order a quantity of two for the front or rear, as shocks are sold individually.
Professional installation and a wheel alignment are recommended after installation.
MaxTrac recommends using wheels no wider than 9 inches with 4.5 inches of backspacing or greater. Using wheels outside these recommendations may void the manufacturer's warranty.

Product Specifications

Part Number: K331135
UPC: N/A
Kit Type: Lowering Kit
Product Type: Complete Suspension Lowering Kit
Position: Front & Rear
Front Drop: 3"
Rear Drop: 5"
Front Shocks: 1200LL-0 (Qty. 2)
Rear Shocks: 2000LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Multiple Box Item: Yes
Weight: 49 lbs
Country of Origin: N/A

Why Choose MaxTrac?

The MaxTrac K331135 combines premium suspension components with application-specific shocks to give your square-body C10 the lowered look you want while preserving ride quality and suspension performance. It's an ideal upgrade for restorations, custom builds, and daily-driven classics.

Perfect For

3"/5" Lowering
Square Body C10 Builds
Street Trucks
Classic Chevy Trucks
Classic GMC Trucks
Daily Drivers
Show Trucks
