MaxTrac 201560 Silverado Sierra MagneRide 5"-6" Rear Drop Kit

Achieve a Deeper 5"-6" Adjustable Rear Drop

Bring your 2007–2018 Chevrolet Silverado 1500 or GMC Sierra 1500 down to a more aggressive stance with the MaxTrac 201560 5"-6" Adjustable Rear Lowering Box Kit. This rear suspension package combines a flip kit, hangers, bump stops, and shock extenders to provide an adjustable rear drop while supporting compatible MagneRide-equipped trucks.

The 201560 is designed to work with the appropriate MaxTrac front lowering components when building a complete 3"/5" or 4"/6" lowering system. MaxTrac also lists this rear box for applicable 2019 Silverado/Sierra 1500 Legacy models.

Key Features

Adjustable 5"-6" Rear Drop

Provides a 5"-6" adjustable rear lowering range, allowing the rear stance to be matched to the selected front drop configuration.

Rear Flip Kit Included

The included axle flip components reposition the rear axle in relation to the leaf springs to create the majority of the rear drop.

Hangers & Bump Stops

Includes the necessary rear hangers and bump stops as part of the matched lowering package.

MagneRide Compatible

Designed to fit compatible Silverado and Sierra 1500 trucks equipped with MagneRide suspension.

Rear Shock Extenders

Includes shock extenders to accommodate the changed rear suspension height while retaining the appropriate shock mounting arrangement.

Supports Two Complete Drop Configurations

Combine this rear box with the appropriate MaxTrac front components to build either a 3"/5" or 4"/6" complete lowering system.

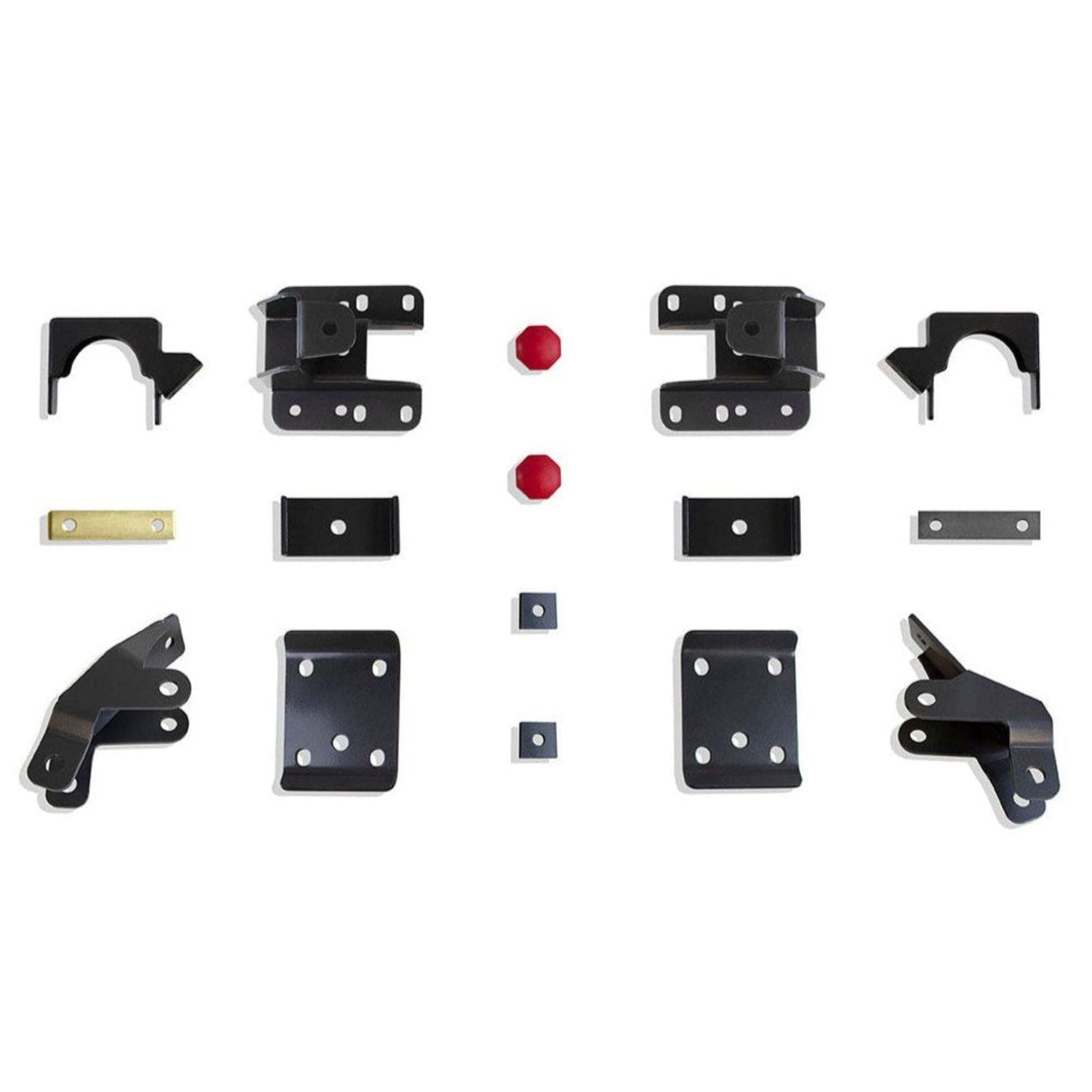

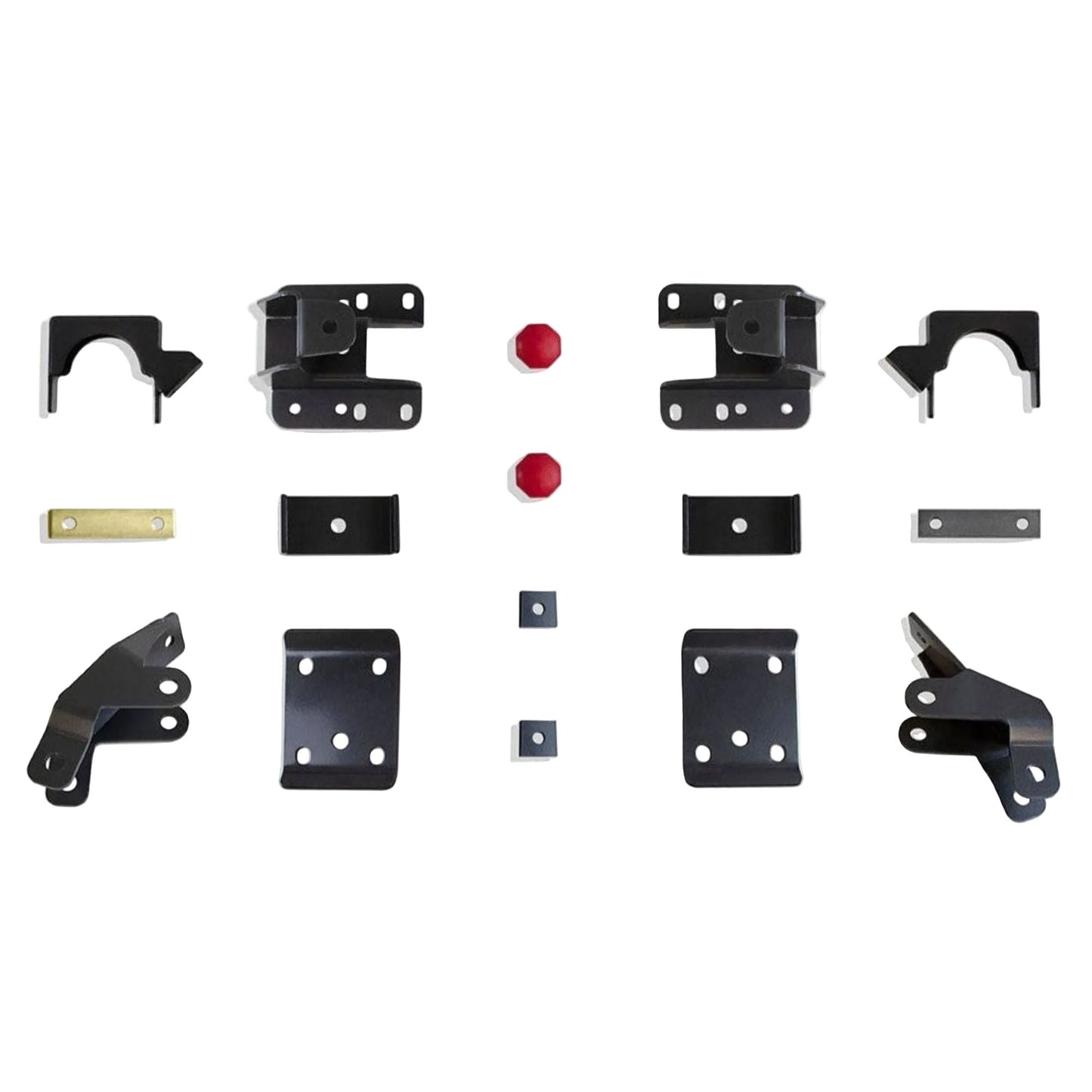

What's Included

Rear axle flip kit (301370)
Rear hangers (3013RH)
Rear bump stops
Rear shock extenders (401500)
Installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2007–2018 Chevrolet Silverado 1500
2007–2018 GMC Sierra 1500
Compatible models equipped with MagneRide suspension
Applicable 2019 Chevrolet Silverado 1500 Legacy
Applicable 2019 GMC Sierra 1500 Limited / Legacy models

Important Notes

Provides an adjustable 5"-6" rear drop.
Will fit compatible models equipped with MagneRide suspension.
Designed for use with the appropriate front components to create a complete 3"/5" or 4"/6" lowering kit.
Will also fit applicable 2019 Legacy models.
This is a rear lowering box only and does not include the front suspension components required for a complete lowering system.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 201560
UPC: 738283446795
Tariff: 8708.80.6510
Kit Type: Lower
Product Type: Rear Lowering Box Kit
Position: Rear
Rear Lowering Range: 5"-6" Adjustable
Complete Kit Configurations: 3" Front / 5" Rear or 4" Front / 6" Rear
MagneRide Compatible: Yes
Flip Kit Included: Yes
Hangers Included: Yes
Bump Stops Included: Yes
Shock Extenders Included: Yes
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 28 lbs
Dimensions: 16" × 16" × 8"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 201560?

The MaxTrac 201560 packages the major rear suspension components needed for a substantial 5"-6" adjustable drop into one application-specific box. Its combination of a rear flip system, hangers, bump stops, and shock extenders makes it a convenient foundation for a deeper Silverado or Sierra lowering build.

The adjustable rear range also gives builders flexibility when pairing the box with different front suspension configurations. Use the appropriate MaxTrac front components to create either a 3"/5" street drop or a more aggressive 4"/6" lowered stance.

Perfect For

Silverado 1500 lowered street trucks
Sierra 1500 suspension builds
MagneRide-equipped applications
5"-6" adjustable rear drops
3"/5" lowering systems
4"/6" lowering systems
