MaxTrac MP886821 2.5"/1" Leveling Kit Tacoma 6-Lug 2WD

Give Your Tacoma Extra Height Without Going to a Full Lift

Create a taller, more balanced stance on your 2005–2023 Toyota Tacoma 6-lug 2WD with the MaxTrac MP886821 Leveling Kit. This matched setup provides 2.5 inches of front lift and 1 inch of rear lift, helping reduce factory rake while opening up additional clearance for larger tires.
The MP886821 combines front strut spacers with rear lift blocks and U-bolts, giving you the primary components needed to level both ends of your Tacoma while retaining the factory-style suspension layout.

Key Features

2.5" Front Strut Spacer Lift

Front strut spacers raise the Tacoma approximately 2.5 inches for a more aggressive stance and increased tire clearance.

1" Rear Block Lift

Rear lift blocks provide approximately 1 inch of additional height to complement the front lift and maintain a balanced profile.

Rear U-Bolts Included

Matched U-bolts are included for installation of the rear lift blocks, eliminating the need to source this primary rear hardware separately.

Designed for 6-Lug 2WD Tacomas

Engineered for compatible 2005–2023 Toyota Tacoma 2WD trucks equipped with the 6-lug wheel configuration.

Clears Up to 32" x 11.50" Tires

Provides clearance for tires up to approximately 32" x 11.50" on 8"-9" wide wheels. Fender trimming may be required depending on your setup.

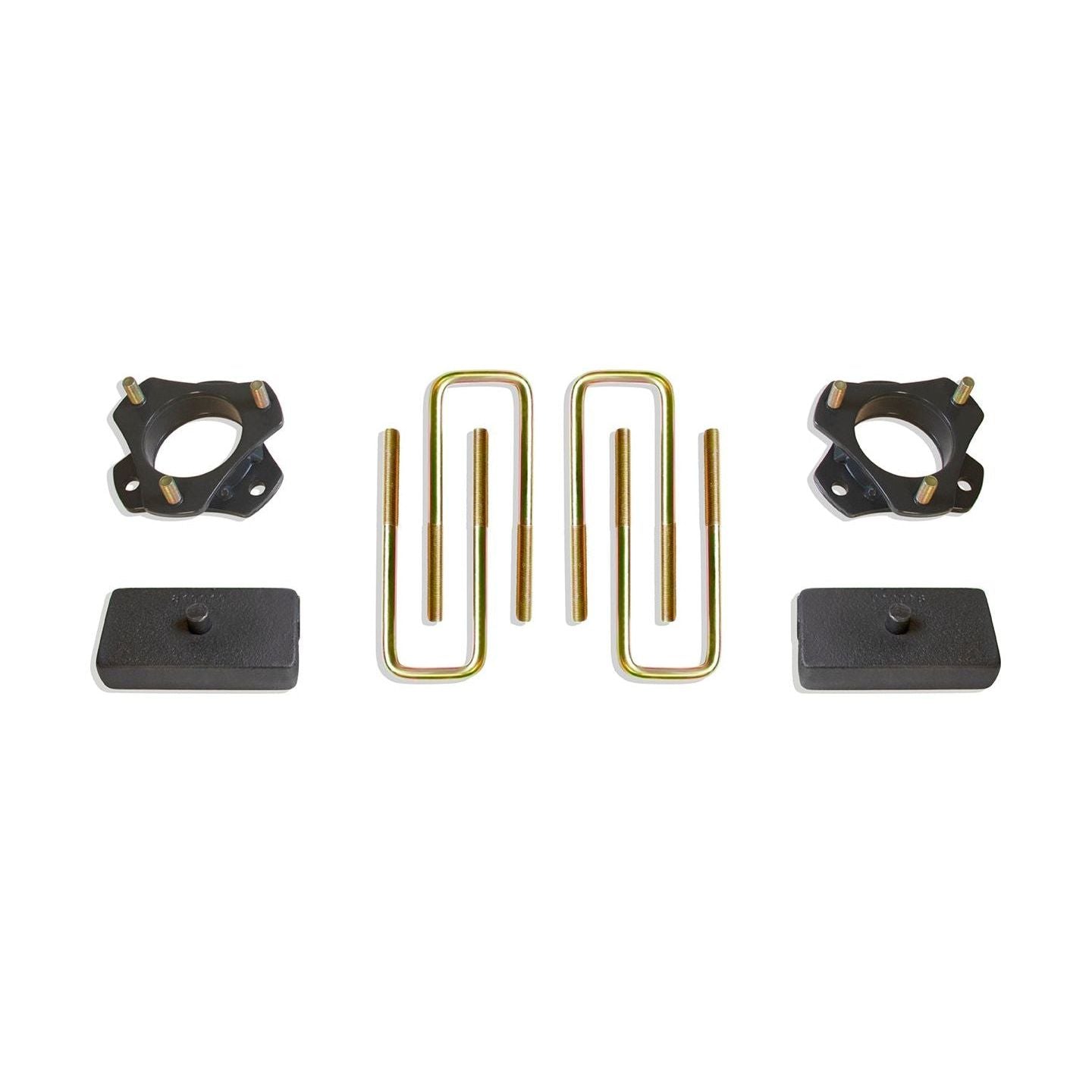

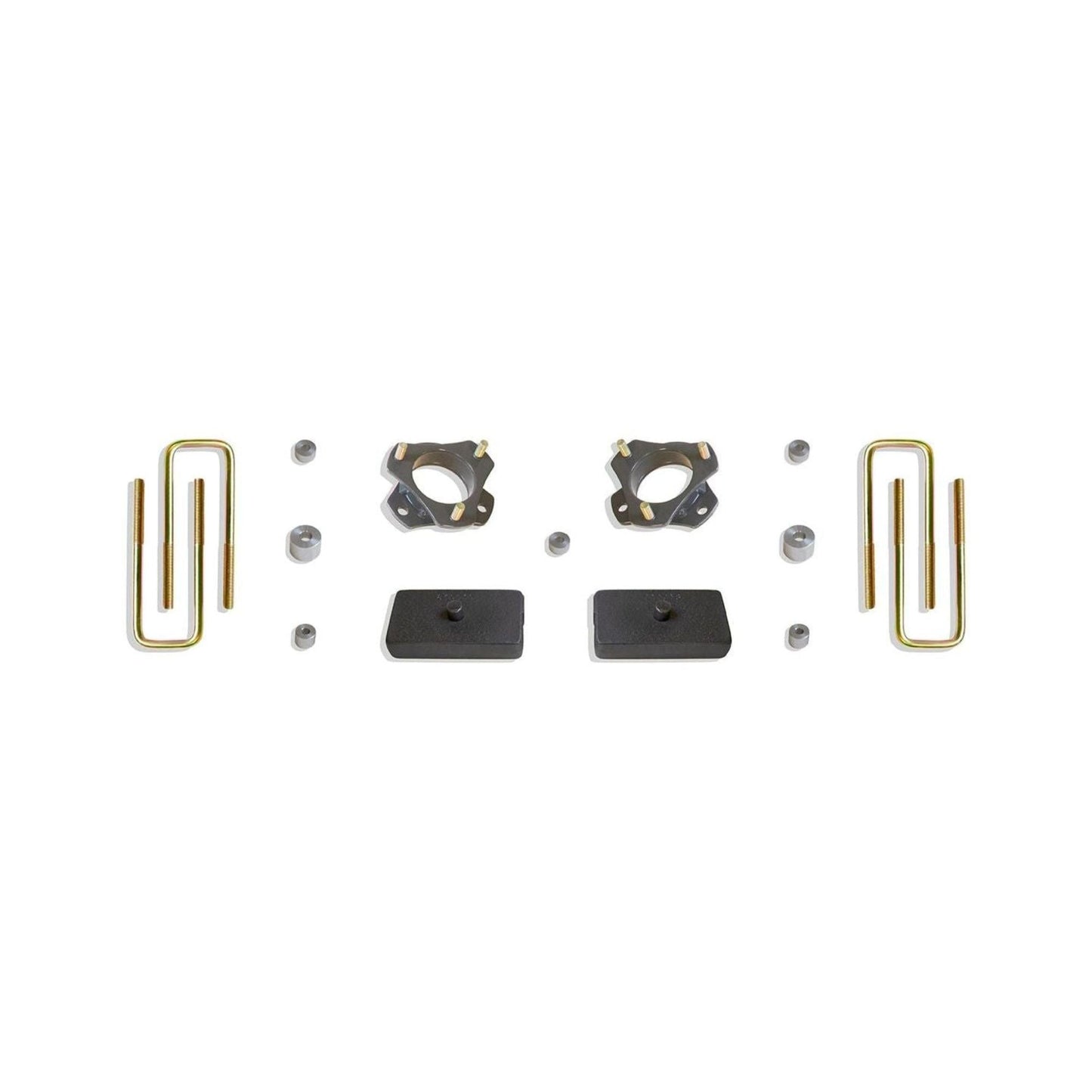

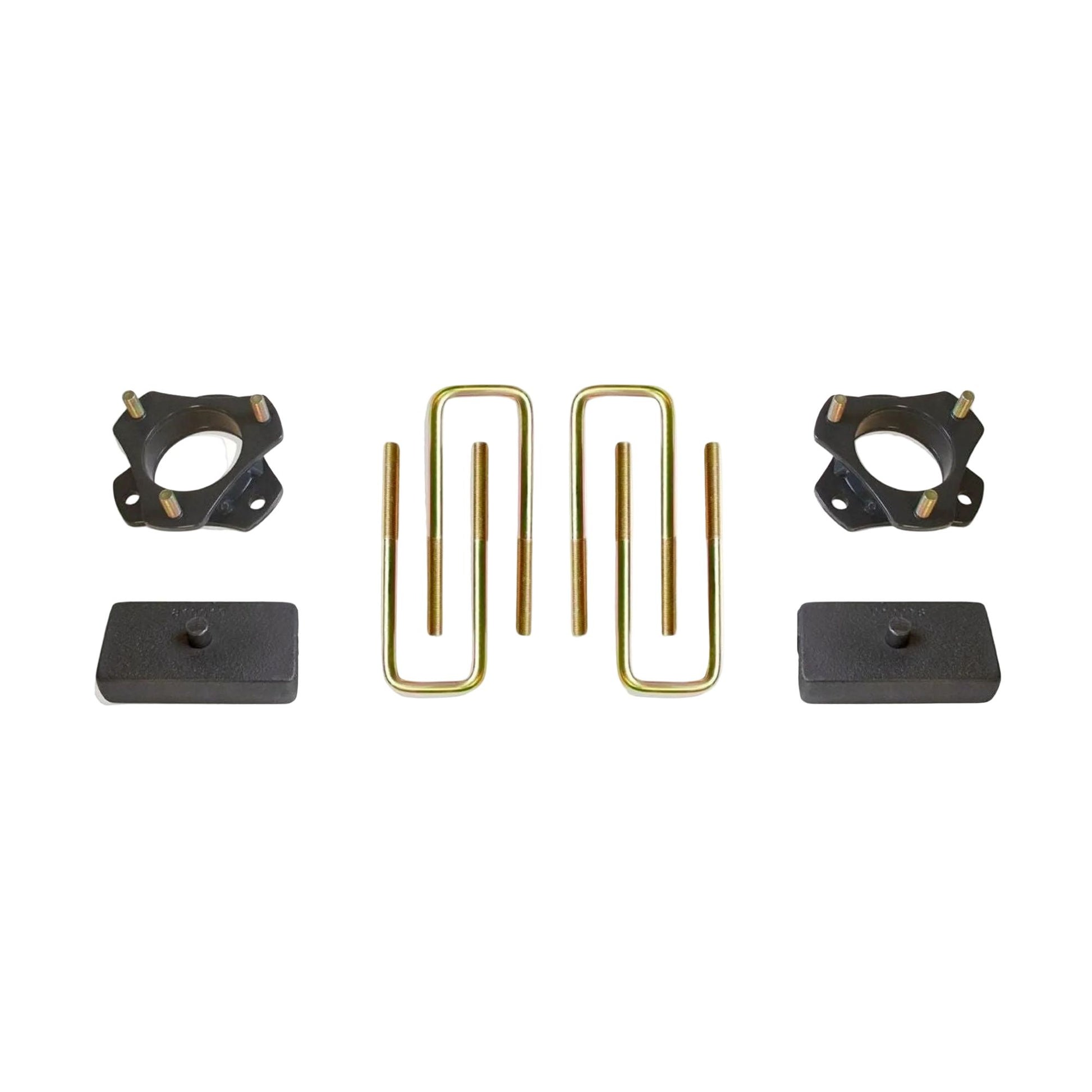

What's Included

2.5" front strut spacers
1" rear lift blocks
Rear U-bolts
MaxTrac MP886821 leveling kit

Vehicle Fitment

Fits

2005–2023 Toyota Tacoma 6-Lug 2WD

Important Notes

Fits 6-lug 2WD models only.
Clears up to 32" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required.
Some factory wheels may require 1.25" wheel adapters when installing larger tires. Stock-size tires are okay.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: MP886821
UPC: 738283444708
Kit Type: Lift / Leveling Kit
Front Lift: 2.5"
Rear Lift: 1"
Position: Front & Rear
Drive Type: 2WD
Lug Configuration: 6-Lug
Material: Steel
Color: Grey
Finish: Grey Powdercoat
Sold As: Kit
Weight: 18 lbs
Dimensions: 14" × 7" × 4"
Country of Origin: China

Why Choose the MaxTrac MP886821?

The MP886821 offers a simple way to improve the stance of a 6-lug 2WD Tacoma while adding useful tire clearance. Front strut spacers handle the additional front height, while rear blocks and U-bolts complete the 2.5"/1" setup for a balanced appearance from front to rear.

Perfect For

6-lug Tacoma 2WD builds
Reducing factory rake
32-inch tire upgrades
Front and rear leveling
Daily-driven and customized pickups
