MaxTrac MP886821-4 2.5"/1" Leveling Kit Tacoma 4WD

Add Height to Your 4WD Tacoma with a Complete Leveling Package

Get your 2005–2023 Toyota Tacoma 6-lug 4WD sitting taller and more balanced with the MaxTrac MP886821-4 Leveling Kit. Providing 2.5 inches of front lift and 1 inch of rear lift, this package reduces factory rake while creating additional clearance for larger tires.
Built specifically around the needs of a 4WD Tacoma, the kit combines front strut spacers, a differential drop, rear lift blocks, and U-bolts for a complete front-to-rear leveling setup.

Key Features

2.5" Front Strut Spacer Lift

Front strut spacers add approximately 2.5 inches of height, giving your Tacoma increased clearance and a more aggressive stance.

Differential Drop Included

The included differential drop components help compensate for changes in front drivetrain and CV axle angles created by lifting a 4WD Tacoma.

1" Rear Block Lift

Rear lift blocks raise the back approximately 1 inch to complement the front lift while maintaining a balanced truck profile.

Rear U-Bolts Included

Matched U-bolts are supplied for installation of the rear lift blocks, providing the primary hardware required for the rear lift.

Clears Up to 32" x 11.50" Tires

Allows clearance for tires up to approximately 32" x 11.50" on 8"-9" wide wheels. Fender trimming may be required depending on wheel and tire configuration.

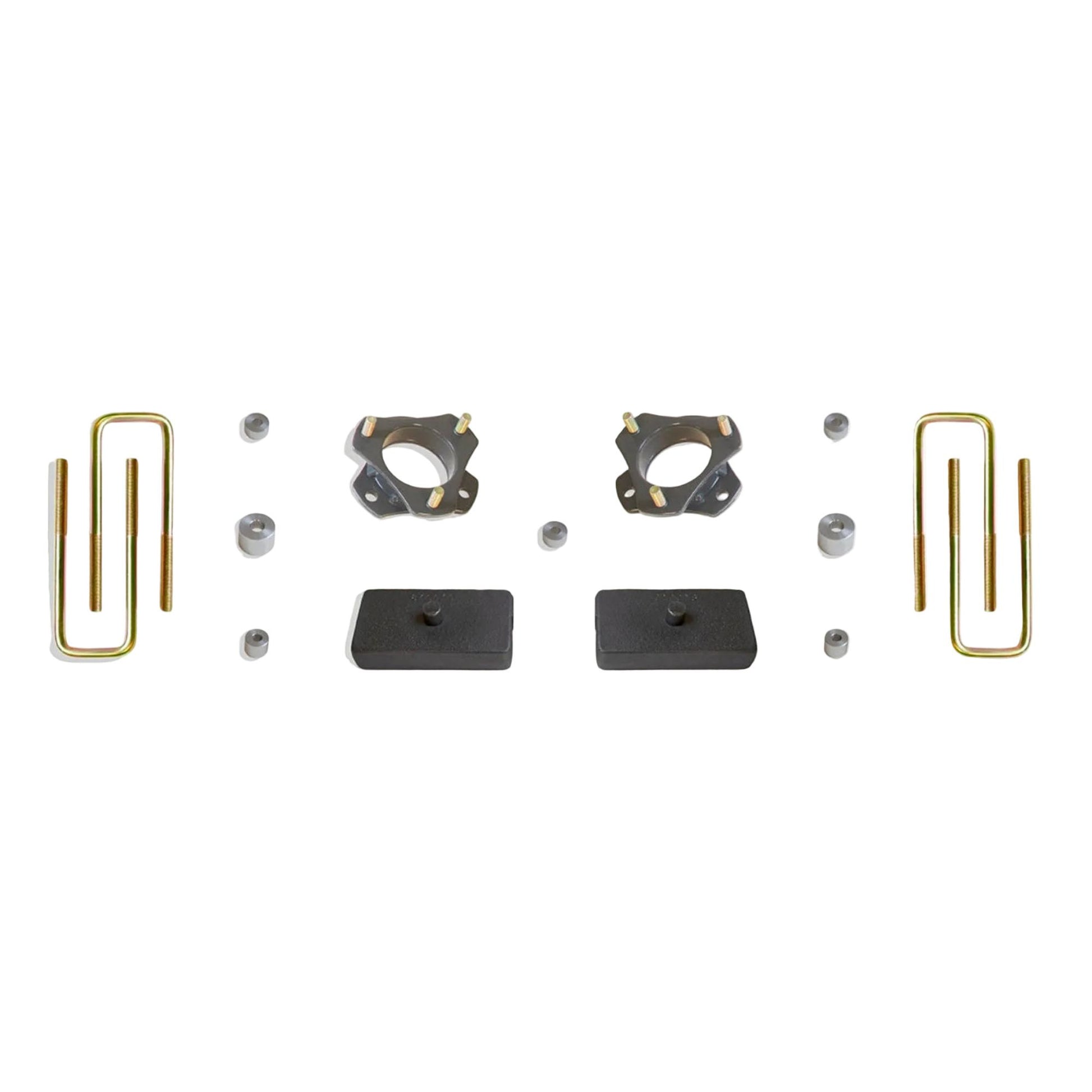

What's Included

2.5" front strut spacers
Differential drop kit
1" rear lift blocks
Rear U-bolts
MaxTrac MP886821-4 leveling kit

Vehicle Fitment

Fits

2005–2023 Toyota Tacoma 6-Lug 4WD

Important Notes

Fits 6-lug 4WD models only.
Does not fit TRD Pro models.
Does not fit models equipped with a TRD skid plate.
Clears up to 32" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required.
Some factory wheels may require 1.25" wheel adapters for larger tire clearance. Stock-size tires are okay.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: MP886821-4
UPC: 738283444715
Kit Type: Lift / Leveling Kit
Front Lift: 2.5"
Rear Lift: 1"
Position: Front & Rear
Drive Type: 4WD
Lug Configuration: 6-Lug
Material: Steel
Color: Grey
Finish: Grey Powdercoat
Sold As: Kit
Weight: 20 lbs
Dimensions: 14" × 7" × 4"
Country of Origin: China

Why Choose the MaxTrac MP886821-4?

The MP886821-4 gives 4WD Tacoma owners more than a basic spacer setup. Along with the front and rear lift components, MaxTrac includes a differential drop to better accommodate the drivetrain geometry of a lifted 4WD truck. The result is a matched 2.5"/1" package designed to improve stance and tire clearance.

Perfect For

6-lug Tacoma 4WD builds
Differential drop applications
Reducing factory rake
32-inch tire upgrades
Front and rear suspension leveling
