MaxTrac MP882521 2.5"/1.5" Leveling Kit Ram 1500 4WD

Get a Taller, More Aggressive Ram 1500 Stance

Bring your 2019–2024 Ram 1500 5-lug 4WD up to a more balanced ride height with the MaxTrac MP882521 Leveling Kit. Delivering 2.5 inches of front lift and 1.5 inches of rear lift, this spacer system reduces factory rake while adding clearance for larger tires.
Using front strut/coil spacers and rear coil spacers, the MP882521 provides a straightforward suspension upgrade while retaining the factory-style suspension configuration.

Key Features

2.5" Front Lift

Front strut/coil spacers add approximately 2.5 inches of height for improved clearance and a more level appearance.

1.5" Rear Lift

Rear coil spacers provide approximately 1.5 inches of lift to complement the raised front suspension.

5-Lug 4WD Application

Designed for compatible 2019–2024 Ram 1500 4WD trucks equipped with a 5-lug configuration. Does not fit 6-lug models.

Clears Up to 33" x 11.50" Tires

Provides clearance for tires up to 33" x 11.50" when paired with 8"-9" wide wheels. Fender trimming may be required.

Powdercoated Steel Construction

Heavy-duty steel components feature a grey powdercoat finish for strength and additional protection against corrosion.

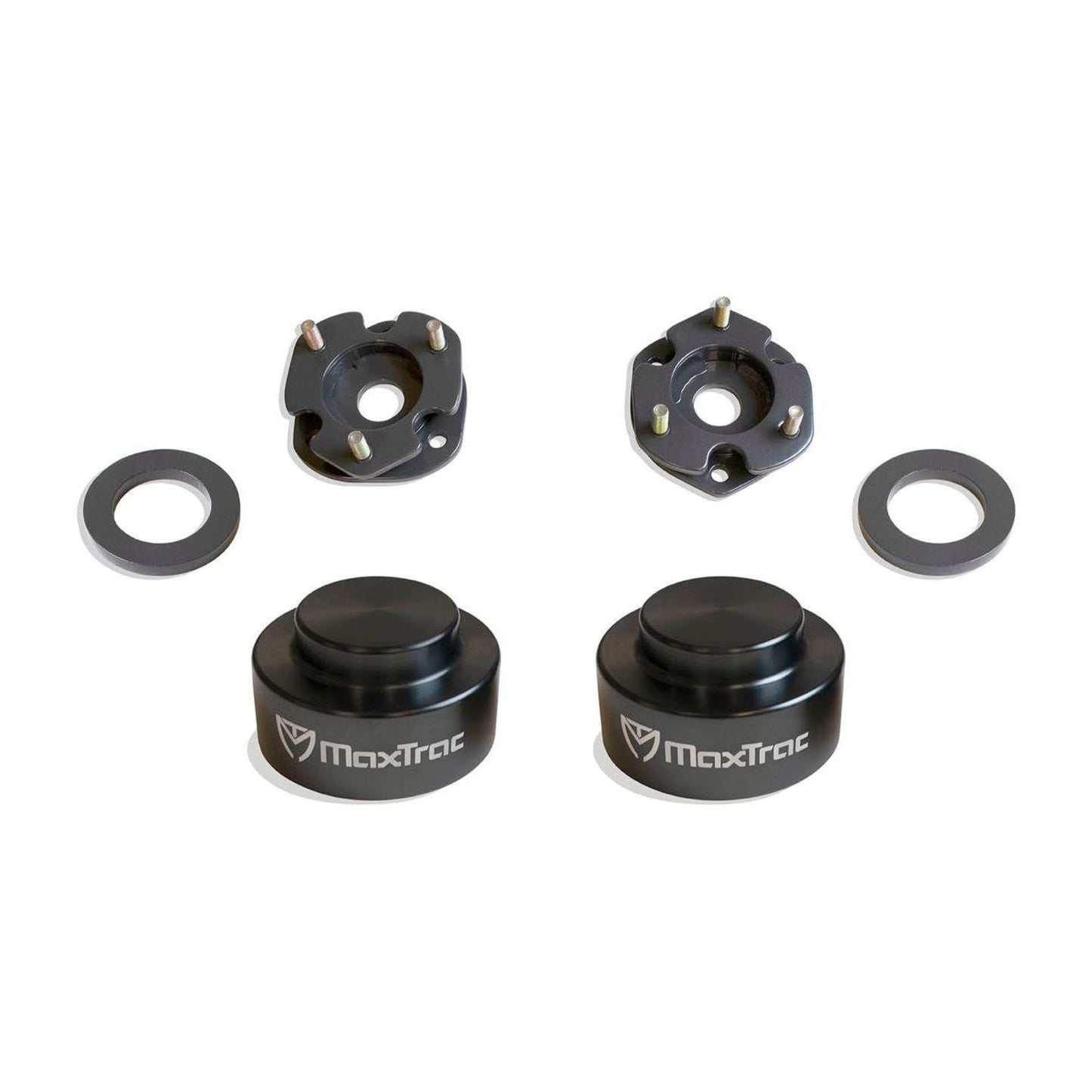

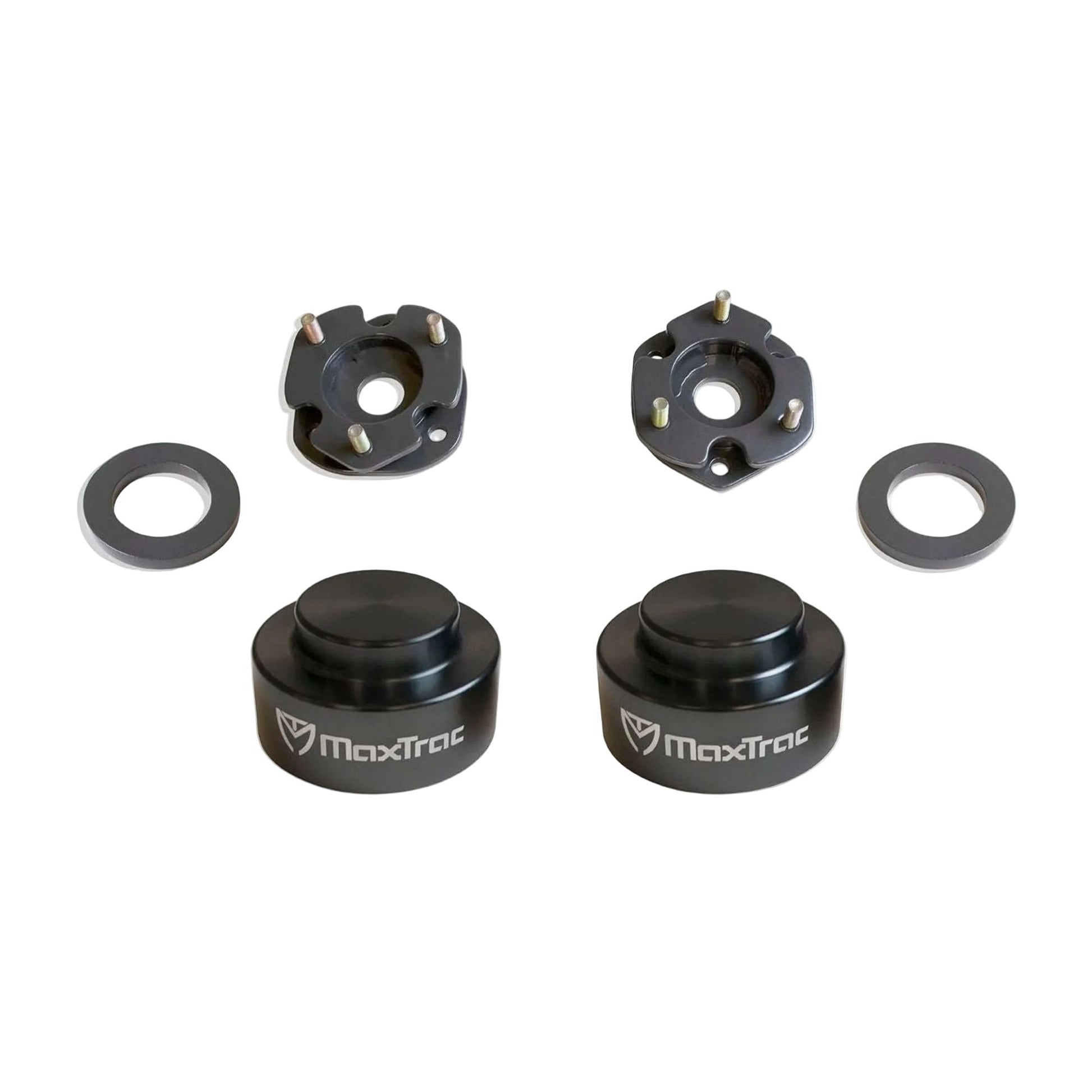

What's Included

2.5" front strut/coil spacers
1.5" rear coil spacers
MaxTrac MP882521 leveling kit

Vehicle Fitment

Fits

2019 Ram 1500 5-Lug 4WD
2020 Ram 1500 5-Lug 4WD
2021 Ram 1500 5-Lug 4WD
2022 Ram 1500 5-Lug 4WD
2023 Ram 1500 5-Lug 4WD
2024 Ram 1500 5-Lug 4WD

Important Notes

Fits 5-lug 4WD models only.
Does not fit models equipped with Air Ride suspension.
Does not fit 6-lug models.
Clears up to 33" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: MP882521
UPC: 738283444630
Kit Type: Lift / Leveling Kit
Front Lift: 2.5"
Rear Lift: 1.5"
Position: Front & Rear
Drive Type: 4WD
Lug Configuration: 5-Lug
Material: Steel
Color: Grey
Finish: Grey Powdercoat
Sold As: Kit
Weight: 8 lbs
Dimensions: 14" × 7" × 4"
Country of Origin: China

Why Choose the MaxTrac MP882521?

The MP882521 combines front and rear spacer lift into one compact package, giving compatible Ram 1500 trucks additional height without the complexity of a full suspension replacement. It's a solid choice for reducing factory rake, gaining tire clearance, and giving your truck a more aggressive profile.

Perfect For

5-lug Ram 1500 4WD builds
Front and rear spacer upgrades
33-inch tire setups
Reducing factory rake
Street and custom truck builds
