MaxTrac MP882521 2.5"/1.5" Leveling Kit Ram 1500 4WD

Add Height and Tire Clearance to Your Ram 1500

Upgrade your 2013–2018 Ram 1500 5-lug 4WD with the MaxTrac MP882521 Leveling Kit for a taller, more balanced truck stance. Providing 2.5 inches of front lift and 1.5 inches of rear lift, this spacer kit helps reduce factory rake while creating additional clearance for larger tires.
The MP882521 combines front strut/coil spacers with rear coil spacers for a vehicle-specific suspension upgrade without requiring a complete lift system.

Key Features

2.5" Front Lift

Front strut/coil spacers raise the front approximately 2.5 inches, improving ground clearance and reducing the factory nose-down appearance.

1.5" Rear Lift

Rear coil spacers provide approximately 1.5 inches of additional height to maintain a balanced front-to-rear stance.

Built for 5-Lug 4WD Models

Designed specifically for compatible 2013–2018 Ram 1500 4WD trucks with the 5-lug configuration. This kit does not fit 6-lug trucks.

Room for Up to 33" x 11.50" Tires

Provides clearance for tires up to 33" x 11.50" on 8"-9" wide wheels. Fender trimming may be required depending on wheel offset and tire combination.

Durable Steel Components

Steel spacer construction with a grey powdercoat finish provides strength and added protection from corrosion and road exposure.

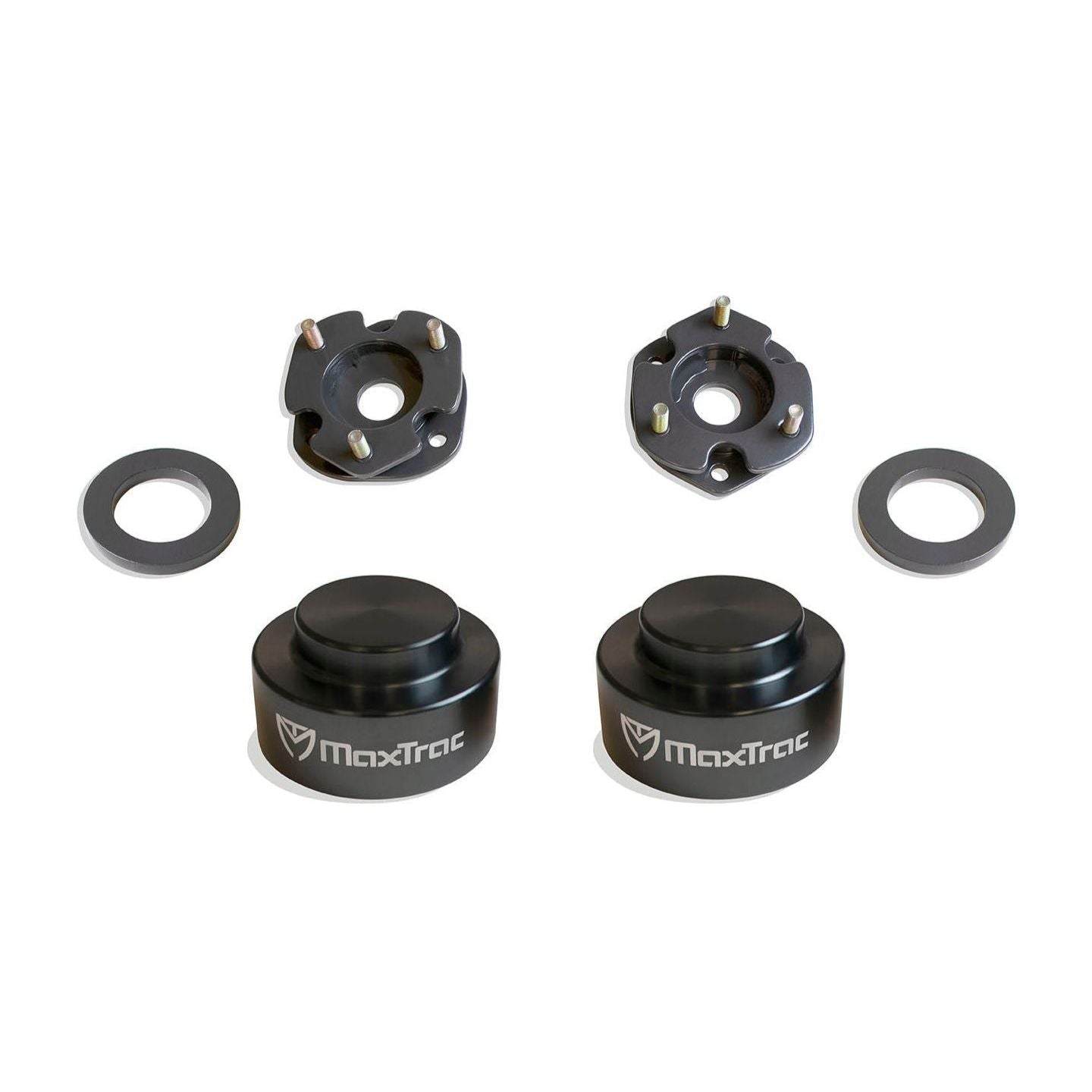

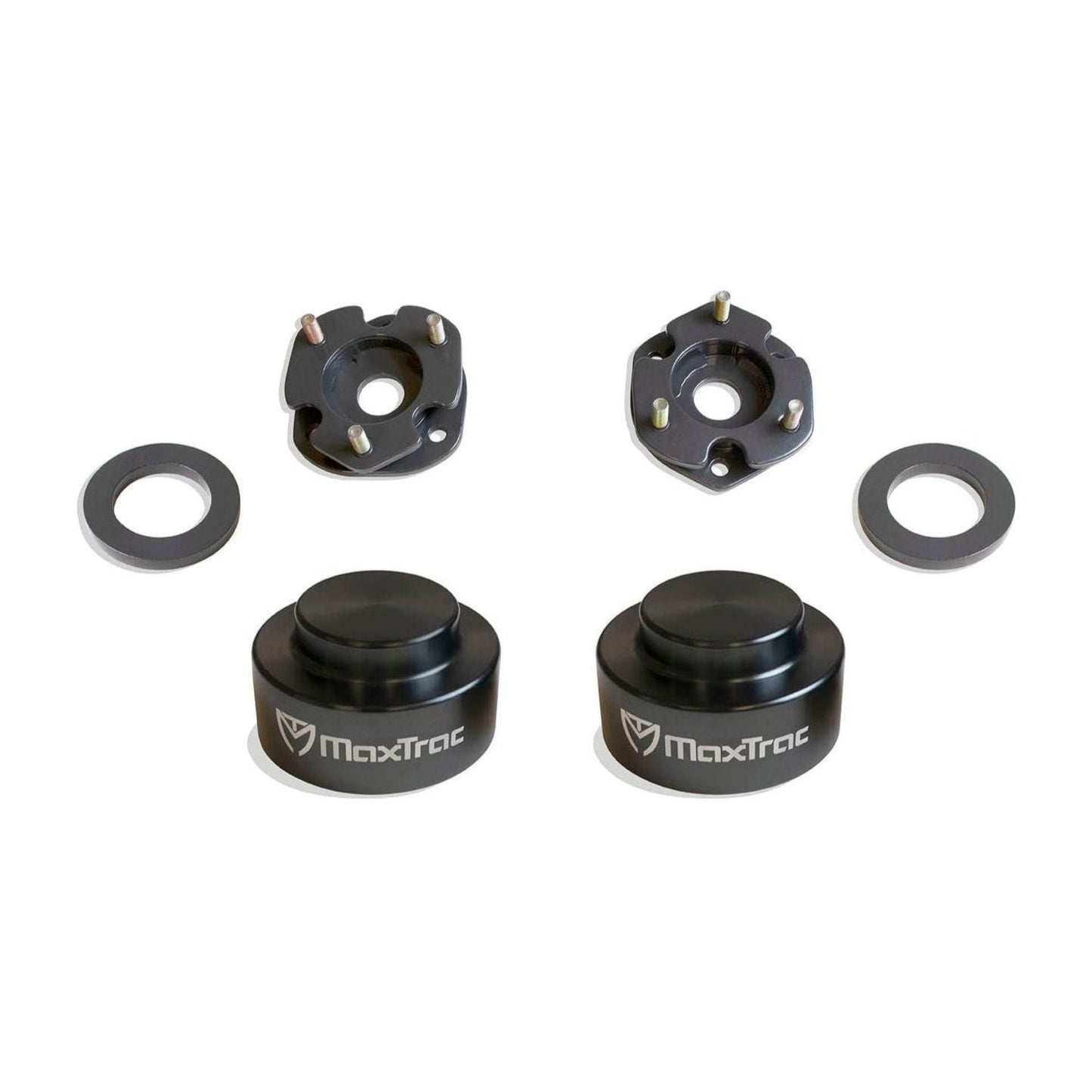

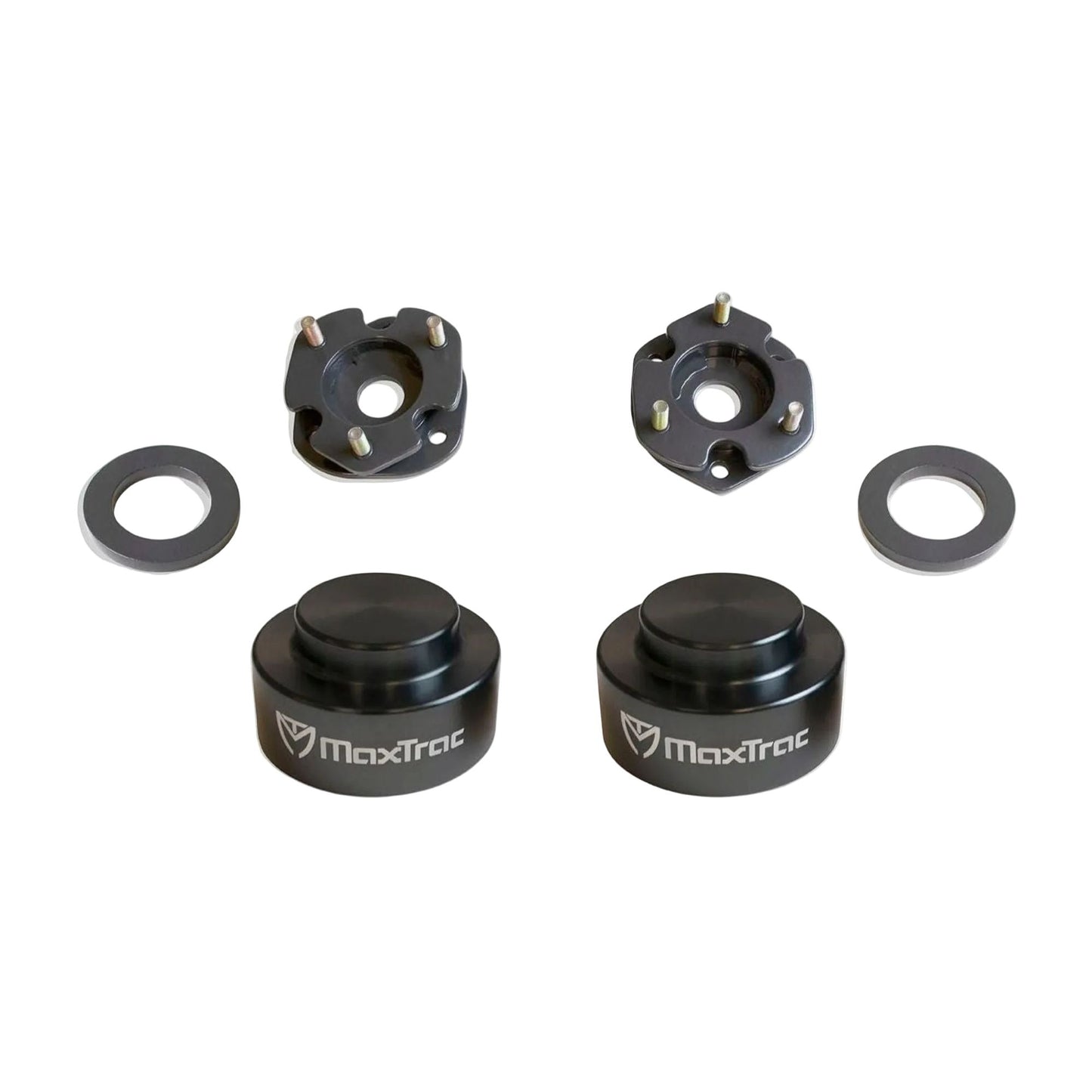

What's Included

2.5" front strut/coil spacers
1.5" rear coil spacers
MaxTrac MP882521 leveling kit

Vehicle Fitment

Fits

2013 Ram 1500 5-Lug 4WD
2014 Ram 1500 5-Lug 4WD
2015 Ram 1500 5-Lug 4WD
2016 Ram 1500 5-Lug 4WD
2017 Ram 1500 5-Lug 4WD
2018 Ram 1500 5-Lug 4WD

Important Notes

Fits 5-lug 4WD models only.
Does not fit models equipped with Air Ride suspension.
Does not fit 6-lug models.
Clears up to 33" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: MP882521
UPC: 738283444630
Kit Type: Lift / Leveling Kit
Front Lift: 2.5"
Rear Lift: 1.5"
Position: Front & Rear
Drive Type: 4WD
Lug Configuration: 5-Lug
Material: Steel
Color: Grey
Finish: Grey Powdercoat
Sold As: Kit
Weight: 8 lbs
Dimensions: 14" × 7" × 4"
Country of Origin: China

Why Choose the MaxTrac MP882521?

The MaxTrac MP882521 is a practical option for adding height to your Ram 1500 while keeping the factory-style suspension layout. Its matched front and rear spacers help create a more aggressive stance, reduce factory rake, and provide additional room for larger tires.

Perfect For

2013–2018 Ram 1500 builds
5-lug 4WD applications
Front and rear leveling upgrades
33-inch tire setups
Reducing factory rake
