MaxTrac KX880322 2.5"/1" Leveling Kit for 2004-2012 Colorado Canyon

Level Your Colorado or Canyon and Add Tire Clearance

Improve the stance of your 2004–2012 Chevy Colorado or GMC Canyon with the MaxTrac KX880322 2.5"/1" Leveling Kit. Designed for 2WD and 4WD trucks equipped with torsion-bar front suspension, this setup provides approximately 2.5 inches of front lift and 1 inch of rear lift.

MaxTrac combines adjustable-style torsion key leveling with rear lift shackles and matched rear shocks, creating a simple front-to-rear suspension upgrade that can provide clearance for tires up to 32" x 11.50" with the proper wheel setup.

Key Features

2.5" Front Torsion Key Lift

Replacement torsion keys provide approximately 2.5 inches of front lift, helping reduce factory rake while increasing front-end clearance.

1" Rear Shackle Lift

Rear lift shackles raise the back approximately 1 inch, complementing the increased front ride height.

2WD & 4WD Compatibility

Fits both 2WD and 4WD Colorado/Canyon models when equipped with torsion-bar front suspension.

MaxTrac Rear Shocks Included

Includes two 2650LL-3 rear shocks matched to the lifted rear suspension.

Up to 32" Tire Clearance

Can clear up to a 32" x 11.50" tire on an 8"-9" wide wheel when properly configured.

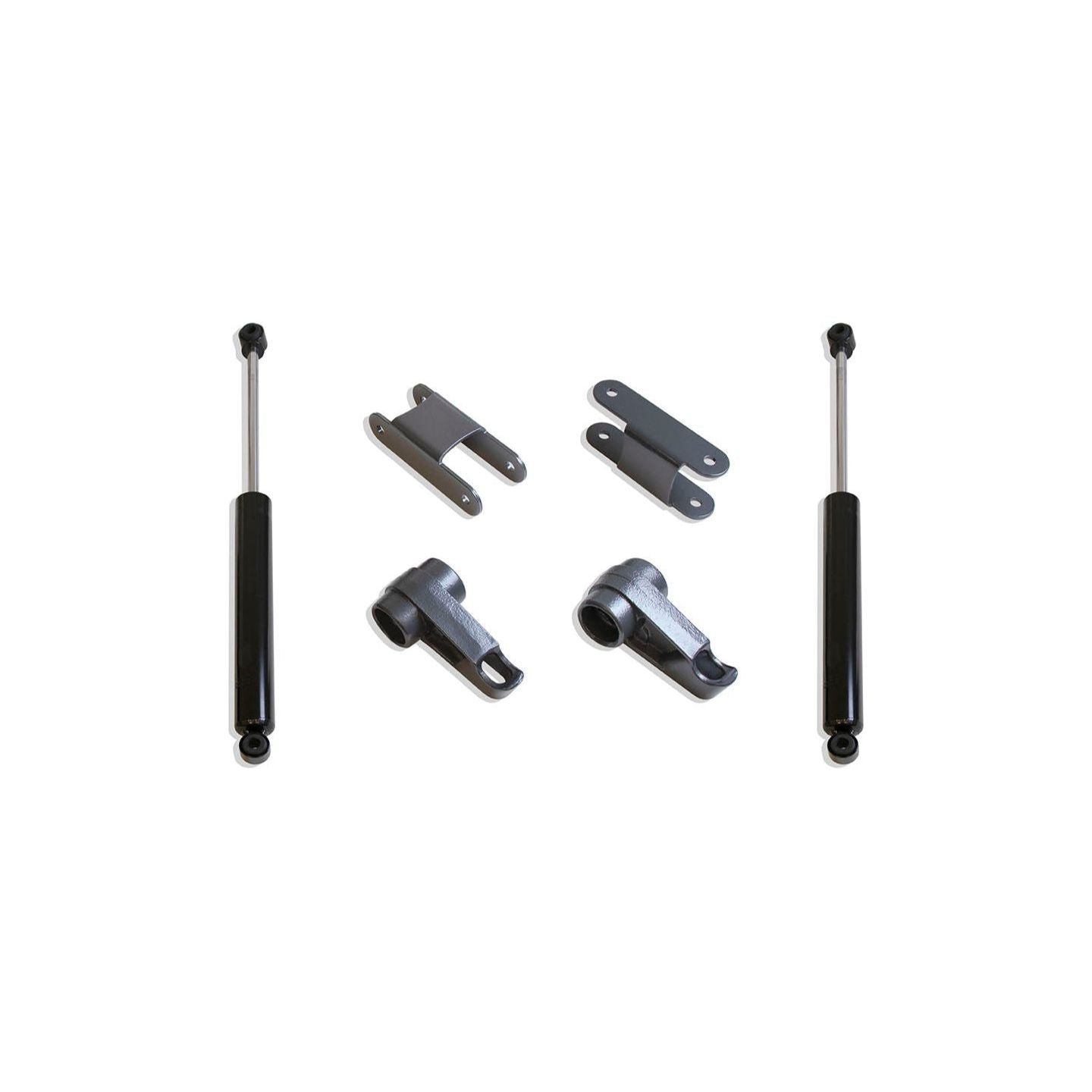

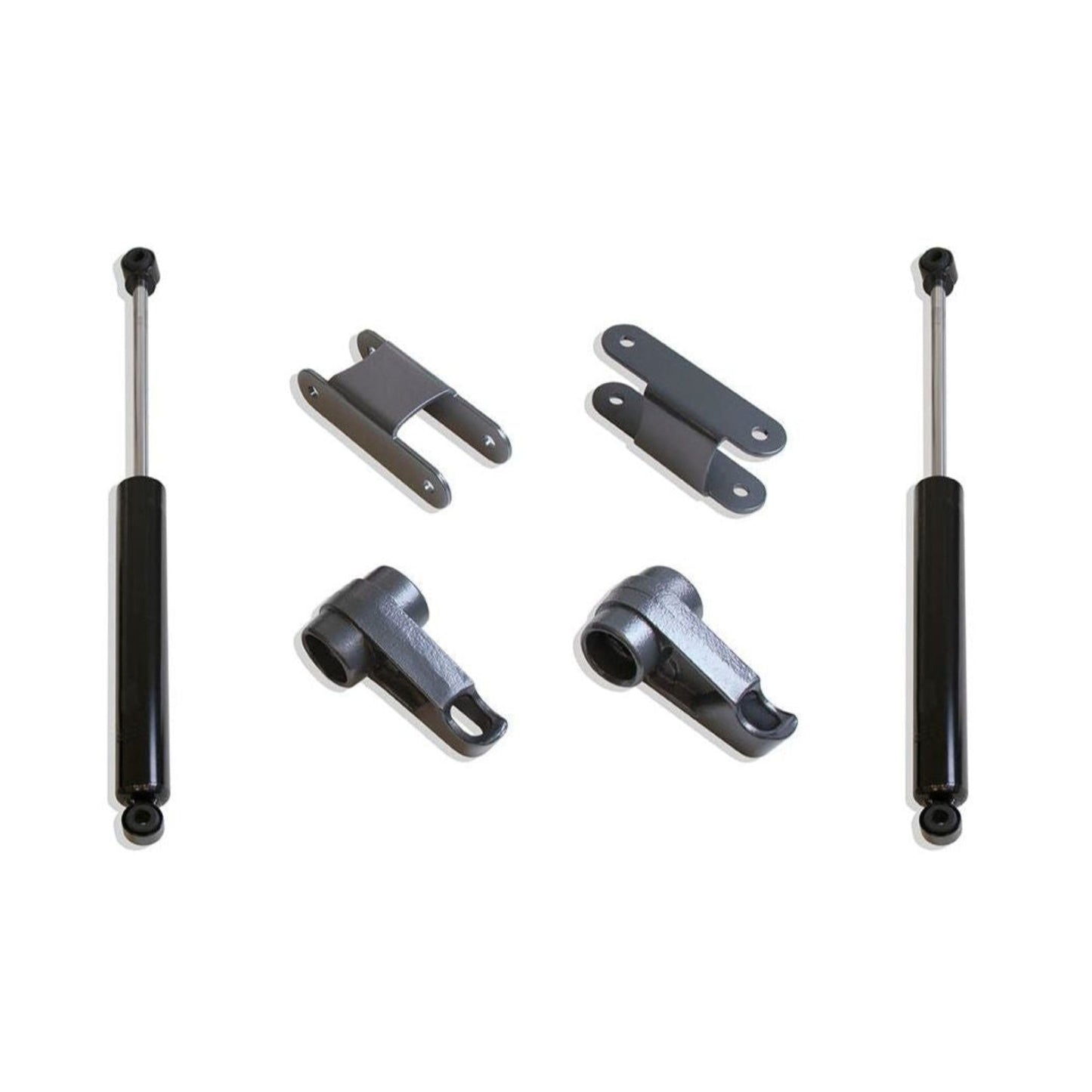

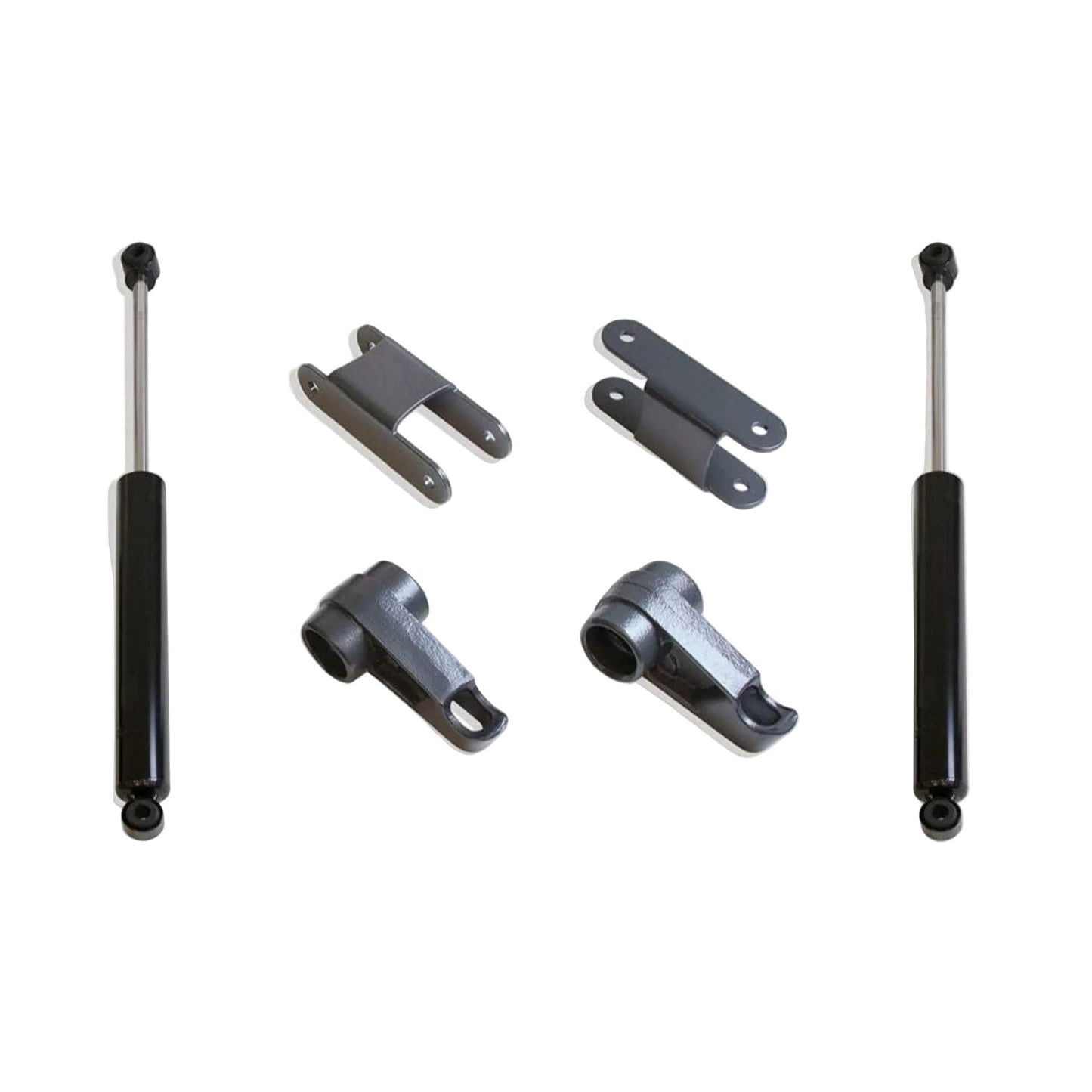

What's Included

Front torsion keys
Rear lift shackles
MaxTrac 2650LL-3 rear shocks (Qty. 2)

Vehicle Fitment

Fits

2004–2012 Chevrolet Colorado
2004–2012 GMC Canyon
2WD torsion-bar models
4WD torsion-bar models

Important Notes

Fits torsion-bar suspension models only.
Clears up to a 32" x 11.50" tire on an 8"-9" wide wheel.
Actual tire clearance can vary based on wheel offset, backspacing, tire design, and vehicle configuration.
When ordering rear shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac Suspension does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KX880322
UPC: N/A
Product Type: Suspension Leveling Kit
Kit Type: Lift / Level
Front Lift: 2.5 Inches
Rear Lift: 1 Inch
Drivetrain: 2WD / 4WD
Front Suspension: Torsion Bar
Front Lift Method: Torsion Keys
Rear Lift Method: Shackles
Rear Shocks: 2650LL-3 (Qty. 2)
Maximum Tire Size: 32" x 11.50"
Recommended Wheel Width: 8"-9"
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 29 lbs

Why Choose the MaxTrac KX880322?

The KX880322 gives torsion-bar Colorado and Canyon owners a straightforward way to gain additional height without moving to a large suspension lift. The combination of 2.5-inch front torsion key lift, 1-inch rear shackles, and matched rear shocks creates a more balanced stance while opening up room for larger tires.

Perfect For

Chevy Colorado builds
GMC Canyon pickups
Torsion-bar suspension trucks
2WD and 4WD applications
32-inch tire setups
Mild lift and leveling projects
