MaxTrac KS881332 3" Lift Kit for 2007-2016 Silverado/Sierra 1500 2WD

Add Clearance and a Taller Stance to Your GM 1500

Raise your 2007–2016 Chevy Silverado or GMC Sierra 1500 2WD with the MaxTrac KS881332 3" Lift Kit. Designed specifically for trucks equipped with cast steel control arms, this package provides approximately 3 inches of front lift and 1 inch of rear lift for added clearance and a more aggressive stance.

The kit uses front lift spindles along with extended brake lines, rear lift blocks, U-bolts, and MaxTrac rear shocks. With the proper wheel setup, it can clear up to a 32" x 11.50" tire.

Key Features

3" Front Spindle Lift

MaxTrac lift spindles provide approximately 3 inches of front lift, raising the front suspension without relying on a strut spacer.

1" Rear Lift

Rear blocks and U-bolts provide approximately 1 inch of rear lift to complement the taller front stance.

Extended Brake Lines

Extended front brake lines are included to accommodate the additional suspension height.

MaxTrac Rear Shocks

Two 2650LL-4 MaxTrac rear shocks are included to work with the lifted rear suspension.

Up to 32" Tire Clearance

With the recommended wheel configuration, the kit clears up to a 32" x 11.50" tire on an 8"-9" wide wheel. Fender trimming may still be required.

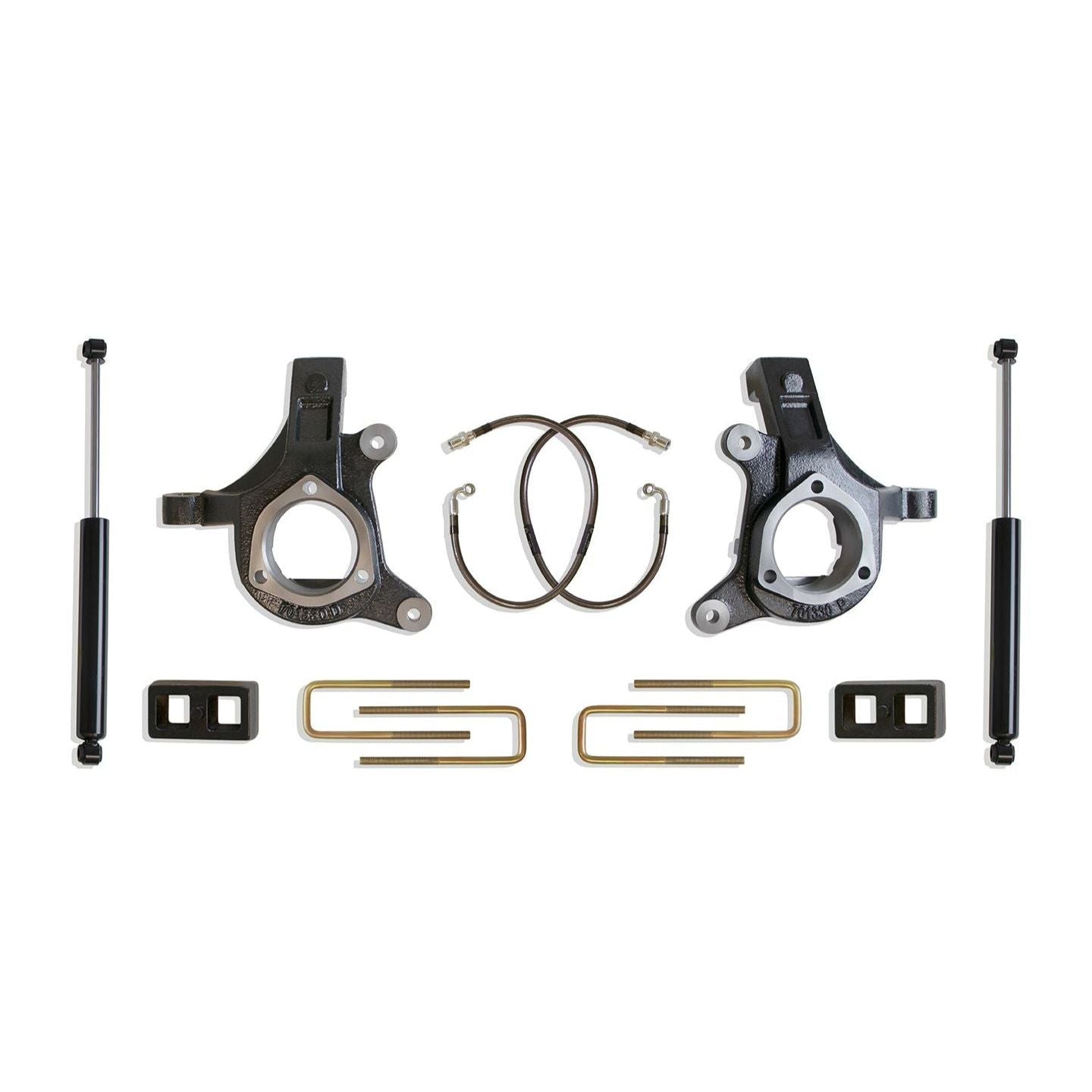

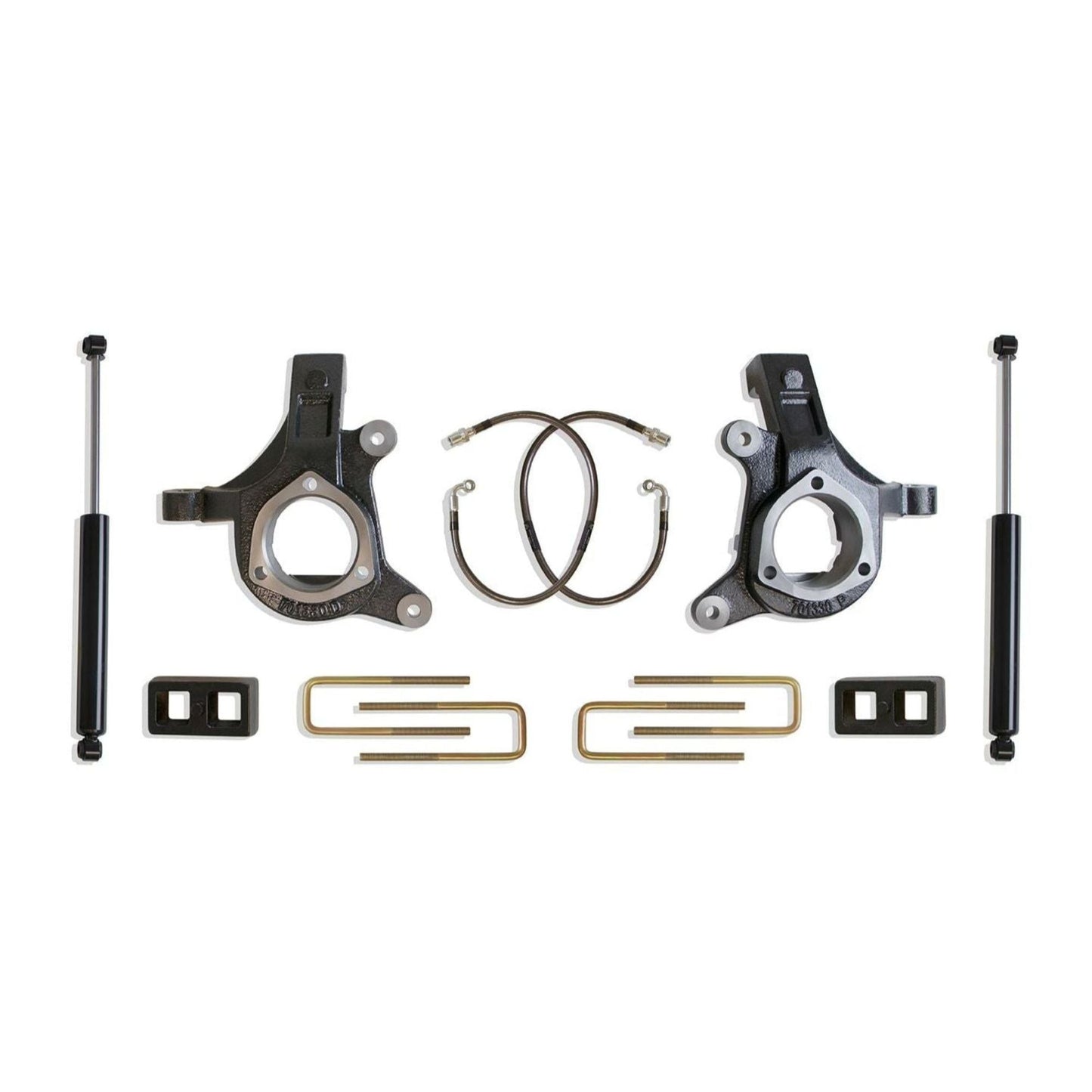

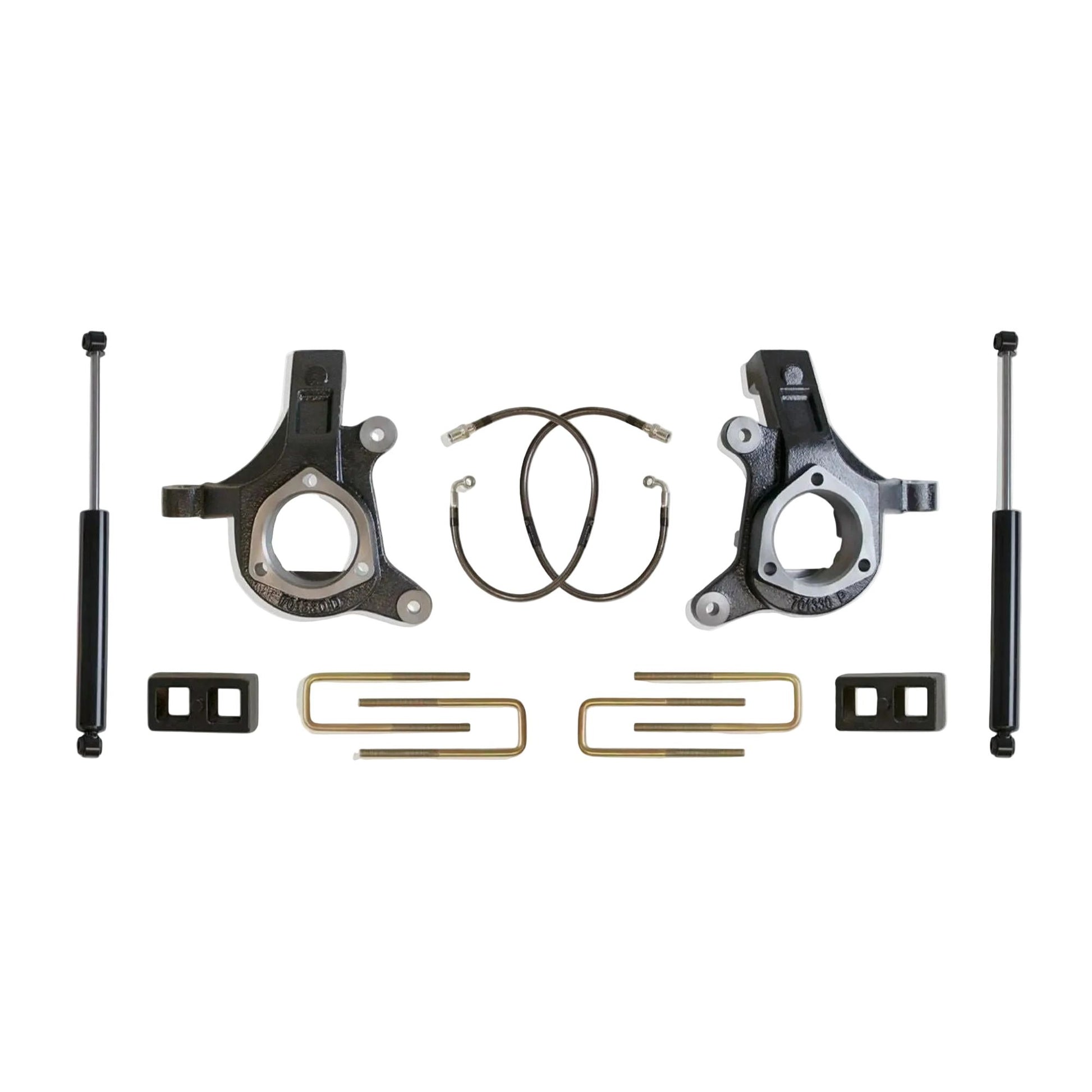

What's Included

Front lift spindles
Extended brake lines
Rear lift blocks
Rear U-bolts
MaxTrac 2650LL-4 rear shocks (Qty. 2)

Vehicle Fitment

Fits

2007–2016 Chevrolet Silverado 1500 2WD
2007–2016 GMC Sierra 1500 2WD
Cast steel control arm models only

Important Notes

Fits cast steel control arm models only.
Requires 17" wheels or larger with 4.75" backspacing or less.
20" wheels or larger may use up to 5.75" backspacing.
Stock 20" wheels or larger will fit.
Clears up to a 32" x 11.50" tire on an 8"-9" wide wheel.
Fender trimming may be required.
When ordering rear shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Doing so will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KS881332
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 3 Inches
Rear Lift: 1 Inch
Drivetrain: 2WD
Control Arm Type: Cast Steel
Front Lift Method: Spindles
Rear Lift Method: Blocks & U-Bolts
Rear Shocks: 2650LL-4 (Qty. 2)
Maximum Tire Size: 32" x 11.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 17 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 75 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac KS881332?

The KS881332 combines a 3-inch spindle lift with a 1-inch rear block lift to give compatible Silverado and Sierra 1500 trucks additional tire clearance without moving into a much larger suspension system. Extended brake lines and matched rear shocks are already included, making it a well-rounded package for 2WD trucks with cast steel control arms.

Perfect For

Silverado 1500 2WD builds
Sierra 1500 lifted trucks
Cast steel control arm applications
32-inch tire setups
Street and custom pickups
Mild suspension lift projects
