MaxTrac KS331535 3"/5" Lowering Kit for 2014-2018 Silverado Sierra 1500

Drop Your GM 1500 with a Complete 3/5 Suspension Package

Transform the stance of your 2014–2018 Chevy Silverado or GMC Sierra 1500 with the MaxTrac KS331535 3"/5" Lowering Kit. Built for compatible 2WD and 4WD trucks with cast steel control arms, this setup delivers approximately 3 inches of front lowering and 5 inches of rear lowering for a low, aggressive street-truck appearance.

MaxTrac combines front lowering coils and spindles with a rear flip kit, hangers, and shortened rear shocks to create a coordinated front-to-rear suspension package.

Key Features

3" Front Drop with Coils & Spindles

Front lowering coils work with MaxTrac drop spindles to provide approximately 3 inches of front lowering.

5" Rear Flip Kit Setup

The included axle flip kit and lowering hangers provide approximately 5 inches of rear drop for a balanced 3/5 stance.

Cast Steel Control Arm Application

Designed specifically for trucks equipped with cast steel control arms. Verify your truck's control arm type before ordering.

MaxTrac Rear Shocks Included

Includes two MaxTrac 2000LL-4 rear shocks designed for use with the lowered rear suspension.

2WD & 4WD Compatibility

Fits compatible 2WD and 4WD Silverado/Sierra 1500 applications within the listed model years.

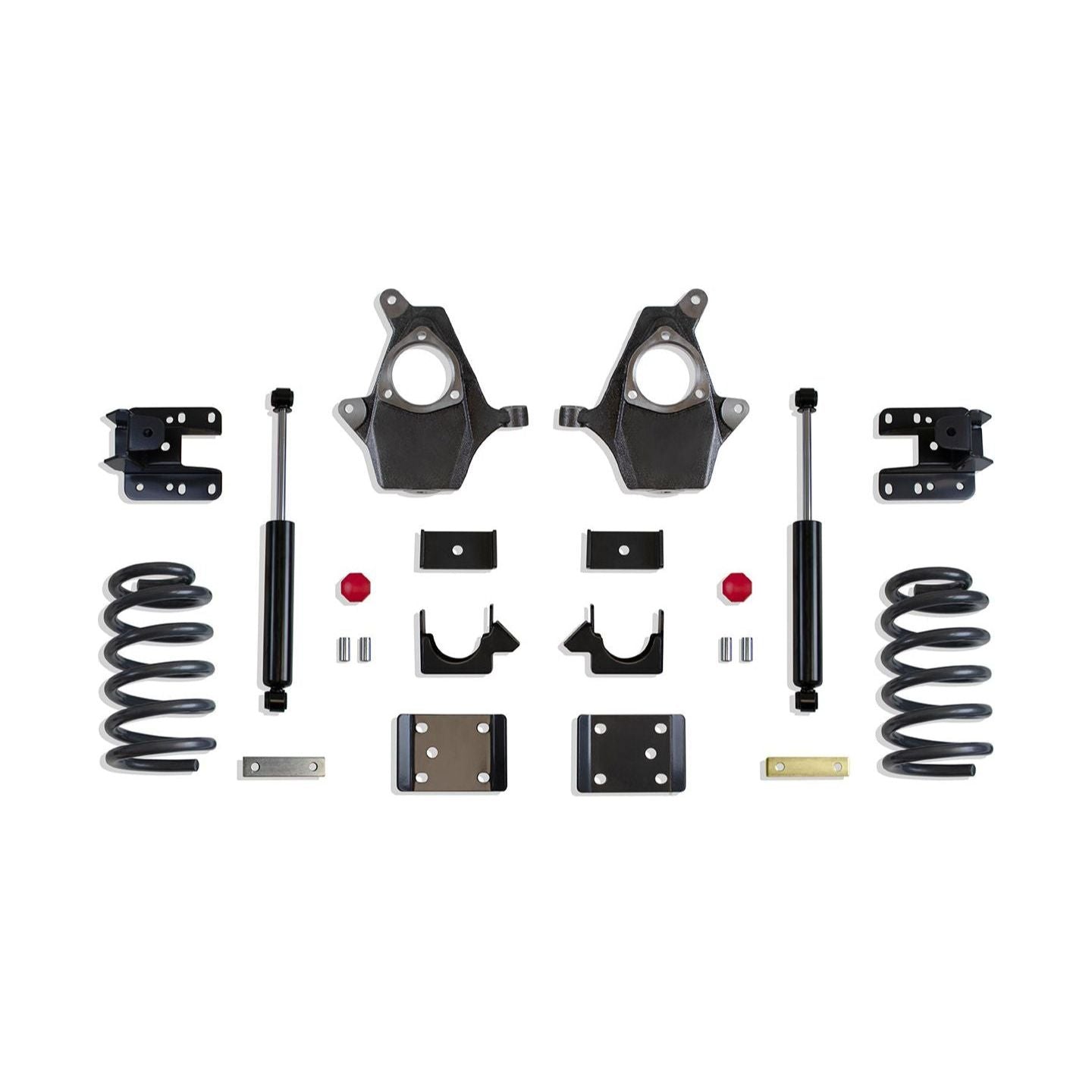

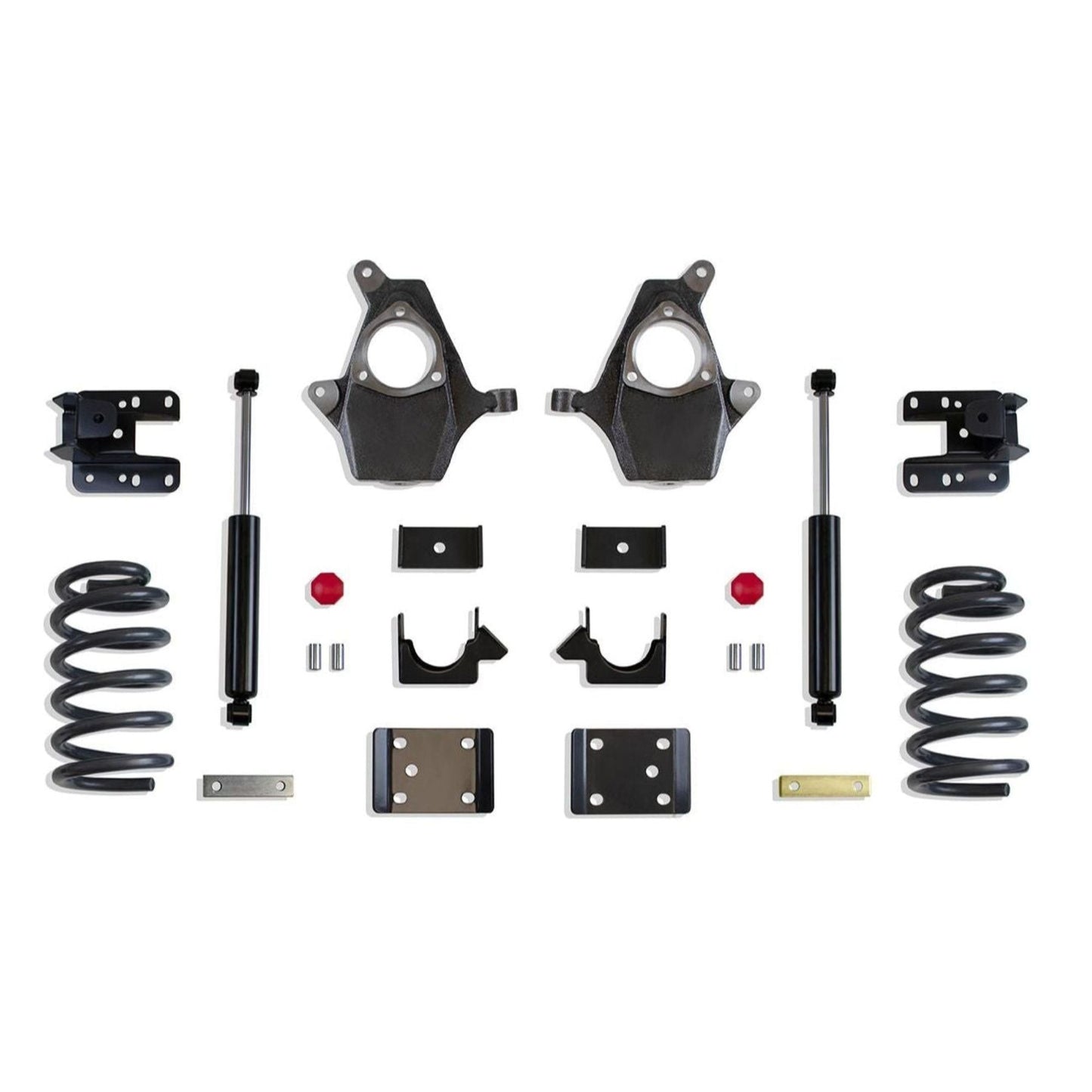

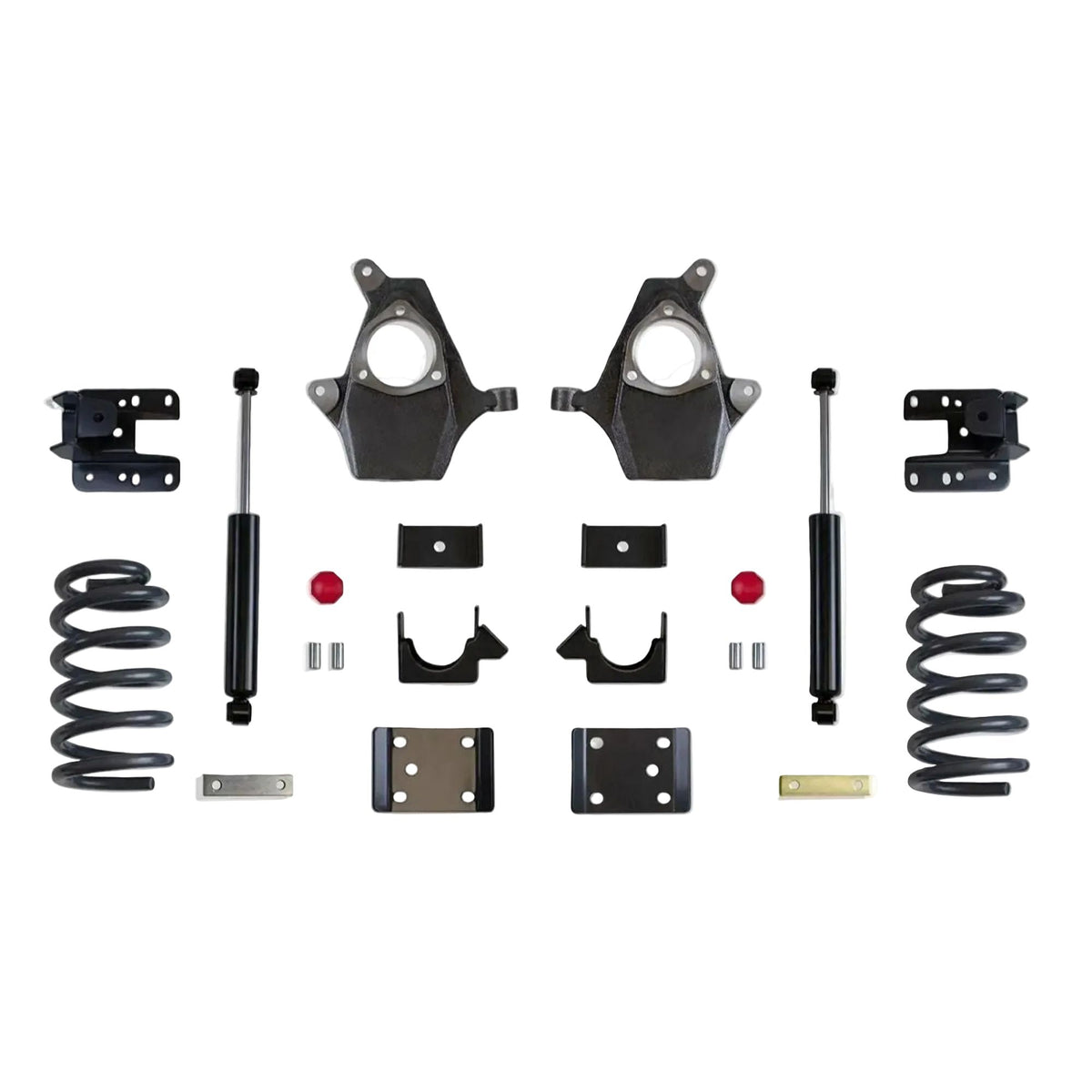

What's Included

Front lowering coils
Front lowering spindles
Rear flip kit
Rear lowering hangers
MaxTrac 2000LL-4 rear shocks (Qty. 2)

Vehicle Fitment

Fits

2014–2018 Chevrolet Silverado 1500
2014–2018 GMC Sierra 1500
2WD models
4WD models
Cast steel control arms only

Important Notes

Requires 17" wheels or larger.
Fits models with cast steel control arms only.
2014–2018 trucks with a 2-piece driveshaft require MaxTrac 611500 carrier bearing kit.
When ordering rear shocks separately, order quantity 2 because shocks are sold individually.
MaxTrac Suspension does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KS331535
UPC: N/A
Product Type: Suspension Lowering Kit
Kit Type: Lower
Front Drop: 3 Inches
Rear Drop: 5 Inches
Drivetrain: 2WD / 4WD
Control Arm Type: Cast Steel
Front Lowering Method: Coils & Spindles
Rear Lowering Method: Flip Kit & Hangers
Rear Shocks: 2000LL-4 (Qty. 2)
Minimum Wheel Diameter: 17 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 101 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac KS331535?

Instead of piecing together a lowering setup component by component, the KS331535 combines the major parts needed to create a 3-inch front and 5-inch rear drop on compatible GM 1500 trucks. The combination of coils, spindles, flip hardware, hangers, and matched rear shocks makes it an excellent foundation for a lowered street-truck build.

Perfect For

2014–2018 Silverado 1500
2014–2018 Sierra 1500
Cast steel control arm trucks
2WD and 4WD applications
3/5 lowered street trucks
Custom GM pickup builds
