MaxTrac KS331335 3"/5" Lowering Kit for 2007-2013 Silverado Sierra 1500

Build a Low, Aggressive 3/5 Stance

Give your 2007–2013 Chevy Silverado or GMC Sierra 1500 a serious street-truck stance with the MaxTrac KS331335 3"/5" Lowering Kit. Designed for compatible 2WD and 4WD trucks with cast steel control arms, this package delivers approximately 3 inches of front drop and 5 inches of rear drop.

The front combines lowering coils and spindles to achieve the full 3-inch drop. Out back, a flip kit and hangers provide the 5-inch reduction, while included MaxTrac rear shocks are matched to the lowered suspension.

Key Features

3" Front Coil & Spindle Drop

The front suspension combines lowering coils with drop spindles to achieve approximately 3 inches of total lowering.

5" Rear Flip Kit Drop

A rear axle flip kit and lowering hangers provide approximately 5 inches of rear drop, creating a noticeably lower stance.

Cast Steel Control Arm Fitment

Engineered specifically for Silverado and Sierra 1500 trucks equipped with cast steel front control arms.

2WD & 4WD Compatibility

Designed for compatible 2WD and 4WD GM 1500 applications within the listed year range.

MaxTrac Rear Shocks

Includes two 2000LL-4 rear shocks matched to the lowered rear suspension.

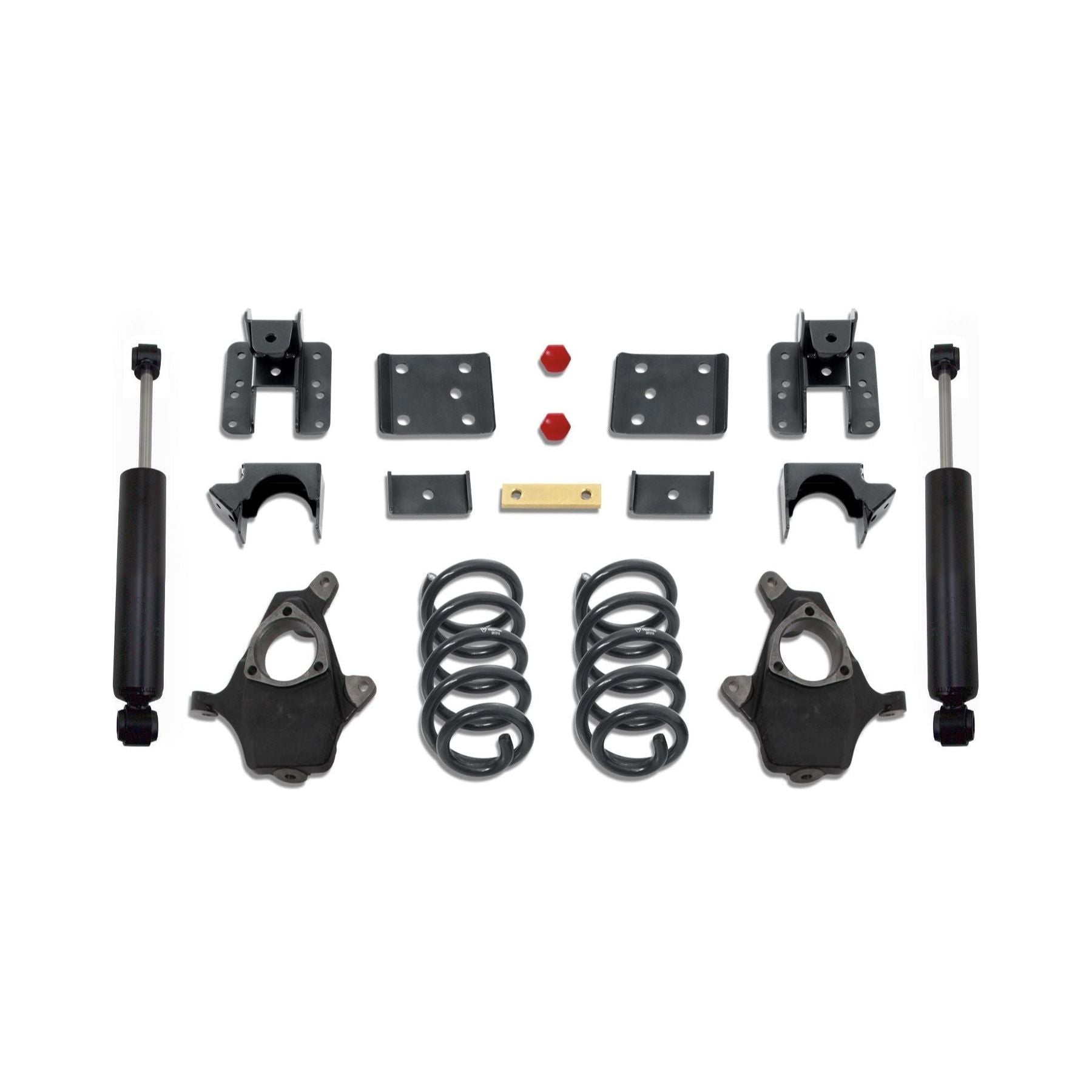

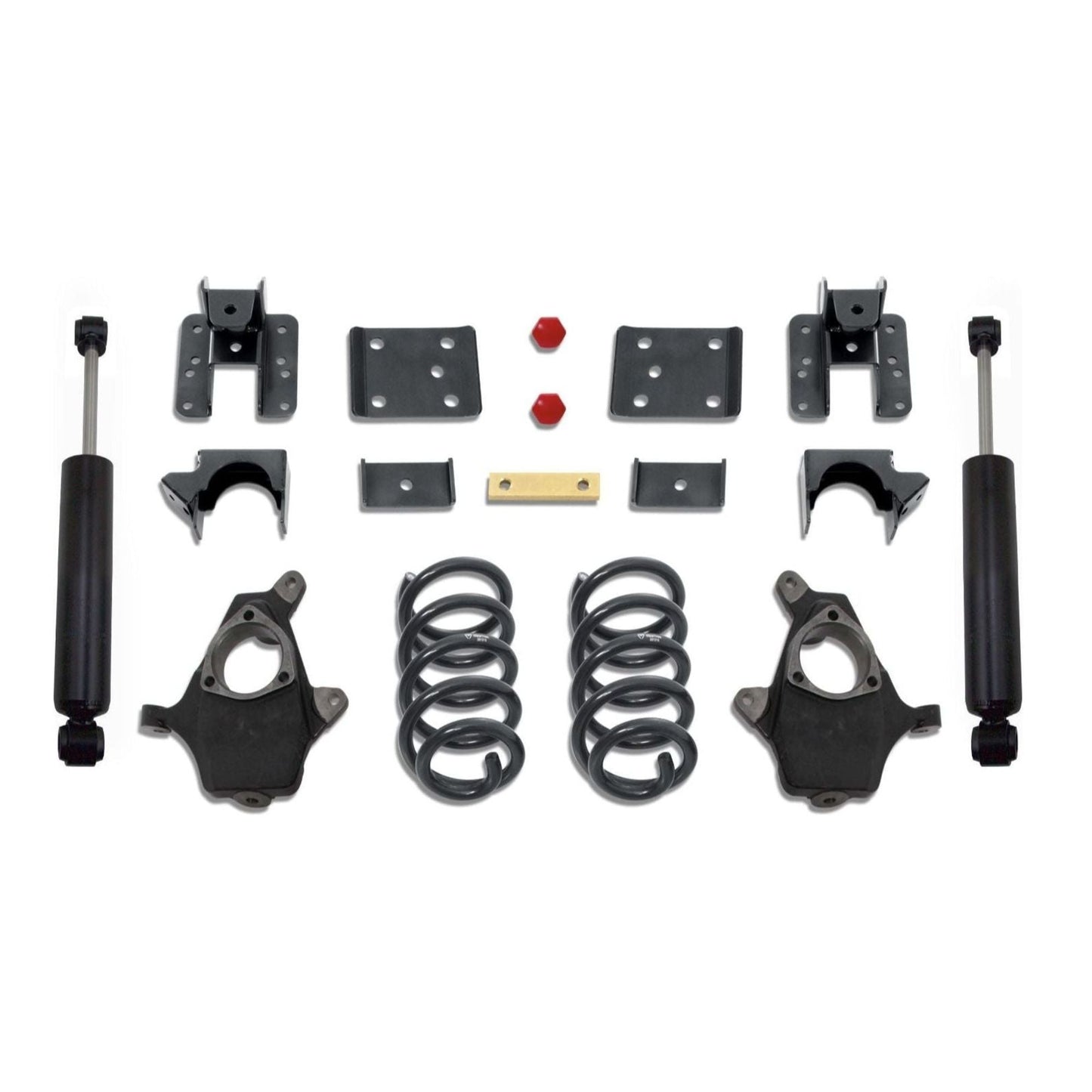

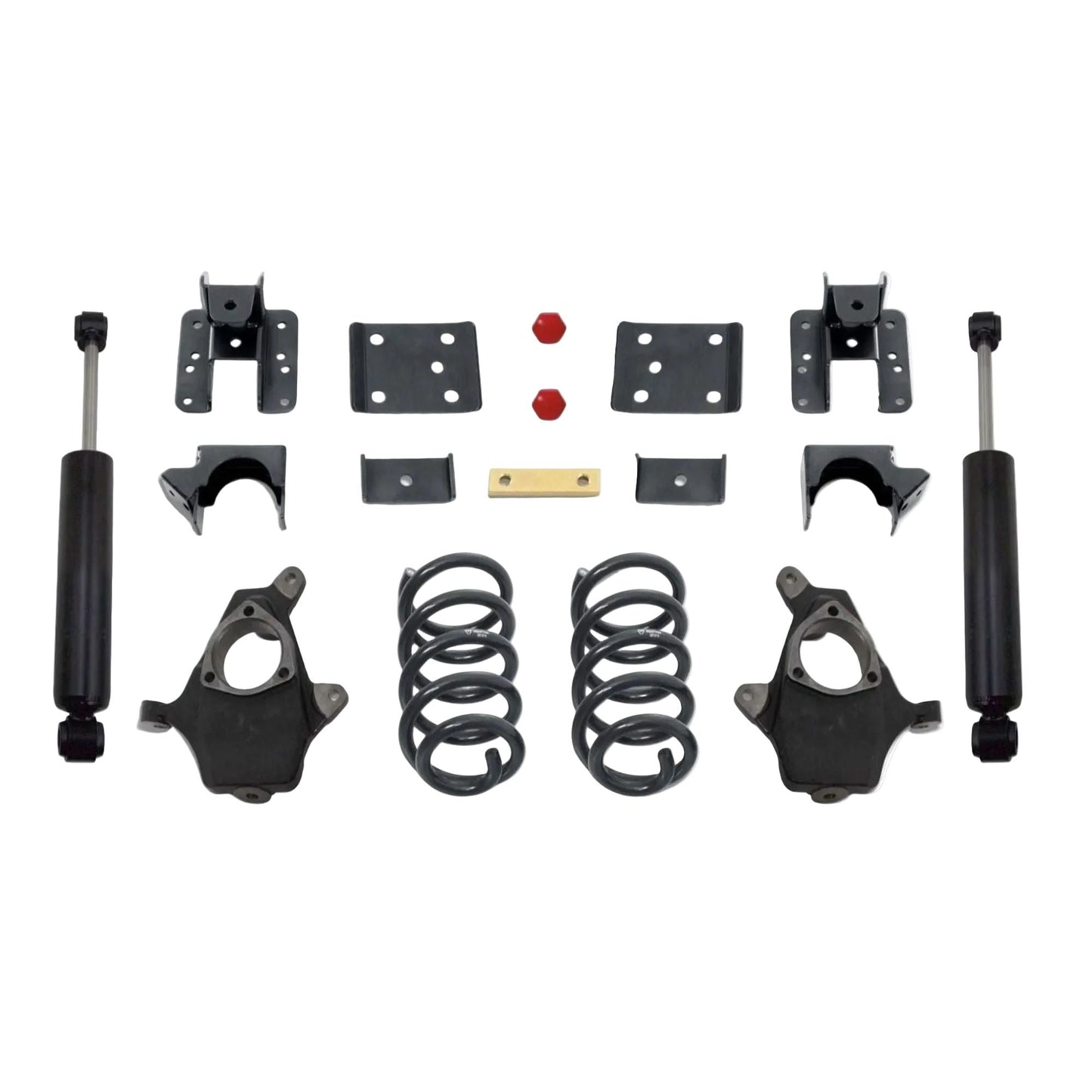

What's Included

Front lowering coils (251310)
Front lowering spindles (101320)
Rear lowering box (201360)
MaxTrac 2000LL-4 rear shocks (Qty. 2)

Vehicle Fitment

Fits

2007–2013 Chevrolet Silverado 1500
2007–2013 GMC Sierra 1500
2WD models
4WD models
Cast steel control arms only

Important Notes

Requires 17" wheels or larger.
Fits models with cast steel control arms only.
Verify control arm construction before ordering.
When ordering rear shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac Suspension does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KS331335
UPC: N/A
Product Type: Suspension Lowering Kit
Kit Type: Lower
Front Drop: 3 Inches
Rear Drop: 5 Inches
Drivetrain: 2WD / 4WD
Control Arm Type: Cast Steel
Front Lowering Method: Coils & Spindles
Rear Lowering Method: Flip Kit & Hangers
Front Shocks: Not Listed / Not Included
Rear Shocks: 2000LL-4 (Qty. 2)
Minimum Wheel Diameter: 17 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 101 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac KS331335?

The KS331335 creates a substantial 3/5 drop using a combination of coils and spindles up front with a flip kit and hangers in the rear. This approach gives compatible cast-steel-control-arm Silverado and Sierra trucks a significantly lower profile while including the rear shocks needed for the new suspension height.

Perfect For

2007–2013 Silverado 1500
GMC Sierra street trucks
2WD and 4WD applications
Cast steel control arms
3/5 drop builds
Lowered GMT900 pickups

2" front drop spindles
Front lowering coil springs
5" rear flip kit with shackles and C-notch
Rear shocks (2000LL-4 x2)
