MaxTrac KC333435-4 3"/5" Lowering Kit for 2009-2014 Ford F-150 4WD Crew Cab & Extended Cab

Give Your 4WD F-150 a Clean, Aggressive Street Stance

The MaxTrac KC333435-4 3"/5" Lowering Kit is engineered for 2009–2014 Ford F-150 4WD Extended Cab and Crew Cab models. This complete suspension package lowers the front 3 inches and the rear 5 inches using vehicle-specific lowering coils, drop spindles, a rear flip kit, hangers, and matched MaxTrac rear shocks. Designed to improve handling while maintaining ride quality, this kit delivers the perfect lowered appearance for your F-150.

Key Features

Complete 3"/5" Lowering System

Lowers the front 3 inches and the rear 5 inches for an aggressive, level stance with improved handling.

Front Lowering Coils & Drop Spindles

Includes Extended Cab/Crew Cab-specific lowering coils and precision-engineered drop spindles that maintain proper steering geometry and suspension travel.

Complete Rear Lowering Hardware

Features a rear flip kit and hangers to safely achieve the 5-inch rear drop while maintaining proper suspension function.

MaxTrac Rear Shocks Included

Includes a pair of MaxTrac 2400LL-9 rear shocks designed specifically for lowered F-150 applications to deliver excellent ride quality and control.

Heavy-Duty Powder Coated Construction

Manufactured from high-strength steel with a durable grey powdercoat finish for long-lasting corrosion resistance.

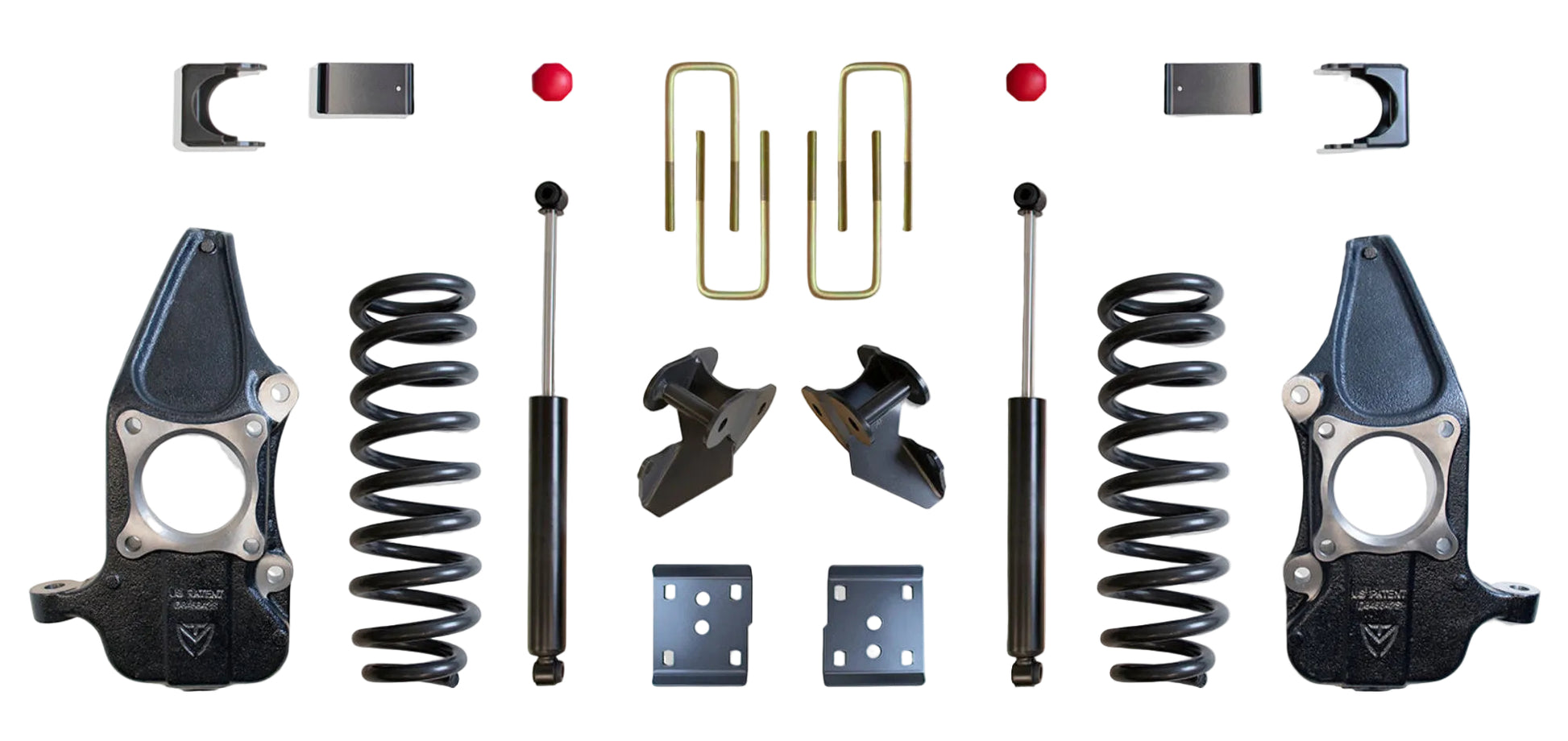

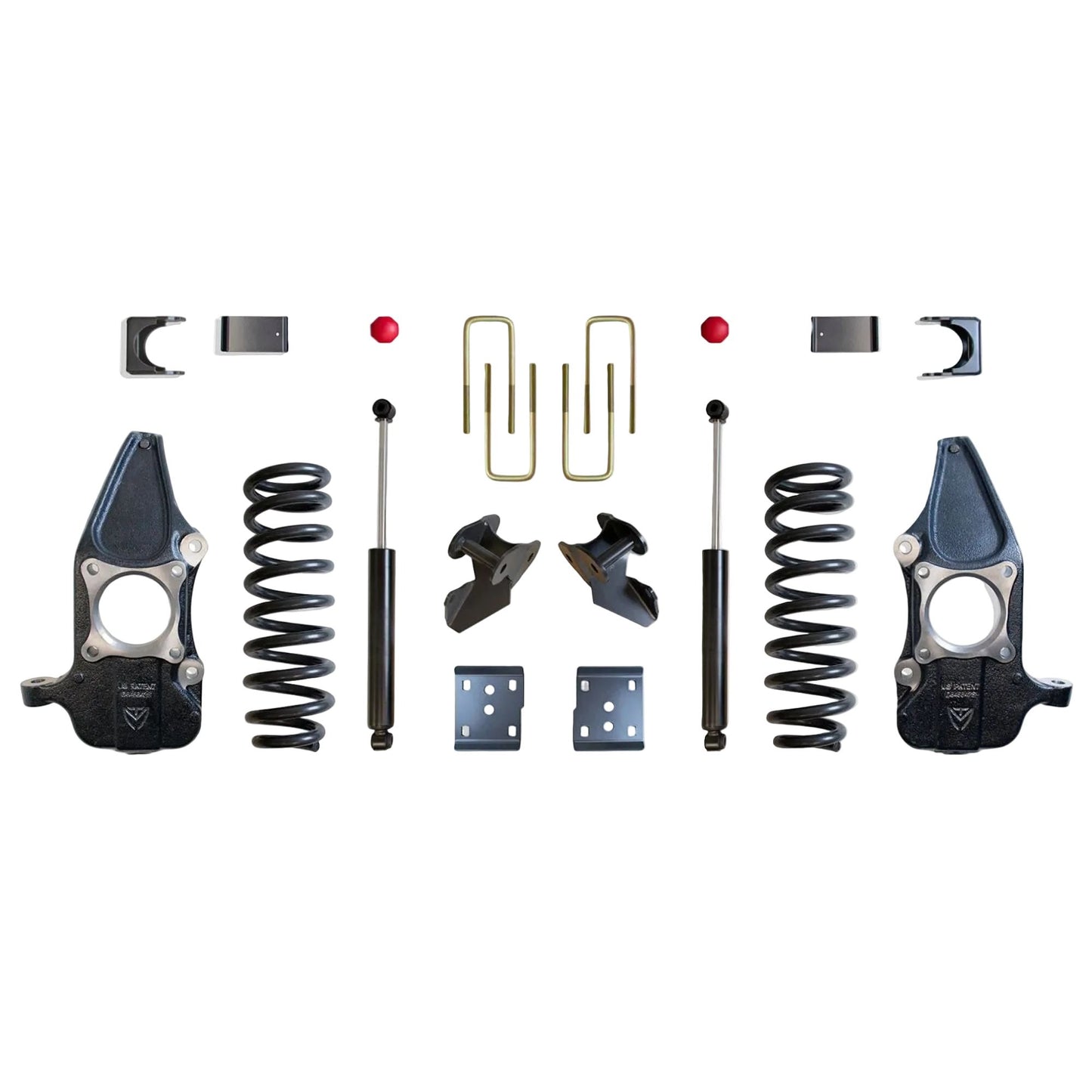

What's Included

Extended Cab/Crew Cab front lowering coils
Front drop spindles
Rear flip kit
Rear hangers
MaxTrac rear shocks (2400LL-9, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2009–2014 Ford F-150 4WD Extended Cab (EC)
2009–2014 Ford F-150 4WD Crew Cab (CC)

Does Not Fit

Regular Cab models
Hybrid models
Tremor models
2wd models
Models equipped with CCD suspension
Models equipped with BlueCruise

Important Notes

Requires 22-inch aftermarket wheels or larger with 6 inches of backspacing or less.
Standard-mount factory 20-inch or larger wheels will fit. Reverse-mount wheels will not.
Some factory 22-inch wheels may contact the spokes.
Ball joint trimming may be required.
Rear shocks are sold individually when purchased separately; order quantity two if replacing separately.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing, as this may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KC333435-4
UPC: N/A
Product Type: Lowering Kit
Kit Type: Lowering Kit
Front Drop: 3 Inches
Rear Drop: 5 Inches
Front Components: Extended Cab/Crew Cab Lowering Coils & Drop Spindles
Rear Shocks: 2400LL-9 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 140 lbs

Why Choose the MaxTrac KC333435-4?

The MaxTrac KC333435-4 provides a complete lowering solution for 2009–2014 F-150 4WD Extended Cab and Crew Cab trucks. Combining model-specific lowering coils, engineered suspension components, and matched MaxTrac shocks, it delivers outstanding ride quality, improved handling, and a bold custom appearance.

Perfect For

2009–2014 Ford F-150 4WD Extended Cab
2009–2014 Ford F-150 4WD Crew Cab
Street trucks
Daily drivers
Sport truck builds
Custom lowered F-150s
