MaxTrac KC333235S-4 3"/5" Lowering Kit with Struts for 2015-2020 Ford F-150 4WD

Achieve the Perfect 3"/5" Drop with Performance Lowering Struts

The MaxTrac KC333235S-4 3"/5" Lowering Kit is engineered specifically for 2015–2020 Ford F-150 4WD trucks. This complete suspension package lowers the front 3 inches and the rear 5 inches using adjustable front lowering struts, a rear flip kit, hangers, and matched MaxTrac rear shocks. Designed to improve handling while maintaining excellent ride quality, this kit delivers an aggressive street-truck stance without compromising everyday drivability.

Key Features

Complete 3"/5" Lowering Kit

Provides a 3-inch front drop and 5-inch rear drop for a clean, aggressive appearance.

Performance Front Lowering Struts

Includes MaxTrac 223203 lowering struts that improve suspension performance while achieving the desired ride height.

Complete Rear Lowering System

Features a rear flip kit and hangers for proper rear suspension geometry and reliable performance.

Matched MaxTrac Rear Shocks

Includes MaxTrac 2400LL-9 rear shocks specifically designed for lowered F-150 applications, providing excellent ride quality and stability.

Durable Powder Coated Components

Heavy-duty steel construction with a grey powdercoat finish helps resist corrosion and withstand daily use.

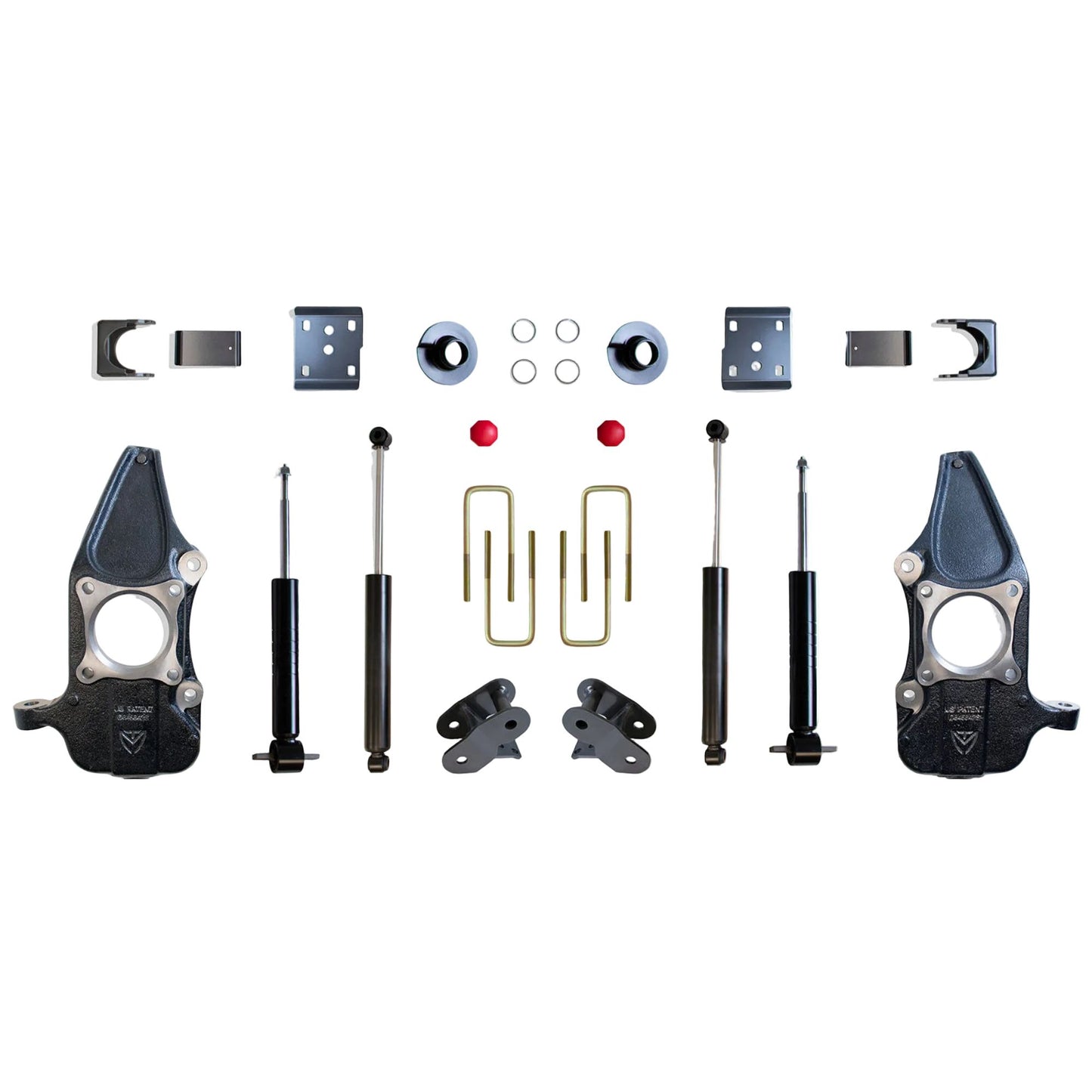

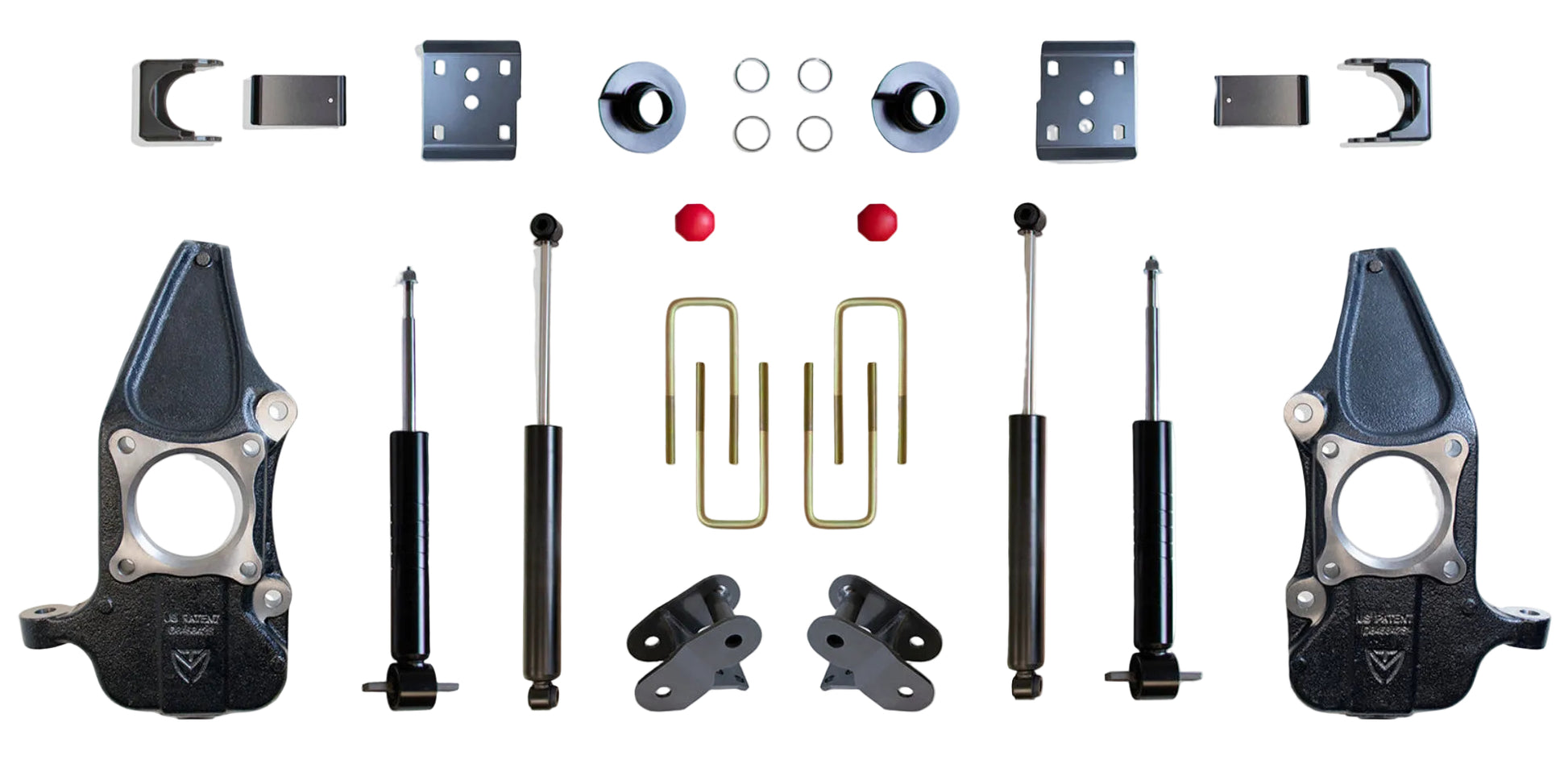

What's Included

Front lowering struts (223203, Qty. 2)
Rear flip kit
Rear hangers
MaxTrac rear shocks (2400LL-9, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2015–2020 Ford F-150 4WD

Does Not Fit

Hybrid models
Tremor models
2wd models
Models equipped with CCD suspension
Models equipped with BlueCruise

Important Notes

Requires 22-inch aftermarket wheels or larger with 6 inches of backspacing or less.
Standard-mount factory 20-inch or larger wheels will fit. Reverse-mount wheels will not.
Some factory 22-inch wheels may contact the spokes.
Ball joint trimming may be required.
Front and rear shocks are sold individually when purchased separately; order quantity two of each if replacing separately.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing, as this may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KC333235S-4
UPC: N/A
Product Type: Lowering Kit
Kit Type: Lowering Kit
Front Drop: 3 Inches
Rear Drop: 5 Inches
Front Struts: 223203 (Qty. 2)
Rear Shocks: 2400LL-9 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 128 lbs

Why Choose the MaxTrac KC333235S-4?

The MaxTrac KC333235S-4 combines premium lowering struts, rear suspension components, and matched MaxTrac shocks into one complete package. Designed specifically for 2015–2020 F-150 4WD trucks, it delivers improved handling, factory-like ride quality, and a bold lowered stance.

Perfect For

2015–2020 Ford F-150 4WD
Street trucks
Daily drivers
Sport truck builds
Custom lowered F-150s
