MaxTrac KC333235-4 3"/5" Lowering Kit for 2015-2020 Ford F-150 4WD Crew Cab

Transform Your 4-Door F-150 with an Aggressive 3"/5" Drop

The MaxTrac KC333235-4 3"/5" Lowering Kit is engineered specifically for 2015–2020 Ford F-150 4WD 4-door models. This complete suspension package lowers the front 3 inches and the rear 5 inches using lowering coils, drop spindles, a rear flip kit, hangers, and matched MaxTrac rear shocks. Designed to maintain ride quality while delivering a sleek, street-ready stance, this kit offers the perfect combination of performance, appearance, and reliability.

Key Features

Complete 3"/5" Suspension Drop

Provides a 3-inch front drop and 5-inch rear drop for an aggressive, level stance.

Front Lowering Coils & Drop Spindles

Includes performance lowering coils and precision-engineered spindles that maintain proper steering geometry while achieving the desired ride height.

Complete Rear Lowering Hardware

Features a rear flip kit and hangers to safely achieve the 5-inch rear drop while maintaining proper suspension function.

MaxTrac Rear Shocks Included

Includes a pair of MaxTrac 2400LL-9 rear shocks specifically matched for lowered applications to deliver excellent ride quality and control.

Heavy-Duty Powder Coated Construction

Manufactured from durable steel with a grey powdercoat finish for long-lasting corrosion resistance.

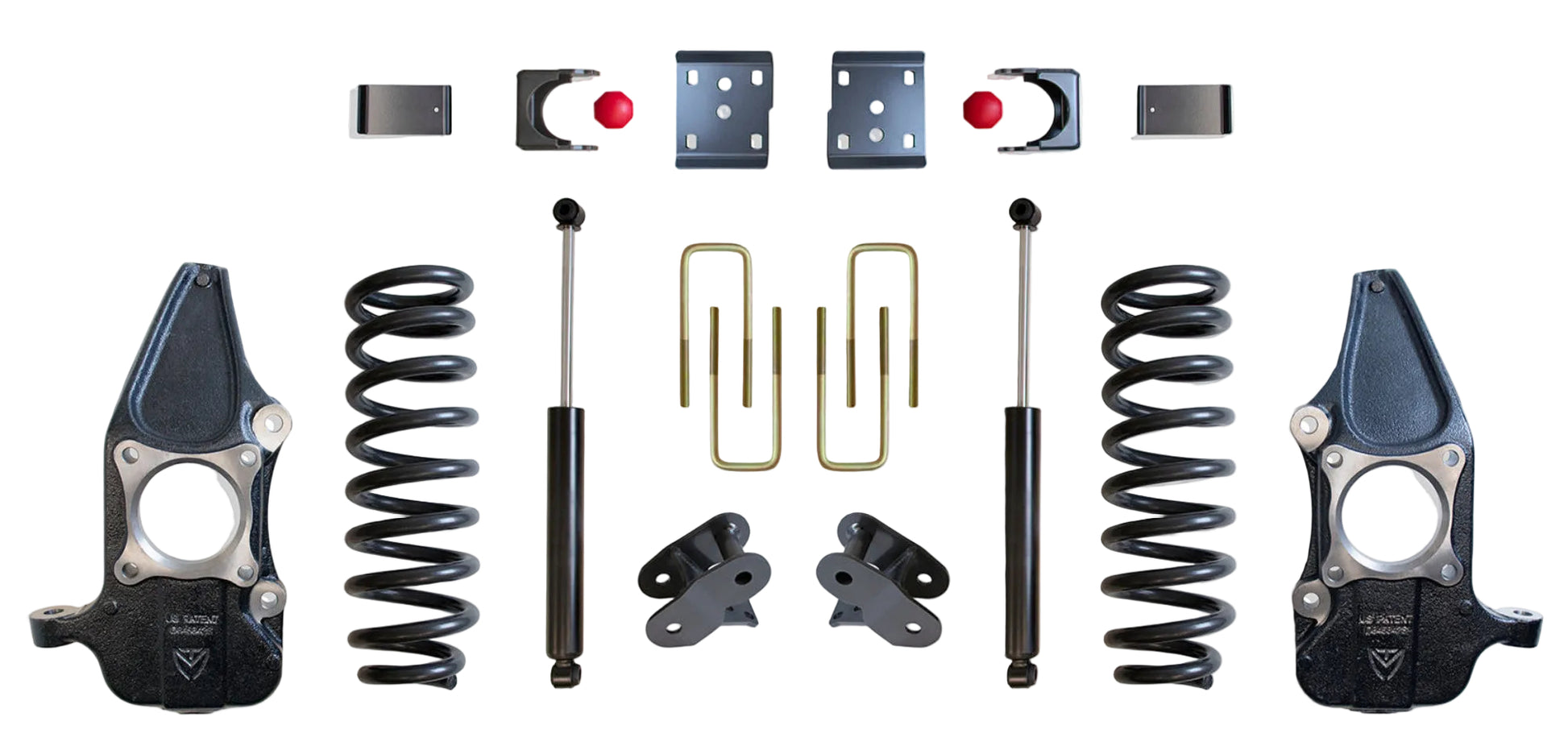

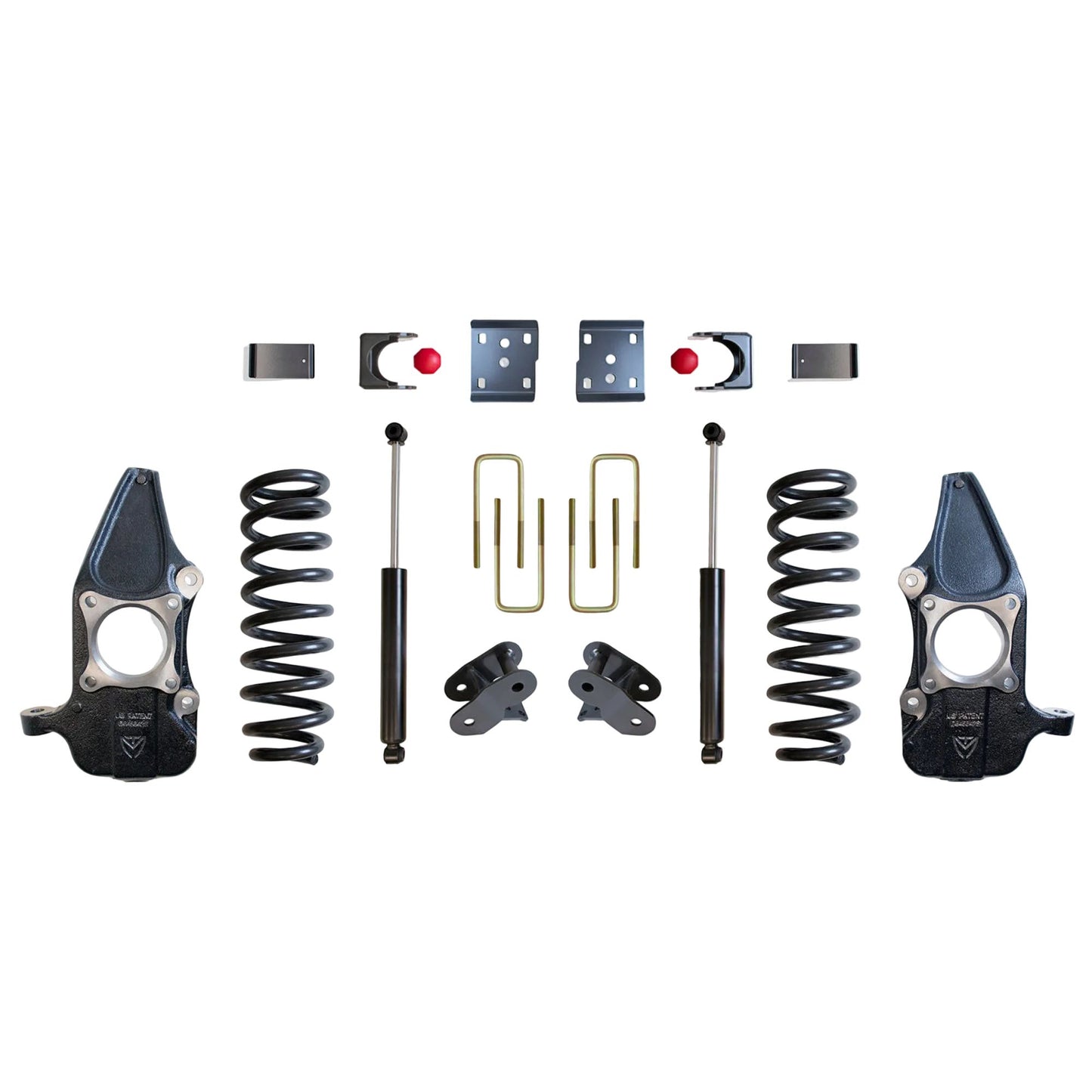

What's Included

Front lowering coils
Front drop spindles
Rear flip kit
Rear hangers
MaxTrac rear shocks (2400LL-9, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2015–2020 Ford F-150 4WD 4-Door (Crew Cab/SuperCrew) Models

Does Not Fit

2-door models
2wd models
Hybrid models
Tremor models
Models equipped with CCD suspension
Models equipped with BlueCruise

Important Notes

Requires 22-inch aftermarket wheels or larger with 6 inches of backspacing or less.
Standard-mount factory 20-inch or larger wheels will fit. Reverse-mount wheels will not.
Some factory 22-inch wheels may contact the spokes.
Ball joint trimming may be required.
Designed specifically for 4-door F-150 models.
Rear shocks are sold individually when purchased separately; order quantity two if replacing separately.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing, as this may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KC333235-4
UPC: N/A
Product Type: Lowering Kit
Kit Type: Lowering Kit
Front Drop: 3 Inches
Rear Drop: 5 Inches
Rear Shocks: 2400LL-9 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 135 lbs

Why Choose the MaxTrac KC333235-4?

The MaxTrac KC333235-4 is a complete lowering solution for 2015–2020 4WD F-150 Crew Cab models. With matched suspension components engineered to work together, it delivers a clean lowered appearance, improved handling, and dependable ride quality without sacrificing reliability.

Perfect For

2015–2020 Ford F-150 4WD Crew Cab
Street trucks
Daily drivers
Sport truck builds
Custom lowered F-150s
