MaxTrac KC333235 3"/5" Lowering Kit with Coils & Spindles for 2015-2020 Ford F-150 4 Door 2WD

Give Your F-150 an Aggressive 3"/5" Street Stance

Transform your 2015–2020 Ford F-150 4 Door 2WD with the MaxTrac KC333235 Lowering Kit. This complete suspension package delivers a 3-inch front drop and 5-inch rear drop using front lowering coils, heavy-duty lowering spindles, a rear flip kit, lowering shackles, and matched MaxTrac rear shocks. Designed to improve handling while maintaining excellent ride quality, this kit gives your F-150 a clean, aggressive appearance that's perfect for daily driving or custom builds.

Key Features

Complete 3"/5" Lowering System

Everything needed to achieve a balanced 3-inch front and 5-inch rear drop with properly matched suspension components.

Performance Front Lowering Coils & Spindles

Includes front lowering coils and precision-engineered lowering spindles that work together to provide the correct ride height while maintaining factory steering geometry and suspension travel.

Rear Flip Kit & Lowering Shackles

Rear flip kit and lowering shackles deliver a level 5-inch rear drop for an aggressive, factory-inspired stance.

MaxTrac Rear Shocks Included

Includes (2) MaxTrac 2200LL-9 rear shocks specifically tuned to improve ride control and handling on lowered F-150 trucks.

Designed for Large Wheel Applications

Engineered for trucks running larger aftermarket or compatible factory wheels while maintaining dependable suspension performance.

Heavy-Duty Powder-Coated Components

Durable steel suspension components feature a grey powder-coated finish for excellent corrosion resistance and long service life.

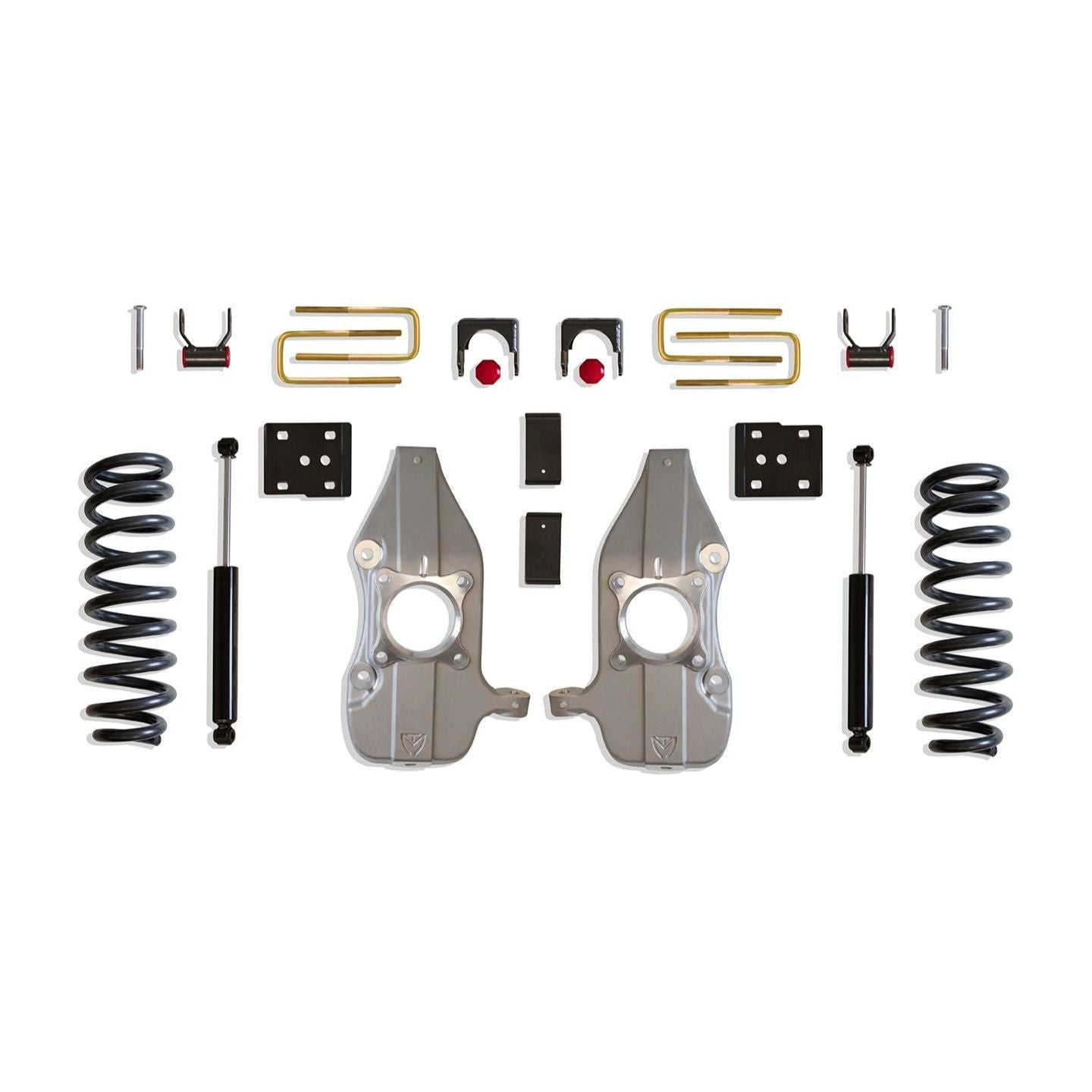

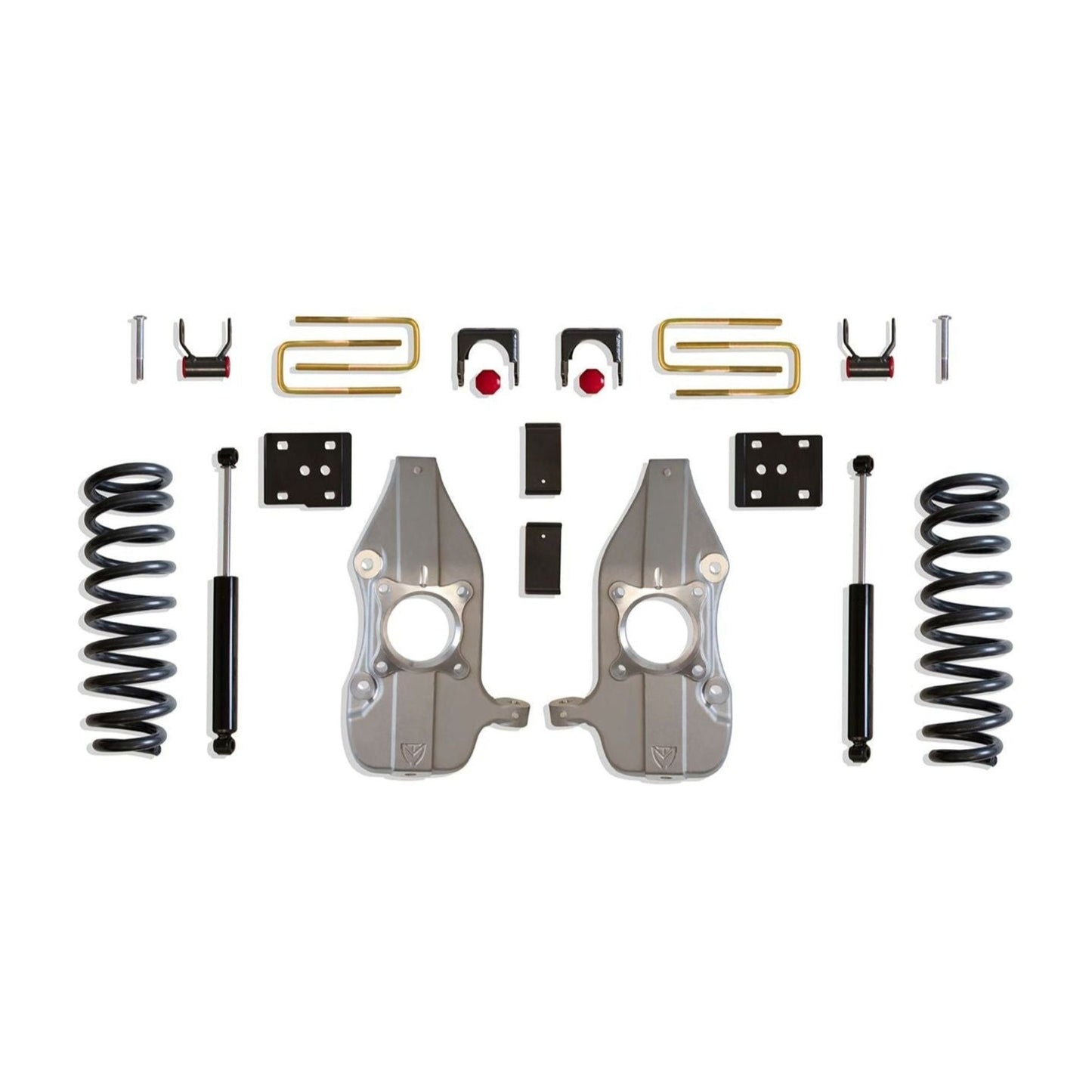

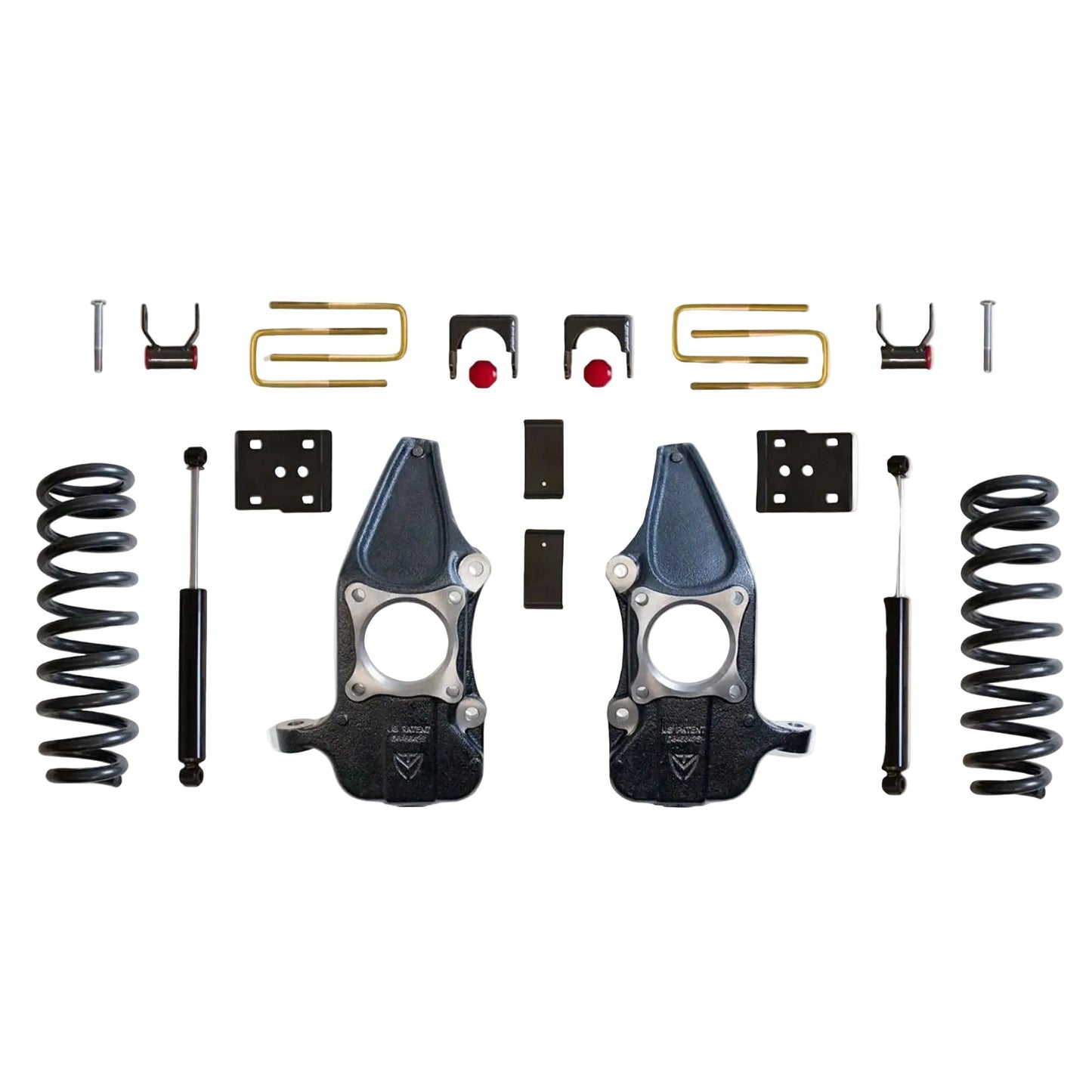

What's Included

Front lowering coils
Front lowering spindles
Rear flip kit
Rear lowering shackles
(2) MaxTrac 2200LL-9 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2015–2020 Ford F-150 4 Door 2WD

Does Not Fit

2 Door or 4wd models

Important Notes

Requires 22-inch aftermarket wheels or larger with 6 inches of backspacing or less.
Factory 20-inch or larger standard-mount wheels will fit. Reverse-mount factory wheels will not fit.
Some factory 22-inch wheels may contact the spokes.
Ball joint trimming may be required for proper wheel clearance.
When ordering replacement rear shocks separately, order a quantity of 2, as shocks are sold individually.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KC333235
UPC: N/A
Manufacturer Part Number: K333235
Product Type: Lowering Kit
Kit Type: Lower
Front Drop: 3 Inches
Rear Drop: 5 Inches
Rear Shock Details: (2) MaxTrac 2200LL-9 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 135 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac KC333235?

The MaxTrac KC333235 is a complete lowering solution for 2015–2020 Ford F-150 4 Door 2WD trucks. Featuring front lowering coils, heavy-duty lowering spindles, a rear flip kit, shackles, and matched MaxTrac rear shocks, this system delivers an aggressive 3-inch front and 5-inch rear drop while maintaining excellent ride quality and predictable handling.

Perfect For

2015–2020 Ford F-150 4 Door 2WD
Street truck builds
Custom lowered trucks
Large wheel applications
Performance suspension upgrades
Complete lowering installations
