MaxTrac KC333224-4 2"/4" Lowering Kit for 2015-2020 Ford F-150 4WD

Give Your 4WD F-150 a Clean, Aggressive Lowered Stance

The MaxTrac KC333224-4 2"/4" Lowering Kit is designed specifically for 2015–2020 Ford F-150 4WD trucks. This complete kit lowers the front 2 inches and the rear 4 inches using heavy-duty drop spindles, a rear flip kit, hangers, shackles, and matched MaxTrac rear shocks. Engineered to retain excellent ride quality while delivering a sporty appearance, this kit is ideal for street trucks looking for improved handling and a leveled stance.

Key Features

Complete 2"/4" Drop

Provides a 2-inch front drop and 4-inch rear drop for a balanced, aggressive appearance.

Heavy-Duty Drop Spindles

Vehicle-specific front spindles lower the truck while maintaining factory steering geometry and suspension travel.

Complete Rear Lowering System

Includes a flip kit, rear hangers, and shackles to achieve the proper rear ride height safely and reliably.

MaxTrac Rear Shocks Included

Includes matched MaxTrac rear shocks (2650LL-9) designed to deliver excellent ride quality at the lowered ride height.

Durable Powder Coated Components

Heavy-duty steel components feature a grey powdercoat finish for long-lasting corrosion resistance.

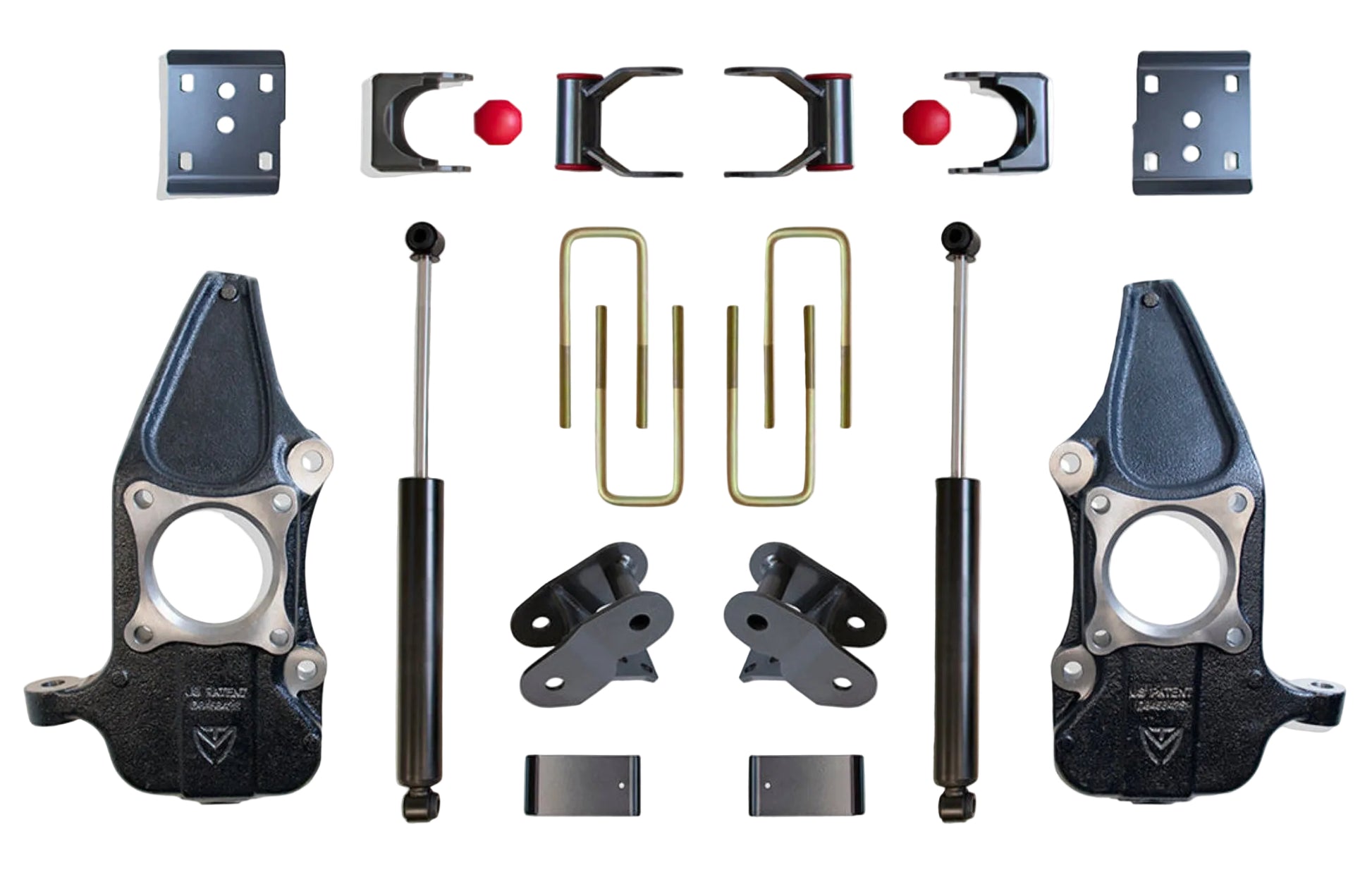

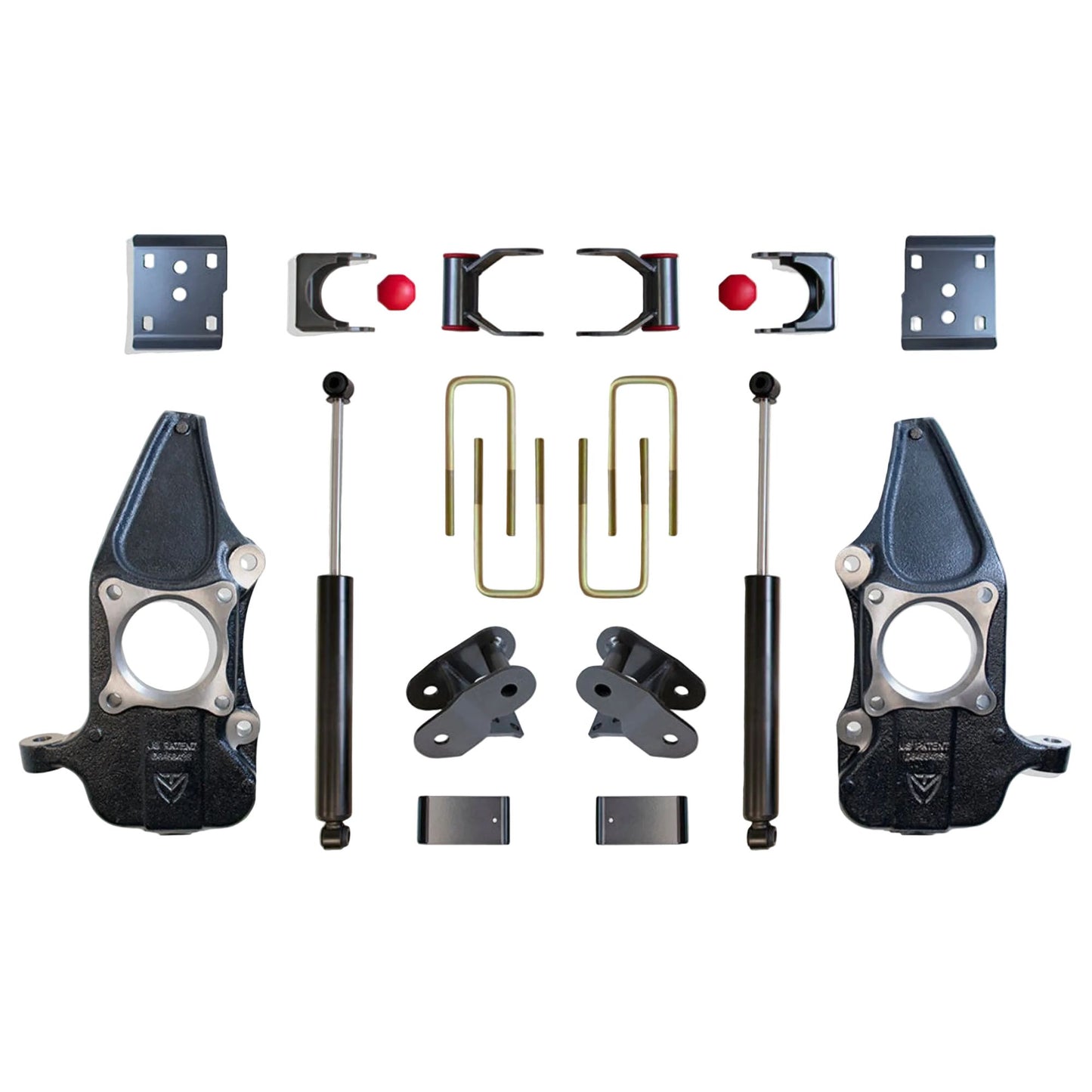

What's Included

Front drop spindles
Rear flip kit
Rear hangers
Rear shackles
MaxTrac rear shocks (2650LL-9, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2015–2020 Ford F-150 4WD

Does Not Fit

Hybrid models
Tremor models
Models equipped with CCD suspension
Models equipped with BlueCruise

Important Notes

Requires 22-inch aftermarket wheels or larger with 6 inches of backspacing or less.
Standard-mount factory 20-inch or larger wheels will fit. Reverse-mount wheels will not.
Some factory 22-inch wheels may contact the spokes.
Ball joint trimming may be required.
Rear shocks are sold individually when purchased separately; order quantity two if replacing separately.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing, as this may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: KC333224-4
UPC: N/A
Product Type: Lowering Kit
Kit Type: Lowering Kit
Front Drop: 2 Inches
Rear Drop: 4 Inches
Rear Shocks: 2650LL-9 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 111 lbs

Why Choose the MaxTrac KC333224-4?

The MaxTrac KC333224-4 offers everything needed to properly lower your 2015–2020 F-150 4WD while maintaining ride quality and factory-like steering geometry. With premium components and included MaxTrac rear shocks, it's an excellent choice for achieving a clean street-truck stance.

Perfect For

2015–2020 Ford F-150 4WD
Street trucks
Sport truck builds
Daily drivers
Custom lowered trucks
