MaxTrac K950217 9"-10" Lift Kit for 2025-2026 Silverado/Sierra 1500 2WD

Take Your GM 1500 to the Next Level with a 9"-10" Lift

Go big with the MaxTrac K950217 9"-10" Lift Kit, engineered for 2025–2026 Chevy Silverado 1500 and GMC Sierra 1500 2WD trucks. This complete crossmember-style suspension system delivers 9–10 inches of front lift and 7 inches of rear lift, creating an aggressive stance with clearance for up to 38x13.50 tires. With subframes, steering knuckles, MaxTrac struts, rear blocks, U-bolts, and matched shocks included, the K950217 provides the major components needed for a serious lifted build.

Key Features

Massive 9"-10" Front Lift

Raises the front 9–10 inches with a 7-inch rear lift for substantial ground clearance and an unmistakable lifted-truck stance.

Heavy-Duty Crossmember Design

Included subframes and steering knuckles provide the foundation for the high-clearance suspension system.

MaxTrac Front Struts

Includes two 631971 MaxTrac front struts matched to the lifted front suspension.

7" Rear Lift System

Rear blocks and U-bolts provide the 7-inch rear lift needed to complement the aggressive front suspension height.

MaxTrac Rear Shocks

Two 3200LL-4 rear shocks provide damping matched to the lifted rear suspension.

Clears Up to 38" Tires

Designed to clear up to 38x13.50 tires on 8–9" wide wheels, giving your Silverado or Sierra plenty of room for an aggressive wheel and tire setup.

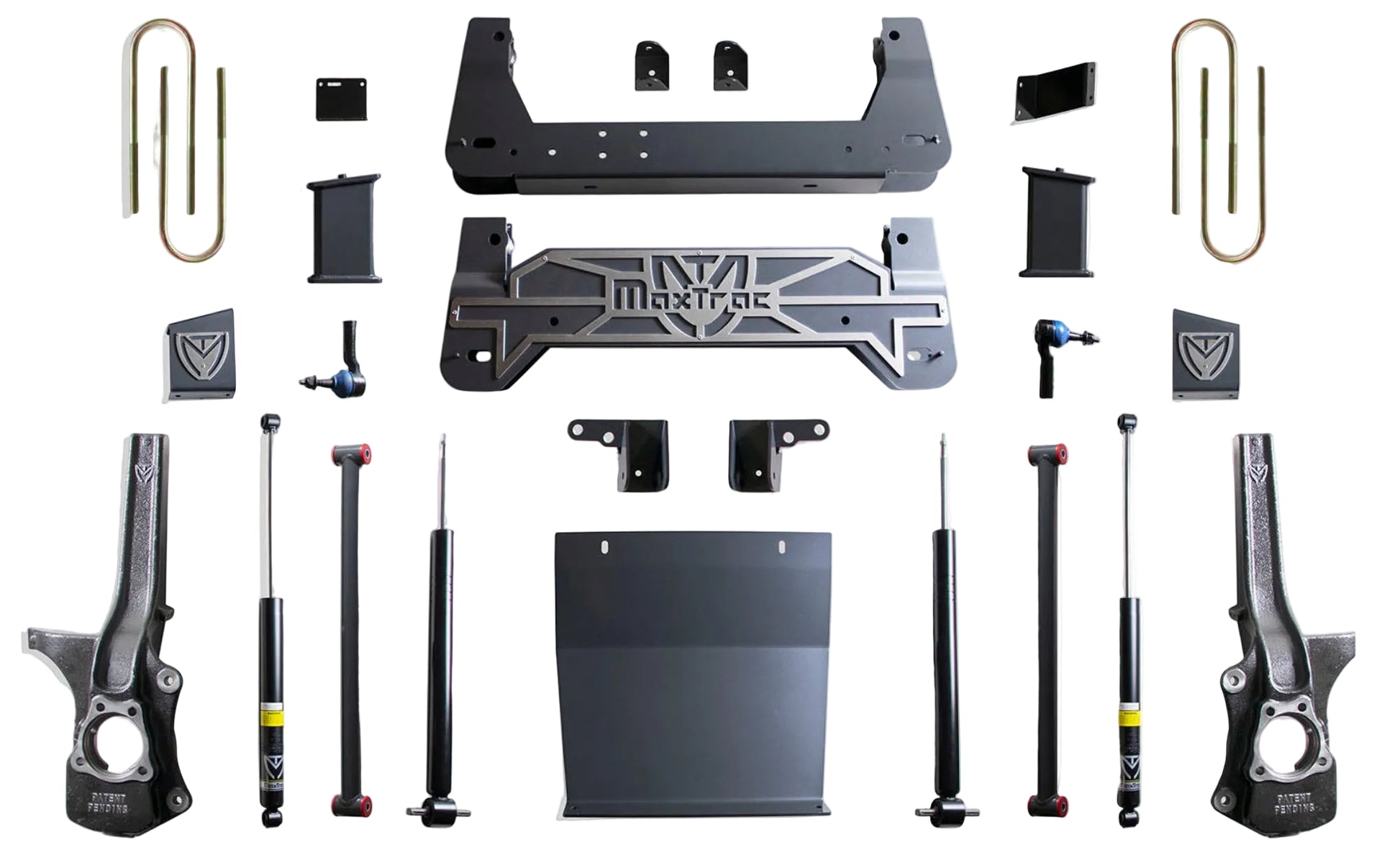

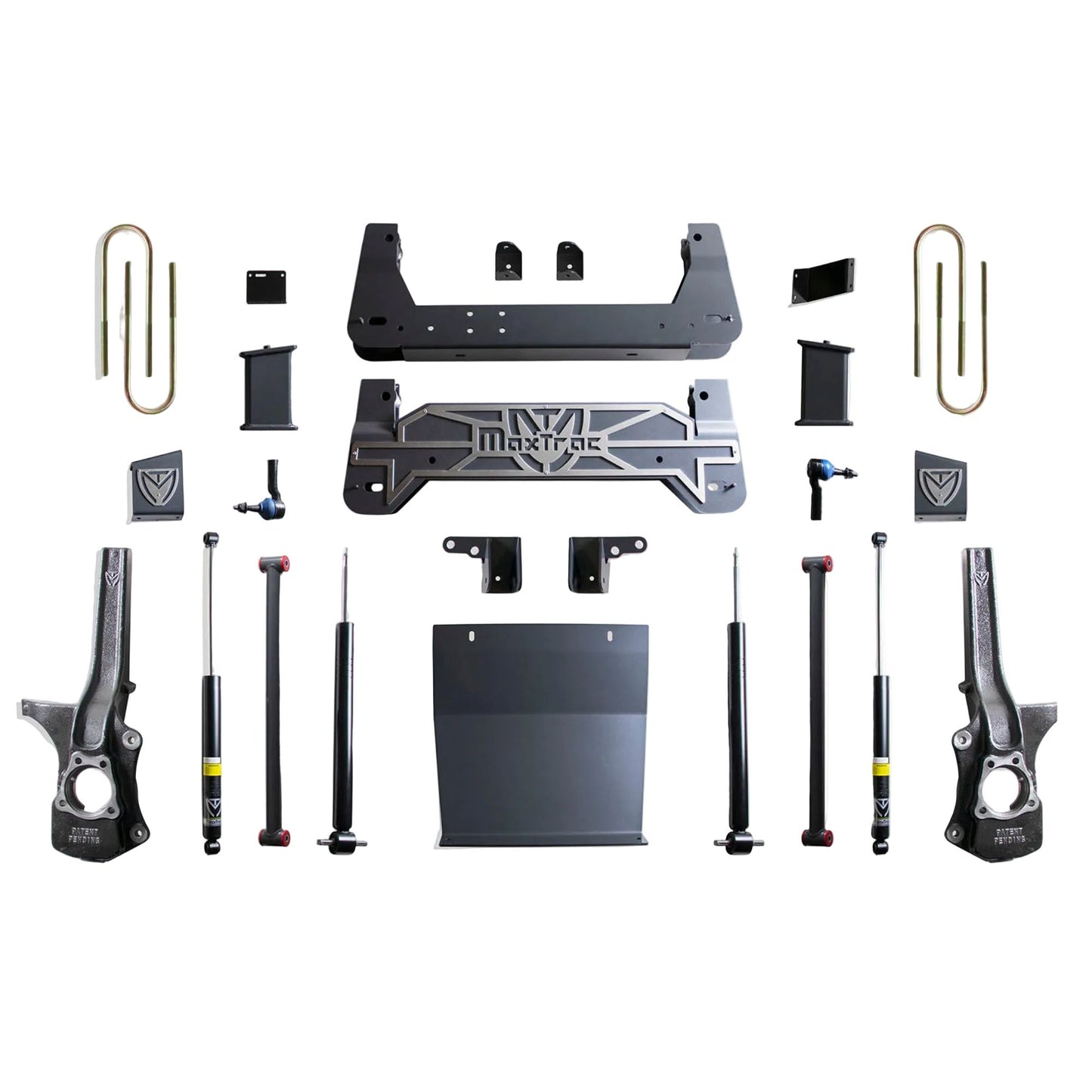

What's Included

Front subframes
Steering knuckles
MaxTrac 631971 front struts (Qty. 2)
Rear lift blocks
Rear U-bolts
MaxTrac 3200LL-4 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2025–2026 Chevrolet Silverado 1500 2WD
2025–2026 GMC Sierra 1500 2WD

Does Not Fit

4WD models
Models equipped with Adaptive Ride Control
Models equipped with monoleaf rear springs

Important Notes

Requires 17" wheels or larger with 4-5/8" backspacing or less.
20" wheels or larger will work with 4.75" backspacing or less.
Factory wheels will not fit.
Clears up to 38x13.50 tires on 8–9" wide wheels.
Does not fit models equipped with Adaptive Ride Control.
Does not fit models equipped with a monoleaf rear spring.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K950217
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift/Level
Front Lift: 9–10 Inches
Rear Lift: 7 Inches
Drivetrain: 2WD
Front Struts: 631971 (Qty. 2)
Rear Shocks: 3200LL-4 (Qty. 2)
Maximum Tire Size: 38x13.50
Recommended Wheel Width: 8–9 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 338 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K950217?

The K950217 combines a substantial 9–10-inch front lift with the major suspension components needed for a complete 2WD Silverado or Sierra build. With heavy-duty subframes, steering knuckles, MaxTrac struts, rear blocks, U-bolts, and matched shocks, this kit delivers serious height without requiring you to piece together the core suspension components separately.

Perfect For

2025–2026 Silverado 1500 2WD
2025–2026 Sierra 1500 2WD
38-inch tire setups
High-clearance street trucks
Custom lifted pickups
Aggressive GM 1500 builds
