MaxTrac K949942E Gladiator 4.5" Lift Kit w/Shock Extenders

Build a 4.5" Lifted Gladiator While Retaining Your Shocks

Give your 2020–2026 Jeep Gladiator (non-Mojave) substantially more suspension height and room for larger tires with the MaxTrac K949942E 4.5" Lift Kit. This complete suspension package combines front and rear lift coils, front and rear bump stop extensions, a front track bar, rear sway bar end links, and front/rear shock extenders into one matched system.
Providing 4.5" of front lift and 2.5" of rear lift, the K949942E creates an aggressive lifted stance while the included shock extenders eliminate the need for replacement shocks as part of this package. With the correct wheel configuration, MaxTrac specifies clearance for tires up to 37" × 12.50".

Key Features

4.5" Front / 2.5" Rear Suspension Lift

Provides 4.5 inches of front lift and 2.5 inches of rear lift, increasing ground clearance and creating a taller, more aggressive Gladiator stance.

Front & Rear Lift Coil Springs

Matched front and rear coil springs provide the primary suspension height increase rather than relying on simple coil spacer lifts.

Front & Rear Shock Extenders

The kit comes with shock extenders instead of replacement shocks, allowing the compatible existing shock configuration to be used with the increased suspension height.

Front Track Bar Included

An included front track bar supports the lifted front suspension configuration and eliminates the need to source this major component separately.

Extended Rear Sway Bar End Links

The supplied rear sway bar end links accommodate the increased rear suspension height as part of the complete lift package.

Front & Rear Bump Stop Extensions

Application-specific bump stop extensions for both axles help accommodate the altered suspension height and travel.

Clears Up to 37" × 12.50" Tires

With proper wheel fitment, the K949942E clears tires up to 37" × 12.50" on 8"-9" wide rims. Fender trimming may be required.

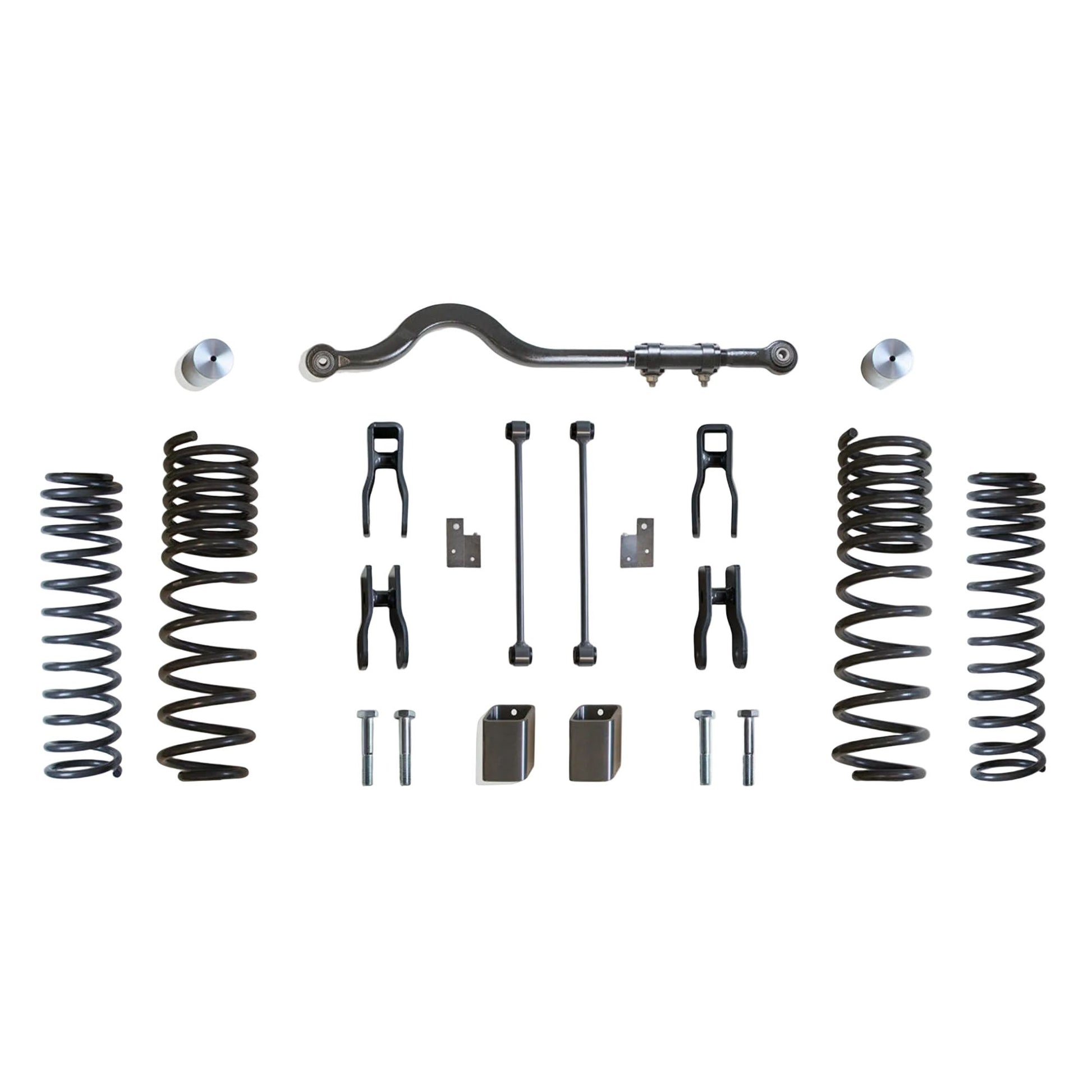

What's Included

Front 4.5" lift coil springs
Rear 2.5" lift coil springs
Front bump stop extensions
Rear bump stop extensions
Front track bar
Rear sway bar end links
Front shock extenders
Rear shock extenders
Supporting lift components and hardware

Vehicle Fitment

Fits

2020–2026 Jeep Gladiator
Non-Mojave models

Does Not Fit

Jeep Gladiator Mojave models

Important Notes

Provides 4.5" of front lift and 2.5" of rear lift.
Comes with shock extenders instead of replacement shocks.
Requires 17" wheels or larger with 4.5" backspacing or less.
Clears up to a 37" × 12.50" tire on an 8"-9" wide rim with proper fitment.
Fender trimming may be required depending on tire size, wheel specifications, and vehicle configuration.
Does not fit Mojave models.
MaxTrac geometry correction brackets Part #9499CCB are recommended with this kit.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K949942E
Kit Type: Lift / Level
Product Type: Complete Coil Spring Suspension Lift Kit
Position: Front & Rear
Front Lift: 949942E-1
Rear Lift: 949942E-2
Vehicle Configuration: Non-Mojave
Front Components: Coil Springs, Bump Stop Extensions, Track Bar, Shock Extenders
Rear Components: Coil Springs, Bump Stop Extensions, Sway Bar End Links, Shock Extenders
Shock Configuration: Shock Extenders Included; Replacement Shocks Not Included
Shock Extender Part Number: 949900E
Recommended Part Number: 9499CCB Geometry Correction Brackets
Minimum Wheel Diameter: 17"
Required Backspacing: 4.5" or Less
Maximum Tire Size: Up to 37" × 12.50"
Recommended Rim Width: 8"-9"
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Kit
Weight: 115 lbs
Multiple Box Item: Yes
Unit of Measure: IN
Country of Origin: N/A

Why Choose MaxTrac K949942E?

The MaxTrac K949942E goes beyond a basic spacer lift by combining matched front and rear coil springs with the supporting components required for a substantial Gladiator suspension upgrade. The included front track bar, rear sway bar links, bump stop extensions, and 949900E front/rear shock extenders create a more complete package while allowing compatible shocks to remain in use.
For non-Mojave Gladiator owners looking for a 4.5"/2.5" lift with clearance for up to 37" tires, this kit provides the major suspension components in one coordinated system.

Perfect For

Gladiator 4.5" lift builds
Non-Mojave Jeep JT applications
37" tire setups
Coil spring suspension lifts
Shock extender configurations
Off-road suspension upgrades
