MaxTrac K949931M Jeep Gladiator Mojave 3" Lift Kit

Build a Taller Mojave While Retaining the Factory Shock Setup

Transform the stance and tire clearance of your 2020–2026 Jeep Gladiator Mojave with the MaxTrac K949931M 3"/1" Lift Kit. Developed specifically for the Mojave suspension package, this complete system combines front and rear lift coils, bump stop extensions, a front track bar, rear sway bar end links, and shock extenders for a properly matched suspension upgrade.
The K949931M provides 3" of front lift and 1" of rear lift, giving the Gladiator a taller, more aggressive profile while retaining the factory shocks through the included shock extenders. With the proper wheel setup, MaxTrac specifies clearance for tires up to 37" × 12.50".

Key Features

Mojave-Specific 3"/1" Lift

Engineered specifically for 2020–2026 Jeep Gladiator Mojave models, providing 3" of front lift and 1" of rear lift.

Front & Rear Lift Coils

Matched front and rear coil springs provide the primary suspension lift rather than relying solely on spacer-based height increases.

Factory Shock Retention

Included shock extenders allow the lift system to work with the Mojave's existing shock configuration without requiring replacement lift shocks.

Adjustable Suspension Positioning

A front track bar is included as part of the suspension package to accommodate the lifted front configuration.

Extended Rear Sway Bar End Links

Included rear sway bar end links complement the increased suspension height and complete the rear lift configuration.

Front & Rear Bump Stop Extensions

Bump stop extensions are supplied for both the front and rear suspension to accommodate the increased ride height and suspension travel.

Clears Up to 37" × 12.50" Tires

With the proper wheel configuration, the kit clears tires up to 37" × 12.50" on 8"-9" wide rims. Fender trimming may be required.

What's Included

Front lift coil springs
Rear lift coil springs
Front bump stop extensions
Rear bump stop extensions
Front track bar
Rear sway bar end links
Shock extenders

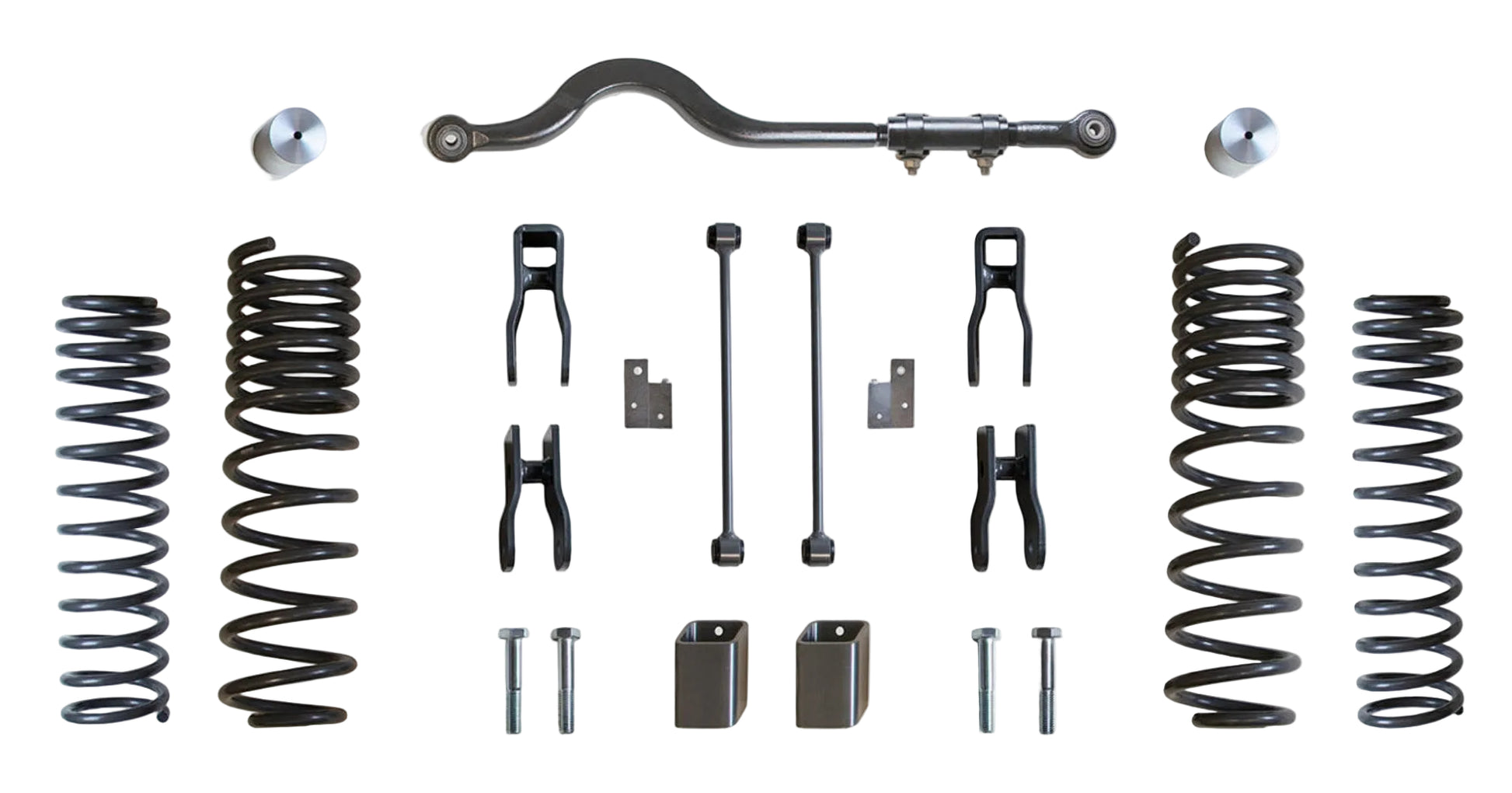

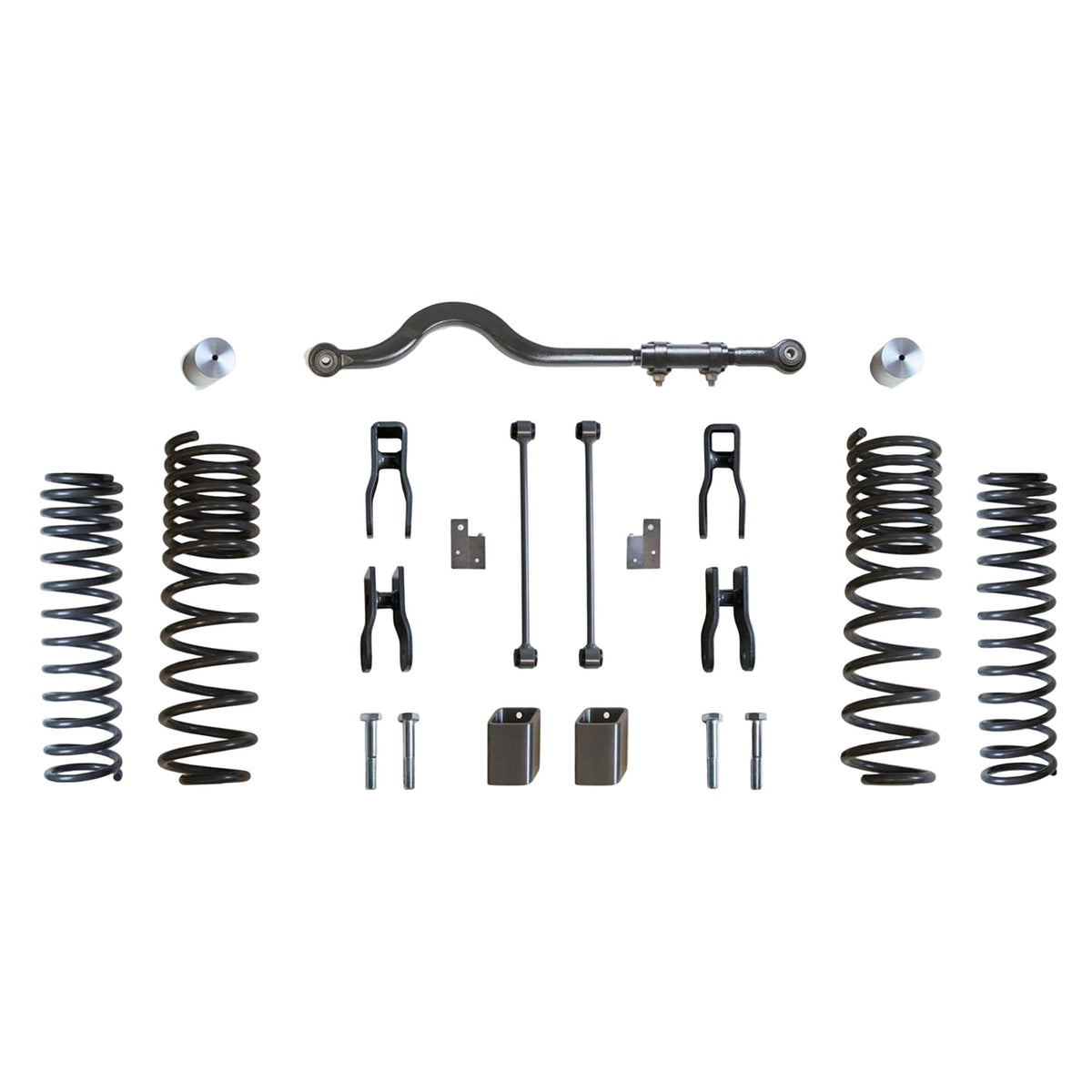

MaxTrac K949931M lift kit components

Vehicle Fitment

Fits

2020–2026 Jeep Gladiator Mojave

Does Not Fit

Non-Mojave Jeep Gladiator models

Important Notes

This kit is for Mojave models only.
Provides 3" of front lift and 1" of rear lift.
Requires 17" rims or larger with 4.5" backspacing or less.
Clears up to a 37" × 12.50" tire on an 8"-9" wide rim with proper fitment.
Fender trimming may be required depending on tire size, wheel specifications, and vehicle configuration.
MaxTrac geometry correction brackets part #9499CCB are recommended with this kit.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K949931M
UPC: N/A
Kit Type: Lift / Level
Product Type: Complete Coil Spring Suspension Lift Kit
Position: Front & Rear
Front Lift: 3"
Rear Lift: 1"
Vehicle Configuration: Mojave
Minimum Wheel Diameter: 17"
Required Backspacing: 4.5" or Less
Maximum Tire Size: Up to 37" × 12.50"
Recommended Rim Width: 8"-9"
Shock Extenders: Included
Recommended Part Number: 9499CCB (Geometry Correction Brackets)
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Kit
Weight: 115 lbs
Multiple Box Item: Yes
Unit of Measure: IN
Country of Origin: N/A

Why Choose MaxTrac K949931M?

The K949931M is built around the Gladiator Mojave's specific suspension configuration, combining coil springs and supporting suspension components instead of treating the truck like a standard Gladiator application. Its included shock extenders allow retention of the factory shock setup, while the front track bar, extended rear sway bar links, and bump stop extensions provide a more complete approach to a 3"/1" suspension lift.
For owners looking to step up to 37" × 12.50" tires while preserving the Mojave-specific shock configuration, this package provides the essential lift components in one matched system.

Perfect For

Gladiator Mojave lift builds
3"/1" suspension upgrades
37" tire setups
Factory shock retention
Coil spring lift applications
Off-road stance upgrades
