MaxTrac K949842S Jeep Wrangler 4xe 4" Lift Kit w/ Shocks

Give Your Wrangler 4xe the Height and Clearance for Up to 37" Tires

Transform the stance of your 2021–2026 Jeep JL Wrangler 4xe Hybrid 4-door with the MaxTrac K949842S 4" Lift Kit. Engineered specifically around the additional requirements of the 4xe platform, this complete suspension package delivers 4 inches of front lift and 2.5 inches of rear lift while providing the supporting components needed for the increased ride height.
Rather than supplying coils alone, MaxTrac combines front and rear lift coils, bump stop extensions, rear track bar bracket, brake line extensions, sway bar end links, rear coil spacers, and four matched MaxTrac shocks. With the proper wheel setup, the K949842S provides clearance for tires up to 37" × 12.50", giving the Wrangler 4xe a substantially more aggressive lifted stance.

Key Features

4" Front / 2.5" Rear Lift

Provides 4" of front lift and 2.5" of rear lift, creating additional ground and tire clearance while accounting for the Wrangler 4xe's application-specific suspension setup.

Front & Rear Lift Coils

Matched front and rear coil springs provide the primary suspension lift rather than relying solely on spacer-based height increases.

Four MaxTrac Shocks Included

Includes 2650LL-11 front shocks and 2900LL-11 rear shocks, with two of each supplied for a complete four-corner shock package.

Supporting Suspension Components

Front and rear bump stop extensions, a rear track bar bracket, rear sway bar end links, and rear coil spacers are included to support the lifted suspension configuration.

Rear Brake Line Extensions

Included rear brake line extensions accommodate the increased suspension height and travel of the lifted rear suspension.

Clears Up to 37" × 12.50" Tires

With the required wheel specifications, the kit clears tires up to 37" × 12.50" on 8"-9" wide rims. Fender trimming may still be required.

Wrangler 4xe-Specific Fitment

Designed specifically for 2021–2026 Jeep JL Wrangler 4xe Hybrid 4-door models, rather than being a generic JL suspension package.

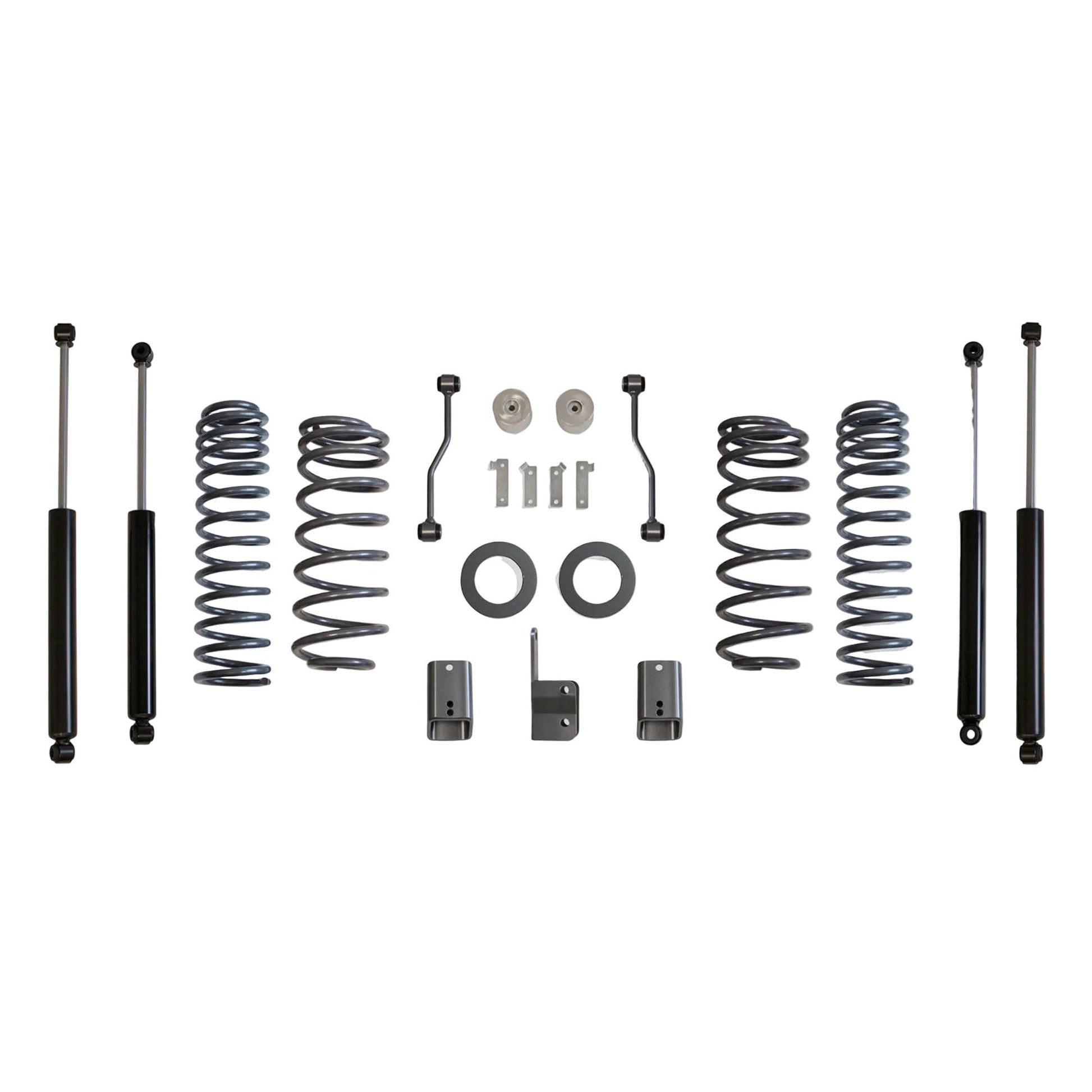

What's Included

Front lift coils
Rear lift coils
Front bump stop extensions
Rear bump stop extensions
Rear track bar bracket
Rear brake line extensions
Rear sway bar end links
Rear coil spacers
(2) MaxTrac 2650LL-11 front shocks
(2) MaxTrac 2900LL-11 rear shocks

Vehicle Fitment

Fits

2021–2026 Jeep JL Wrangler 4xe Hybrid
4-door 4xe Hybrid models only

Does Not Fit

Non-4xe Wrangler applications
2-door Wrangler models

Important Notes

Fits 4-door 4xe Hybrid models only.
Requires 17" wheels or larger with 4.5" backspacing or less.
Clears up to a 37" × 12.50" tire on an 8"-9" wide rim with proper wheel fitment.
Fender trimming may be required depending on tire size and vehicle configuration.
MaxTrac 9499CCB geometry correction brackets are recommended with this kit.
MaxTrac does not recommend wheels wider than 9". Wheels with more than 4.5" backspacing do not meet the stated kit requirement. Using wheel specifications outside MaxTrac's recommendations may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K949842S
UPC: N/A
Kit Type: Lift / Level
Product Type: Complete Suspension Lift Kit with Shocks
Position: Front & Rear
Front Lift: 4"
Rear Lift: 2.5"
Body Style: 4-Door
Powertrain: 4xe Hybrid
Maximum Tire Size: Up to 37" × 12.50"
Required Wheel Diameter: 17" or Larger
Recommended Rim Width: 8"-9"
Required Backspacing: 4.5" or Less
Front Shocks: 2650LL-11 (Qty. 2)
Rear Shocks: 2900LL-11 (Qty. 2)
Recommended Component: 9499CCB Geometry Correction Brackets
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Kit
Weight: 95 lbs
Multiple Box Item: Yes
Country of Origin: N/A
Unit of Measure: IN

Why Choose MaxTrac K949842S?

The K949842S is more than a basic coil lift. MaxTrac combines the lift coils, matched shocks, bump stop extensions, track bar correction, brake line extensions, sway bar end links, and rear coil spacers into one application-specific package for the Wrangler 4xe. The result is a more complete approach to achieving substantial lift and fitting up to 37" tires without piecing together the primary suspension components individually.

Perfect For

Wrangler 4xe lifted builds
37" tire setups
4-door hybrid Jeeps
Off-road suspension upgrades
Increased ground clearance
Complete coil and shock conversions
