MaxTrac K947585L 8"/5.5" 4-Link Lift Kit Fits 2019–2024 Ram 3500 4WD (Diesel)

Give your Ram 3500 maximum height and control with the MaxTrac K947585L 4-link lift kit. Designed for 2019–2024 4WD diesel models, this system delivers 8 inches of front lift and 5.5 inches in the rear while significantly improving suspension geometry, strength, and articulation.

Built around a forged aluminum 4-link system, this kit is made for serious performance—whether you're on the road or pushing through tough terrain.

Fitment
2019–2024 Ram 3500 4WD (Diesel)

Does NOT fit 2WD, Power Wagon, or Cab/Chassis models

Features
8-inch front lift and 5.5-inch rear lift for extreme stance and clearance
Forged aluminum 4-link arms with chromoly sleeves for superior strength and caster adjustment
Improves suspension articulation and overall handling stability
Diesel-specific front coils designed for heavy-duty applications
Track bar bracket and pitman arm help maintain proper steering geometry
Includes sway bar brackets and bump stops for correct suspension travel
Clears up to 40 by 13.50 inch tires depending on setup
Includes MaxTrac shocks for smooth, controlled ride quality
Heavy-duty steel components with durable grey powder-coated finish
Bolt-on installation with no frame cutting required

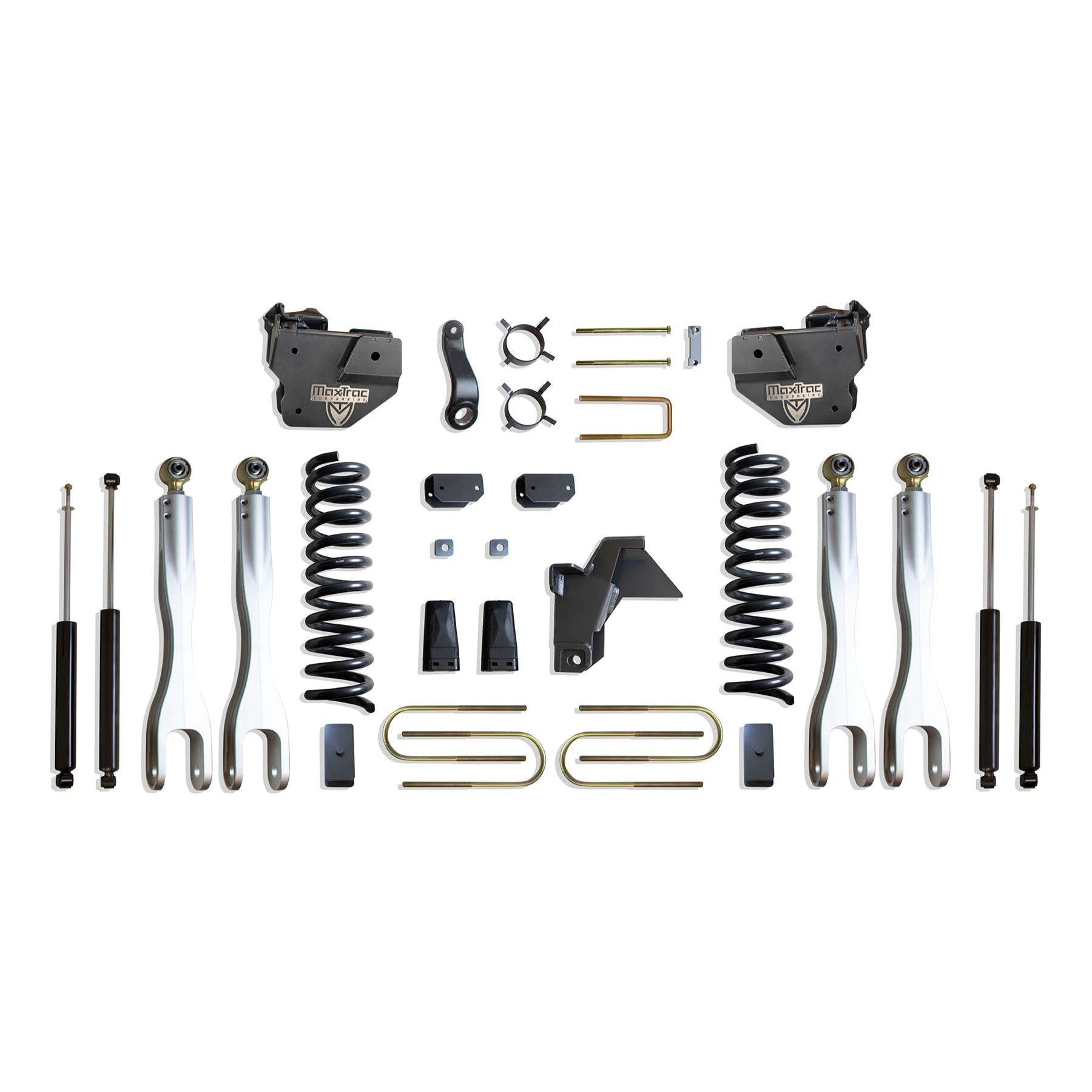

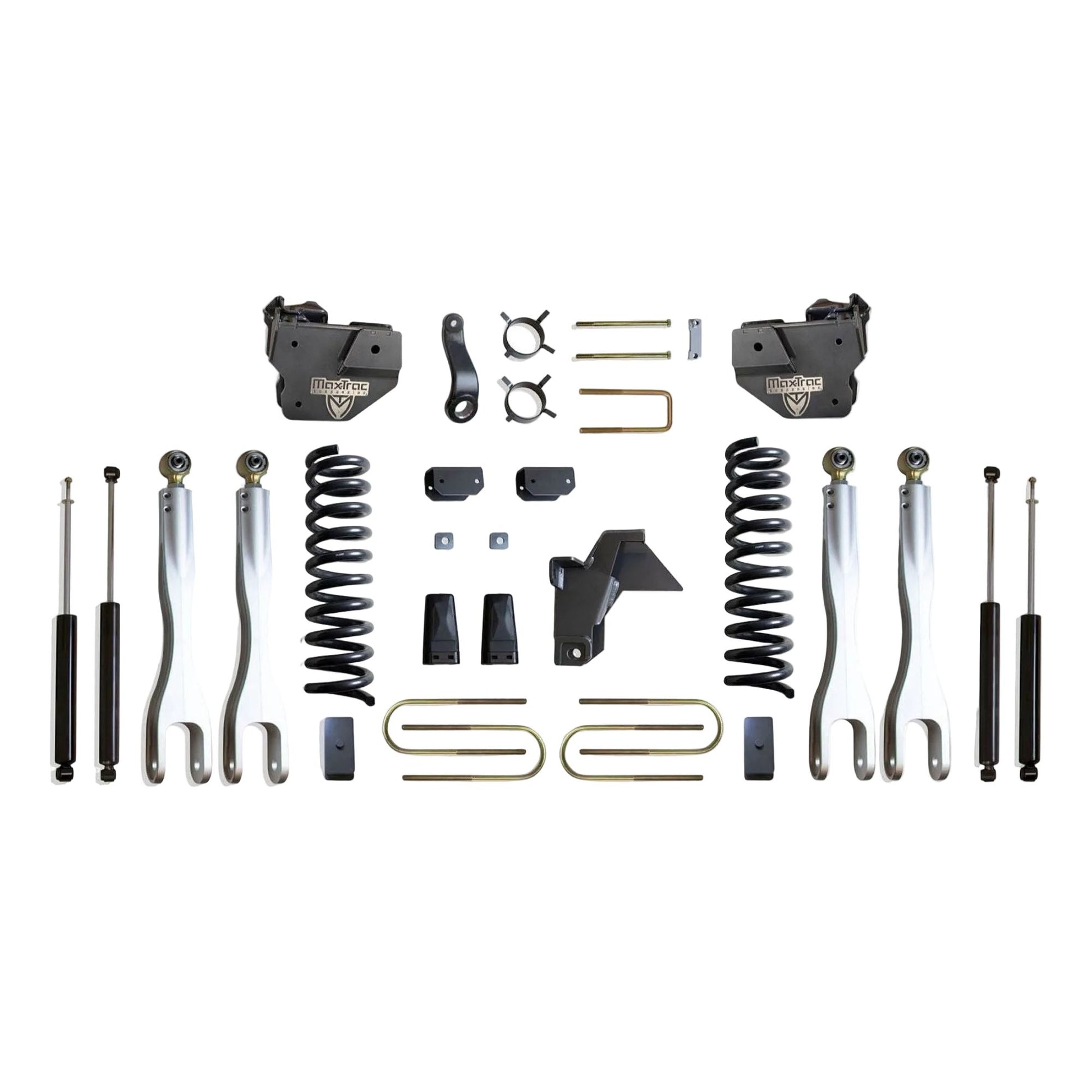

What’s Included
Diesel front lift coils part number 752880
Forged aluminum 4-link arms part numbers 947200-3 and 947200-4
Track bar bracket part number 947400-5
Pitman arm
Sway bar brackets
Bump stops
Rear lift blocks and U-bolts
Two MaxTrac front shocks part number 2900SL-8
Two MaxTrac rear shocks part number 3400LL-4

Important Notes
Requires 18-inch or larger wheels with 5.5-inch backspacing or less
Maximum tire size may require trimming depending on setup
Not compatible with 2WD, Power Wagon, or Cab/Chassis fleet trucks
Not intended for gas models (will result in additional front lift if installed)
2019+ Ram 3500 with Aisin transmission requires front driveshaft part number RAM-4119K-AISIN for 6 to 8-inch lift kits
Not recommended for wheels wider than 9 inches or with less than 4.5-inch backspacing
Professional installation and alignment are recommended

Specifications
Lift Height 8 inches front 5.5 inches rear
Material steel and forged aluminum
Finish grey powder-coated
Part Number K947585L
