MaxTrac K947585 8"/5.5" Lift Kit w/Radius Arm Brackets Fits 2019–2024 Ram 3500 4WD (Diesel)

Give your Ram 3500 a massive boost in height and capability with the MaxTrac K947585 lift kit. Designed for 2019–2024 4WD diesel models, this system delivers 8 inches of front lift and 5.5 inches in the rear, creating an aggressive stance while maintaining proper suspension geometry and ride comfort.

Engineered with heavy-duty components and reinforced brackets, this kit is built to handle larger tires, tougher terrain, and daily driving with confidence.

Fitment
2019–2024 Ram 3500 4WD (Diesel)

Does NOT fit 2WD, Power Wagon, or Cab/Chassis models

Features
8-inch front lift and 5.5-inch rear lift for maximum stance and clearance
Diesel-specific front coils designed for heavy-duty load handling
Radius arm brackets maintain proper alignment and suspension geometry
Track bar bracket and pitman arm improve steering performance
Includes sway bar brackets and bump stops for proper suspension travel
Clears up to 40 by 13.50 inch tires depending on setup
Includes MaxTrac shocks for smooth, controlled ride quality
Heavy-duty steel construction for long-term durability
Grey powder-coated finish resists corrosion and wear
Bolt-on installation with no major modifications required

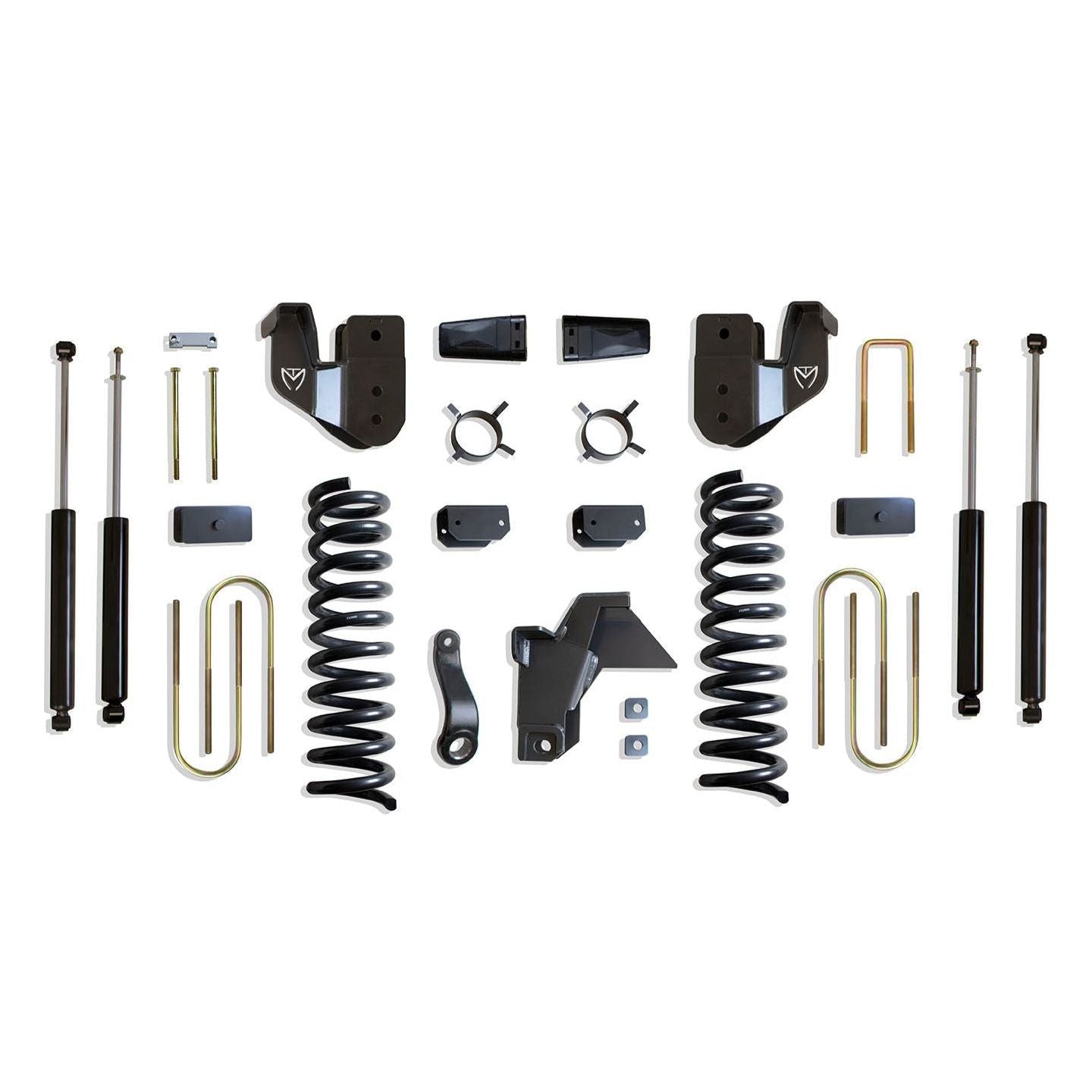

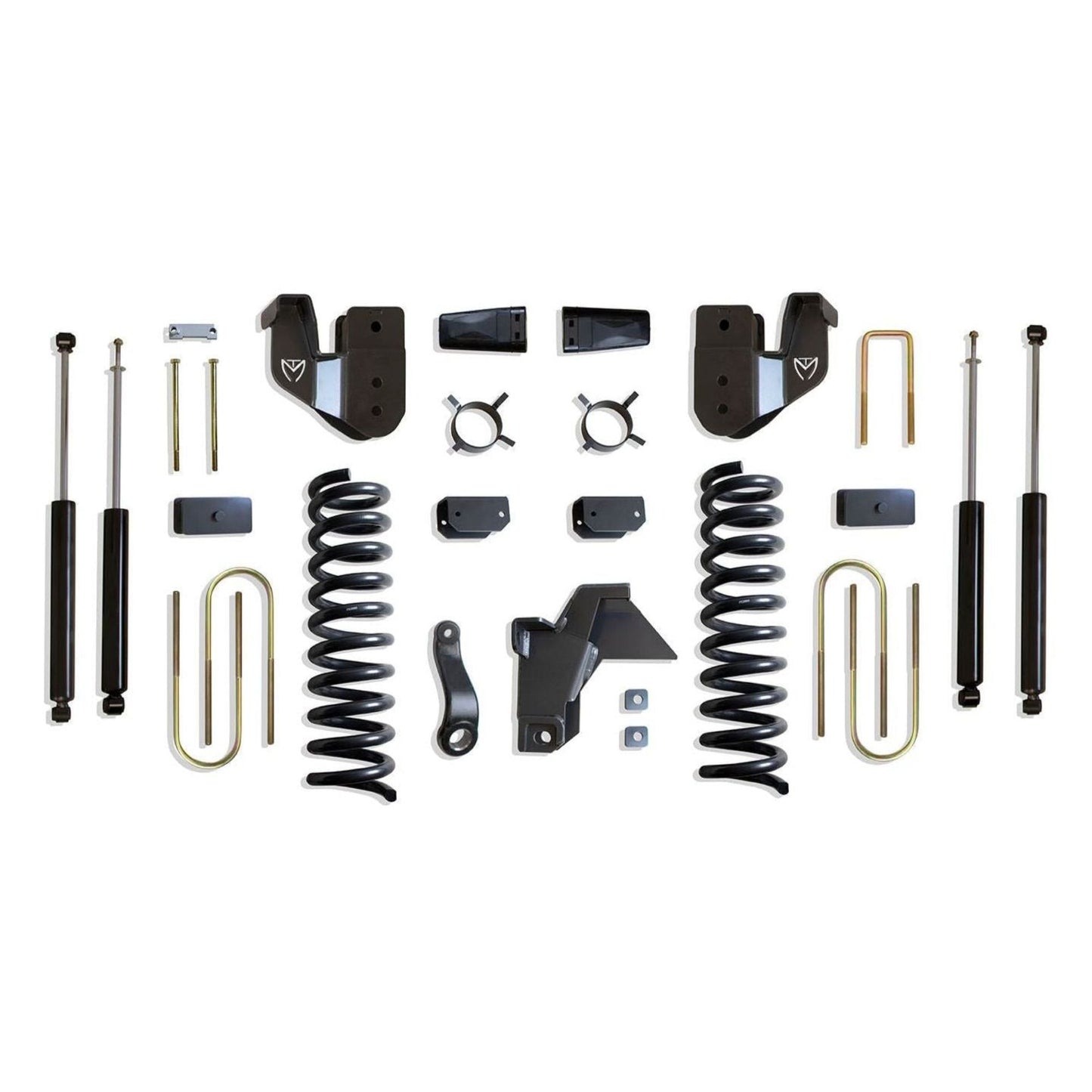

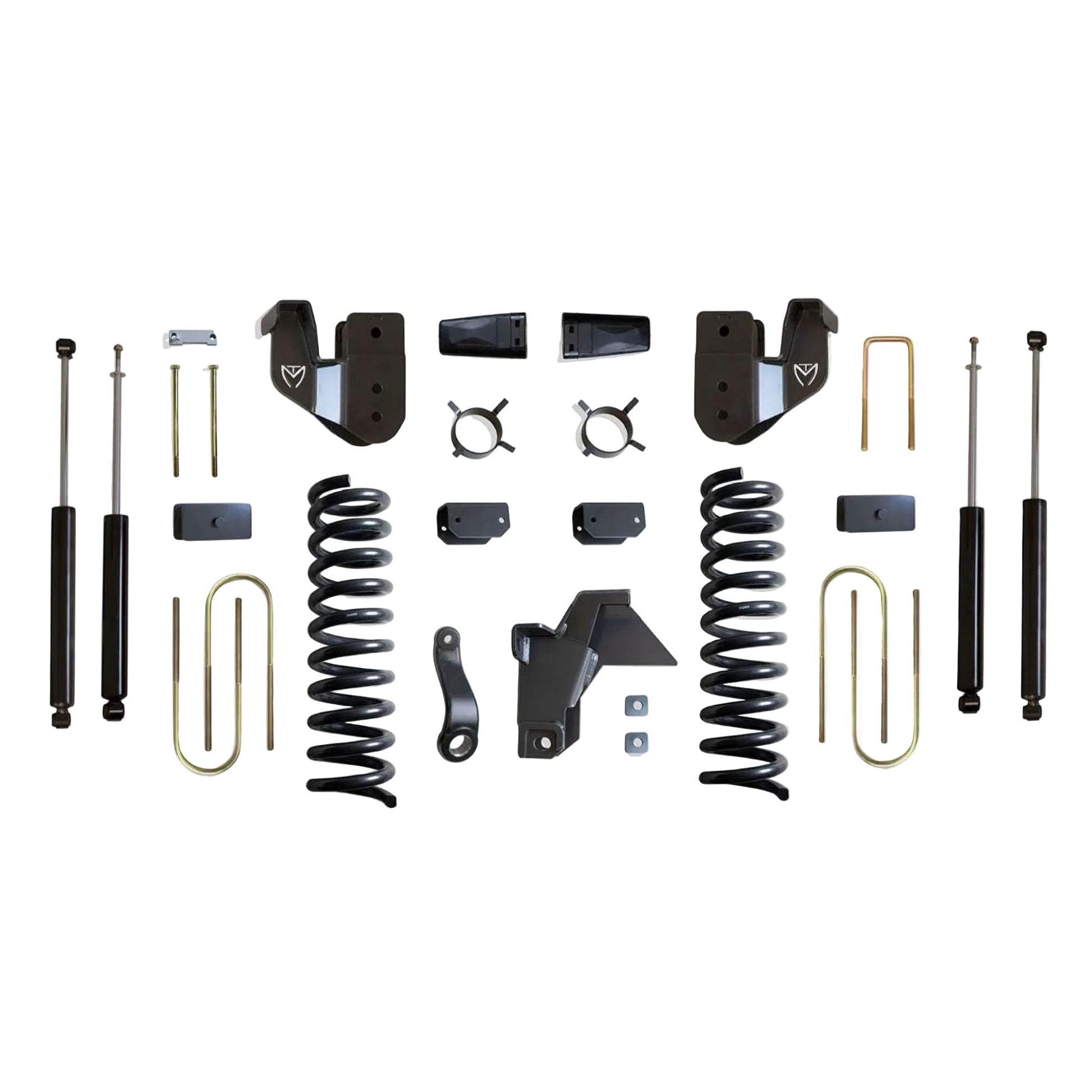

What’s Included
Diesel front lift coils part number 752880
Radius arm brackets part number 947200-2
Track bar bracket part number 947400-5
Pitman arm
Sway bar brackets
Bump stops
Rear lift blocks and U-bolts
Two MaxTrac front shocks part number 2900SL-8
Two MaxTrac rear shocks part number 3400LL-4

Important Notes
Requires 18-inch or larger wheels with 5.5-inch backspacing or less
Maximum tire size may require trimming depending on setup
Not compatible with 2WD, Power Wagon, or Cab/Chassis fleet trucks
Not intended for gas models (will result in additional front lift if installed)
2019+ Ram 3500 with Aisin transmission requires front driveshaft part number RAM-4119K-AISIN for 6 to 8-inch lift kits
Not recommended for wheels wider than 9 inches or with less than 4.5-inch backspacing
Professional installation and alignment are recommended

Specifications
Lift Height 8 inches front 5.5 inches rear
Material steel
Finish grey powder-coated
Part Number K947585
