MaxTrac K947563LA 6" Lift Kit with Forged Aluminum 4-Links for 2019-2026 Ram 3500 4WD Diesel Factory Rear Air Ride

Upgrade to Premium 4-Link Suspension Performance

Take your 2019–2026 Ram 3500 4WD Diesel to the next level with the MaxTrac K947563LA Lift Kit. Designed specifically for trucks equipped with factory rear air ride, this premium suspension system delivers 6 inches of front lift and 3.5 inches of rear lift using diesel-specific lift coils, forged aluminum 4-links, steering correction components, rear air bag spacers, lift blocks, U-bolts, and matched MaxTrac shocks. Built for exceptional strength, improved suspension articulation, and dependable ride quality, this system provides clearance for up to 38-inch tires.

Key Features

Complete 6-Inch Lift System

Complete suspension package engineered to provide a balanced 6-inch front lift and 3.5-inch rear lift while maintaining excellent ride quality and suspension geometry.

Forged Aluminum 4-Link System

Premium forged aluminum 4-links replace the factory radius arm setup, providing increased strength, improved articulation, and more precise steering response.

Diesel-Specific Front Lift Coils

Heavy-duty lift coils are engineered specifically for the weight of Cummins diesel-powered Ram 3500 trucks.

Steering Geometry Correction

Includes a trac bar bracket, pitman arm, sway bar brackets, and bump stop extensions to maintain proper steering alignment and suspension performance.

Factory Rear Air Ride Compatible

Designed specifically for Ram 3500 models equipped with factory rear air suspension, utilizing rear air bag spacers to preserve factory air ride operation and ride height.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 2800SL-8 front shocks and (2) MaxTrac 3200LL-4 rear shocks for outstanding ride control, stability, and off-road capability.

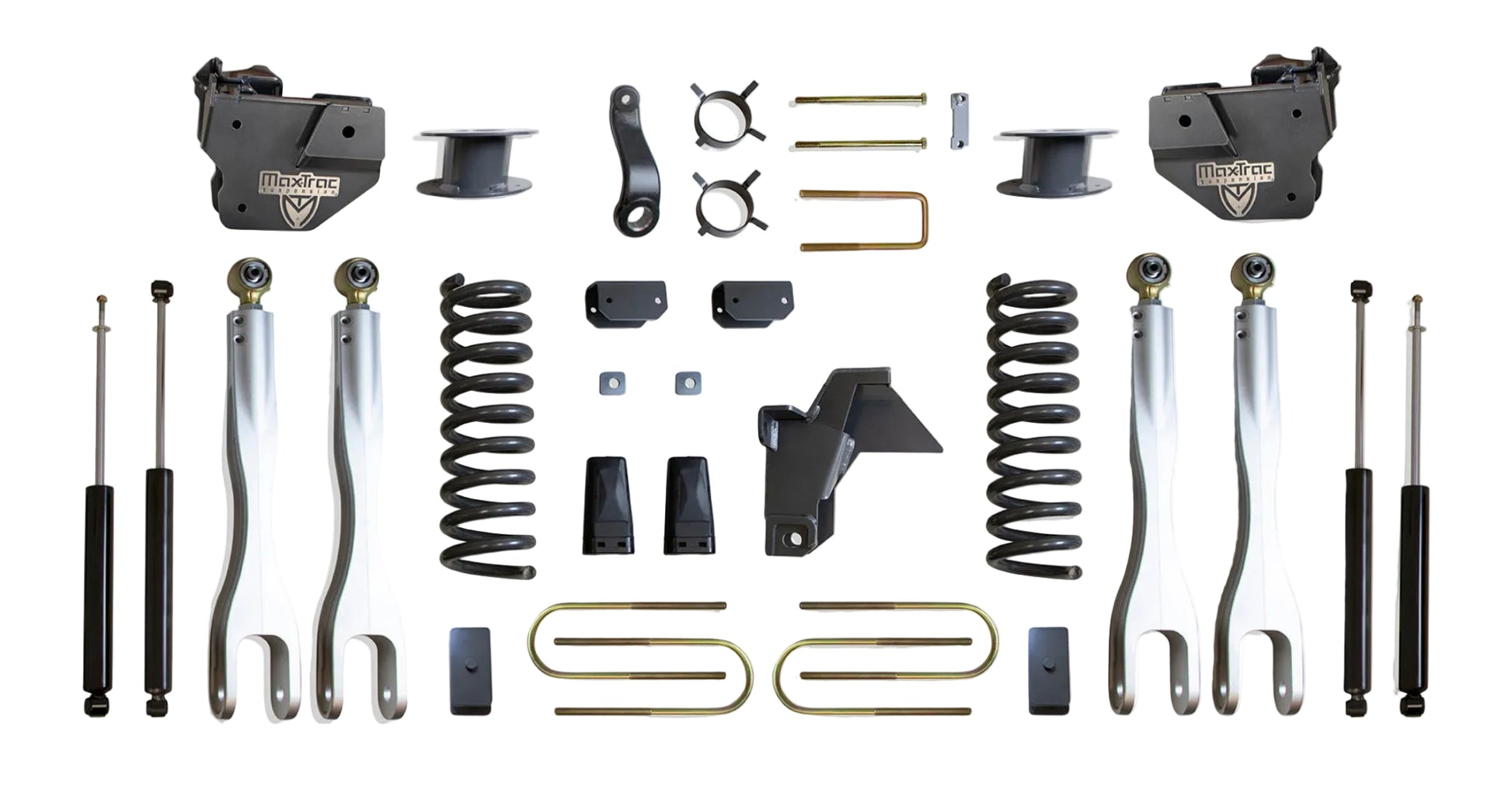

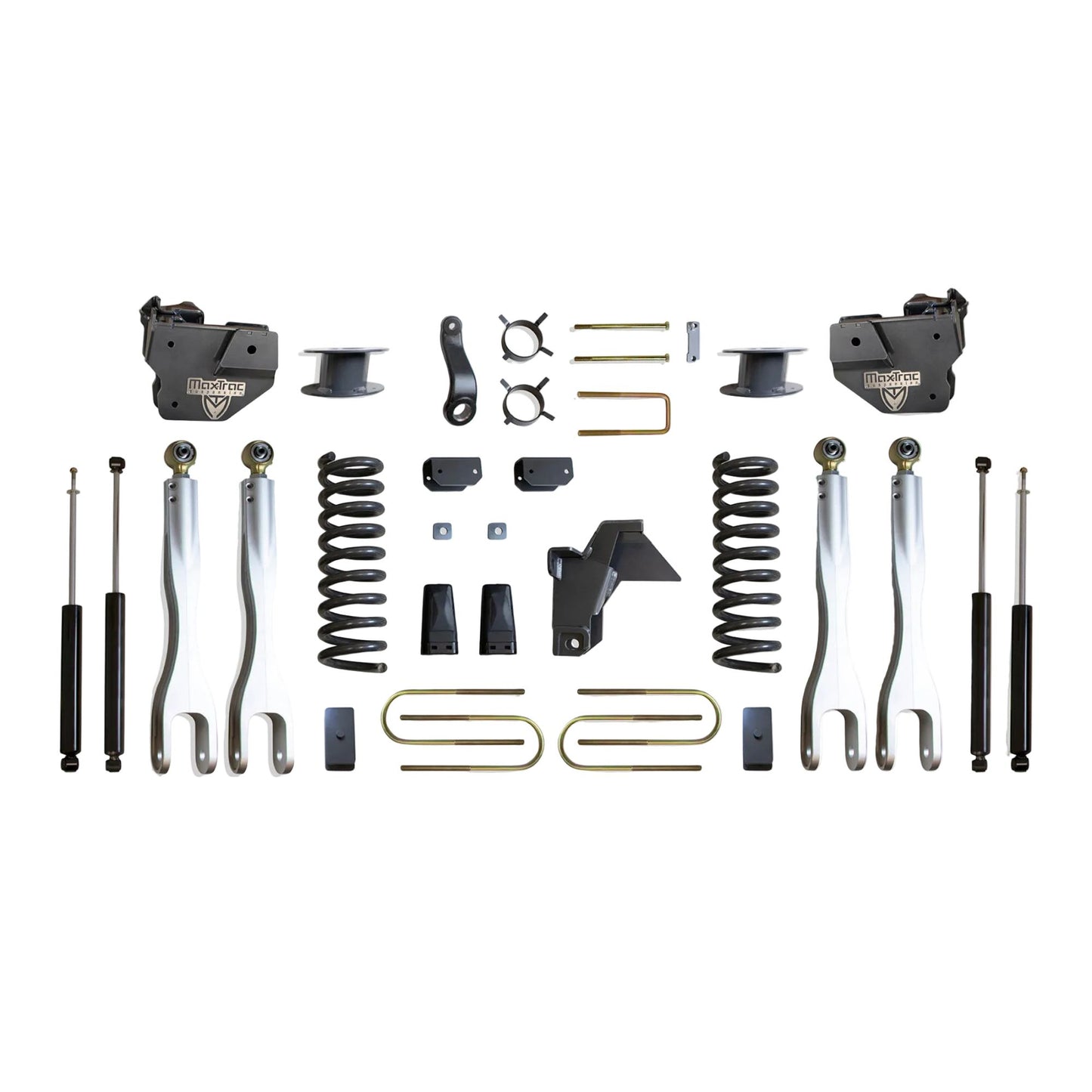

What's Included

Diesel front lift coils
Forged aluminum 4-links
Trac bar bracket
Pitman arm
Sway bar brackets
Bump stop extensions
Rear lift blocks
Heavy-duty U-bolts
Rear air bag spacers
(2) MaxTrac 2800SL-8 front shocks
(2) MaxTrac 3200LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2019–2026 Ram 3500 4WD Diesel
Models equipped with factory rear air ride

Does Not Fit

Cab & Chassis (Fleet) models
Models without factory rear air ride

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 38x13.50 tires on 8- to 9-inch-wide wheels.
Minor fender trimming may be required depending on tire and wheel combination.
2019+ Ram 3500 4WD models equipped with the Aisin transmission require front driveshaft (Part #RAM-4119K-AISIN) when installing 6-inch to 8-inch 4-Link lift kits.
Designed for diesel models only. If installed on a gas-powered truck, expect approximately 1.5 to 2 inches of additional front lift.
Does not fit Cab & Chassis (Fleet) trucks.
Fits factory rear air ride equipped models only.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947563LA
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6 Inches
Rear Lift: 3.5 Inches
Lift Height Options: 6 Inches
Engine Compatibility: Diesel
Shock Option: MaxTrac Shocks
Kit Design: Forged Aluminum 4-Links
Front Shock Details: (2) MaxTrac 2800SL-8 Front Shocks
Rear Shock Details: (2) MaxTrac 3200LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 325 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947563LA?

The MaxTrac K947563LA is the premium 6-inch suspension lift solution for 2019–2026 Ram 3500 4WD diesel trucks equipped with factory rear air ride. Featuring forged aluminum 4-links, diesel-specific lift coils, steering correction components, rear air bag spacers, and matched MaxTrac shocks, this complete system delivers exceptional ride quality, improved suspension performance, and clearance for up to 38-inch tires.

Perfect For

2019–2026 Ram 3500 4WD Diesel
Factory rear air ride trucks
Cummins-powered builds
Premium suspension upgrades
Heavy-duty work trucks
Off-road enthusiasts
38-inch tire upgrades
Complete suspension lift installations
