MaxTrac K947563A 6" Lift Kit with MaxTrac Shocks for 2019-2026 Ram 3500 4WD Diesel Factory Rear Air Ride

Give Your Ram 3500 the Clearance It Deserves

Upgrade your 2019–2026 Ram 3500 4WD Diesel with the MaxTrac K947563A Lift Kit. Designed specifically for trucks equipped with factory rear air ride, this complete suspension system delivers 6 inches of front lift and 3.5 inches of rear lift using diesel-specific lift coils, radius arm drop brackets, steering correction components, rear air bag spacers, lift blocks, U-bolts, and matched MaxTrac shocks. Engineered for excellent ride quality and proper suspension geometry, this kit provides clearance for up to 38-inch tires while maintaining confident on- and off-road performance.

Key Features

Complete 6-Inch Lift System

Complete suspension package engineered to provide a balanced 6-inch front lift and 3.5-inch rear lift while preserving ride quality and suspension geometry.

Diesel-Specific Front Lift Coils

Heavy-duty lift coils are specifically designed to support the additional weight of Cummins diesel-powered Ram 3500 trucks.

Radius Arm Drop Brackets

Radius arm drop brackets restore proper caster angles and improve steering stability after lifting.

Steering Geometry Correction

Includes a trac bar bracket, pitman arm, sway bar brackets, and bump stop extensions to maintain proper steering alignment and suspension performance.

Factory Rear Air Ride Compatible

Designed specifically for Ram 3500 models equipped with factory rear air suspension, utilizing rear air bag spacers to retain proper air ride operation and ride height.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 2800SL-8 front shocks and (2) MaxTrac 3200LL-4 rear shocks for improved ride control, stability, and off-road capability.

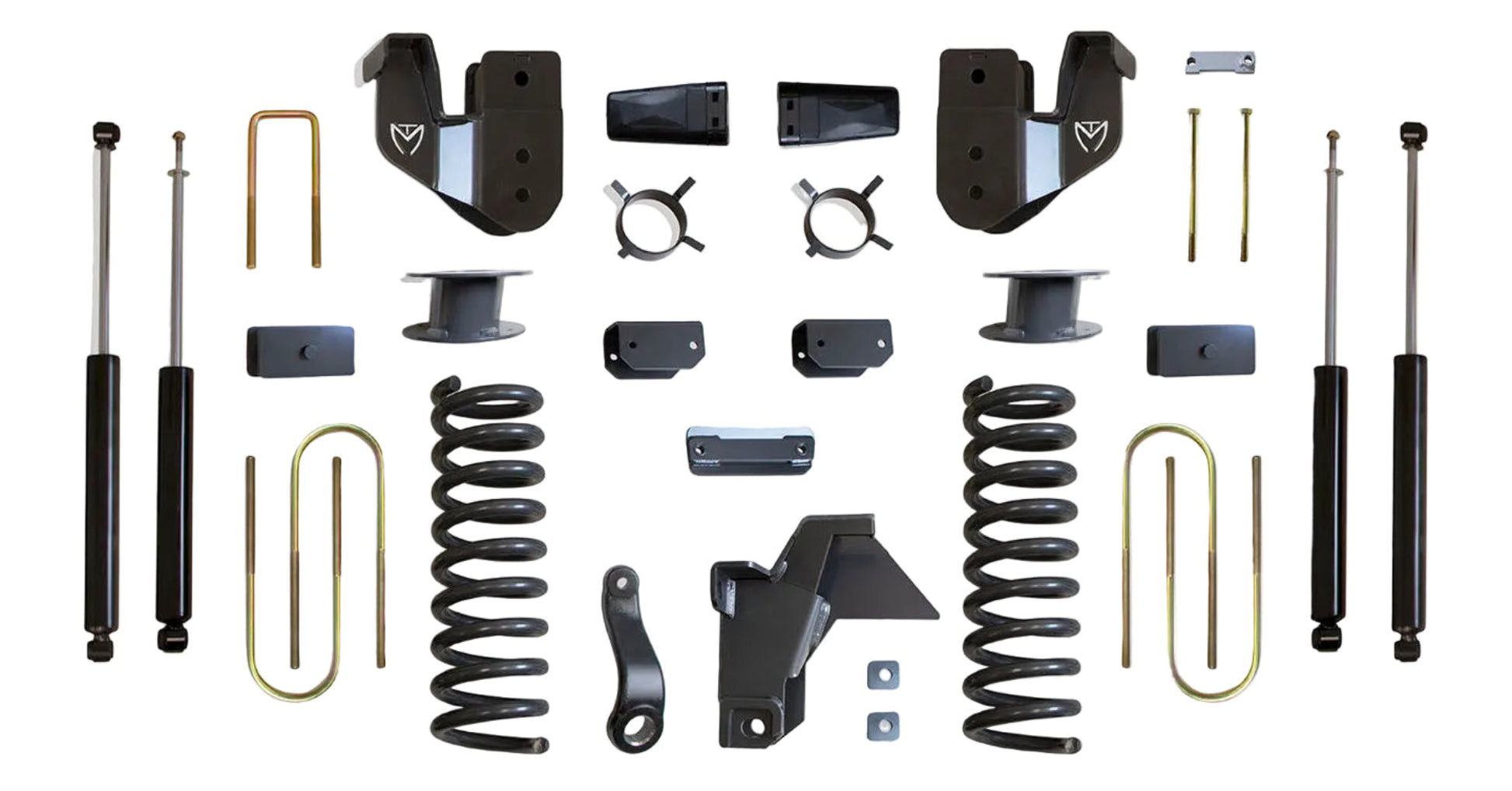

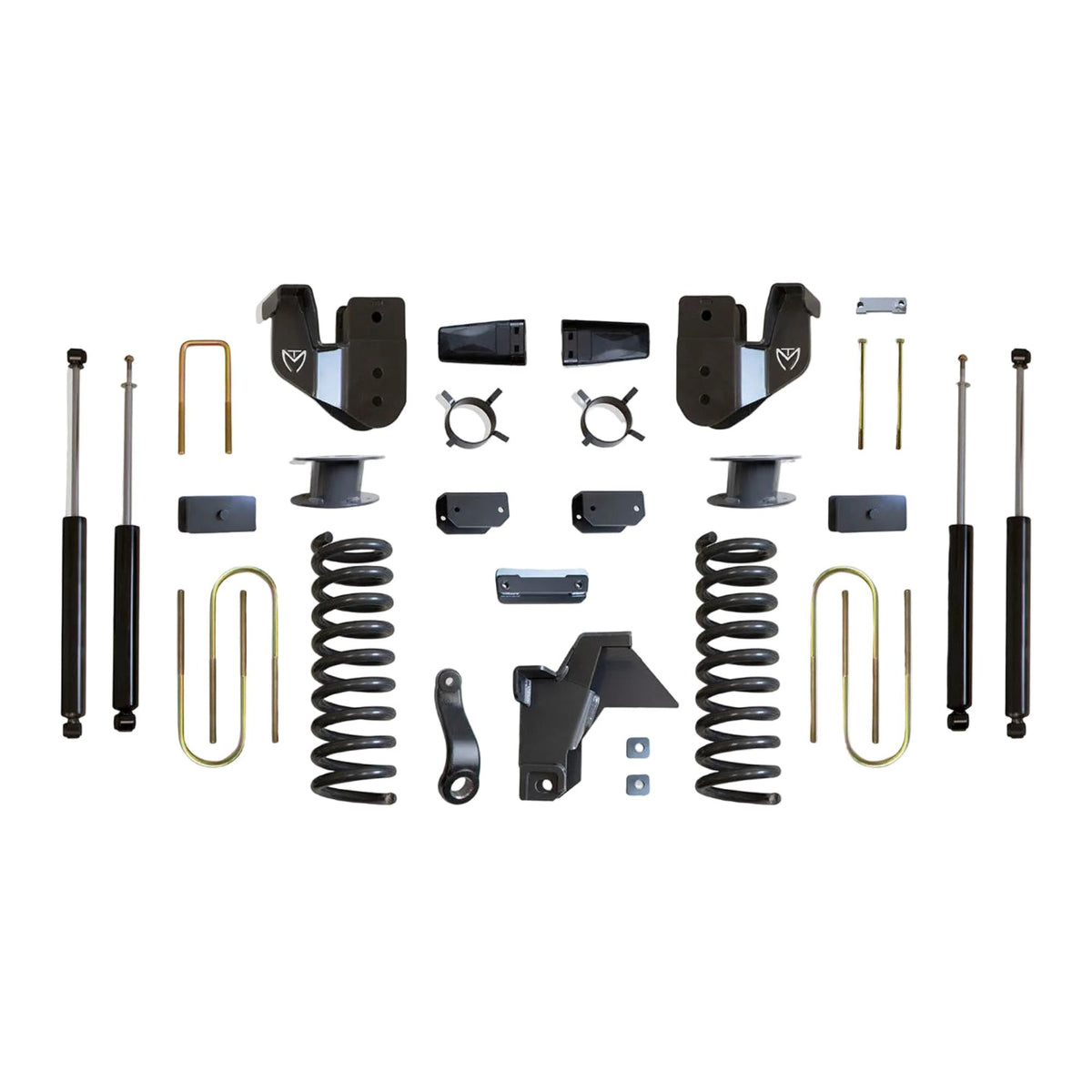

What's Included

Diesel front lift coils
Radius arm drop brackets
Trac bar bracket
Pitman arm
Sway bar brackets
Bump stop extensions
Rear lift blocks
Heavy-duty U-bolts
Rear air bag spacers
(2) MaxTrac 2800SL-8 front shocks
(2) MaxTrac 3200LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2019–2026 Ram 3500 4WD Diesel
Models equipped with factory rear air ride

Does Not Fit

2WD models
Cab & Chassis (Fleet) models
Models without factory rear air ride

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 38x13.50 tires on 8- to 9-inch-wide wheels.
Minor fender trimming may be required depending on tire and wheel combination.
Designed for diesel models only. If installed on a gas-powered truck, expect approximately 1.5 to 2 inches of additional front lift.
Does not fit Cab & Chassis (Fleet) trucks.
Fits factory rear air ride equipped models only.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947563A
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6 Inches
Rear Lift: 3.5 Inches
Lift Height Options: 6 Inches
Engine Compatibility: Diesel
Shock Option: MaxTrac Shocks
Kit Design: Radius Arm Drop Brackets
Front Shock Details: (2) MaxTrac 2800SL-8 Front Shocks
Rear Shock Details: (2) MaxTrac 3200LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 215 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947563A?

The MaxTrac K947563A is engineered specifically for 2019–2026 Ram 3500 4WD diesel trucks equipped with factory rear air ride. Featuring diesel-specific lift coils, radius arm drop brackets, steering correction components, rear air bag spacers, and matched MaxTrac shocks, this complete suspension system delivers dependable handling, excellent ride quality, and clearance for up to 38-inch tires.

Perfect For

2019–2026 Ram 3500 4WD Diesel
Factory rear air ride trucks
Cummins-powered builds
Heavy-duty work trucks
Off-road enthusiasts
38-inch tire upgrades
Complete suspension lift installations
