MaxTrac K947541 4" Lift Kit with MaxTrac Shocks for 2019-2026 Ram 3500 4WD Diesel

Built for Modern Ram 3500 Diesel Performance

Upgrade your 2019–2026 Ram 3500 4WD Diesel with the MaxTrac K947541 Lift Kit. This complete suspension system delivers a 4-inch front lift and 1.5-inch rear lift using heavy-duty diesel lift coils, radius arm drop brackets, a track bar bracket, pitman arm, sway bar brackets, bump stops, rear lift blocks, replacement U-bolts, and matched MaxTrac front and rear shocks. Engineered to maintain proper suspension geometry while clearing up to 37-inch tires, this kit provides improved ground clearance, confident handling, and dependable towing capability.

Key Features

Complete 4"/1.5" Suspension Lift System

A complete suspension package engineered to increase ground clearance while maintaining excellent ride quality, steering precision, and suspension performance.

Heavy-Duty Diesel Lift Coils

Designed specifically for diesel-powered Ram 3500 trucks to support the additional engine weight while providing consistent lift height.

Radius Arm Drop Brackets

Maintains proper caster and front suspension geometry for improved steering response, alignment, and overall handling after lifting.

Complete Steering & Suspension Correction

Includes a track bar bracket, pitman arm, sway bar brackets, and bump stops to preserve proper steering geometry and suspension travel.

Rear Lift Blocks & U-Bolts

Heavy-duty rear lift blocks and replacement U-bolts provide a balanced 1.5-inch rear lift while maintaining towing stability and payload capacity.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 2650SL-8 front shocks and (2) MaxTrac 2900LL-4 rear shocks for excellent ride comfort, handling, and suspension control.

Heavy-Duty Powder-Coated Steel Construction

Premium steel suspension components feature a durable grey powder-coated finish for outstanding corrosion resistance and long-lasting durability.

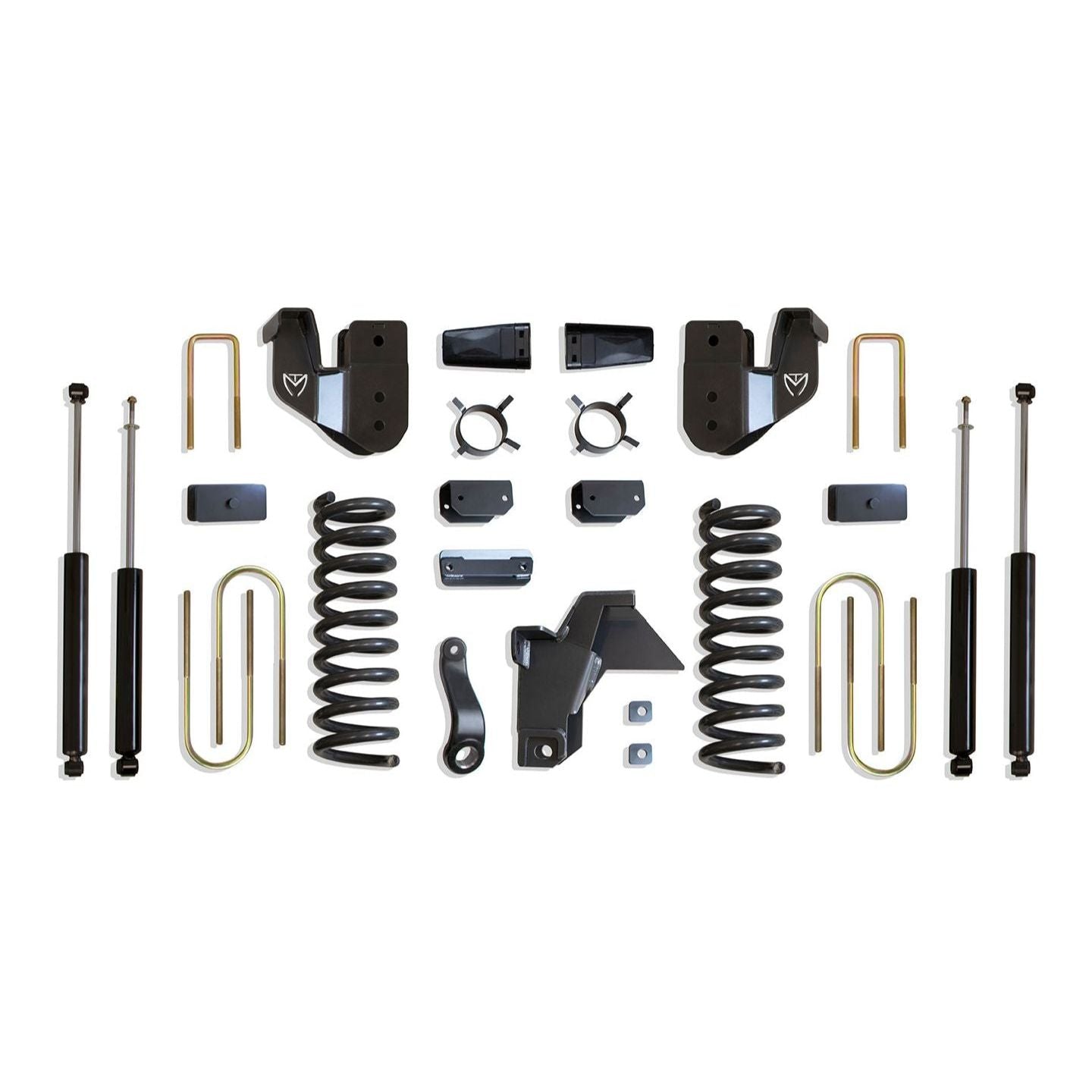

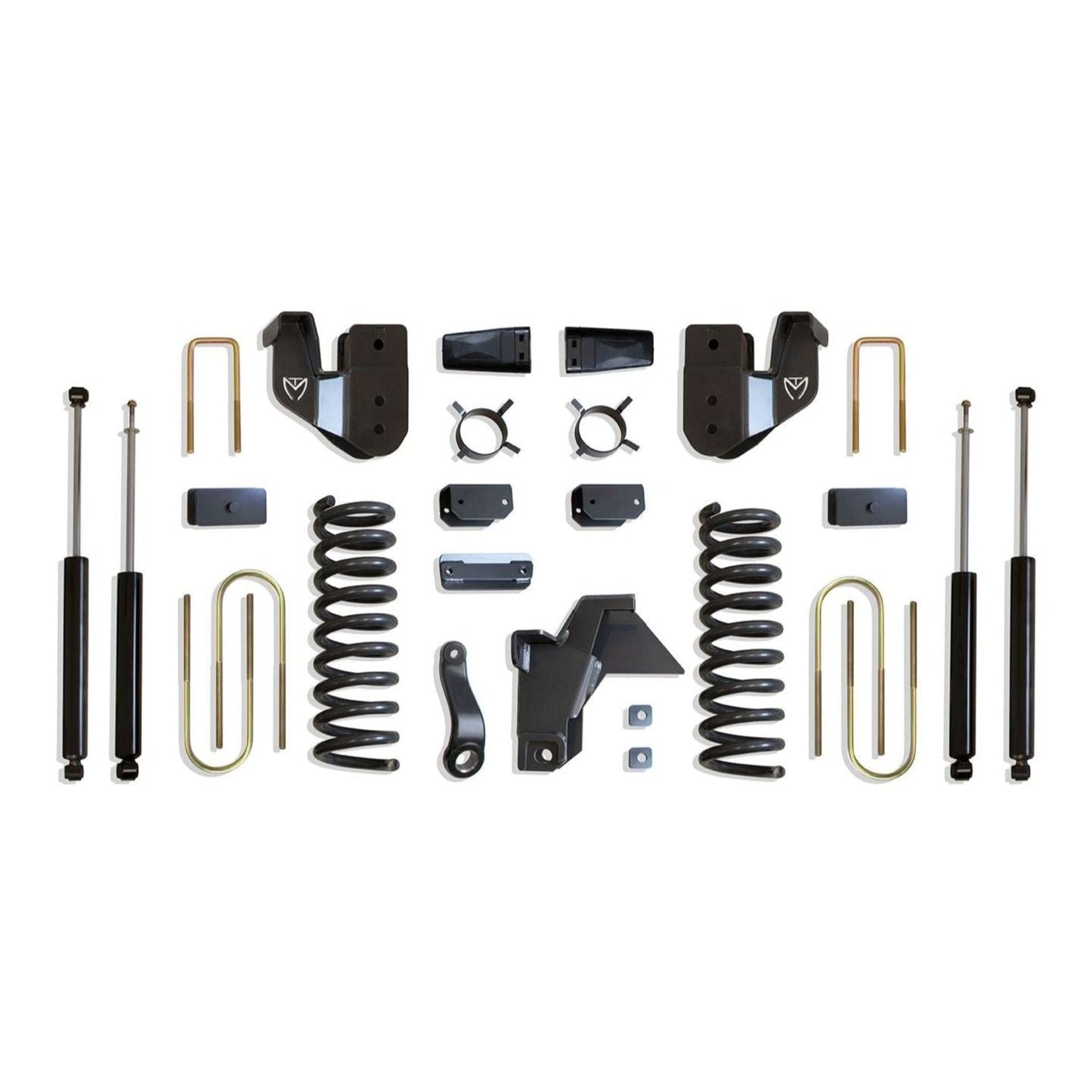

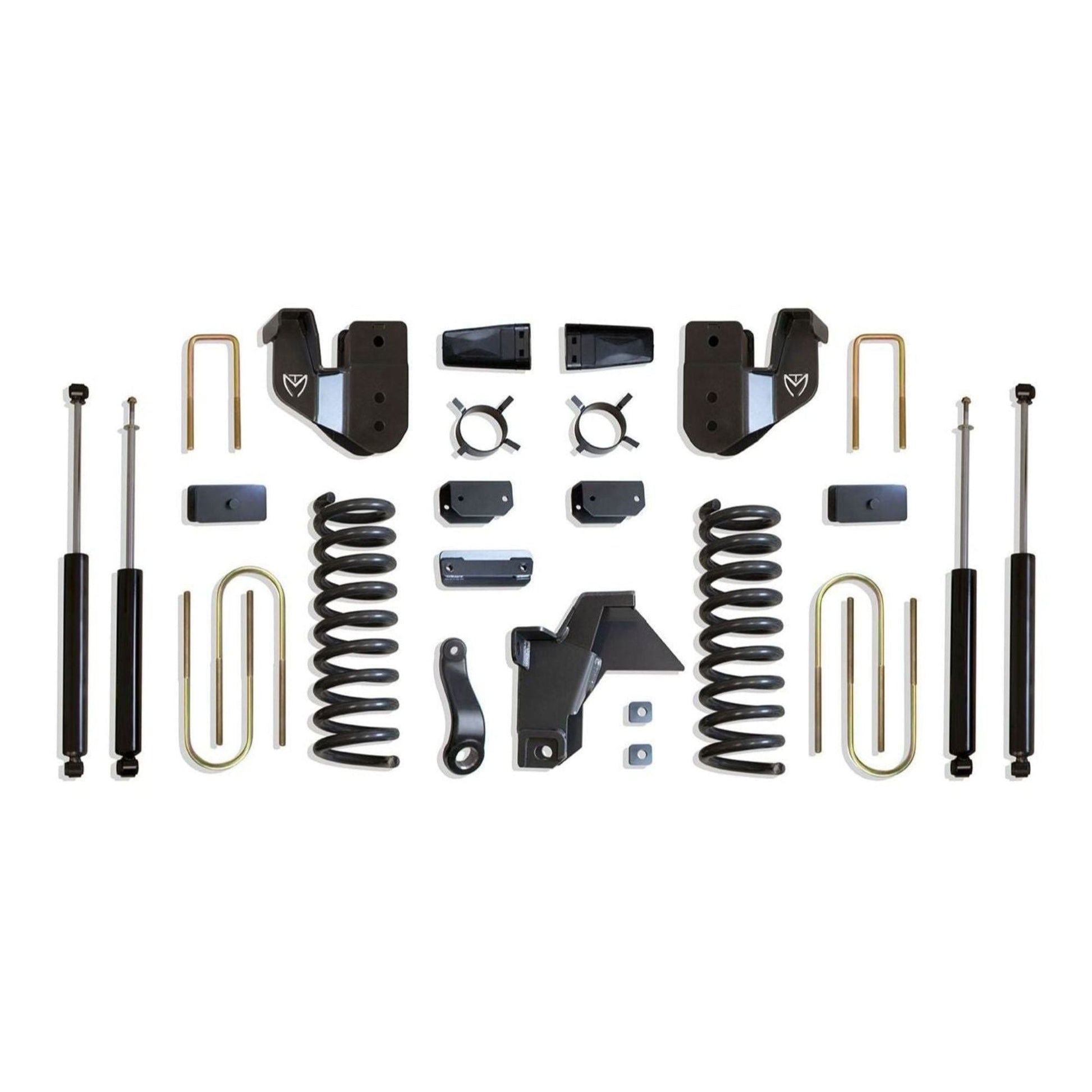

What's Included

Front diesel lift coils
Radius arm drop brackets
Track bar bracket
Pitman arm
Sway bar brackets
Bump stops
Rear lift blocks
Rear U-bolts
(2) MaxTrac 2650SL-8 front shocks
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2019–2026 Ram 3500 4WD Diesel

Does Not Fit

2WD models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 37x12.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
Not intended for gas models. If installed on a gas model, expect approximately 1.5 to 2 inches of additional front lift.
Does not fit Cab & Chassis (Fleet) models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947541
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 4 Inches
Rear Lift: 1.5 Inches
Lift Height Option: 4 Inches
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Front Shock Details: (2) MaxTrac 2650SL-8 Front Shocks
Rear Shock Details: (2) MaxTrac 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 215 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947541?

The MaxTrac K947541 is engineered specifically for 2019–2026 Ram 3500 4WD Diesel trucks. Featuring diesel lift coils, radius arm drop brackets, steering correction components, rear lift blocks, replacement U-bolts, and matched MaxTrac shocks, this complete suspension system delivers dependable ride quality, confident handling, and clearance for up to 37-inch tires.

Perfect For

2019–2026 Ram 3500 4WD Diesel owners
37-inch tire upgrades
Heavy-duty work trucks
Towing applications
Off-road enthusiasts
Complete suspension lift installations
