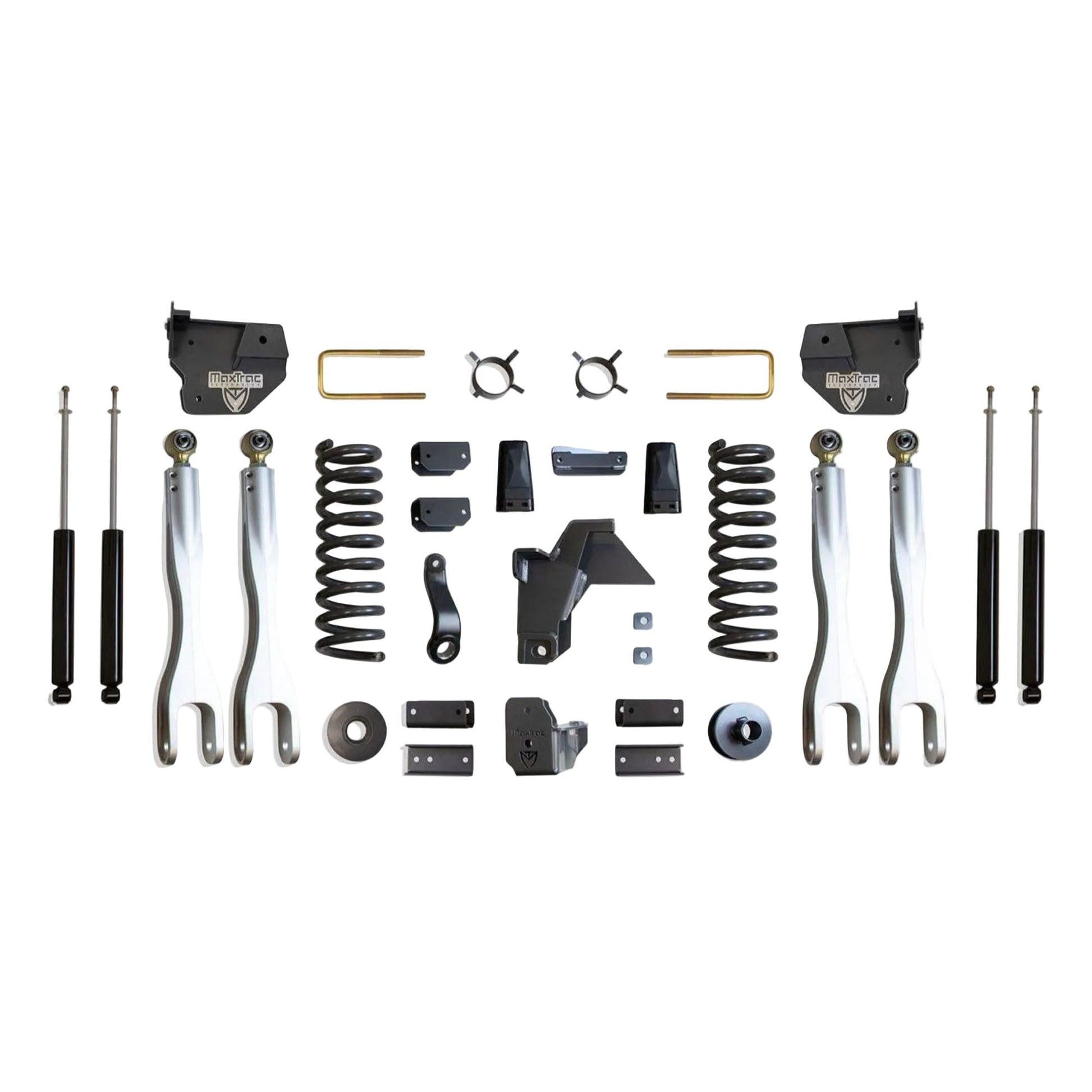

MaxTrac K947485L 8"/5.5" 4-Link Lift Kit Fits 2019–2024 Ram 2500 4WD (Diesel)

Give your Ram 2500 maximum lift, strength, and control with the MaxTrac K947485L 4-link system. Designed for 2019–2024 4WD diesel models, this kit delivers an aggressive 8-inch front lift and 5.5 inches in the rear while improving suspension geometry and overall handling.

Built with forged aluminum 4-link arms and heavy-duty components, this setup is made for serious off-road use while still maintaining a smooth, controlled ride on the street.

Fitment
2019–2024 Ram 2500 4WD (Diesel)

Does NOT fit 2WD, Power Wagon, or Cab/Chassis models

Features
8-inch front lift and 5.5-inch rear lift for extreme stance and ground clearance
Forged aluminum 4-link arms with chromoly sleeves for strength and adjustability
Diesel-specific front coils designed for heavy-duty load support
Track bar and sway bar brackets maintain proper suspension geometry
Includes pitman arm and bump stop extensions for correct steering and travel
Clears up to 40 by 13.50 inch tires depending on setup
Includes MaxTrac shocks for improved ride quality and stability
Heavy-duty steel components with durable grey powder-coated finish
Built for long-term durability and corrosion resistance
Bolt-on installation with no major modifications required

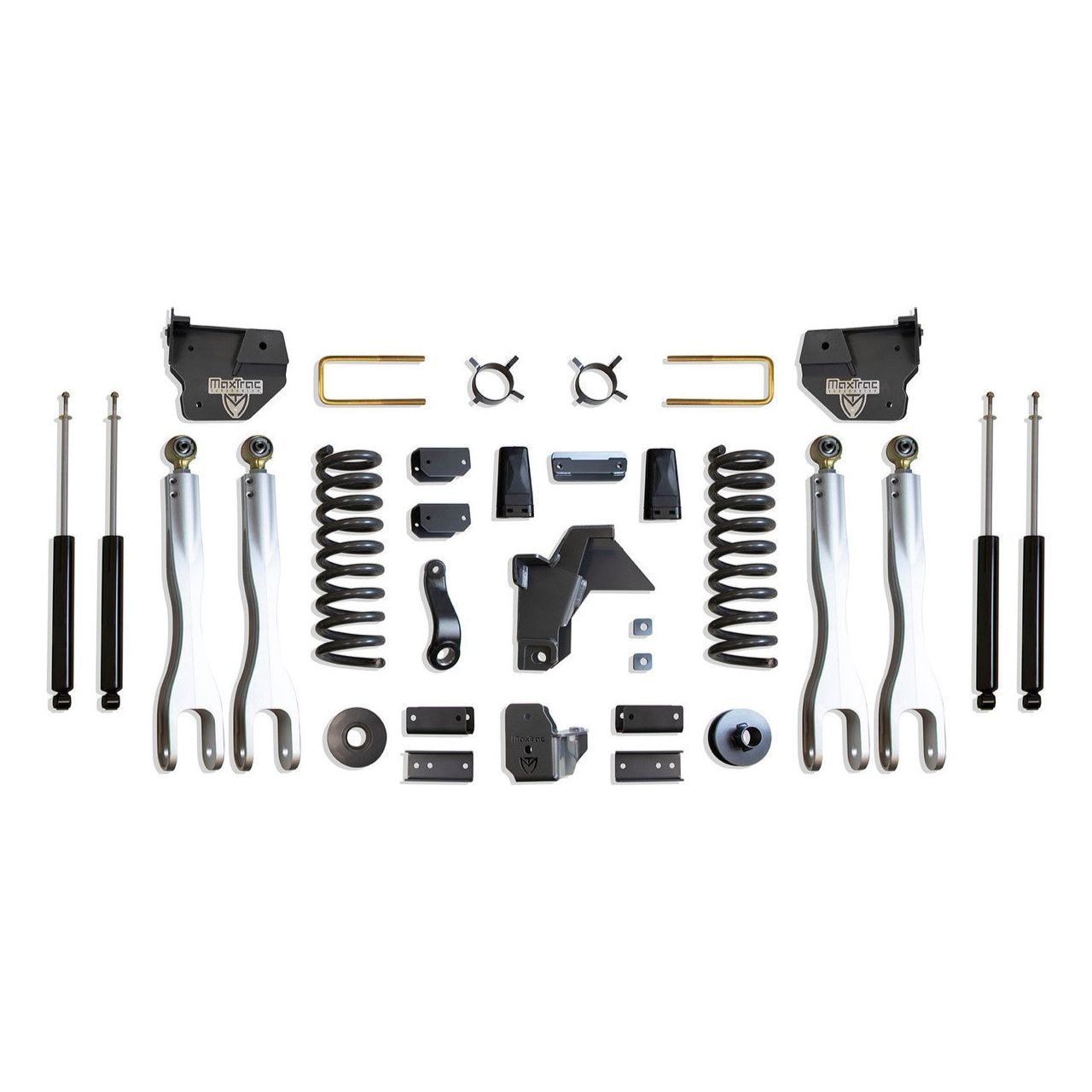

What’s Included

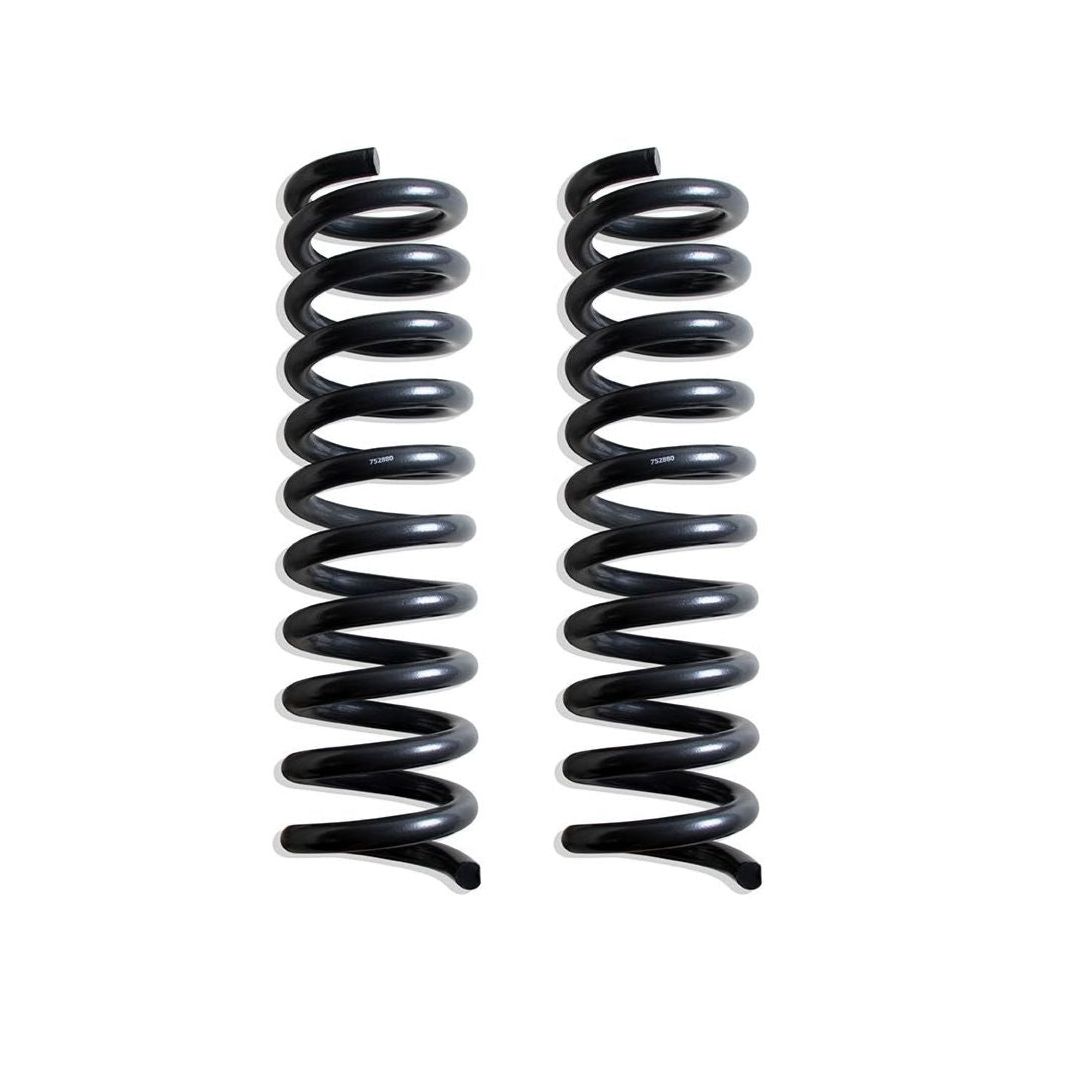

Diesel front lift coils part number 752880

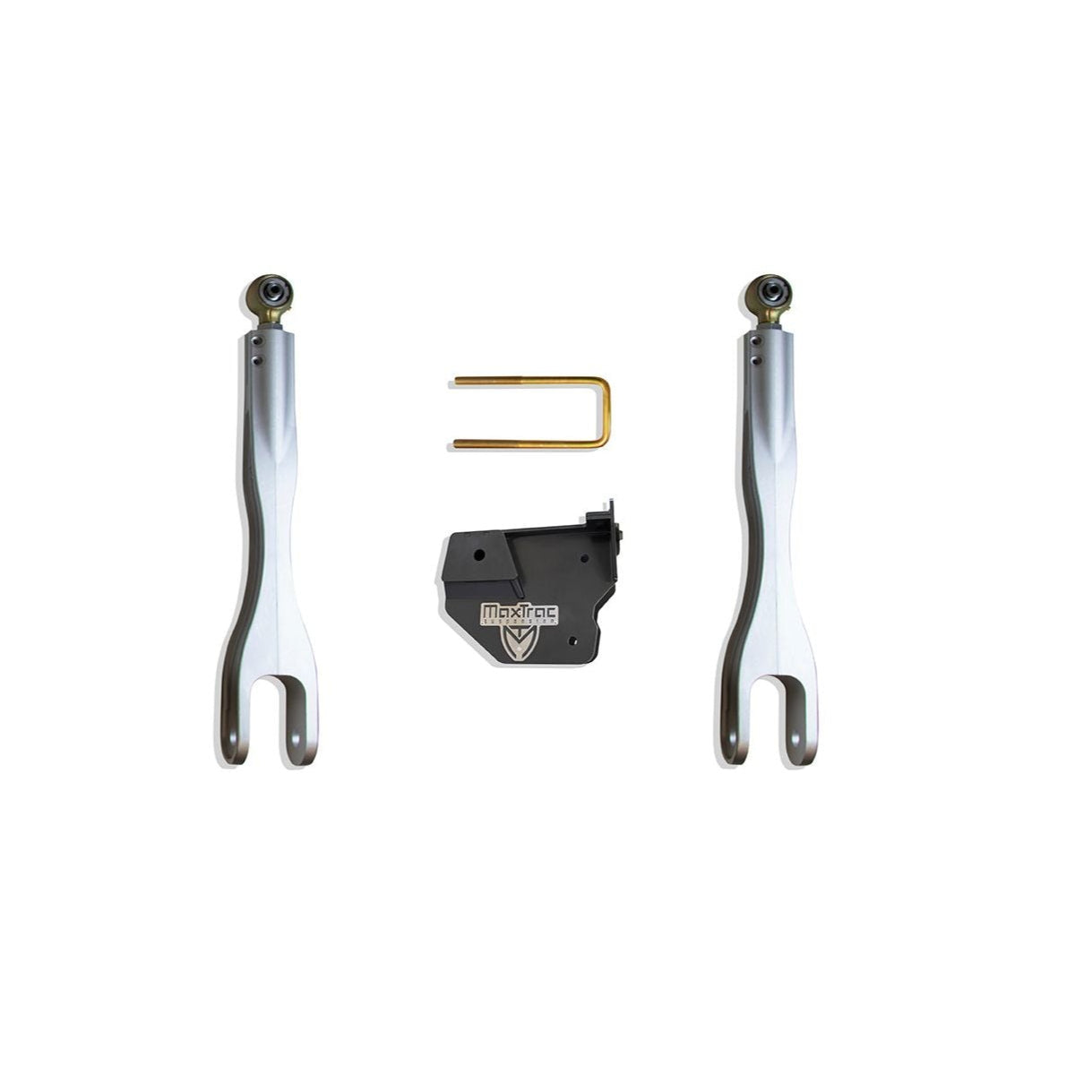

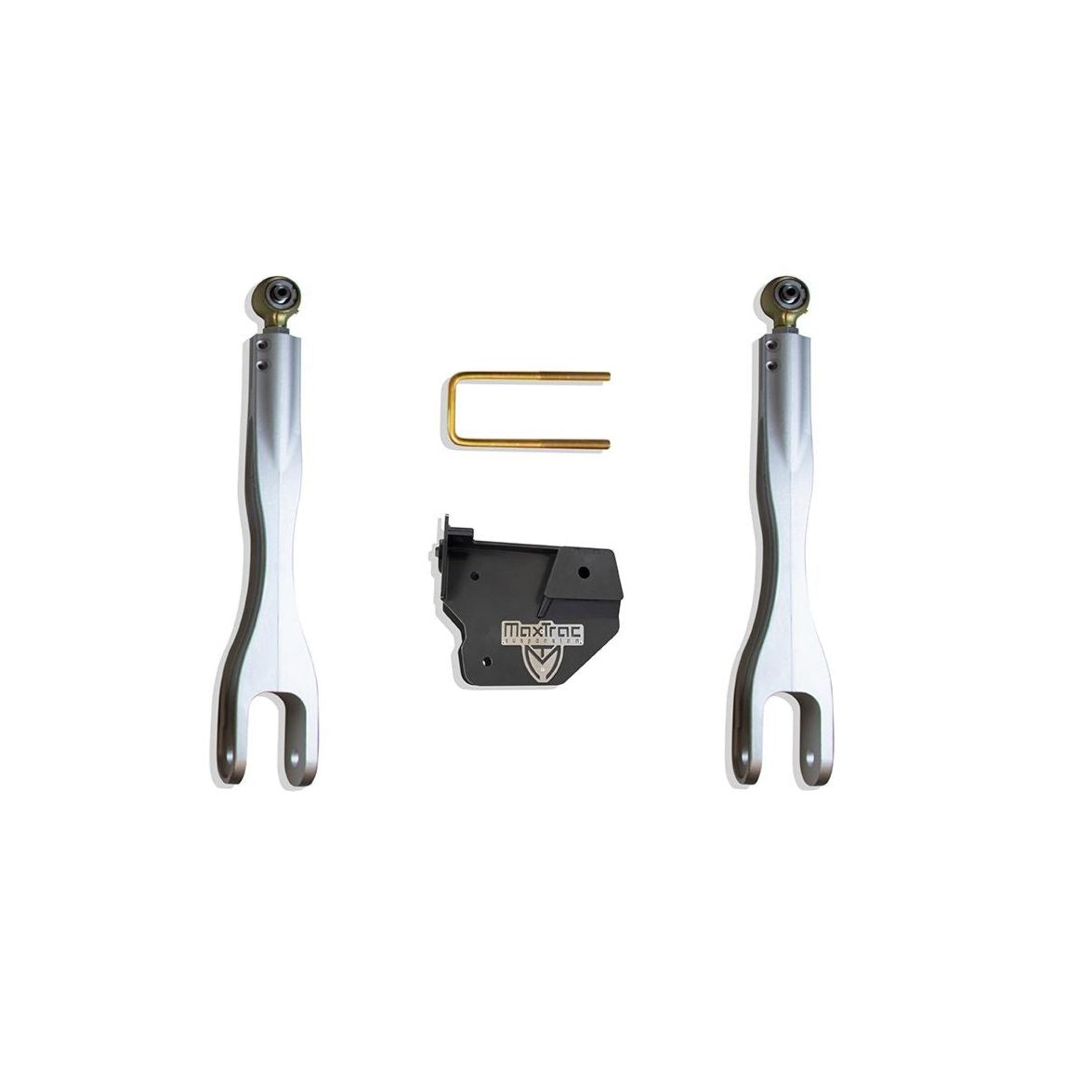

Forged aluminum 4-link arms part numbers 947200-3 and 947200-4
Rear coil spacers part number 947400-5

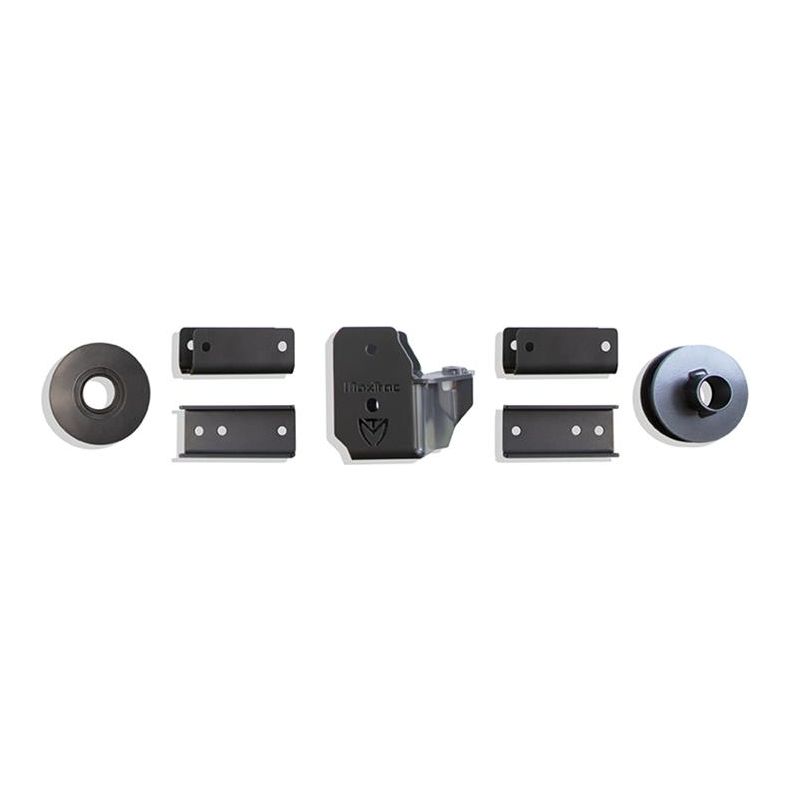

Track bar and sway bar brackets
Pitman arm
Bump stop extensions

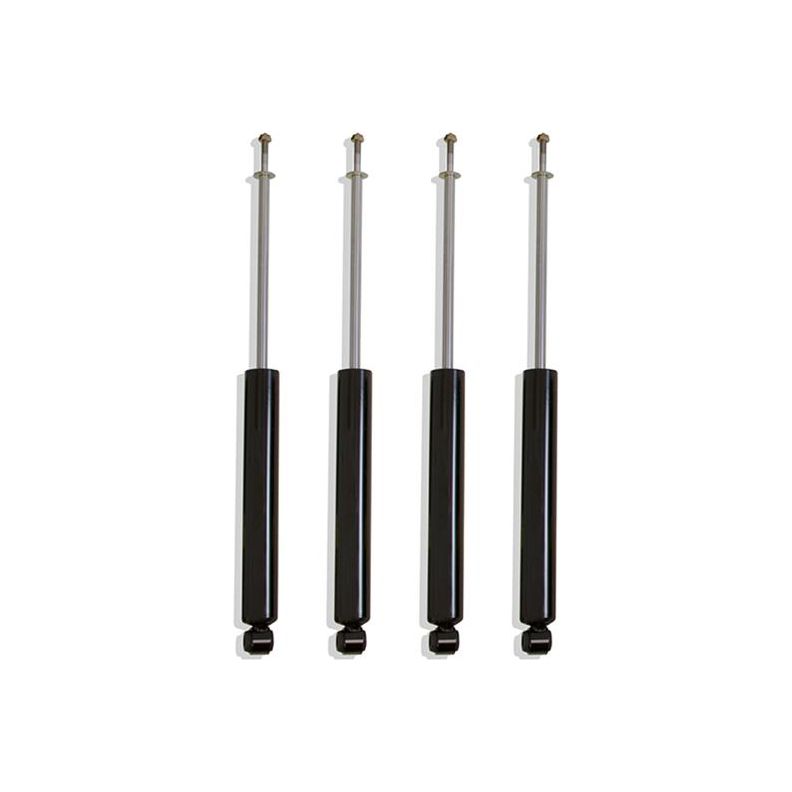

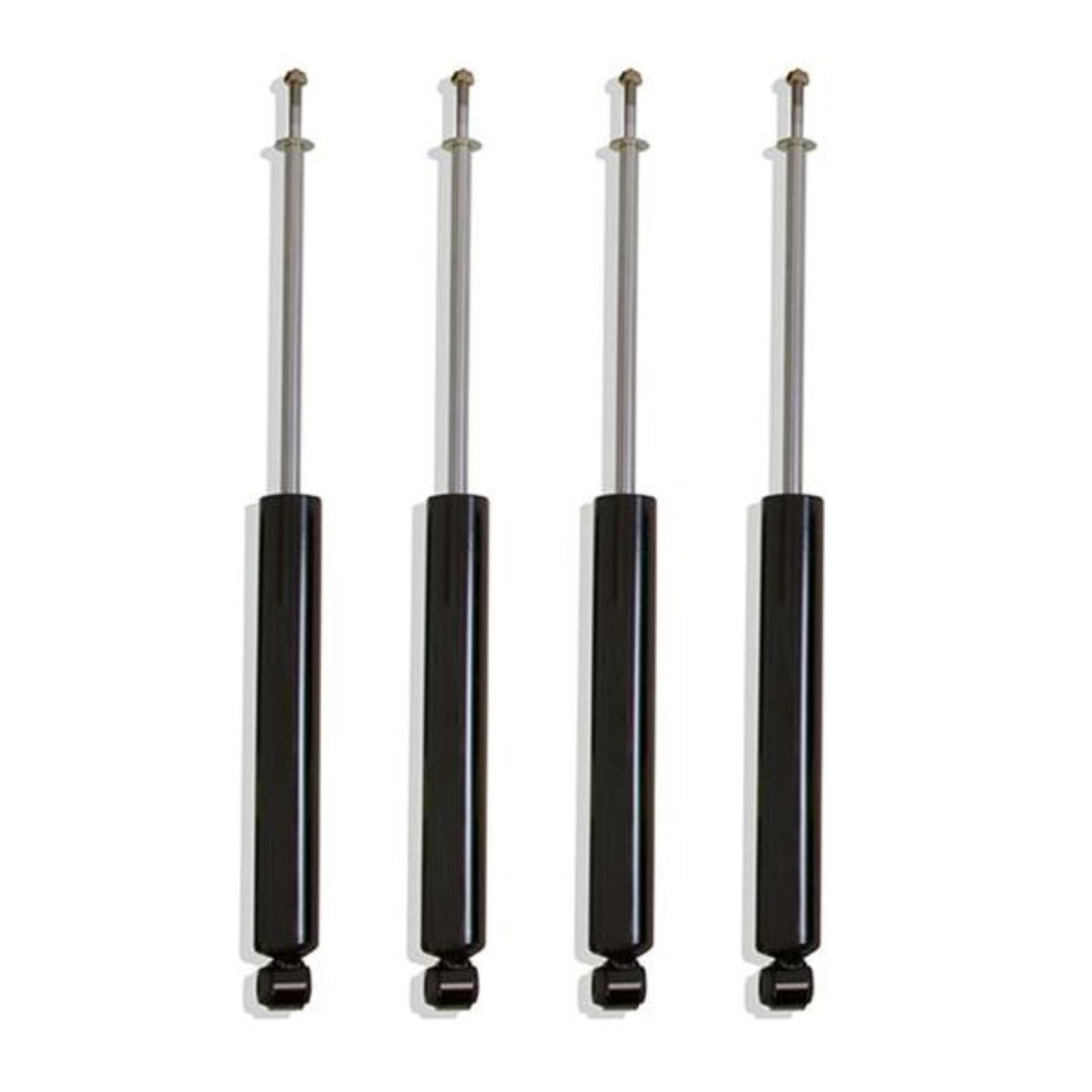

Two MaxTrac front shocks part number 2900SL-8
Two MaxTrac rear shocks part number 2900SL-8

Important Notes
Requires 18-inch or larger wheels with 5.5-inch backspacing or less
Maximum tire size may require trimming depending on setup
Not compatible with 2WD, Power Wagon, or Cab/Chassis fleet trucks
Not intended for gas models (will result in additional front lift if installed)
Not recommended for wheels wider than 9 inches or with less than 4.5-inch backspacing
Professional installation and alignment are recommended

Specifications
Lift Height 8 inches front 5.5 inches rear
Material steel and forged aluminum
Finish grey powder-coated
Part Number K947485L
