MaxTrac K947485A 8" Lift Kit for 2019-2026 RAM 2500 4WD Diesel with Factory Rear Air Ride

Give Your Air Ride RAM 2500 Maximum Ground Clearance

The MaxTrac K947485A 8-Inch Lift Kit is engineered specifically for 2019–2026 RAM 2500 4WD diesel trucks equipped with factory rear air ride. This complete suspension system provides 8 inches of front lift and 5.5 inches of rear lift using diesel-specific front coil springs, radius arm drop brackets, track bar brackets, a pitman arm, sway bar brackets, bump stops, rear air bag spacers, and matched MaxTrac front and rear shocks. Designed to preserve factory suspension geometry while clearing up to 40-inch tires, this kit delivers outstanding off-road capability, improved ground clearance, and confident on-road handling.

Key Features

Complete 8-Inch Suspension Lift

Provides 8 inches of front lift and 5.5 inches of rear lift for an aggressive stance and exceptional off-road clearance.

Designed for Factory Rear Air Ride

Includes rear air bag spacers to maintain proper operation of the factory rear air suspension after lifting.

Diesel-Specific Coil Springs

Heavy-duty front coil springs are engineered specifically for diesel-powered RAM 2500 trucks to deliver the correct ride height and load capacity.

Corrected Suspension Geometry

Radius arm drop brackets, track bar brackets, pitman arm, sway bar brackets, and bump stops help maintain factory steering geometry, alignment, and ride quality.

MaxTrac Performance Shocks

Matched MaxTrac front and rear shocks are tuned specifically for 8-inch lift applications, providing excellent stability, control, and ride comfort.

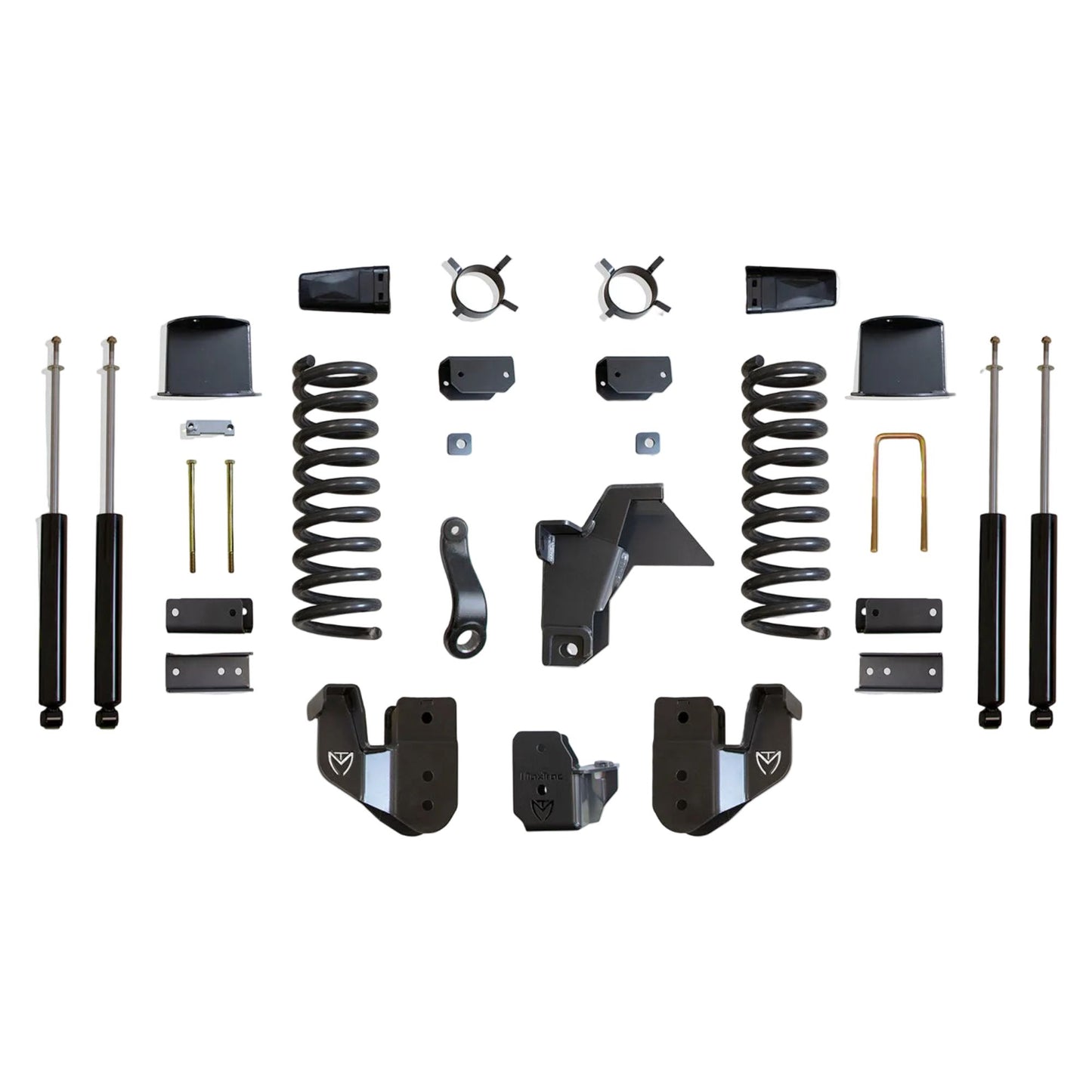

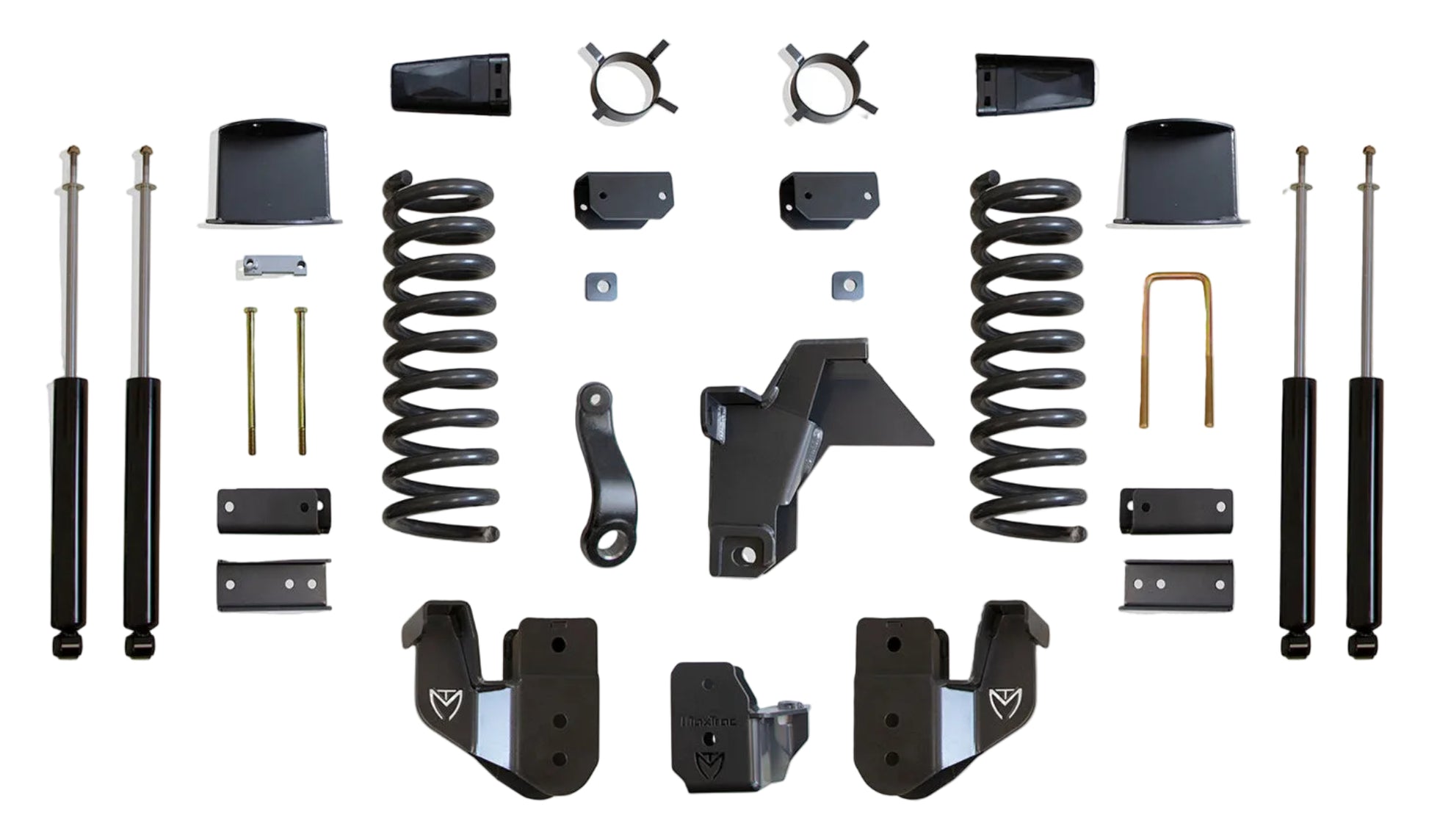

What's Included

Diesel front coil springs
Radius arm drop brackets
Track bar brackets
Pitman arm
Sway bar brackets
Bump stops
Rear air bag spacers
MaxTrac front shocks (2900SL-8, Qty. 2)
MaxTrac rear shocks (2800SL-8, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2019–2026 RAM 2500 4WD Diesel with Factory Rear Air Ride

Does Not Fit

2WD models
Power Wagon models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 40x13.50-inch tires on 8–9-inch wide wheels.
Minor fender trimming may be required depending on tire and wheel combination.
May fit gas-powered models, but this application has not been tested by MaxTrac.
Designed specifically for trucks equipped with factory rear air ride suspension.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Doing so may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947485A
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 8 Inches
Rear Lift: 5.5 Inches
Lift Height: 8 Inches
Engine Compatibility: Diesel
Kit Design: Radius Arm Drop Brackets
Shock Option: MaxTrac
Front Shocks: 2900SL-8 (Qty. 2)
Rear Shocks: 2800SL-8 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 220 lbs

Why Choose the MaxTrac K947485A?

Built specifically for 2019–2026 RAM 2500 diesel trucks with factory rear air ride, the MaxTrac K947485A combines premium suspension components, steering geometry correction, and matched MaxTrac shocks into one complete lift solution. It's the perfect choice for drivers seeking superior off-road capability, larger tire clearance, and reliable everyday performance.

Perfect For

2019–2026 RAM 2500 4WD Diesel
Factory rear air ride trucks
Off-road enthusiasts
Tow rigs
Daily drivers
Custom truck builds
