MaxTrac K947485 8" Lift Kit with MaxTrac Shocks for 2019-2026 Ram 2500 4WD Diesel

Maximum Lift for Your Modern Diesel Ram

Give your 2019–2026 Ram 2500 4WD Diesel an aggressive stance and serious off-road capability with the MaxTrac K947485 Lift Kit. This complete suspension system delivers an 8-inch front lift and 5.5-inch rear lift using heavy-duty diesel lift coils, radius arm drop brackets, dual track bar brackets, a pitman arm, sway bar brackets, bump stops, rear coil spacers, and four matched MaxTrac shocks. Designed to maintain proper suspension geometry while clearing up to 40-inch tires, this kit is built for demanding work, towing, and extreme off-road performance.

Key Features

Complete 8"/5.5" Suspension Lift System

A complete suspension package engineered to maximize ground clearance while maintaining excellent ride quality, handling, and steering performance.

Heavy-Duty Diesel Lift Coils

Specifically designed for diesel-powered Ram 2500 trucks to properly support the additional engine weight while delivering consistent lift height.

Radius Arm Drop Brackets

Maintains proper caster and front suspension geometry for improved steering response, alignment, and predictable handling after lifting.

Complete Steering & Suspension Correction

Includes dual track bar brackets, a pitman arm, sway bar brackets, and bump stops to preserve proper steering geometry and suspension travel.

Rear Coil Spacers

Heavy-duty rear coil spacers provide a balanced 5.5-inch rear lift while maintaining factory ride quality, towing stability, and payload capability.

MaxTrac Front & Rear Shocks Included

Includes (4) MaxTrac 2900SL-8 shocks for both the front and rear, delivering outstanding ride comfort, suspension control, and stability on and off the road.

Heavy-Duty Powder-Coated Steel Construction

Premium steel suspension components feature a durable grey powder-coated finish for excellent corrosion resistance and long-lasting durability.

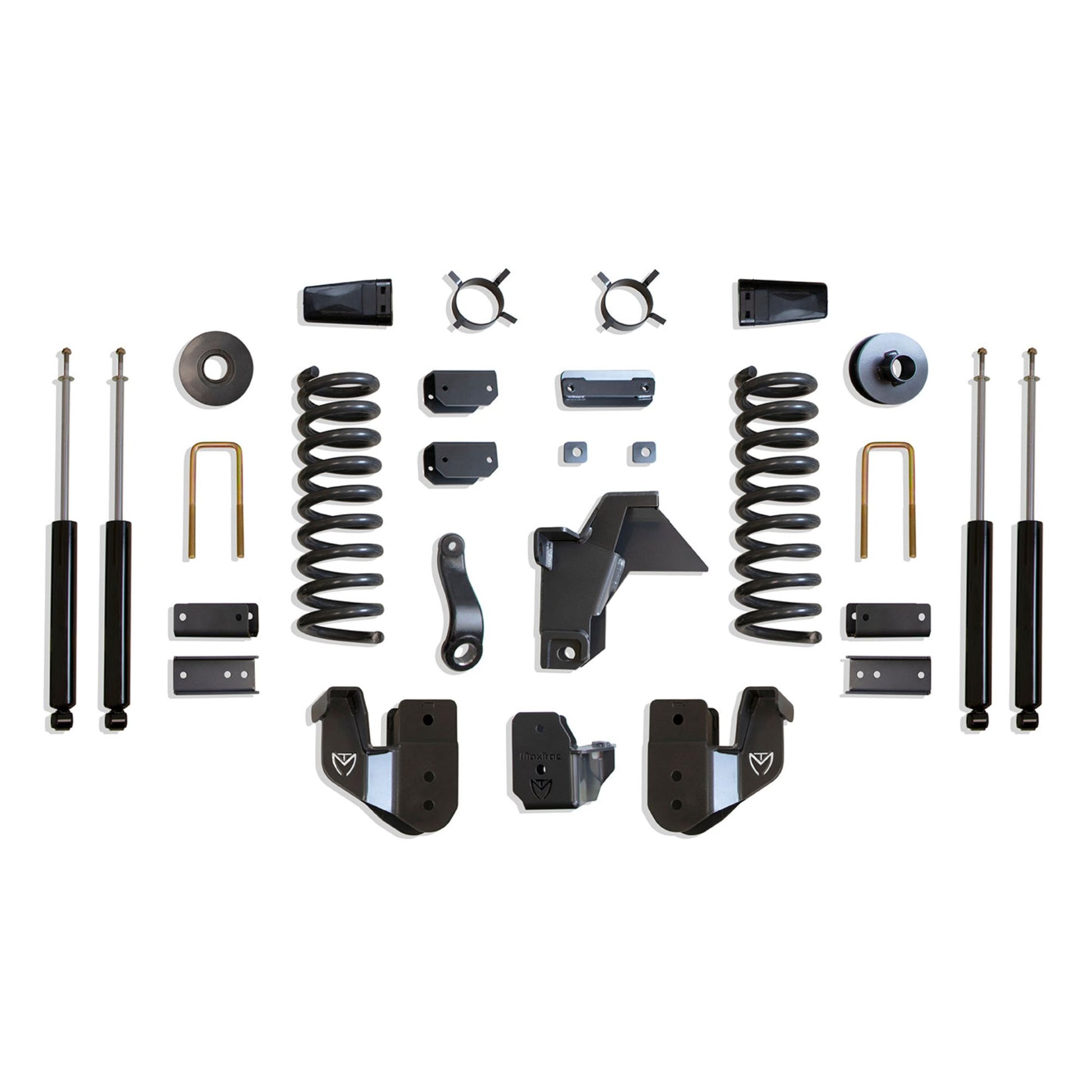

What's Included

Front diesel lift coils
Radius arm drop brackets
Track bar brackets
Pitman arm
Sway bar brackets
Bump stops
Rear coil spacers
(4) MaxTrac 2900SL-8 shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2019–2026 Ram 2500 4WD Diesel

Does Not Fit

2WD models
Power Wagon models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 40x13.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
May fit gas models but has not been tested on gas applications.
Does not fit Cab & Chassis (Fleet) models.
Does not fit Power Wagon models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947485
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 8 Inches
Rear Lift: 5.5 Inches
Lift Height Option: 8 Inches
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Front/Rear Shock Details: (4) MaxTrac 2900SL-8 Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 225 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947485?

The MaxTrac K947485 is engineered specifically for 2019–2026 Ram 2500 4WD Diesel trucks. Featuring diesel lift coils, radius arm drop brackets, steering correction components, rear coil spacers, and four matched MaxTrac shocks, this complete suspension system delivers dependable ride quality, confident handling, and clearance for up to 40-inch tires.

Perfect For

2019–2026 Ram 2500 4WD Diesel owners
40-inch tire upgrades
Heavy-duty work trucks
Towing applications
Off-road enthusiasts
Complete suspension lift installations
