MaxTrac K947463L 6" Lift Kit w/4-Link Fits 2019–2024 Ram 2500 4WD (Diesel)

Give your Ram 2500 a serious upgrade in strength, control, and ride quality with the MaxTrac K947463L 4-link lift kit. Designed for 2019–2024 4WD diesel models, this system delivers 6 inches of front lift and approximately 3 to 3.5 inches in the rear while improving suspension geometry and alignment precision.

Built around a heavy-duty forged aluminum 4-link system, this kit enhances durability and handling without sacrificing comfort.

Fitment
2019–2024 Ram 2500 4WD (Diesel)

Does NOT fit 2WD, Power Wagon, or Cab/Chassis models

Features
6-inch front lift and 3 to 3.5-inch rear lift for aggressive stance and added clearance
Forged aluminum 4-link arms with chromoly sleeves for strength and adjustable caster
Improves suspension geometry and alignment retention
Diesel-specific front coils designed for heavy-duty load support
Track bar and sway bar brackets maintain proper suspension positioning
Includes pitman arm and bump stops for correct steering and travel
Clears up to 38 by 13.50 inch tires depending on setup
Includes MaxTrac shocks for smooth, controlled ride quality
Heavy-duty steel components with grey powder-coated finish for corrosion resistance
Bolt-on installation with no major modifications required

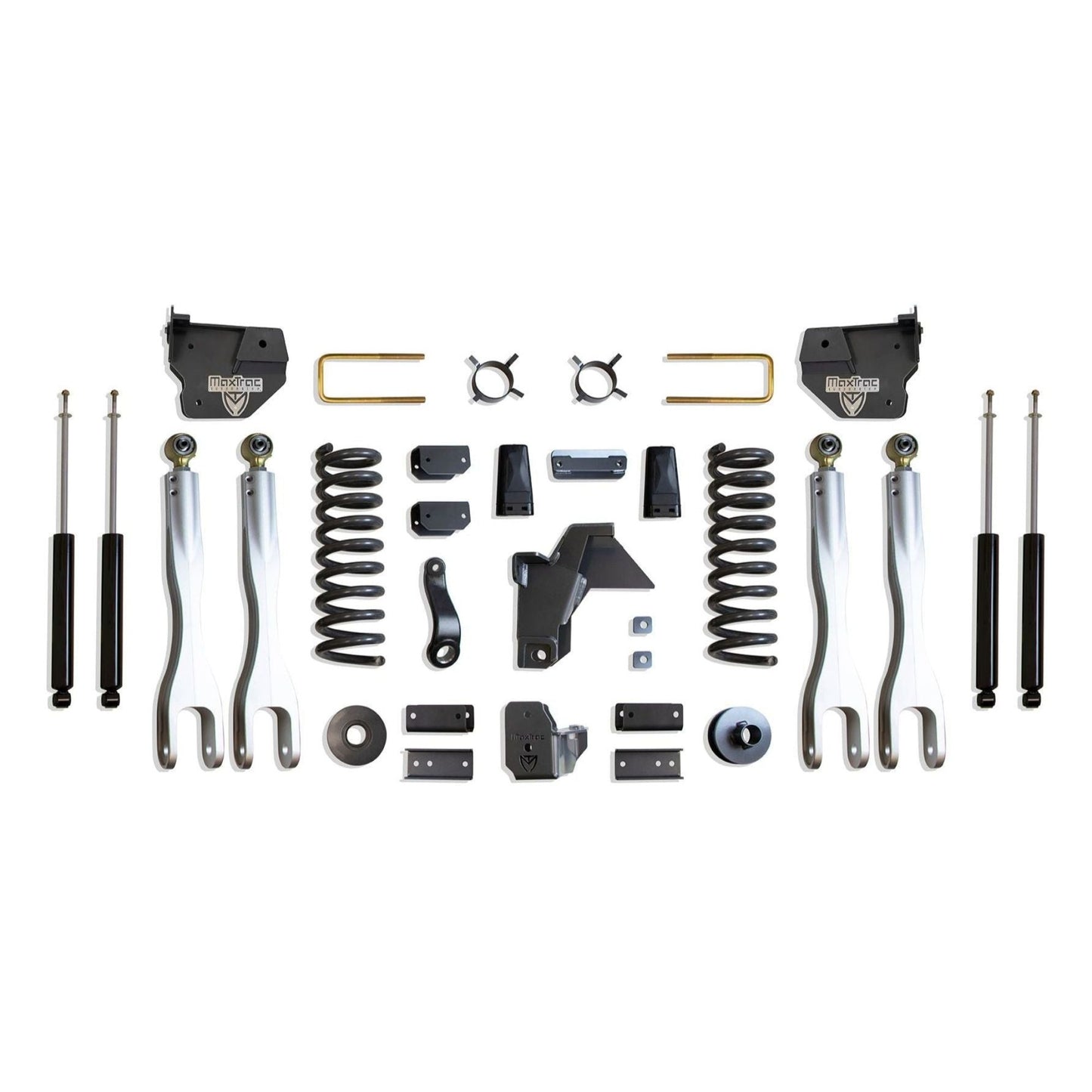

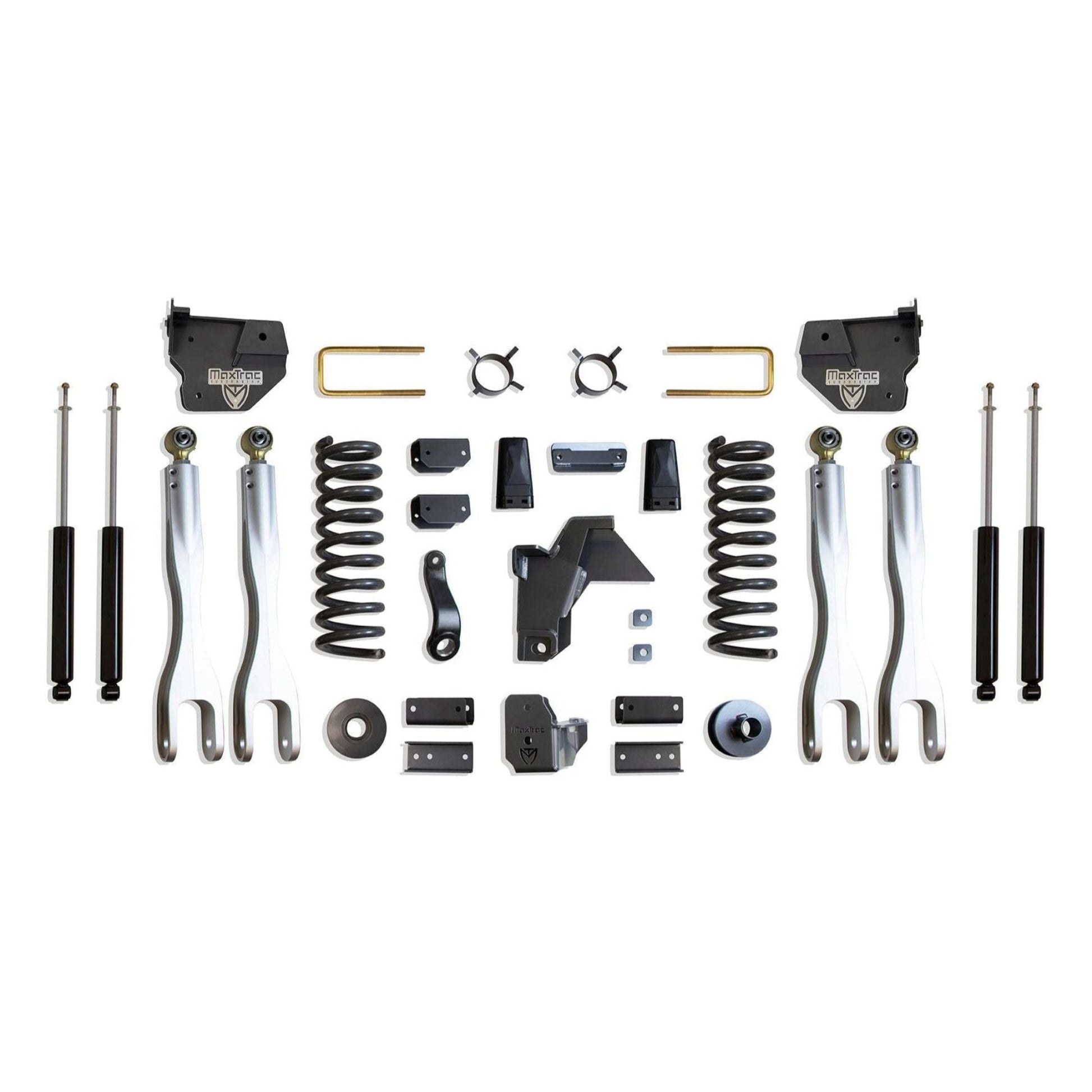

What’s Included
Diesel front lift coils part number 752860
Forged aluminum 4-link arms part numbers 947200-3 and 947200-4
Track bar and sway bar brackets part number 947400-1
Rear coil spacers 3.5 inch
Pitman arm
Bump stops
Hardware kit
Two MaxTrac front shocks part number 2800SL-8
Two MaxTrac rear shocks part number 2800SL-8

Important Notes
Requires 18-inch or larger wheels with 5.5-inch backspacing or less
Maximum tire size may require trimming depending on setup
Not compatible with 2WD, Power Wagon, or Cab/Chassis fleet trucks
Not intended for gas models (will result in additional front lift if installed)
Not recommended for wheels wider than 9 inches or with less than 4.5-inch backspacing
Professional installation and alignment are recommended

Specifications
Lift Height 6 inches front 3 to 3.5 inches rear
Material steel and forged aluminum
Finish grey powder-coated
Part Number K947463L
