MaxTrac K947463 6" Lift Kit with MaxTrac Shocks for 2019-2026 Ram 2500 4WD Diesel

Built for Bigger Tires and Heavy-Duty Capability

Take your 2019–2026 Ram 2500 4WD Diesel to the next level with the MaxTrac K947463 Lift Kit. This complete suspension system provides a 6-inch front lift and 3.5-inch rear lift using heavy-duty diesel lift coils, radius arm drop brackets, dual track bar brackets, a pitman arm, sway bar brackets, bump stops, rear coil spacers, and four matched MaxTrac shocks. Engineered to maintain proper suspension geometry while clearing up to 38-inch tires, this kit is ideal for towing, work trucks, and off-road adventures.

Key Features

Complete 6"/3.5" Suspension Lift System

A complete suspension package designed to improve ground clearance while maintaining ride quality, steering precision, and suspension performance.

Heavy-Duty Diesel Lift Coils

Designed specifically for diesel-powered Ram 2500 models to properly support the additional engine weight while delivering consistent lift height.

Radius Arm Drop Brackets

Corrects caster and front suspension geometry to maintain proper alignment, steering response, and handling after lifting.

Complete Steering & Suspension Correction

Includes dual track bar brackets, a pitman arm, sway bar brackets, and bump stops to maintain proper steering geometry and suspension travel.

Rear Coil Spacers

Heavy-duty rear coil spacers provide a balanced 3.5-inch rear lift while preserving factory ride quality and load-carrying capability.

MaxTrac Front & Rear Shocks Included

Includes (4) MaxTrac 2800SL-8 shocks for both the front and rear, delivering excellent ride comfort, handling, and suspension control.

Heavy-Duty Powder-Coated Steel Construction

Premium steel components are finished in a durable grey powder coat to resist corrosion and provide years of dependable performance.

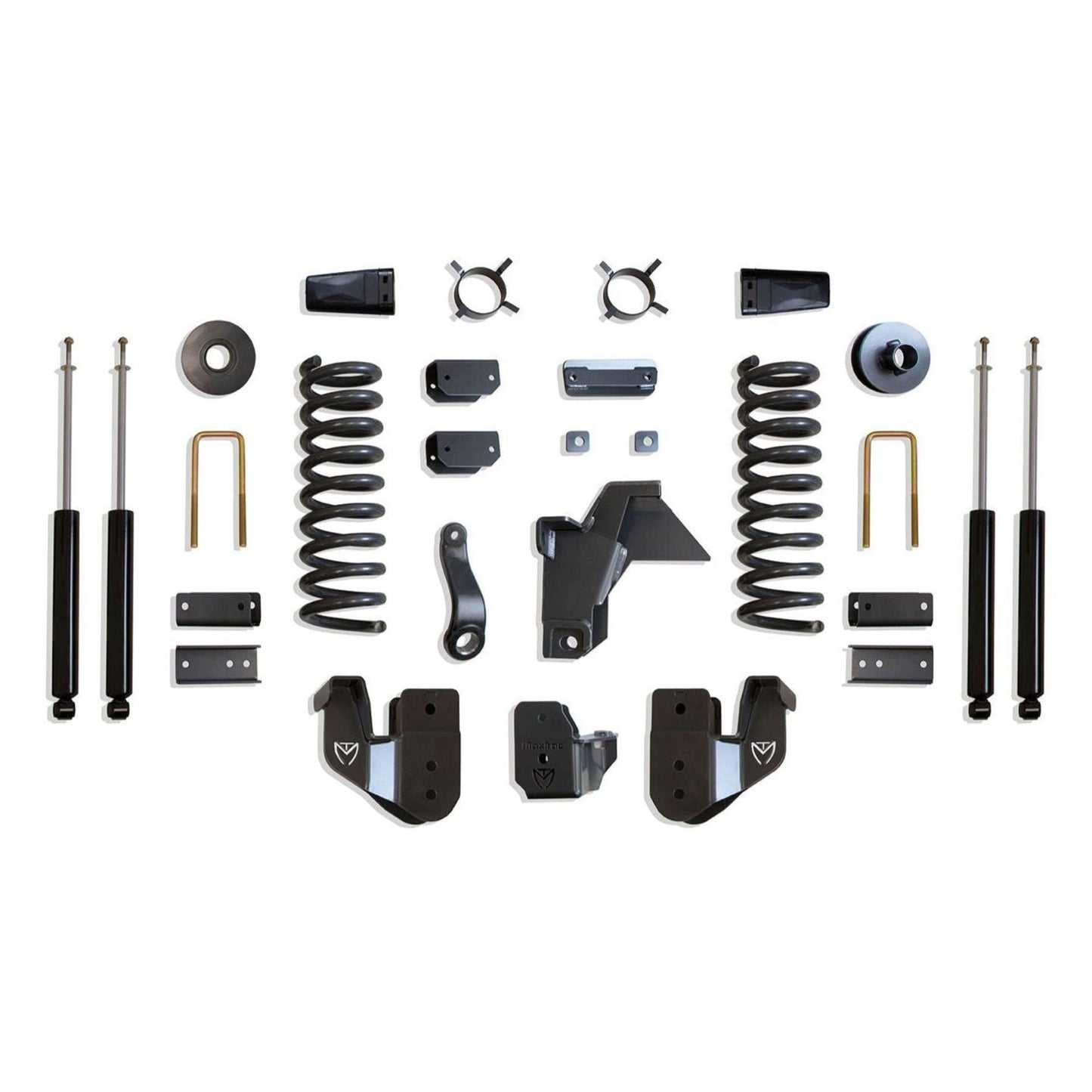

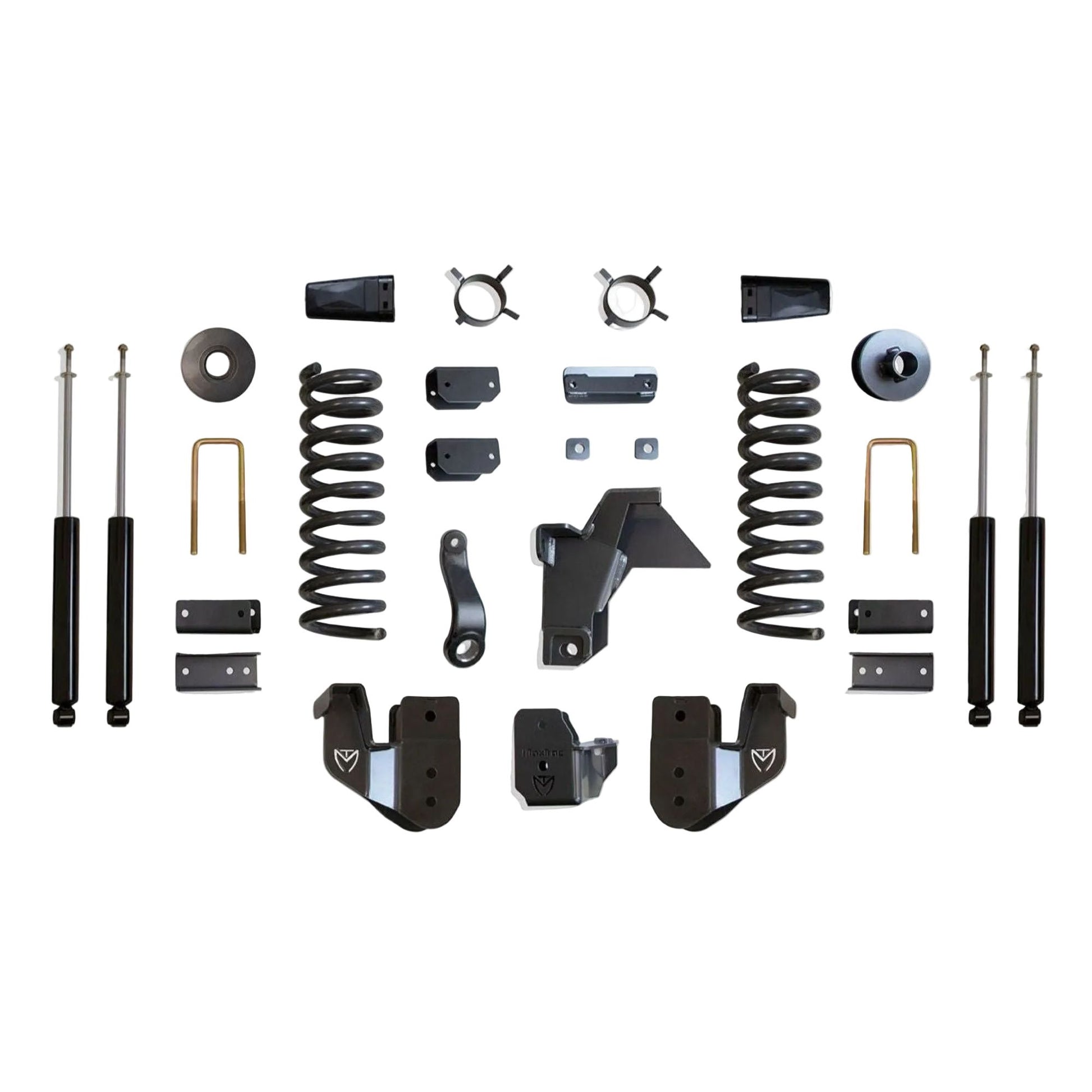

What's Included

Front diesel lift coils
Radius arm drop brackets
Track bar brackets
Pitman arm
Sway bar brackets
Bump stops
Rear coil spacers
(4) MaxTrac 2800SL-8 shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2019–2026 Ram 2500 4WD Diesel

Does Not Fit

2WD models
Power Wagon models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 38x13.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
May fit gas models but has not been tested on gas applications.
Does not fit Cab & Chassis (Fleet) models.
Does not fit Power Wagon models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947463
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6 Inches
Rear Lift: 3.5 Inches
Lift Height Option: 6 Inches
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Front/Rear Shock Details: (4) MaxTrac 2800SL-8 Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 215 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947463?

The MaxTrac K947463 is engineered specifically for 2019–2026 Ram 2500 4WD Diesel trucks. Featuring diesel lift coils, radius arm drop brackets, steering correction components, rear coil spacers, and four matched MaxTrac shocks, this complete suspension system provides dependable ride quality, excellent handling, and clearance for up to 38-inch tires.

Perfect For

2019–2026 Ram 2500 4WD Diesel owners
38-inch tire upgrades
Heavy-duty work trucks
Towing applications
Off-road enthusiasts
Complete suspension lift installations
