MaxTrac K947441L 4"/1" 4-Link Lift Kit Fits 2019–2024 Ram 2500 4WD (Diesel)

Give your Ram 2500 a serious upgrade in strength and suspension performance with the MaxTrac K947441L 4-link lift kit. Designed for 2019–2024 4WD diesel models, this system delivers 4 inches of front lift and approximately 1 to 1.5 inches in the rear while improving alignment, stability, and overall ride control.

Built around a heavy-duty forged aluminum 4-link system, this kit enhances suspension geometry and durability without sacrificing ride comfort.

Fitment
2019–2024 Ram 2500 4WD (Diesel)

Does NOT fit 2WD, Power Wagon, or Cab/Chassis models

Features
4-inch front lift and 1 to 1.5-inch rear lift for leveled, aggressive stance
Forged aluminum 4-link arms with chromoly sleeves for superior strength
Improved caster adjustment for better alignment and handling
Diesel-specific front coils designed for heavy-duty load support
Track bar bracket and pitman arm improve steering geometry and control
Includes sway bar brackets and bump stops for proper suspension travel
Clears up to 37 by 12.50 inch tires depending on setup
Includes MaxTrac shocks for smooth, stable ride quality
Durable powder-coated steel construction resists corrosion
Bolt-on installation with no major modifications required

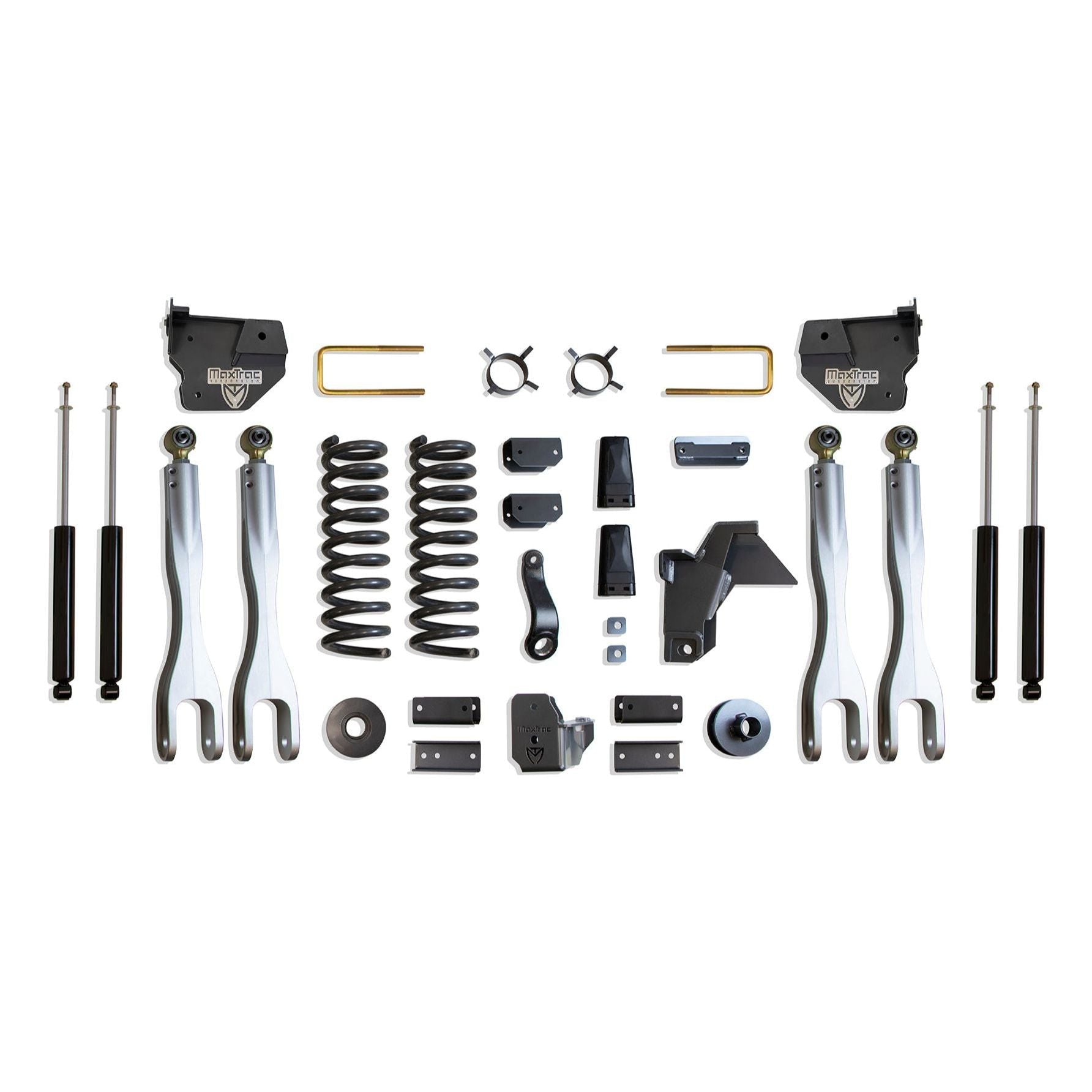

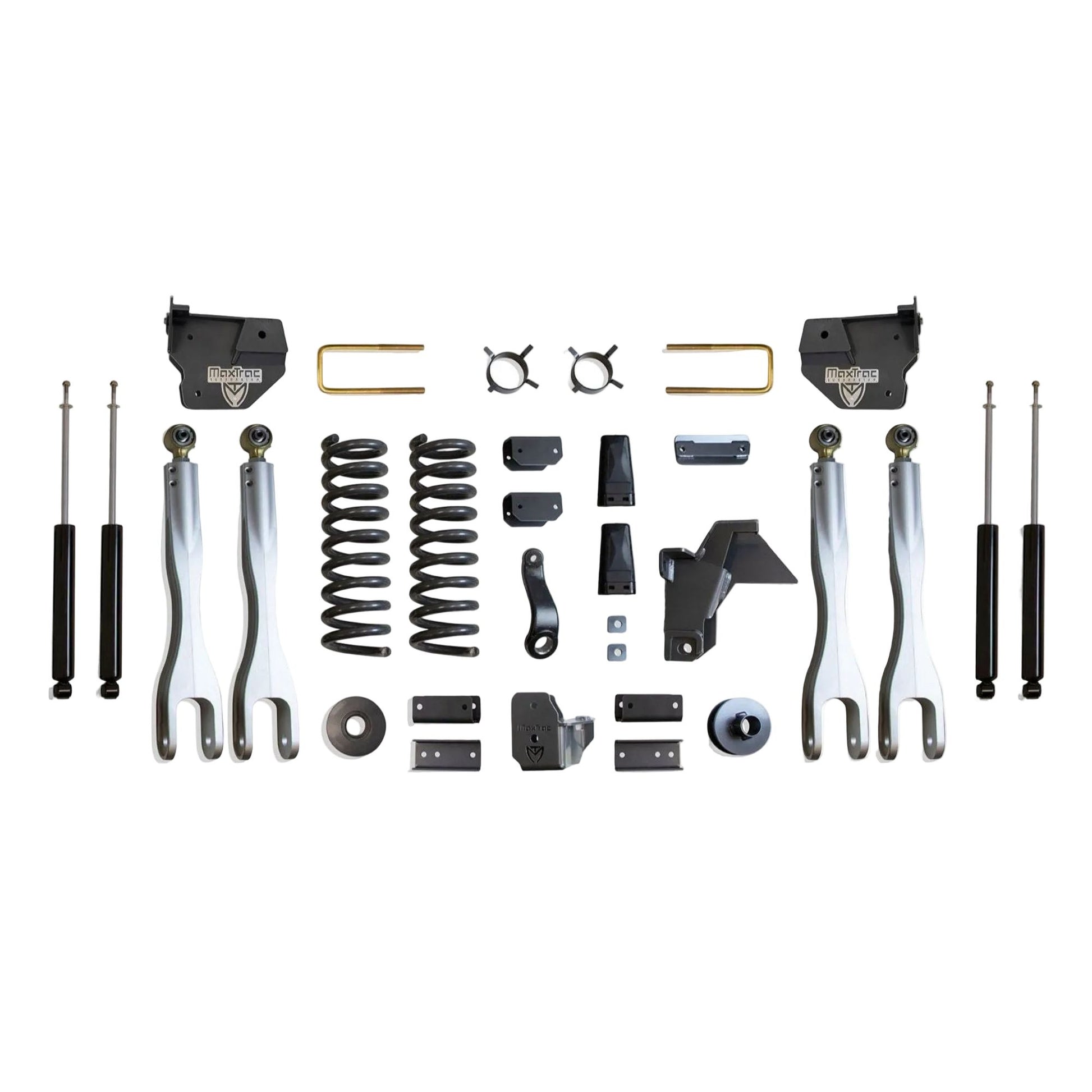

What’s Included
Diesel front lift coils part number 752840
Forged aluminum 4-link arms part numbers 947200-3 and 947200-4
Radius arm and track bar brackets part number 947400-1
Pitman arm
Sway bar brackets
Bump stops
Rear coil spacers
Two MaxTrac front shocks part number 2650SL-8
Two MaxTrac rear shocks part number 2650SL-8

Important Notes
Requires 18-inch or larger wheels with 5.5-inch backspacing or less
Maximum tire size may require trimming depending on setup
Not compatible with 2WD, Power Wagon, or Cab/Chassis fleet trucks
Not intended for gas models (will result in additional front lift if installed)
Not recommended for wheels wider than 9 inches or with less than 4.5-inch backspacing
Professional installation and alignment are recommended

Specifications
Lift Height 4 inches front 1 to 1.5 inches rear
Material steel and forged aluminum
Finish grey powder-coated
Part Number K947441L
