MaxTrac K947363 6" Lift Kit with MaxTrac Shocks for 2013-2018 Ram 3500 4WD Diesel

Serious Lift for Heavy-Duty Diesel Power

Raise your 2013–2018 Ram 3500 4WD Diesel with the MaxTrac K947363 Lift Kit. This complete suspension system delivers a 6-inch front lift and 3.5-inch rear lift using heavy-duty diesel lift coils, radius arm drop brackets, a track bar bracket, pitman arm, sway bar brackets, bump stops, rear lift blocks, replacement U-bolts, and matched MaxTrac front and rear shocks. Engineered to maintain proper suspension geometry while clearing up to 38-inch tires, this kit is built for work, towing, and serious off-road performance.

Key Features

Complete 6"/3.5" Suspension Lift System

A complete suspension package designed to increase ground clearance while maintaining excellent ride quality, steering control, and stability.

Heavy-Duty Diesel Lift Coils

Specifically engineered for diesel-powered Ram 3500 trucks to support the additional engine weight while providing consistent lift height.

Radius Arm Drop Brackets

Maintains proper caster and front suspension geometry for improved steering response, alignment, and handling after lifting.

Complete Steering & Suspension Correction

Includes a track bar bracket, pitman arm, sway bar brackets, and bump stops to preserve proper steering geometry and suspension travel.

Rear Lift Blocks & U-Bolts

Heavy-duty rear lift blocks and replacement U-bolts provide a balanced 3.5-inch rear lift while maintaining load-carrying capability.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 2800SL-8 front shocks and (2) MaxTrac 3200LL-4 rear shocks for superior ride comfort, stability, and suspension performance.

Heavy-Duty Powder-Coated Steel Construction

Premium steel components feature a durable grey powder-coated finish for long-lasting corrosion resistance and dependable durability.

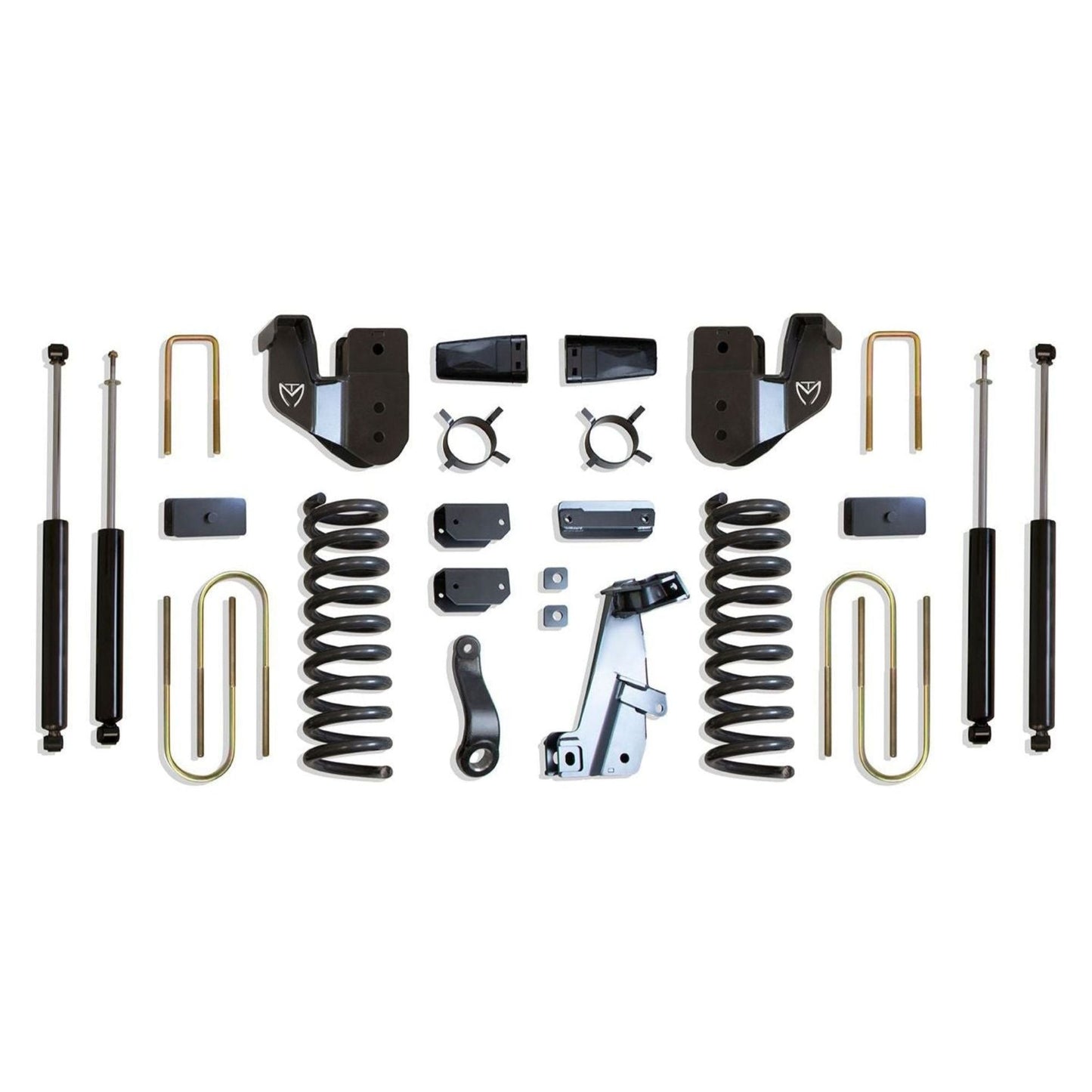

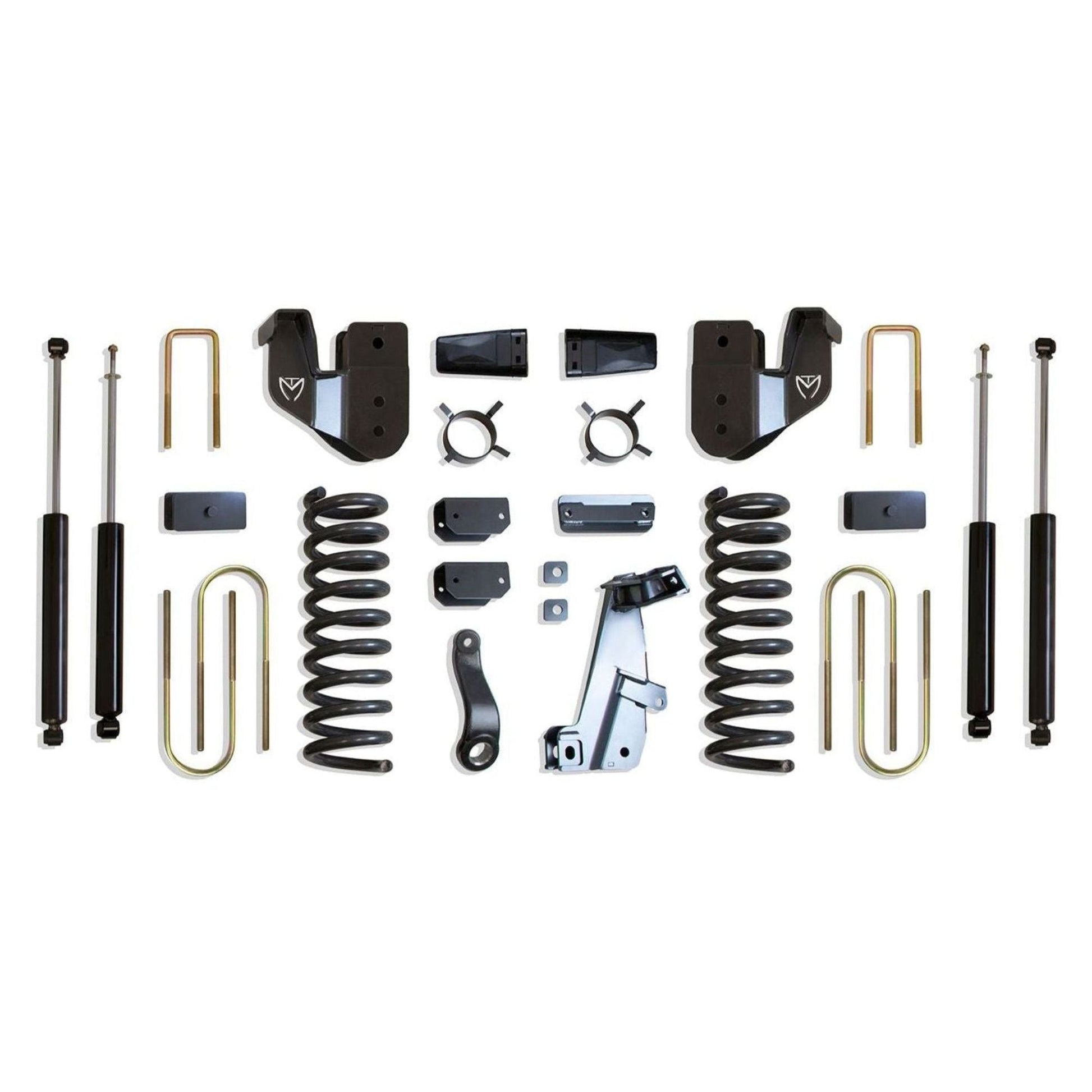

What's Included

Front diesel lift coils
Radius arm drop brackets
Track bar bracket
Pitman arm
Sway bar brackets
Bump stops
Rear lift blocks
Rear U-bolts
(2) MaxTrac 2800SL-8 front shocks
(2) MaxTrac 3200LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2013–2018 Ram 3500 4WD Diesel
2013–2018 Ram 3500 4WD Diesel Dually

Does Not Fit

2WD models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 38x13.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
Not intended for gas models. If installed on a gas model, expect approximately 1.5 to 2 inches of additional front lift.
Also fits dually models.
Does not fit Cab & Chassis (Fleet) models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947363
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6 Inches
Rear Lift: 3.5 Inches
Lift Height Option: 6 Inches
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Front Shock Details: (2) MaxTrac 2800SL-8 Front Shocks
Rear Shock Details: (2) MaxTrac 3200LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 215 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947363?

The MaxTrac K947363 is engineered specifically for 2013–2018 Ram 3500 4WD Diesel trucks. Featuring diesel lift coils, radius arm drop brackets, steering correction components, rear lift blocks, U-bolts, and matched MaxTrac shocks, this complete suspension system delivers dependable handling, improved ride quality, and clearance for up to 38-inch tires.

Perfect For

2013–2018 Ram 3500 4WD Diesel owners
Dually trucks
38-inch tire upgrades
Heavy-duty work trucks
Off-road enthusiasts
Complete suspension lift installations
