MaxTrac K947341L 4" Lift Kit with Forged Aluminum 4-Links & MaxTrac Shocks for 2013-2018 Ram 3500 4WD Diesel

Premium 4-Link Suspension for Heavy-Duty Diesel Performance

Upgrade your 2013–2018 Ram 3500 4WD Diesel with the MaxTrac K947341L Lift Kit. This premium suspension system delivers a 4-inch front lift and 1.5-inch rear lift using heavy-duty diesel lift coils, forged aluminum 4-links, a track bar bracket, pitman arm, sway bar brackets, bump stops, rear lift blocks, replacement U-bolts, and matched MaxTrac front and rear shocks. Engineered for maximum strength and proper suspension geometry, this kit provides outstanding ride quality while clearing up to 37-inch tires.

Key Features

Complete 4"/1.5" Suspension Lift System

A premium suspension package designed to improve ground clearance, ride quality, and handling while maintaining proper suspension geometry.

Heavy-Duty Diesel Lift Coils

Engineered specifically for diesel-powered Ram 3500 trucks to support the additional engine weight while delivering consistent lift height.

Forged Aluminum 4-Link System

Replaces the factory radius arms with high-strength forged aluminum 4-links for improved suspension articulation, steering precision, and long-lasting durability.

Complete Steering & Suspension Correction

Includes a track bar bracket, pitman arm, sway bar brackets, and bump stops to maintain proper steering geometry and suspension performance after lifting.

Rear Lift Blocks & U-Bolts

Heavy-duty rear lift blocks and replacement U-bolts provide a balanced rear lift while maintaining load capacity and stability.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 2650SL-8 front shocks and (2) MaxTrac 2900LL-4 rear shocks for exceptional ride comfort, stability, and suspension control.

Heavy-Duty Powder-Coated Steel Construction

Premium steel components feature a durable grey powder-coated finish for excellent corrosion resistance and years of dependable performance.

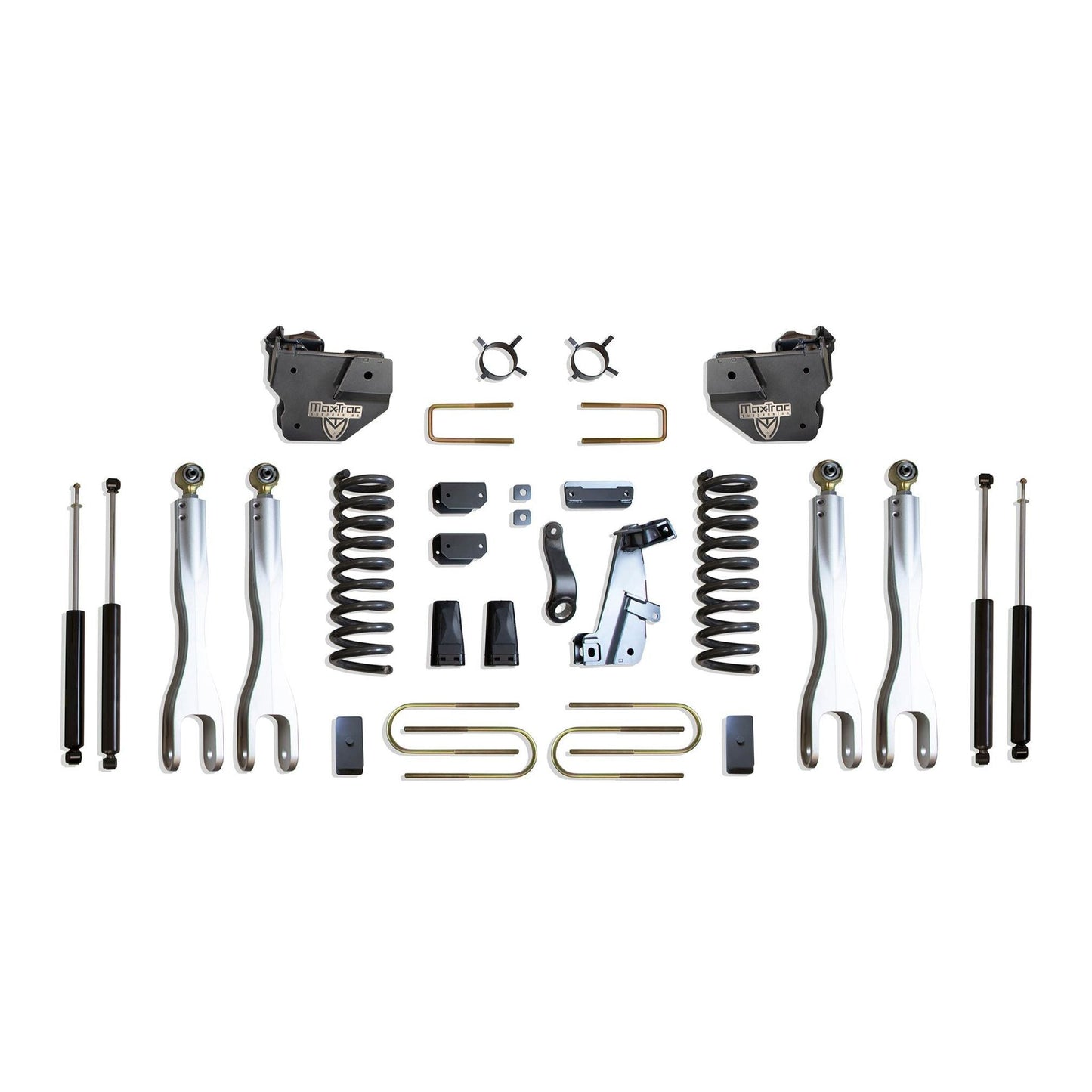

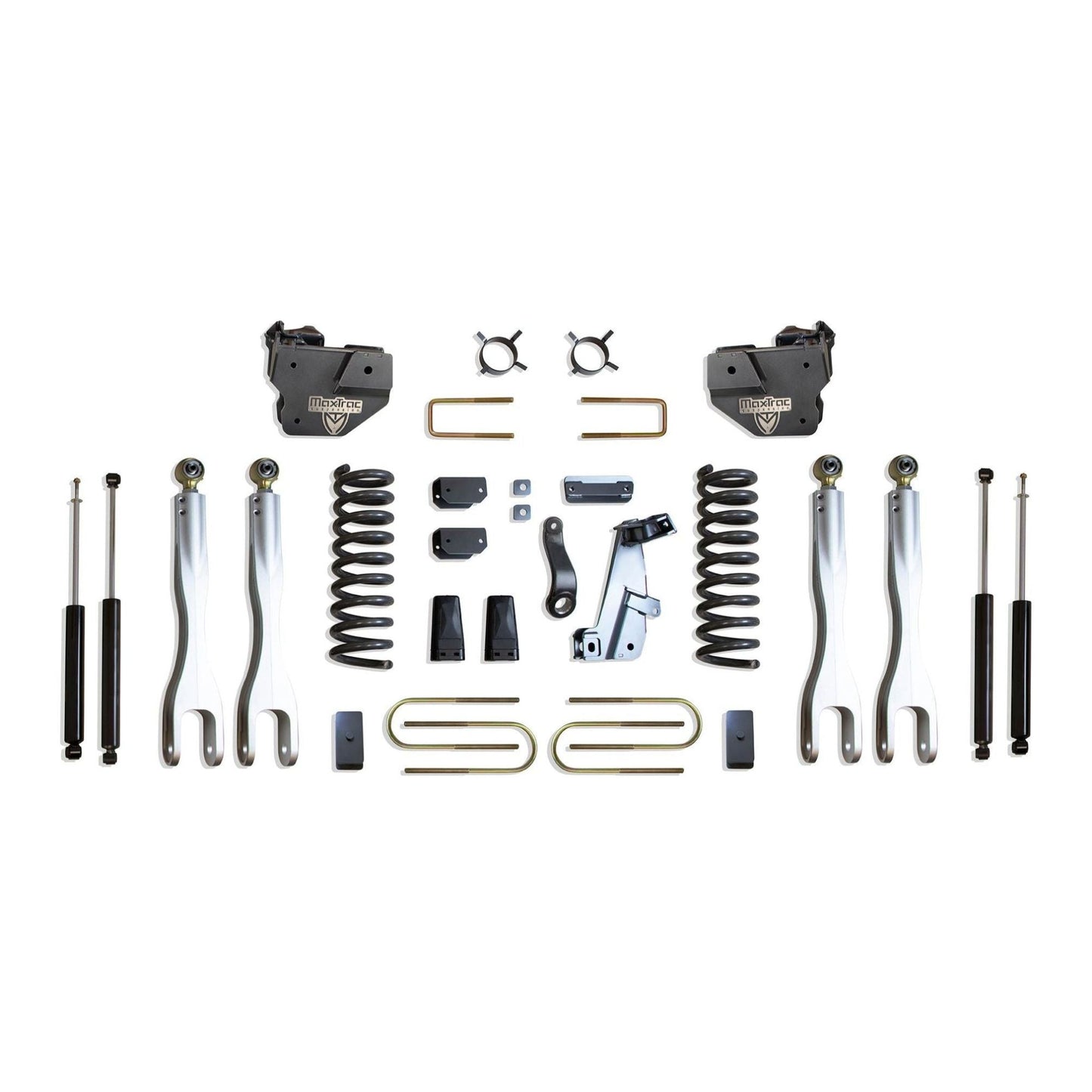

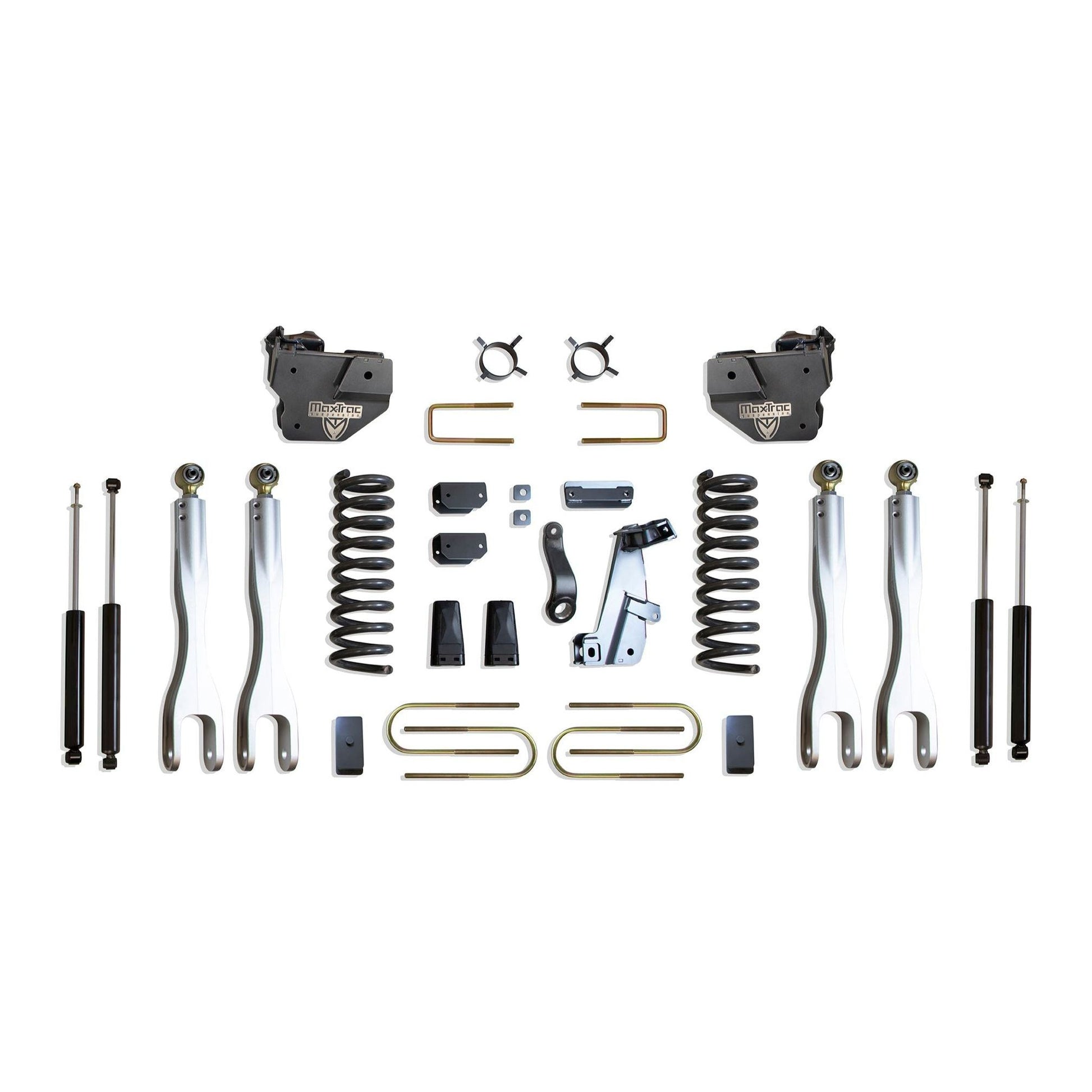

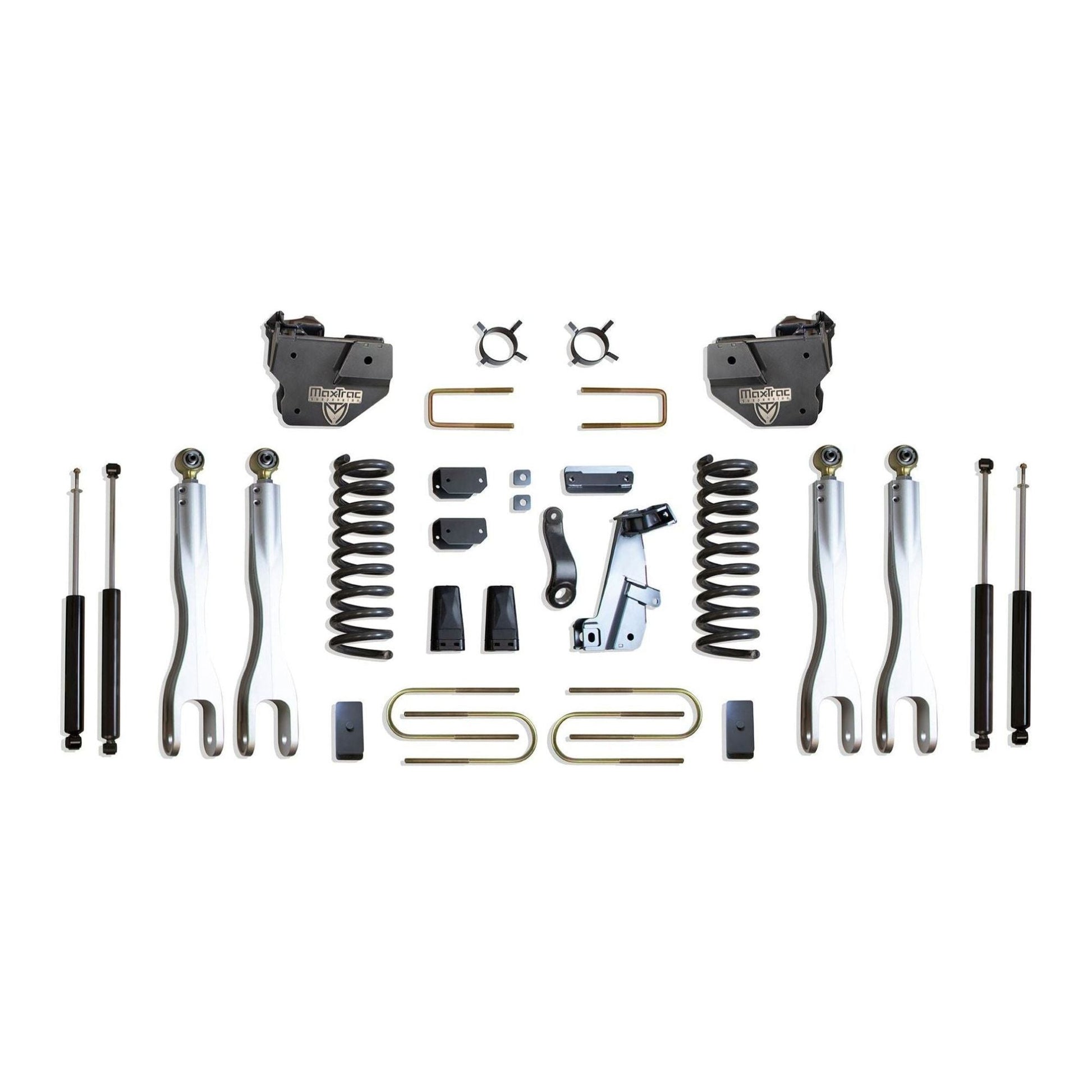

What's Included

Front diesel lift coils
Forged aluminum 4-links
Track bar bracket
Pitman arm
Sway bar brackets
Bump stops
Rear lift blocks
Rear U-bolts
(2) MaxTrac 2650SL-8 front shocks
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2013–2018 Ram 3500 4WD Diesel
2013–2018 Ram 3500 4WD Diesel Dually

Does Not Fit

2WD models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 37x12.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
Not intended for gas models. If installed on a gas model, expect approximately 1.5 to 2 inches of additional front lift.
Also fits dually models.
Does not fit Cab & Chassis (Fleet) models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947341L
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 4 Inches
Rear Lift: 1.5 Inches
Lift Height Option: 4 Inches
Shock Option: MaxTrac
Kit Design: Forged Aluminum 4-Links
Front Shock Details: (2) MaxTrac 2650SL-8 Front Shocks
Rear Shock Details: (2) MaxTrac 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 325 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947341L?

The MaxTrac K947341L is the premium 4-link version of MaxTrac's 4-inch Ram 3500 lift system. Featuring forged aluminum 4-links, diesel lift coils, steering correction components, rear lift blocks, U-bolts, and matched MaxTrac shocks, this complete suspension package delivers superior strength, improved articulation, and clearance for up to 37-inch tires.

Perfect For

2013–2018 Ram 3500 4WD Diesel owners
Dually trucks
37-inch tire upgrades
Heavy-duty work trucks
Off-road enthusiasts
Premium suspension builds
