MaxTrac K947341 4" Lift Kit with MaxTrac Shocks for 2013-2018 Ram 3500 4WD Diesel

Built for Heavy-Duty Diesel Performance

Upgrade your 2013–2018 Ram 3500 4WD Diesel with the MaxTrac K947341 Lift Kit. This complete suspension system delivers a 4-inch front lift and 1.5-inch rear lift using heavy-duty diesel lift coils, radius arm drop brackets, a track bar bracket, pitman arm, sway bar brackets, bump stops, rear lift blocks, replacement U-bolts, and matched MaxTrac front and rear shocks. Designed to maintain proper steering geometry while providing clearance for up to 37-inch tires, this kit is ideal for work trucks, tow rigs, and off-road builds.

Key Features

Complete 4"/1.5" Suspension Lift System

A complete suspension package engineered to improve ground clearance, ride quality, and overall vehicle stance without sacrificing drivability.

Heavy-Duty Diesel Lift Coils

Specifically designed for diesel-powered Ram 3500 models to properly support the additional engine weight while maintaining consistent ride height.

Radius Arm Drop Brackets

Corrects suspension geometry by maintaining proper caster angles for improved steering response and alignment.

Complete Steering & Suspension Correction

Includes a track bar bracket, pitman arm, sway bar brackets, and bump stops to help maintain factory steering feel and suspension travel after lifting.

Rear Lift Blocks & U-Bolts

Heavy-duty rear lift blocks and replacement U-bolts provide a balanced rear lift while maintaining load-carrying capability.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 2650SL-8 front shocks and (2) MaxTrac 2900LL-4 rear shocks for excellent ride comfort, stability, and suspension control.

Heavy-Duty Powder-Coated Steel Construction

Manufactured from premium steel and finished in a durable grey powder coat for outstanding corrosion resistance and long-lasting durability.

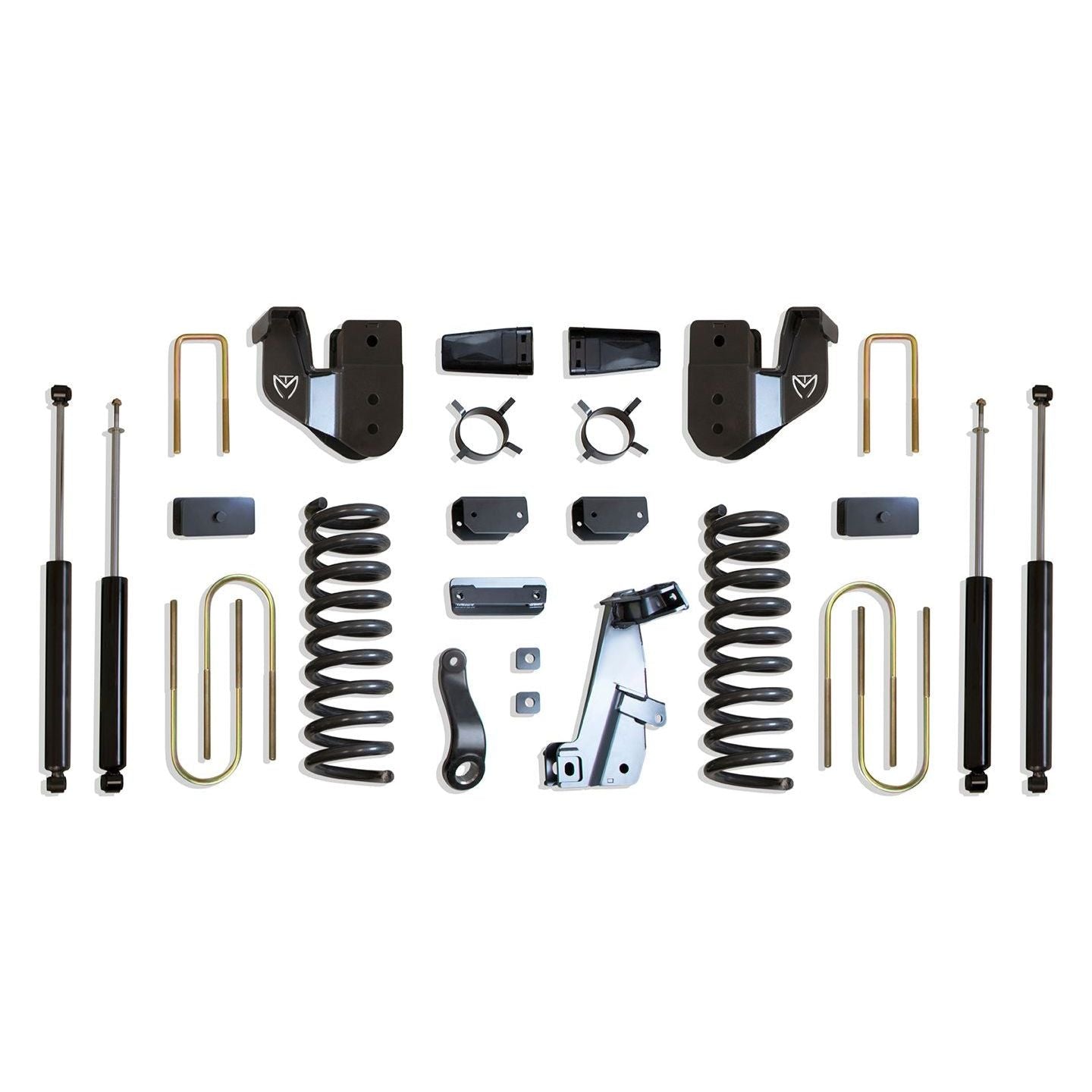

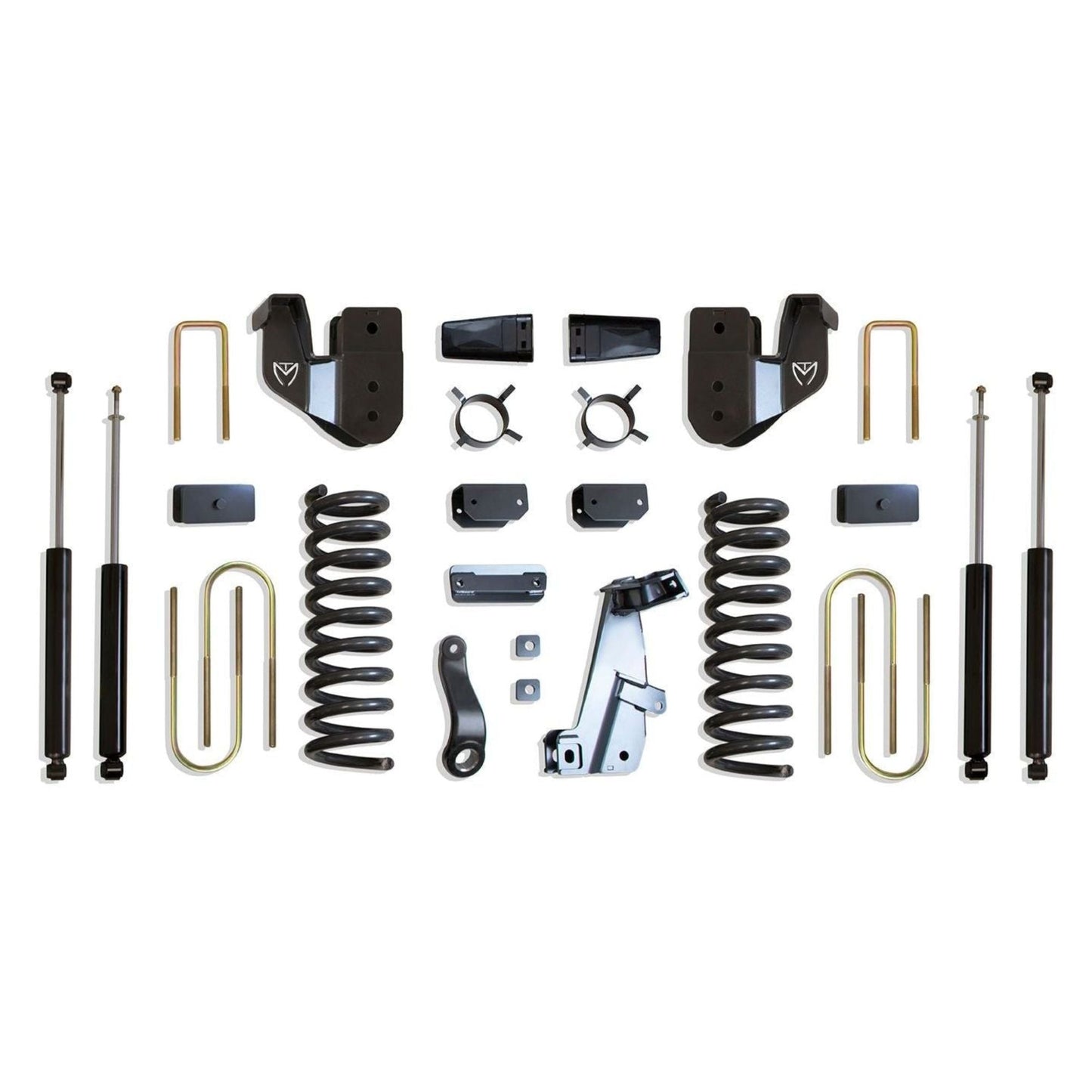

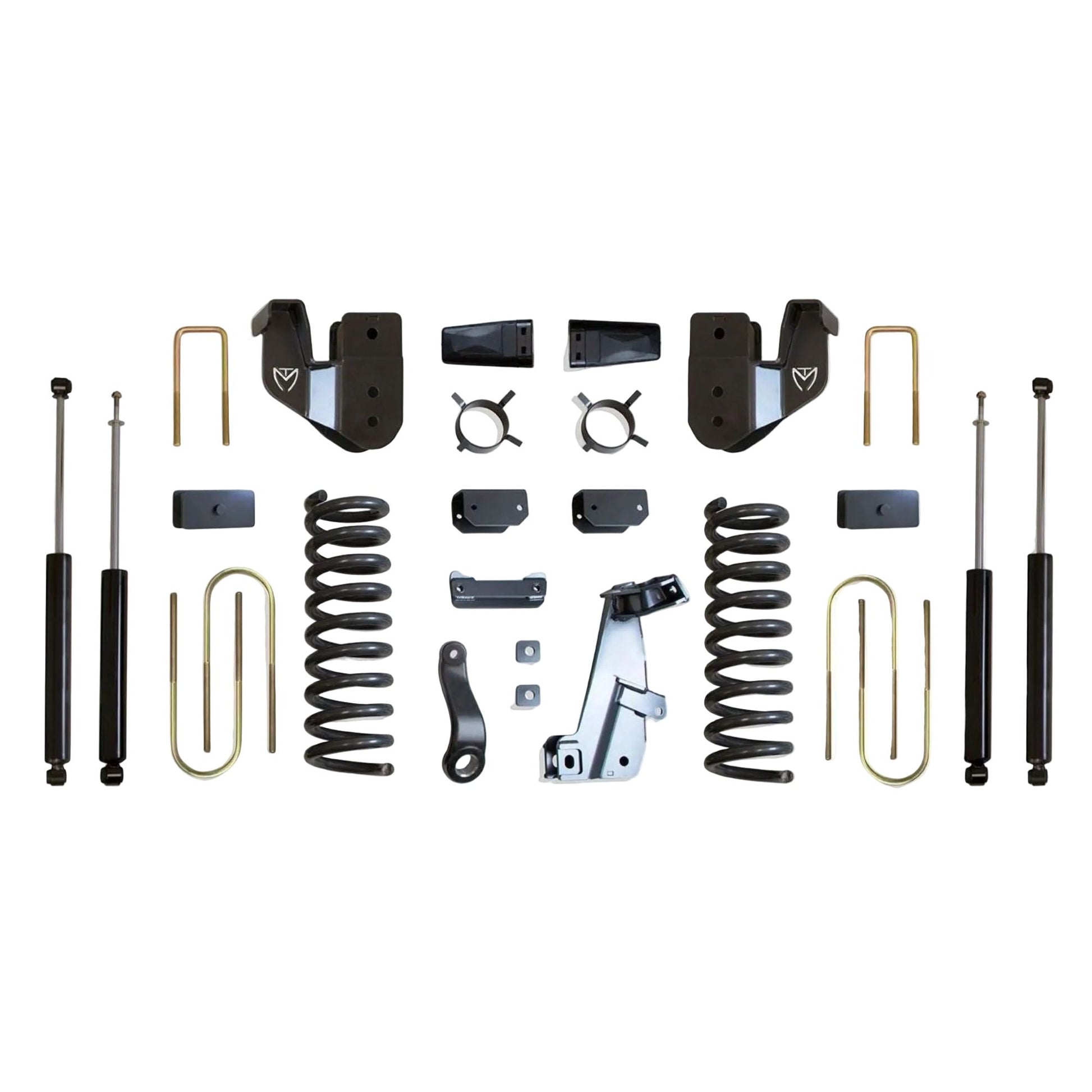

What's Included

Front diesel lift coils
Radius arm drop brackets
Track bar bracket
Pitman arm
Sway bar brackets
Bump stops
Rear lift blocks
Rear U-bolts
(2) MaxTrac 2650SL-8 front shocks
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2013–2018 Ram 3500 4WD Diesel
2013–2018 Ram 3500 4WD Diesel Dually

Does Not Fit

2WD models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 37x12.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
Not intended for gas models. If installed on a gas model, expect approximately 1.5 to 2 inches of additional front lift.
Also fits dually models.
Does not fit Cab & Chassis (Fleet) models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947341
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 4 Inches
Rear Lift: 1.5 Inches
Lift Height Option: 4 Inches
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Front Shock Details: (2) MaxTrac 2650SL-8 Front Shocks
Rear Shock Details: (2) MaxTrac 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 215 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947341?

The MaxTrac K947341 is engineered specifically for 2013–2018 Ram 3500 4WD Diesel trucks. Featuring diesel lift coils, radius arm drop brackets, steering correction components, rear lift blocks, U-bolts, and matched MaxTrac shocks, this complete suspension system delivers dependable handling, improved ride quality, and clearance for up to 37-inch tires.

Perfect For

2013–2018 Ram 3500 4WD Diesel owners
Dually trucks
37-inch tire upgrades
Heavy-duty work trucks
Off-road enthusiasts
Complete suspension lift installations
