MaxTrac K947325 2.5" Lift Kit for 2013-2026 Ram 3500 4WD Diesel

Level Your Ram 3500 with a Complete 2.5-Inch Suspension Lift

Upgrade your 2013–2026 Ram 3500 4WD diesel with the MaxTrac K947325 Lift Kit. This complete suspension system delivers 2.5 inches of front lift using diesel-specific front coils, radius arm drop brackets, an adjustable track bar, and matched MaxTrac front and rear shocks. Designed to maintain proper suspension geometry and ride quality, this kit provides clearance for up to 33-inch tires while giving your truck a leveled, aggressive appearance.

Key Features

Complete 2.5-Inch Lift System

Provides a true 2.5-inch front lift for increased ground clearance and a leveled stance.

Diesel-Specific Front Coil Springs

Heavy-duty front lift coils are engineered specifically for the weight of diesel-powered Ram 3500 trucks.

Radius Arm Drop Brackets

Maintains proper suspension geometry for improved ride quality and steering performance.

Adjustable Track Bar

Keeps the front axle centered after lifting for proper alignment and handling.

MaxTrac Front & Rear Shocks

Includes matched MaxTrac shocks designed to provide excellent ride quality and suspension control.

Clears Up to 33-Inch Tires

Designed to fit 33x12.50-inch tires on 8- to 9-inch-wide wheels with the proper wheel specifications.

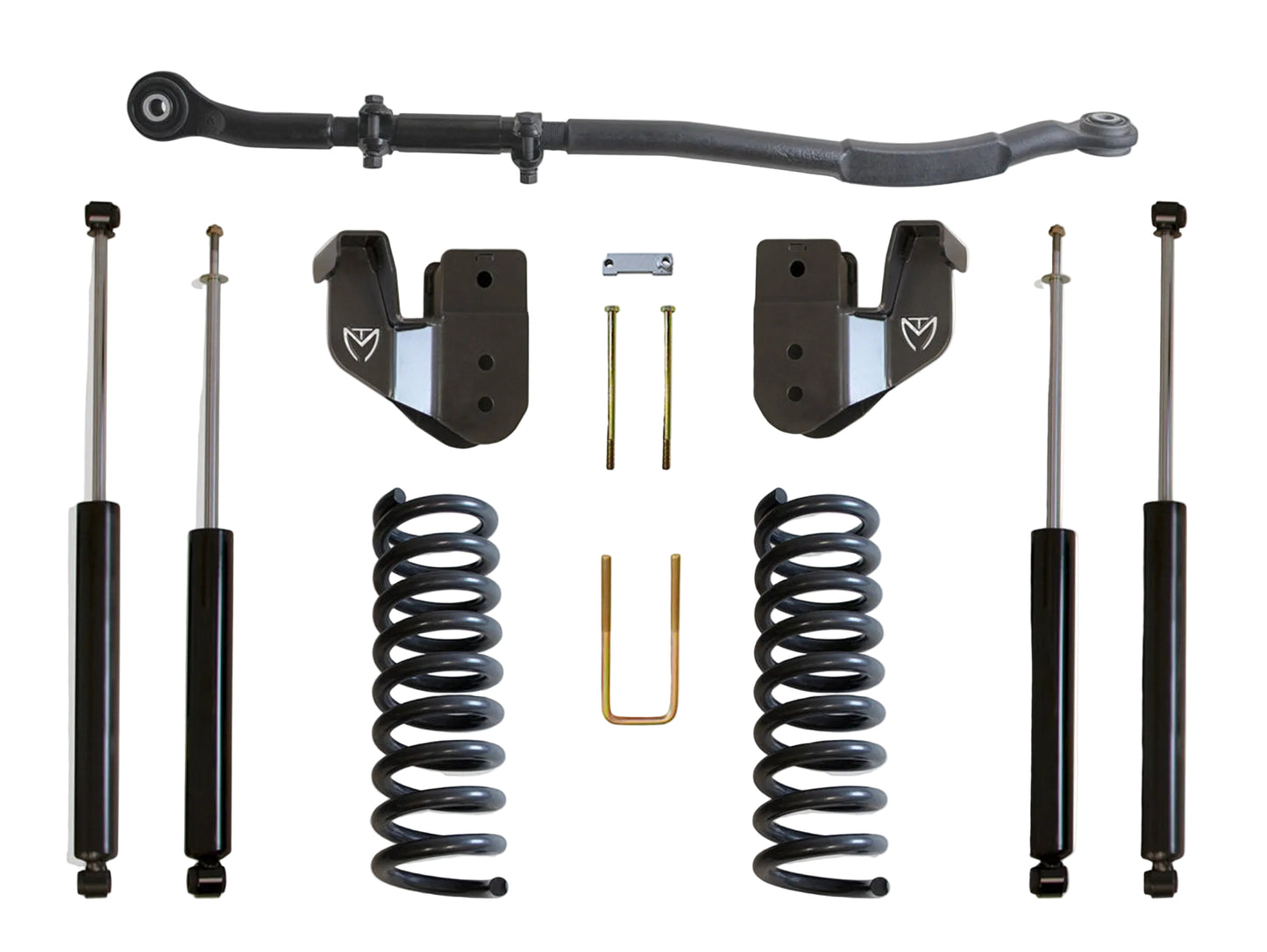

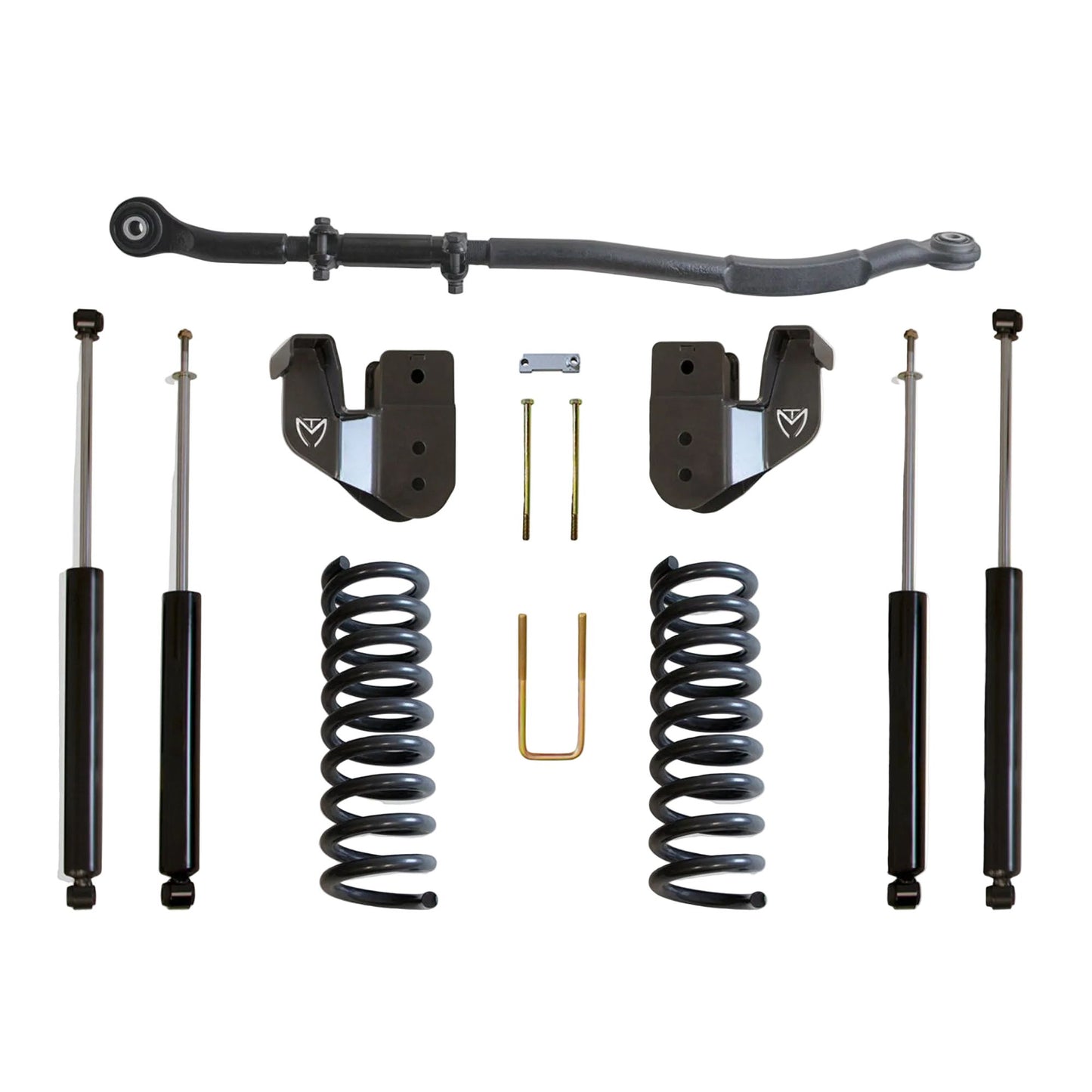

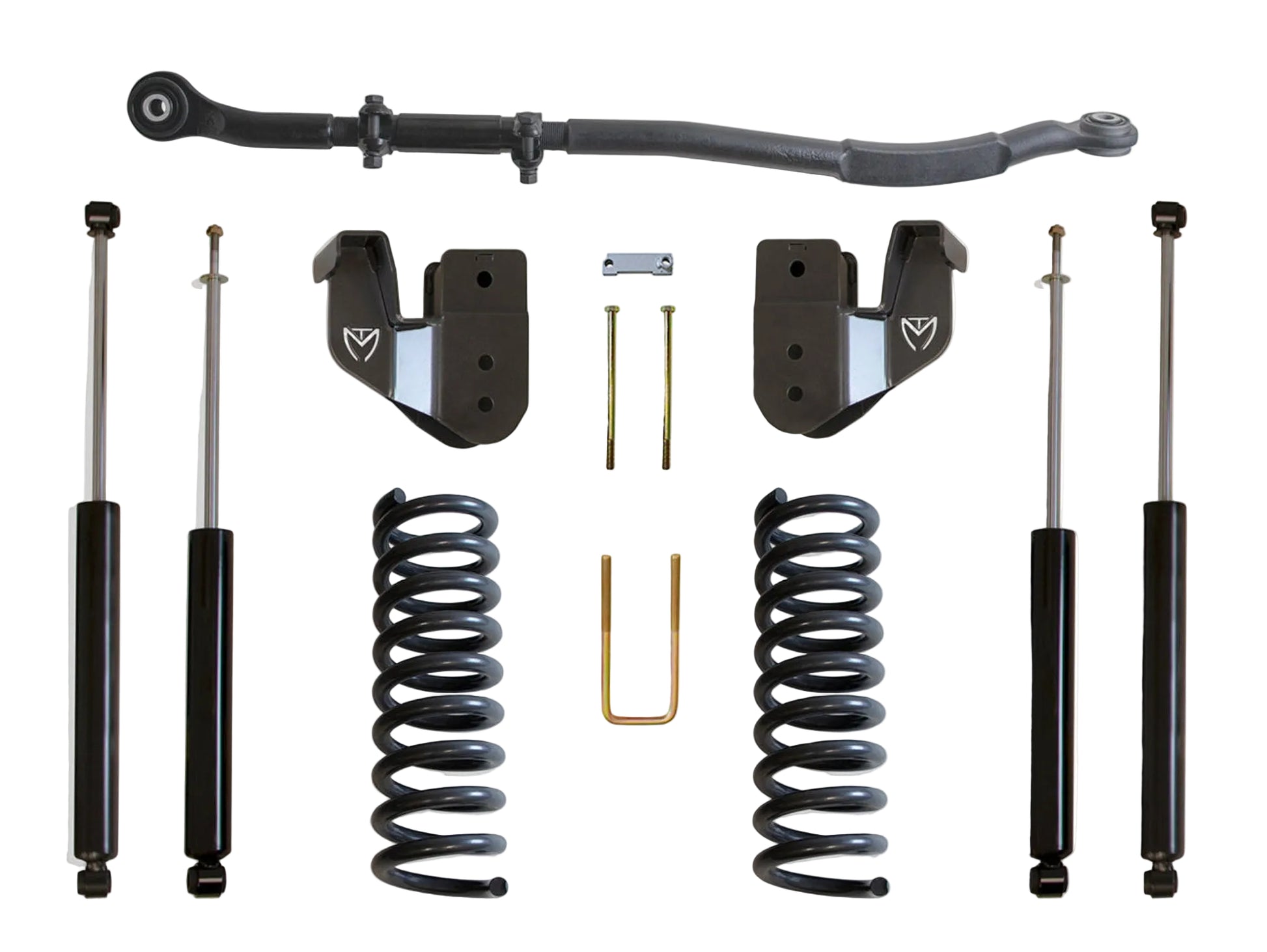

What's Included

Diesel front lift coils
Radius arm drop brackets
Adjustable front track bar
MaxTrac front shocks (2)
MaxTrac rear shocks (2)
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2013–2026 Ram 3500 4WD Diesel

Does Not Fit

Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 33x12.50-inch tires on 8- to 9-inch-wide wheels.
Minor fender trimming may be required depending on tire and wheel combination.
May fit gas models, but has not been tested by MaxTrac.
Does not fit Cab & Chassis (Fleet) models.
When ordering replacement shocks separately, order quantity two of each shock, as shocks are sold individually.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947325
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 2.5 Inches
Lift Height: 2.5 Inches
Engine Compatibility: Diesel
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Front Shocks: 2400SL-8 (Qty. 2)
Rear Shocks: 2800LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 160 lbs

Why Choose the MaxTrac K947325?

The MaxTrac K947325 provides everything needed to properly level your Ram 3500 diesel while maintaining factory-like ride quality and suspension geometry. With diesel-specific coils, an adjustable track bar, radius arm drop brackets, and matched MaxTrac shocks, it's an excellent upgrade for work trucks and daily drivers alike.

Perfect For

2013–2026 Ram 3500 4WD Diesel
Daily drivers
Work trucks
33-inch tire upgrades
Off-road enthusiasts
