MaxTrac K947285L 8" Lift Kit with Forged Aluminum 4-Links & MaxTrac Shocks for 2014-2018 Ram 2500 4WD Diesel

Premium 4-Link Suspension for Maximum Lift

Give your 2014–2018 Ram 2500 4WD Diesel the ultimate suspension upgrade with the MaxTrac K947285L Lift Kit. This premium suspension system delivers an 8-inch front lift and 5.5-inch rear lift using heavy-duty diesel lift coils, forged aluminum 4-links, track bar brackets, a pitman arm, sway bar brackets, rear coil spacers, and matched MaxTrac shocks at all four corners. Engineered for maximum strength and proper suspension geometry, this kit provides clearance for up to 40-inch tires while delivering outstanding ride quality on and off the road.

Key Features

Complete 8"/5.5" Suspension Lift System

A premium suspension package designed to maximize ground clearance, improve ride quality, and provide an aggressive lifted stance.

Heavy-Duty Diesel Lift Coils

Specifically engineered for diesel-powered Ram 2500 trucks to support the added front-end weight while delivering consistent lift height.

Forged Aluminum 4-Link System

Replaces the factory radius arms with high-strength forged aluminum 4-links for improved suspension articulation, steering precision, and long-term durability.

Complete Steering & Suspension Correction

Includes track bar brackets, sway bar brackets, a pitman arm, and rear coil spacers to maintain proper steering geometry and suspension performance after lifting.

MaxTrac Front & Rear Shocks Included

Includes (4) MaxTrac 2900SL-8 shocks for all four corners, providing superior ride comfort, stability, and suspension control in both on-road and off-road conditions.

Heavy-Duty Powder-Coated Steel Construction

Built from premium steel with a durable grey powder-coated finish to resist corrosion and provide years of dependable service.

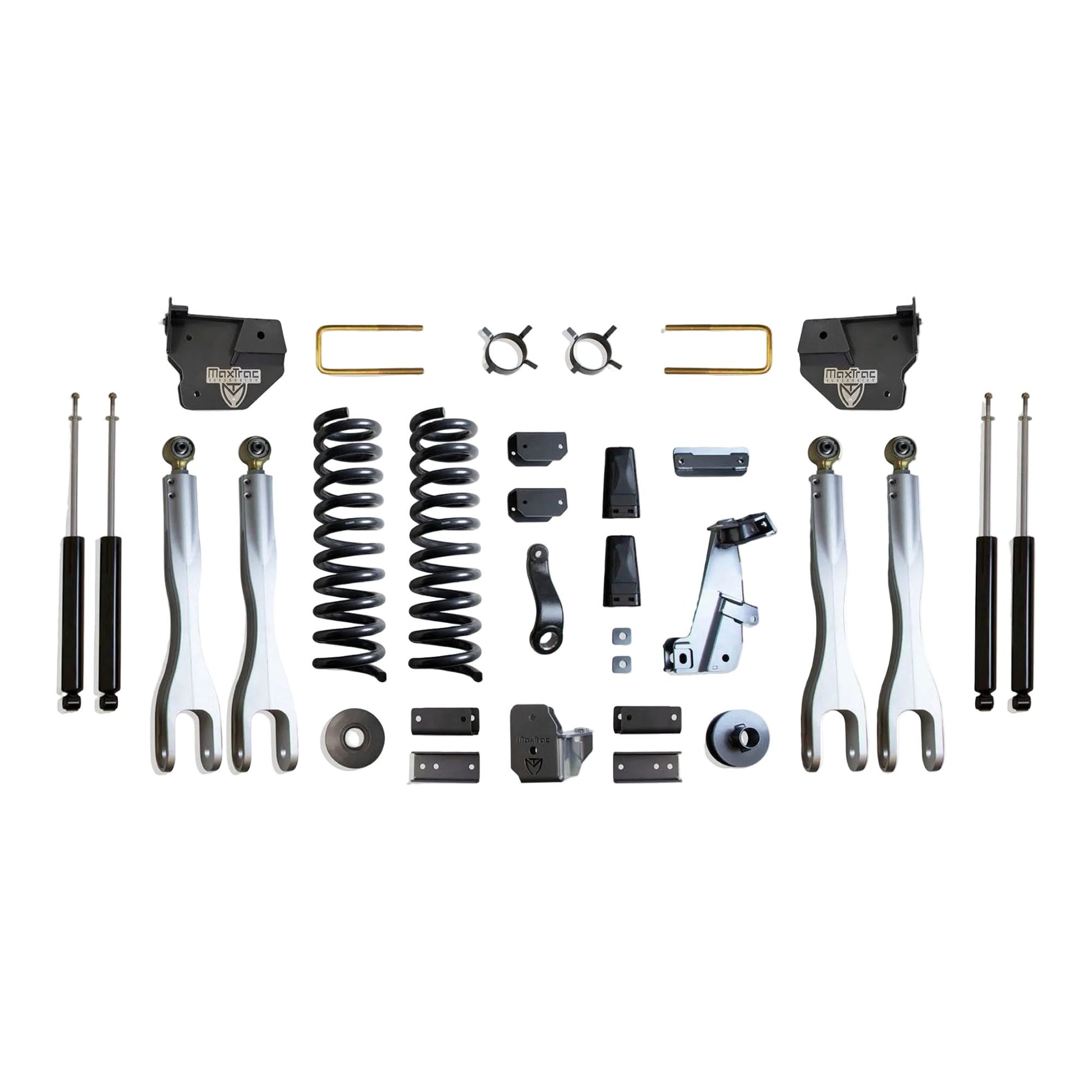

What's Included

Front diesel lift coils
Forged aluminum 4-links
Track bar brackets
Pitman arm
Sway bar brackets
Rear coil spacers
(4) MaxTrac 2900SL-8 shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2014–2018 Ram 2500 4WD Diesel

Does Not Fit

2WD models
Cab & Chassis (Fleet) models
Power Wagon models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 40x13.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
Kits may fit gas models but have not been tested on them.
Does not fit Cab & Chassis (Fleet) models.
Does not fit Power Wagon models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947285L
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 8 Inches
Rear Lift: 5.5 Inches
Lift Height Option: 8 Inches
Shock Option: MaxTrac
Kit Design: Forged Aluminum 4-Links
Shock Details: (4) MaxTrac 2900SL-8 Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 330 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947285L?

The MaxTrac K947285L is the premium 4-link version of MaxTrac's 8-inch Ram 2500 lift system. Featuring forged aluminum 4-links, diesel lift coils, steering correction components, rear coil spacers, and four matched MaxTrac shocks, this complete suspension package delivers exceptional durability, improved articulation, and clearance for up to 40-inch tires.

Perfect For

2014–2018 Ram 2500 4WD Diesel owners
40-inch tire upgrades
Off-road enthusiasts
Heavy-duty work trucks
Overland builds
Premium suspension builds
