MaxTrac K947285 8" Lift Kit with MaxTrac Shocks for 2014-2018 Ram 2500 4WD Diesel

Maximum Lift for Your Diesel Ram 2500

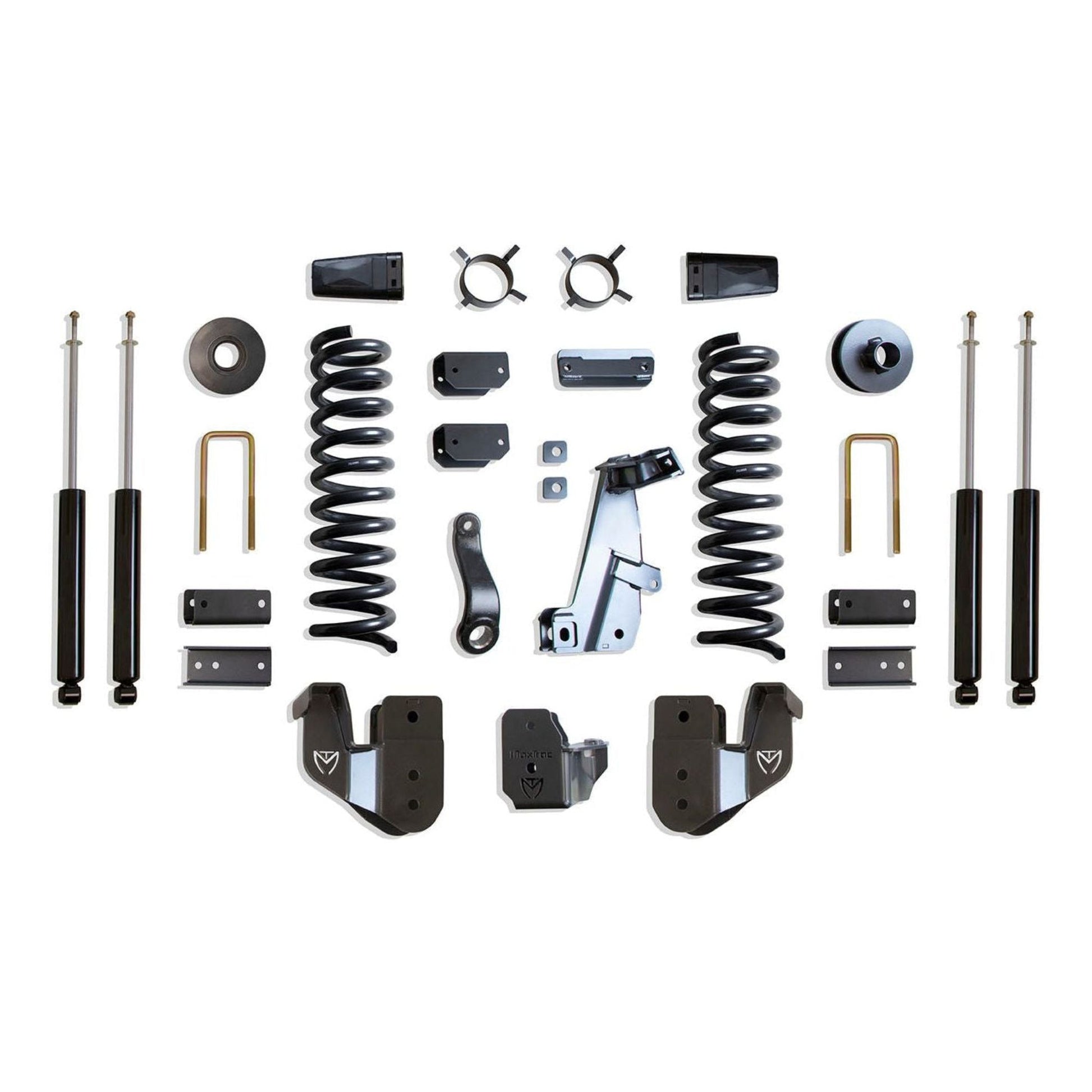

Take your 2014–2018 Ram 2500 4WD Diesel to new heights with the MaxTrac K947285 Lift Kit. This complete suspension system delivers an 8-inch front lift and 5.5-inch rear lift using heavy-duty diesel lift coils, radius arm drop brackets, track bar brackets, a pitman arm, sway bar brackets, bump stops, rear coil spacers, and matched MaxTrac shocks at all four corners. Designed to maintain proper steering geometry while clearing up to 40-inch tires, this kit delivers the aggressive stance and capability serious truck owners demand.

Key Features

Complete 8"/5.5" Suspension Lift System

A complete suspension package engineered for maximum ground clearance, superior ride quality, and exceptional off-road performance.

Heavy-Duty Diesel Lift Coils

Designed specifically for diesel-powered Ram 2500 models to support the added engine weight while maintaining proper ride height.

Radius Arm Drop Brackets

Maintains proper caster and suspension geometry to improve steering response, alignment, and overall handling after lifting.

Complete Steering & Suspension Correction

Includes track bar brackets, sway bar brackets, bump stops, and a pitman arm to maintain factory-style steering and suspension performance.

Rear Coil Spacers Included

Heavy-duty rear coil spacers provide a balanced 5.5-inch rear lift while preserving ride comfort and load-carrying capability.

MaxTrac Front & Rear Shocks Included

Includes (4) MaxTrac 2900SL-8 shocks for all four corners, providing excellent ride quality, stability, and suspension control on and off the road.

Heavy-Duty Powder-Coated Steel Construction

Manufactured from premium steel and finished with a durable grey powder coat for outstanding strength and corrosion resistance.

What's Included

Front diesel lift coils
Radius arm drop brackets
Track bar brackets
Pitman arm
Sway bar brackets
Bump stops
Rear coil spacers
(4) MaxTrac 2900SL-8 shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2014–2018 Ram 2500 4WD Diesel

Does Not Fit

2WD models
Cab & Chassis (Fleet) models
Power Wagon models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 40x13.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
Kits may fit gas models but have not been tested on them.
Does not fit Cab & Chassis (Fleet) models.
Does not fit Power Wagon models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947285
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 8 Inches
Rear Lift: 5.5 Inches
Lift Height Option: 8 Inches
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Shock Details: (4) MaxTrac 2900SL-8 Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 225 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947285?

The MaxTrac K947285 is engineered specifically for 2014–2018 Ram 2500 4WD Diesel trucks. Featuring diesel lift coils, radius arm drop brackets, steering correction components, rear coil spacers, and four matched MaxTrac shocks, this complete suspension system delivers excellent ride quality, dependable handling, and clearance for up to 40-inch tires.

Perfect For

2014–2018 Ram 2500 4WD Diesel owners
40-inch tire upgrades
Off-road enthusiasts
Heavy-duty work trucks
Overland builds
Complete suspension lift installations
