MaxTrac K947263 6" Lift Kit with MaxTrac Shocks for 2014-2018 Ram 2500 4WD Diesel

Take Your Diesel Ram to the Next Level

Give your 2014–2018 Ram 2500 4WD Diesel the clearance and capability it deserves with the MaxTrac K947263 Lift Kit. This complete suspension system delivers a 6-inch front lift and 3.5-inch rear lift using heavy-duty diesel lift coils, radius arm drop brackets, track bar brackets, a pitman arm, sway bar brackets, bump stops, rear coil spacers, and matched MaxTrac front and rear shocks. Designed to preserve proper suspension geometry while providing clearance for up to 38-inch tires, this kit is ready for work, towing, and off-road adventures.

Key Features

Complete 6"/3.5" Suspension Lift System

A complete suspension package engineered to increase ground clearance, improve ride quality, and provide an aggressive lifted stance.

Heavy-Duty Diesel Lift Coils

Specifically designed for diesel-powered Ram 2500 trucks to properly support the additional engine weight while maintaining consistent lift height.

Radius Arm Drop Brackets

Maintains proper caster and front suspension geometry for improved steering response, handling, and alignment after lifting.

Complete Steering & Suspension Correction

Includes track bar brackets, sway bar brackets, bump stops, and a pitman arm to maintain factory-style suspension operation and steering performance.

Rear Coil Spacers Included

Heavy-duty rear coil spacers provide a balanced 3.5-inch rear lift while preserving ride quality and load-carrying capability.

MaxTrac Front & Rear Shocks Included

Includes (4) MaxTrac 2800SL-8 shocks for all four corners, delivering improved ride comfort, stability, and suspension control on and off the road.

Heavy-Duty Powder-Coated Steel Construction

Manufactured from premium steel and finished in a durable grey powder coat for superior strength and corrosion resistance.

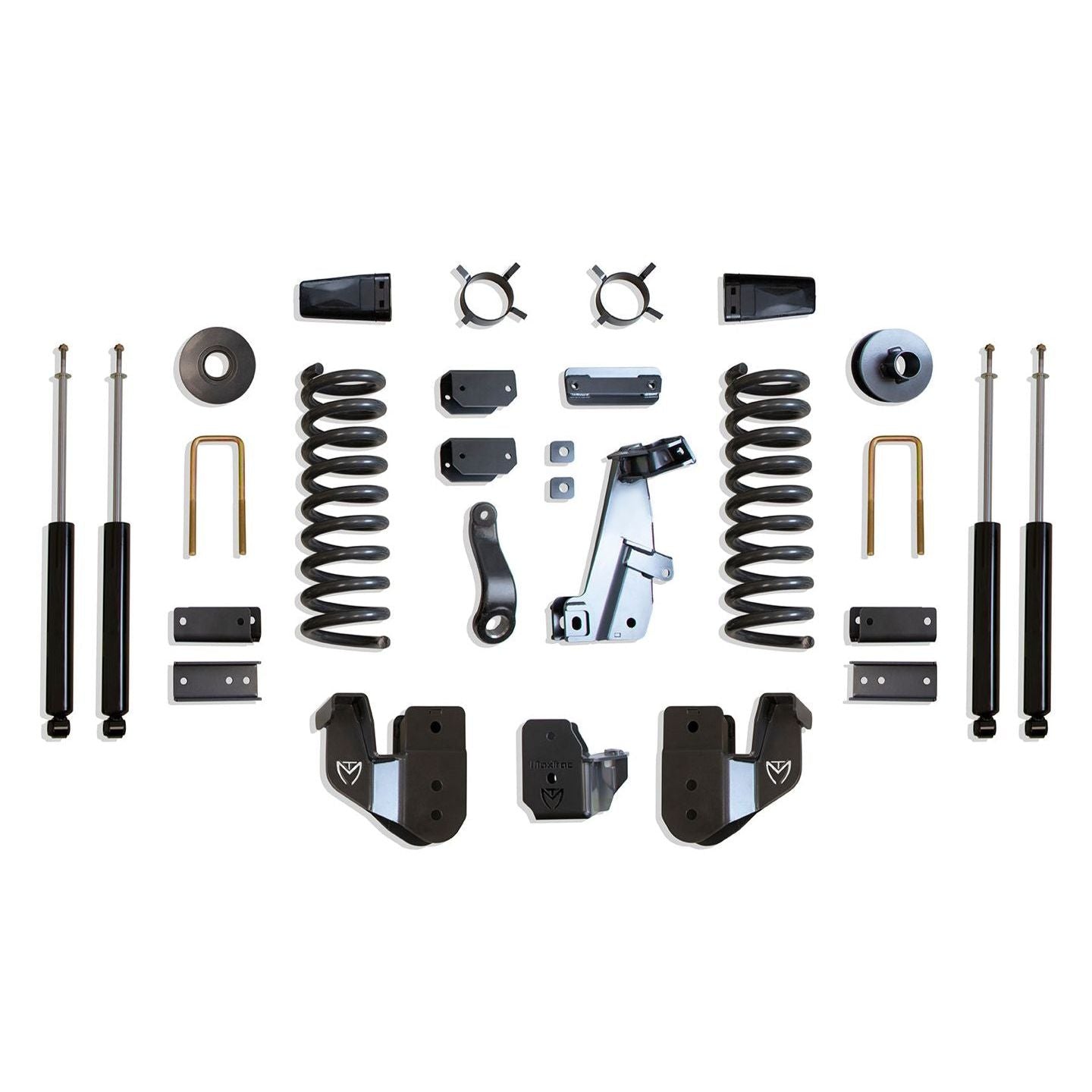

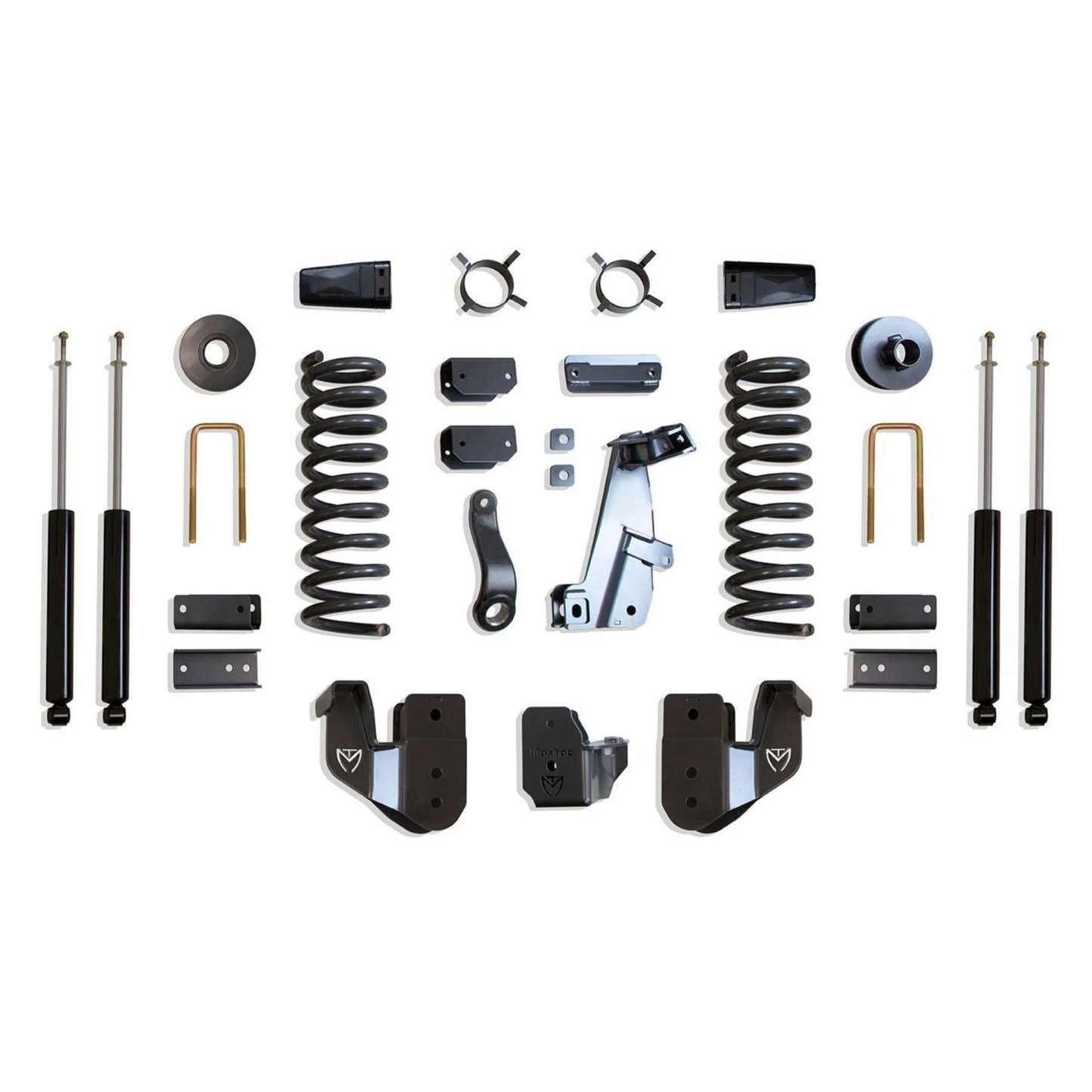

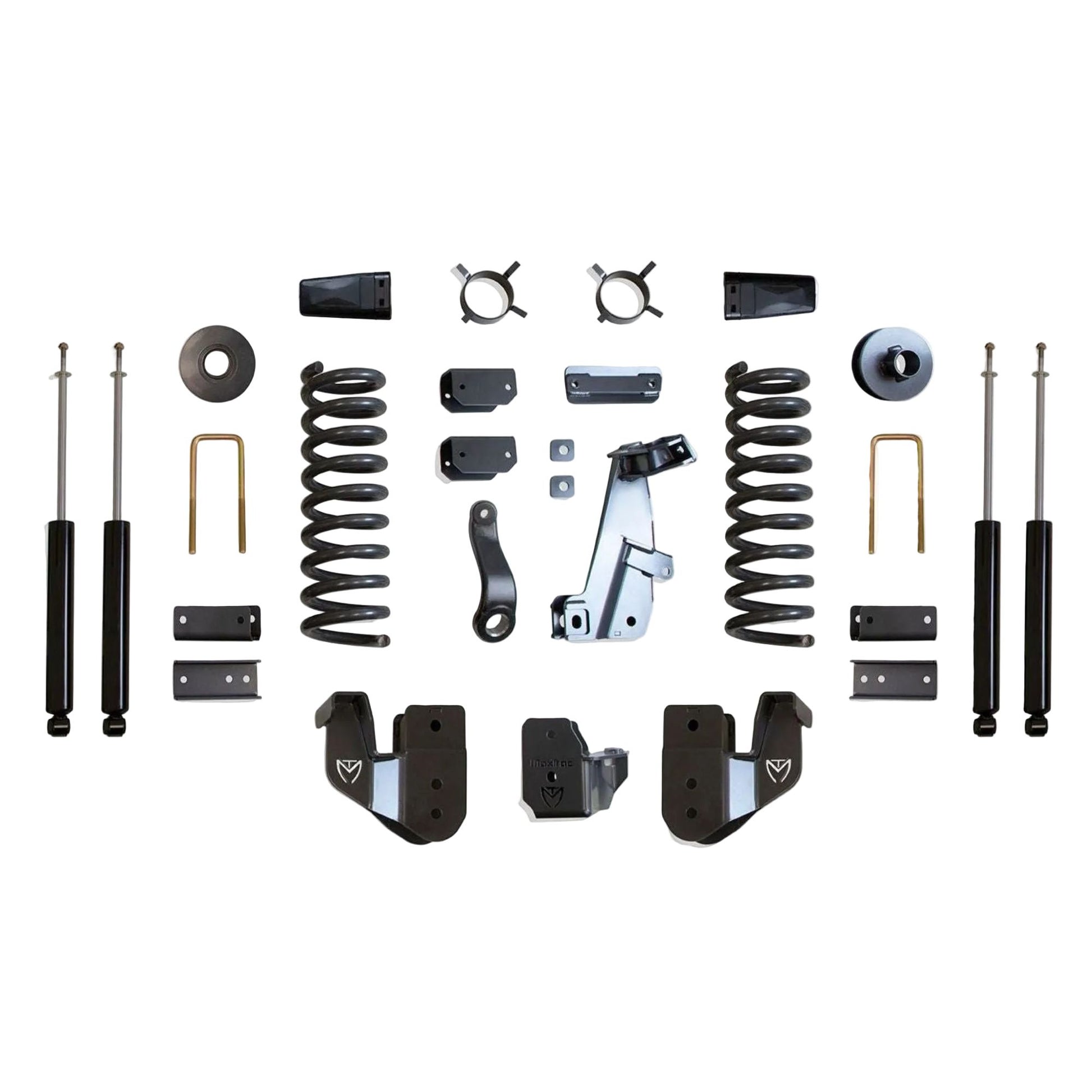

What's Included

Front diesel lift coils
Radius arm drop brackets
Track bar brackets
Pitman arm
Sway bar brackets
Bump stops
Rear coil spacers
(4) MaxTrac 2800SL-8 shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2014–2018 Ram 2500 4WD Diesel

Does Not Fit

2WD models
Cab & Chassis (Fleet) models
Power Wagon models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 38x13.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
Kits may fit gas models but have not been tested on them.
Does not fit Cab & Chassis (Fleet) models.
Does not fit Power Wagon models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947263
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6 Inches
Rear Lift: 3.5 Inches
Lift Height Option: 6 Inches
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Shock Details: (4) MaxTrac 2800SL-8 Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 215 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947263?

The MaxTrac K947263 is engineered specifically for 2014–2018 Ram 2500 4WD Diesel trucks. Featuring diesel lift coils, radius arm drop brackets, steering correction components, rear coil spacers, and four matched MaxTrac shocks, this complete suspension system delivers dependable handling, improved ride quality, and clearance for up to 38-inch tires.

Perfect For

2014–2018 Ram 2500 4WD Diesel owners
38-inch tire upgrades
Off-road enthusiasts
Heavy-duty work trucks
Overland builds
Complete suspension lift installations
