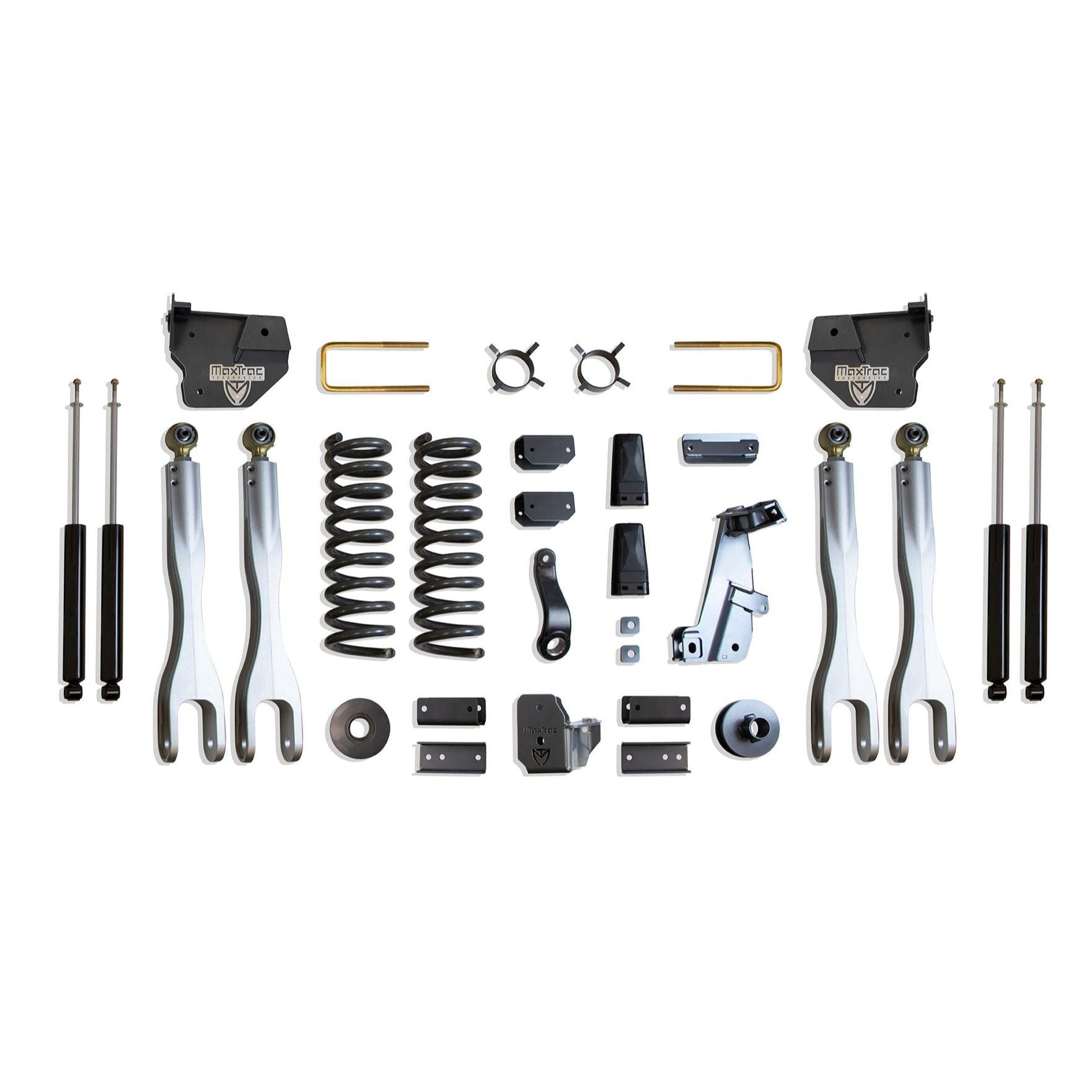

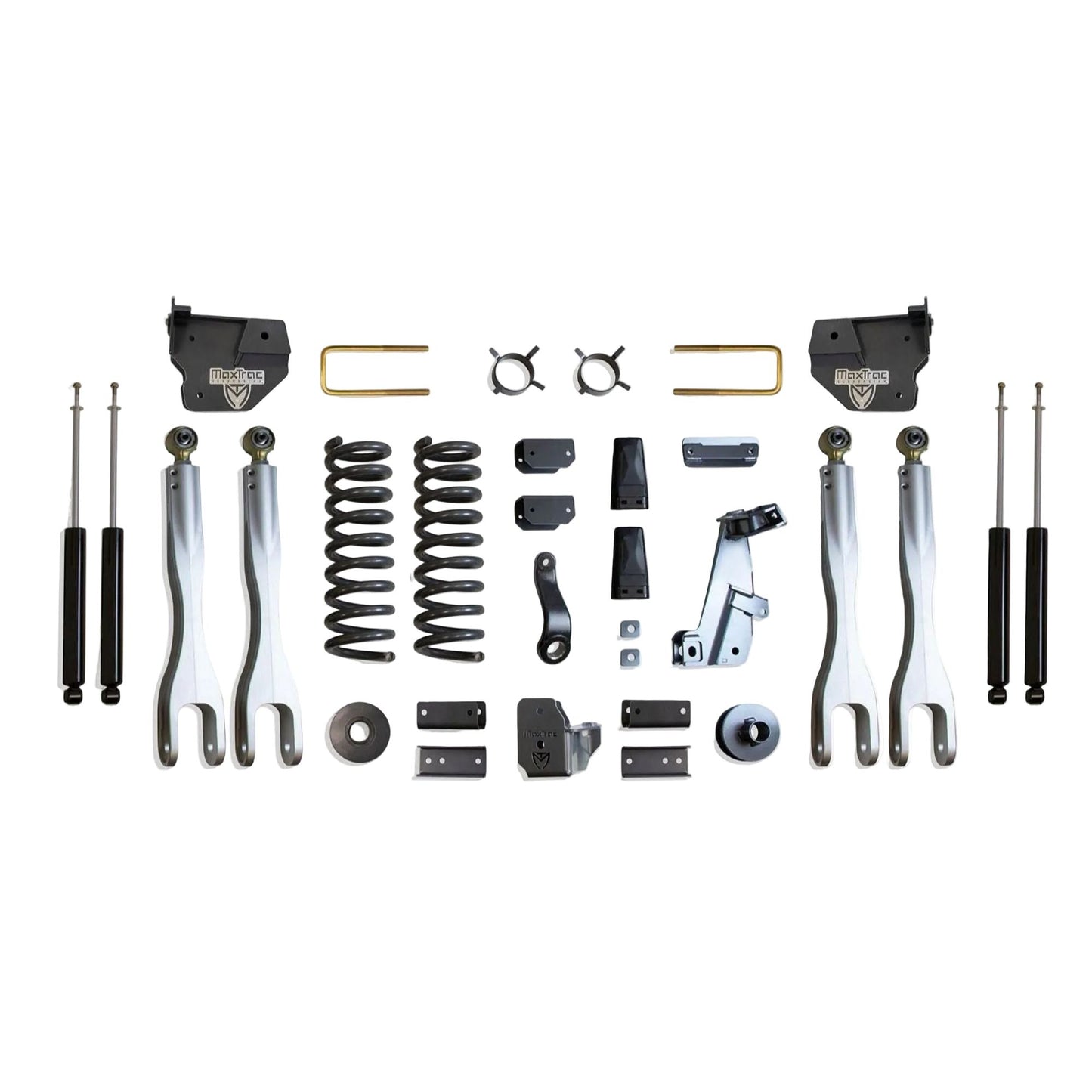

MaxTrac K947241L 4" Lift Kit with Forged Aluminum 4-Links & MaxTrac Shocks for 2014-2018 Ram 2500 4WD Diesel

Premium 4-Link Suspension for Your Diesel Ram

Upgrade your 2014–2018 Ram 2500 4WD Diesel with the MaxTrac K947241L Lift Kit. This premium suspension system delivers a 4-inch front lift and 1.5-inch rear lift using heavy-duty diesel lift coils, forged aluminum 4-links, track bar brackets, a pitman arm, sway bar brackets, bump stops, rear coil spacers, and matched MaxTrac shocks at all four corners. Engineered to maintain proper suspension geometry while clearing up to 37-inch tires, this kit offers superior strength, handling, and off-road performance.

Key Features

Complete 4"/1.5" Suspension Lift System

A premium suspension package designed to improve ground clearance, ride quality, and off-road capability while maintaining factory steering geometry.

Heavy-Duty Diesel Lift Coils

Designed specifically for diesel-powered Ram 2500 models to support the additional front-end weight while providing consistent lift height.

Forged Aluminum 4-Link System

Replaces the factory radius arms with high-strength forged aluminum 4-links for improved suspension articulation, steering response, and long-term durability.

Complete Steering & Suspension Correction

Includes track bar brackets, sway bar brackets, bump stops, and a pitman arm to maintain proper suspension alignment and steering performance after lifting.

MaxTrac Front & Rear Shocks Included

Includes (4) MaxTrac 2650SL-8 shocks for all four corners, delivering outstanding ride comfort, stability, and suspension control.

Heavy-Duty Powder-Coated Steel Construction

Premium suspension components feature a durable grey powder-coated finish for excellent corrosion resistance and long-lasting reliability.

What's Included

Front diesel lift coils
Forged aluminum 4-links
Track bar brackets
Pitman arm
Sway bar brackets
Bump stops
Rear coil spacers
(4) MaxTrac 2650SL-8 shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2014–2018 Ram 2500 4WD Diesel

Does Not Fit

2WD models
Cab & Chassis (Fleet) models
Power Wagon models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 37x12.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Does not fit 2WD models.
Kits may fit gas models but have not been tested on them.
Does not fit Cab & Chassis (Fleet) models.
Does not fit Power Wagon models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947241L
UPC: N/A
Engine Type: Diesel
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 4 Inches
Rear Lift: 1.5 Inches
Lift Height Option: 4 Inches
Shock Option: MaxTrac
Kit Design: Forged Aluminum 4-Links
Shock Details: (4) MaxTrac 2650SL-8 Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 325 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K947241L?

The MaxTrac K947241L is the premium 4-link version of MaxTrac's 4-inch Ram 2500 lift system. Featuring forged aluminum 4-links, diesel lift coils, steering correction components, rear coil spacers, and four matched MaxTrac shocks, this complete suspension package delivers exceptional strength, improved articulation, and clearance for up to 37-inch tires.

Perfect For

2014–2018 Ram 2500 4WD Diesel owners
37-inch tire upgrades
Off-road enthusiasts
Heavy-duty work trucks
Overland builds
Premium suspension builds
